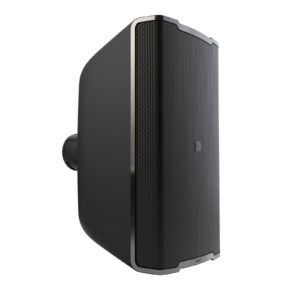

When you need a reliable loudspeaker solution that delivers clear, powerful sound in both indoor and outdoor environments, the LD System DQOR 8 T B stands out as an exceptional choice. Whether you are outfitting a conference room, retail space, restaurant patio, or public venue, this two-way passive loudspeaker is designed to meet the demands of professional audio installations with ease. Its robust construction, versatile mounting options, and adaptable power settings ensure that your audio experience is both consistent and impressive, no matter the setting.

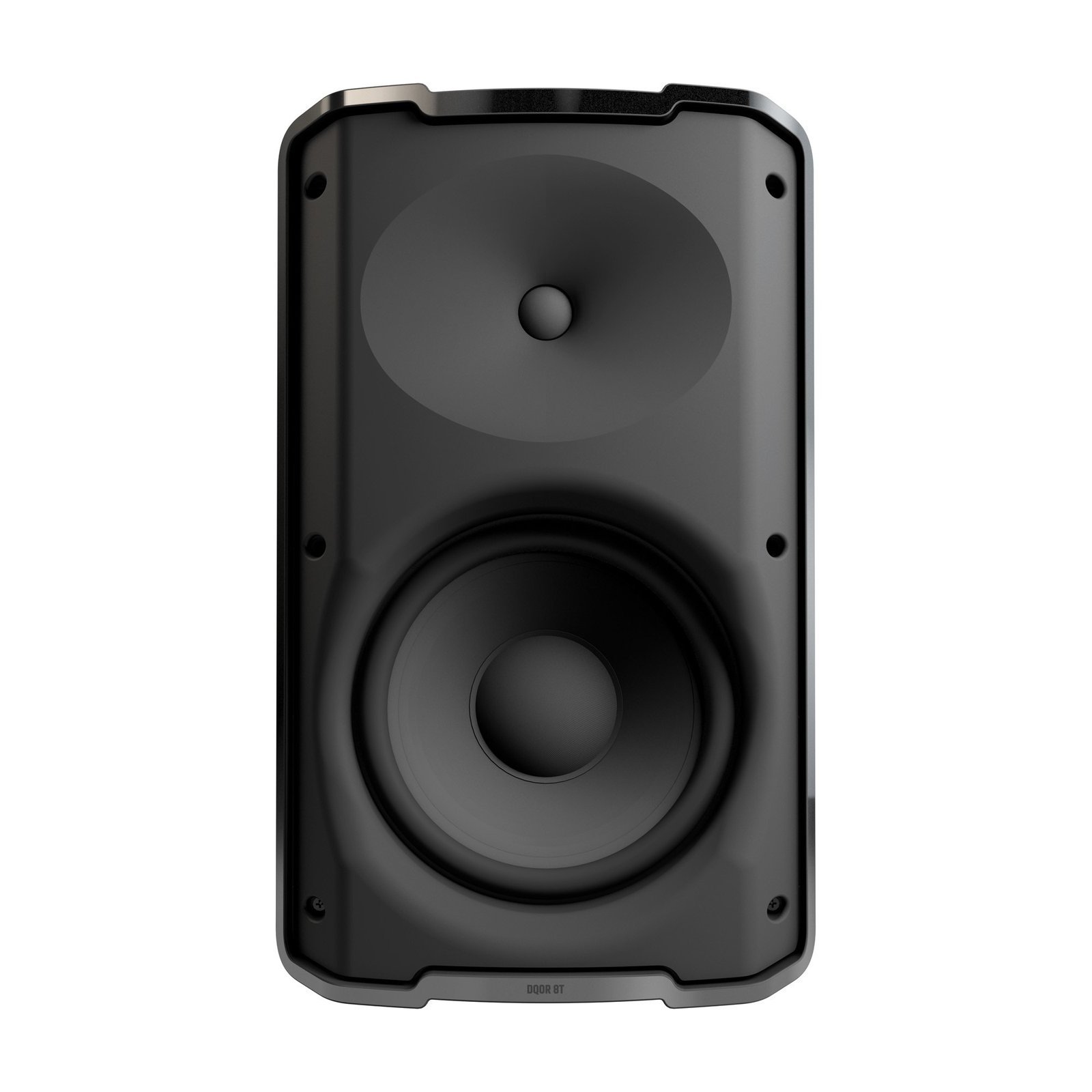

One of the key benefits of the DQOR 8 T B is its impressive power handling capabilities. With a peak load capacity of 240 watts and an RMS load capacity of 120 watts, this speaker can deliver high sound pressure levels up to 88 dB at one watt, measured at one meter. This means you get clear and intelligible sound that fills the space without distortion, enhancing the audience’s experience whether it’s spoken word or music. The two-way speaker system, featuring an 8-inch bass driver and a 1-inch soft dome tweeter, ensures a balanced frequency response from 62 Hz to 20,000 Hz, providing rich lows and crisp highs for a full-range audio performance.

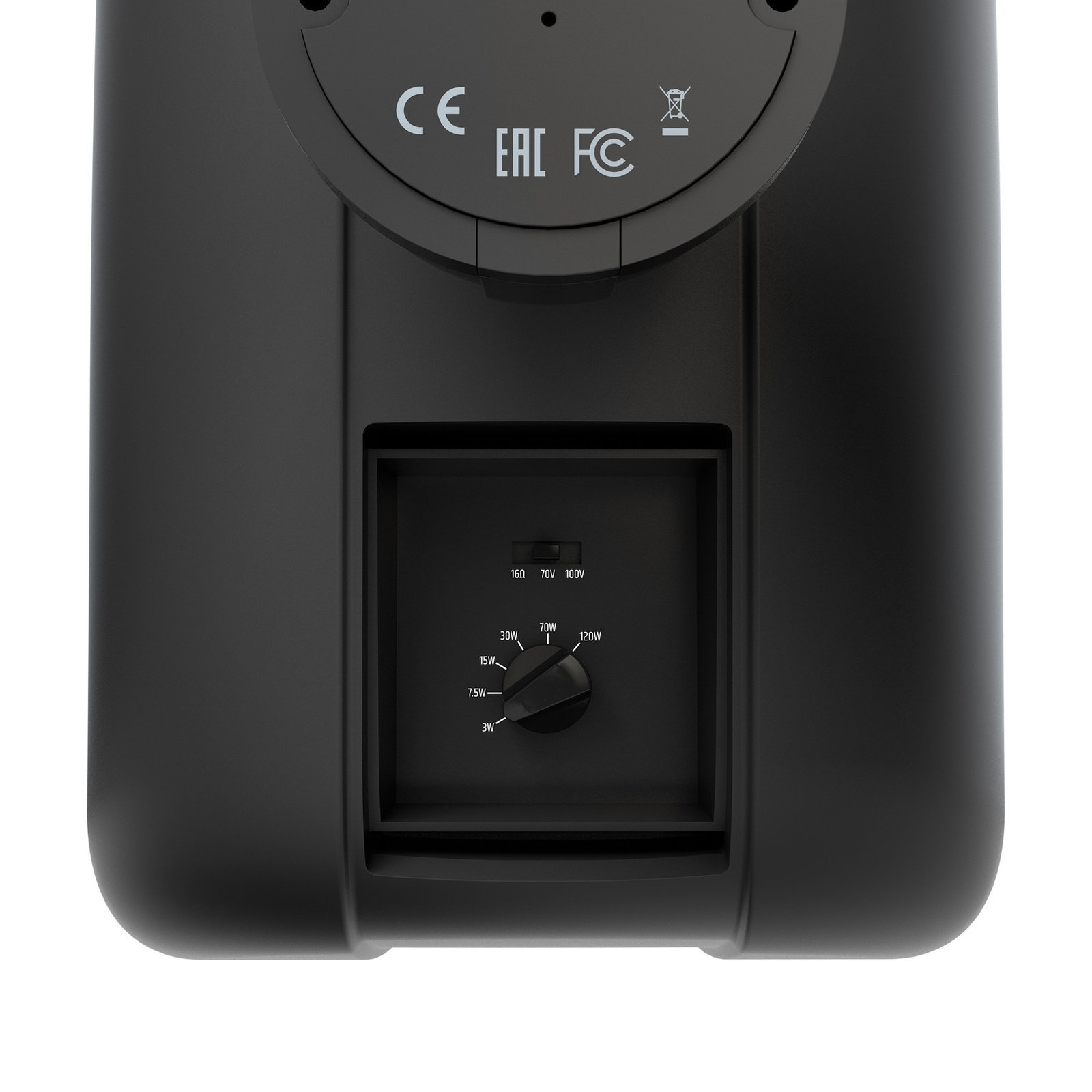

The DQOR 8 T B is designed for flexible deployment with multiple operating modes including 16 ohm low impedance, 70 volt, and 100 volt line transformer options. This versatility simplifies integration with existing audio infrastructure, allowing easy connection to amplifiers optimized for different load settings. Transformer taps ranging from 3 watts to 120 watts give you precise control over volume and power distribution, which is essential for large-scale installations requiring multiple speakers to work harmoniously without overloading the system.

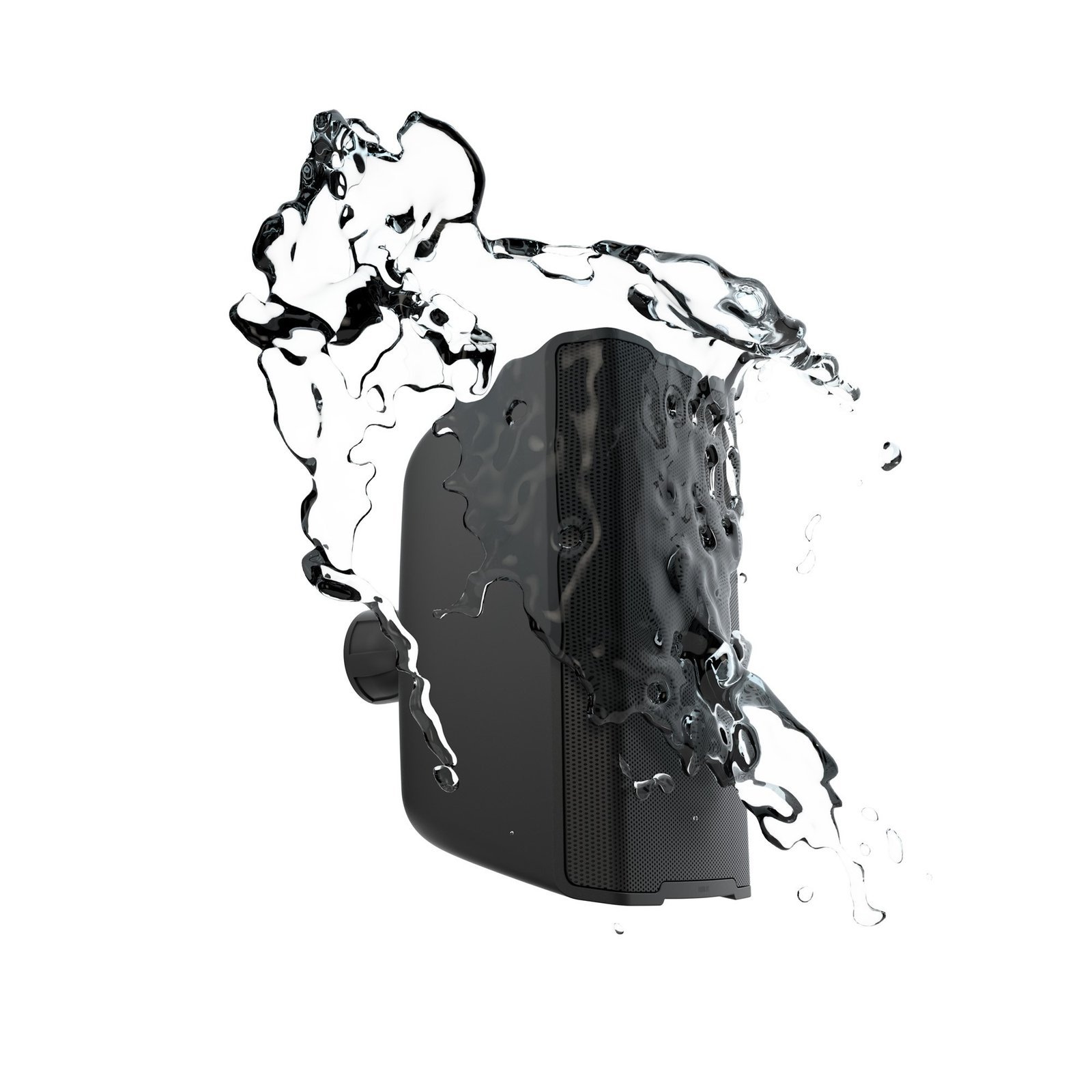

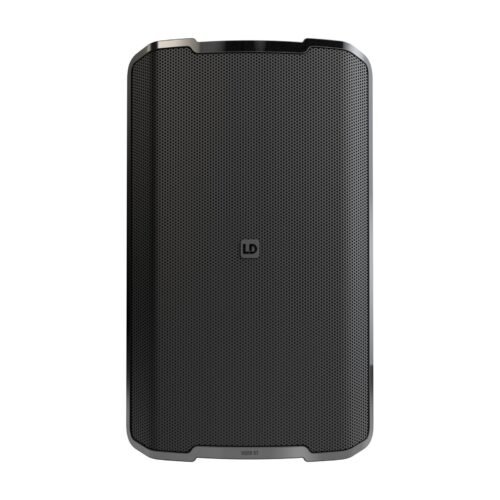

Durability and weather resistance are paramount for speakers used outdoors or in challenging environments, and this model excels with an IP55 protection rating. The enclosure is constructed from sturdy ABS material, paired with an aluminum front grille, protecting internal components from dust, moisture, and temperature extremes ranging from -30 to 50 degrees Celsius. This rugged design ensures consistent performance year-round, reducing maintenance needs and prolonging the lifespan of your investment.

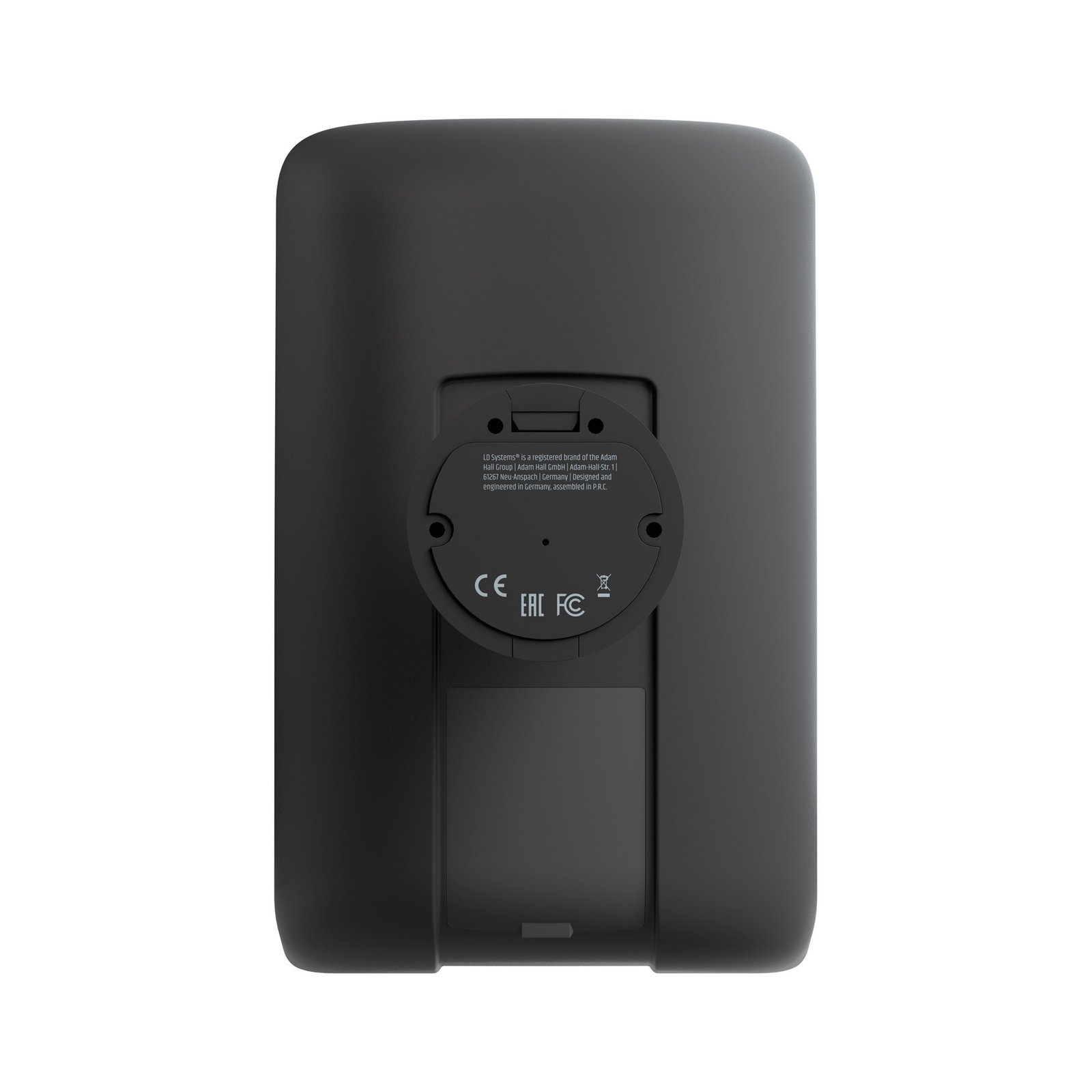

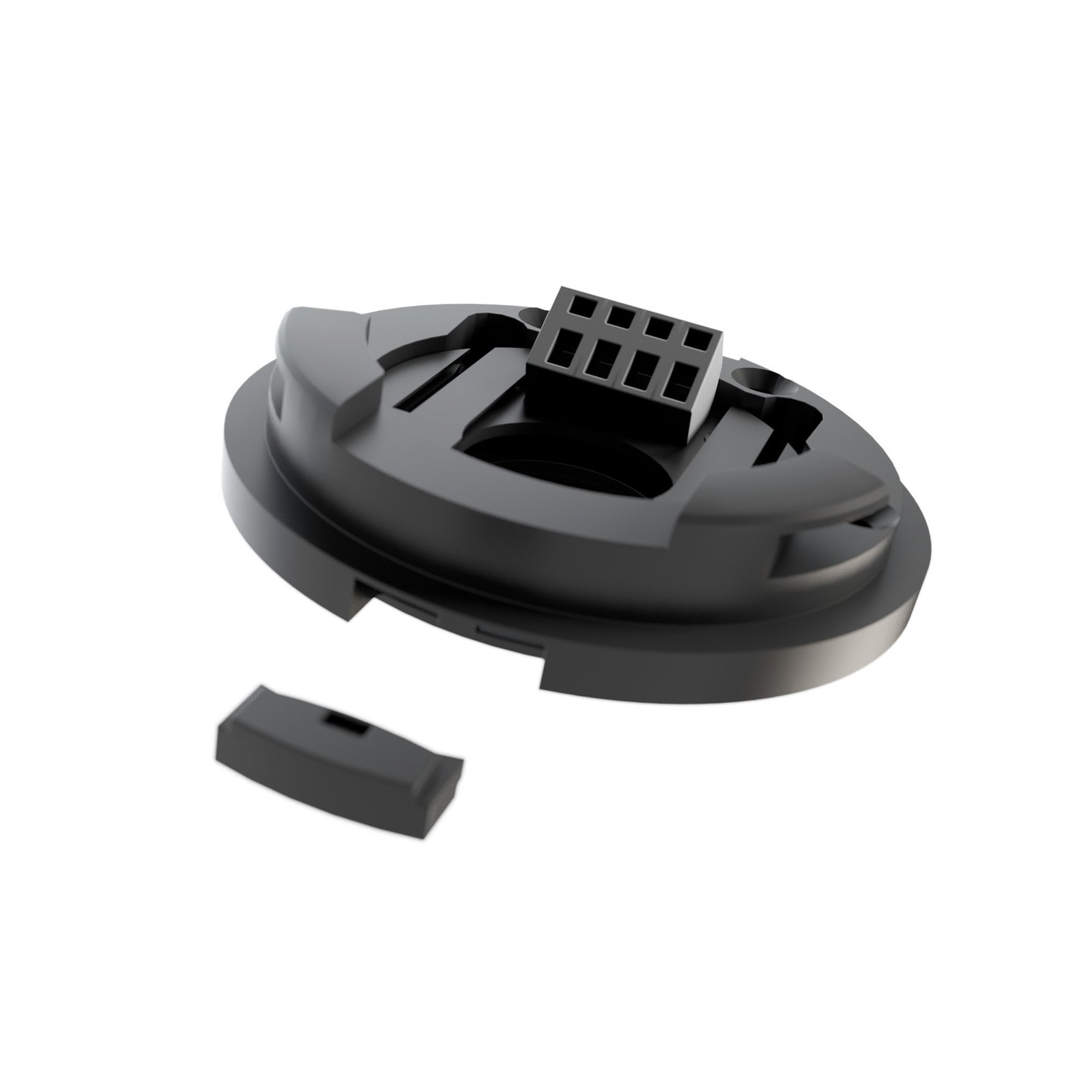

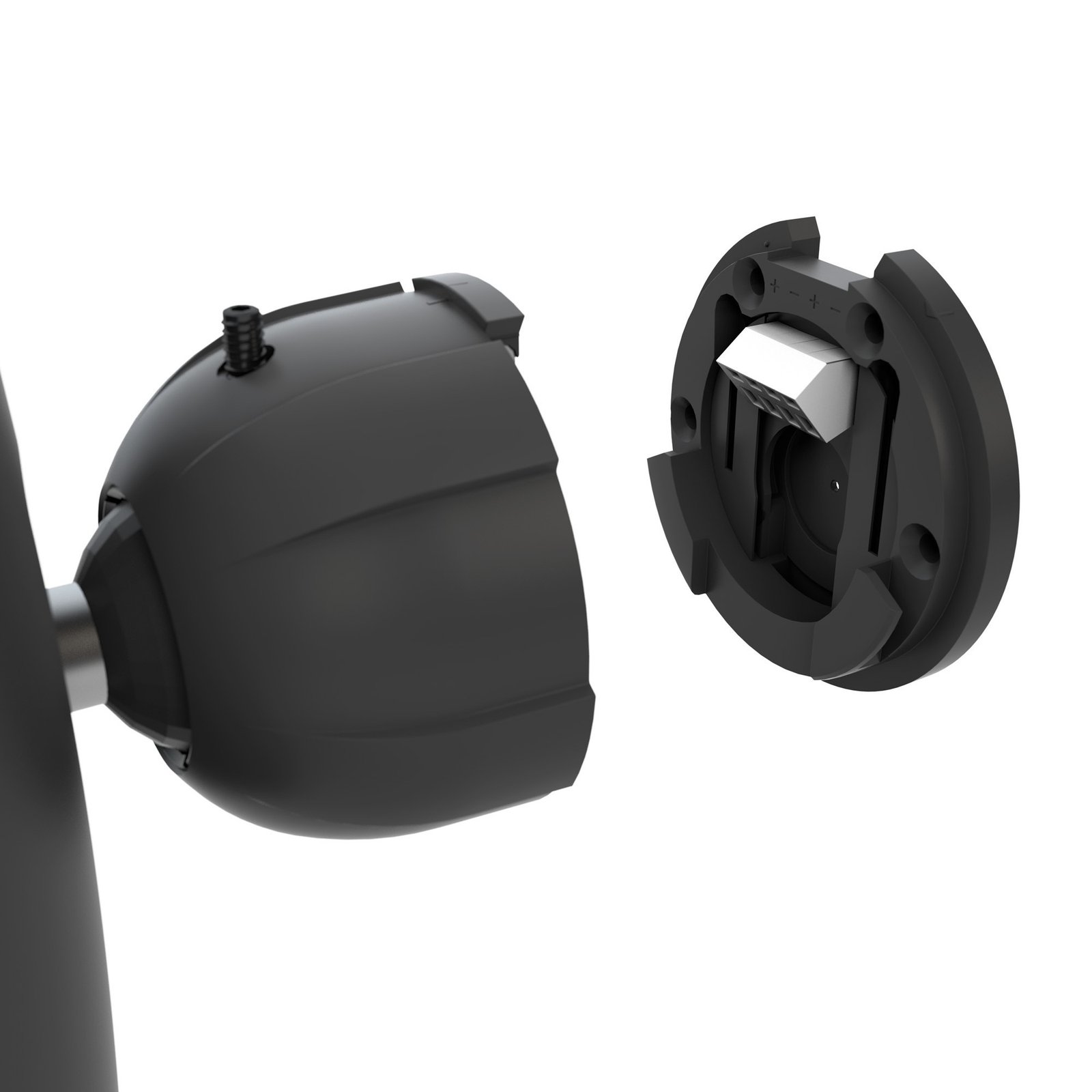

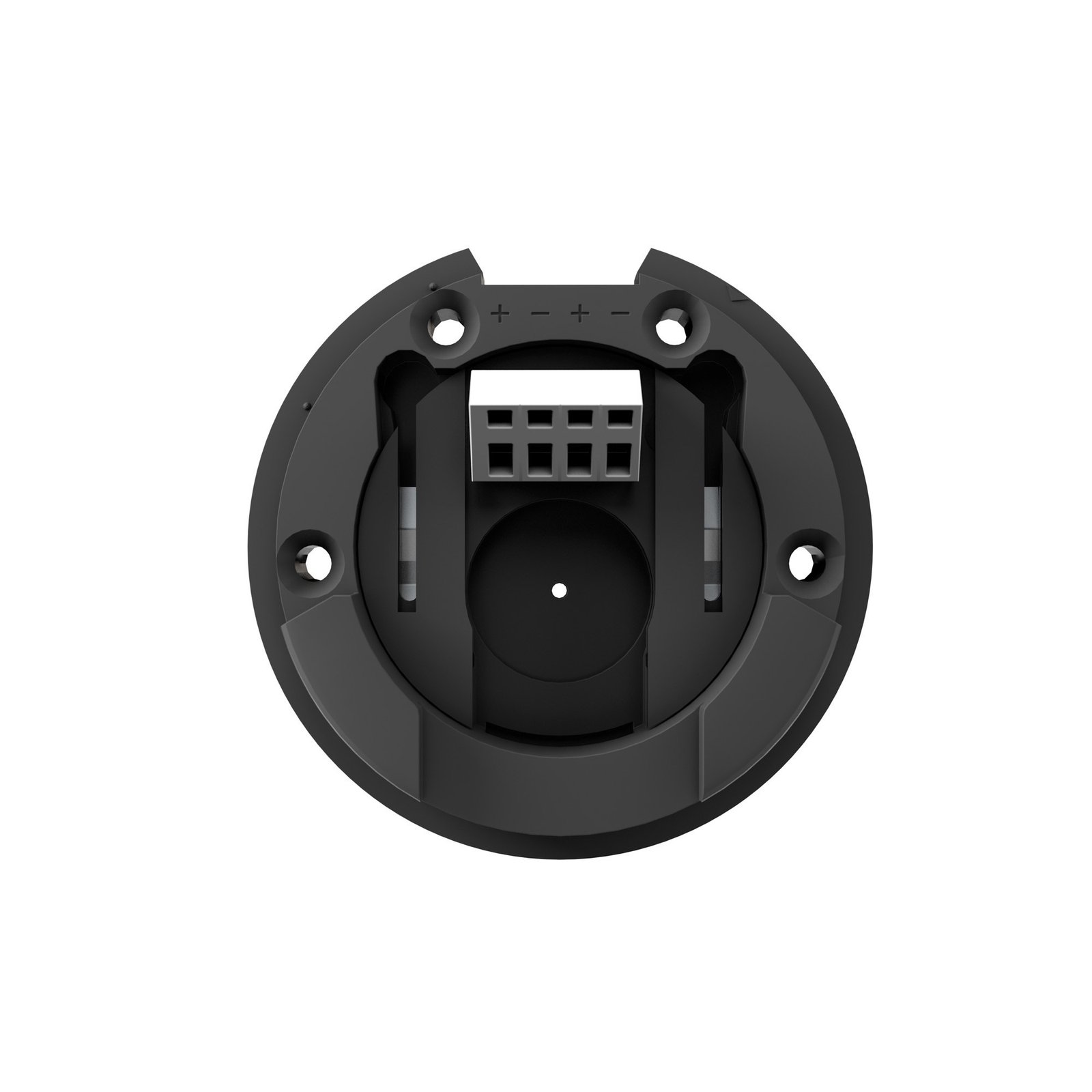

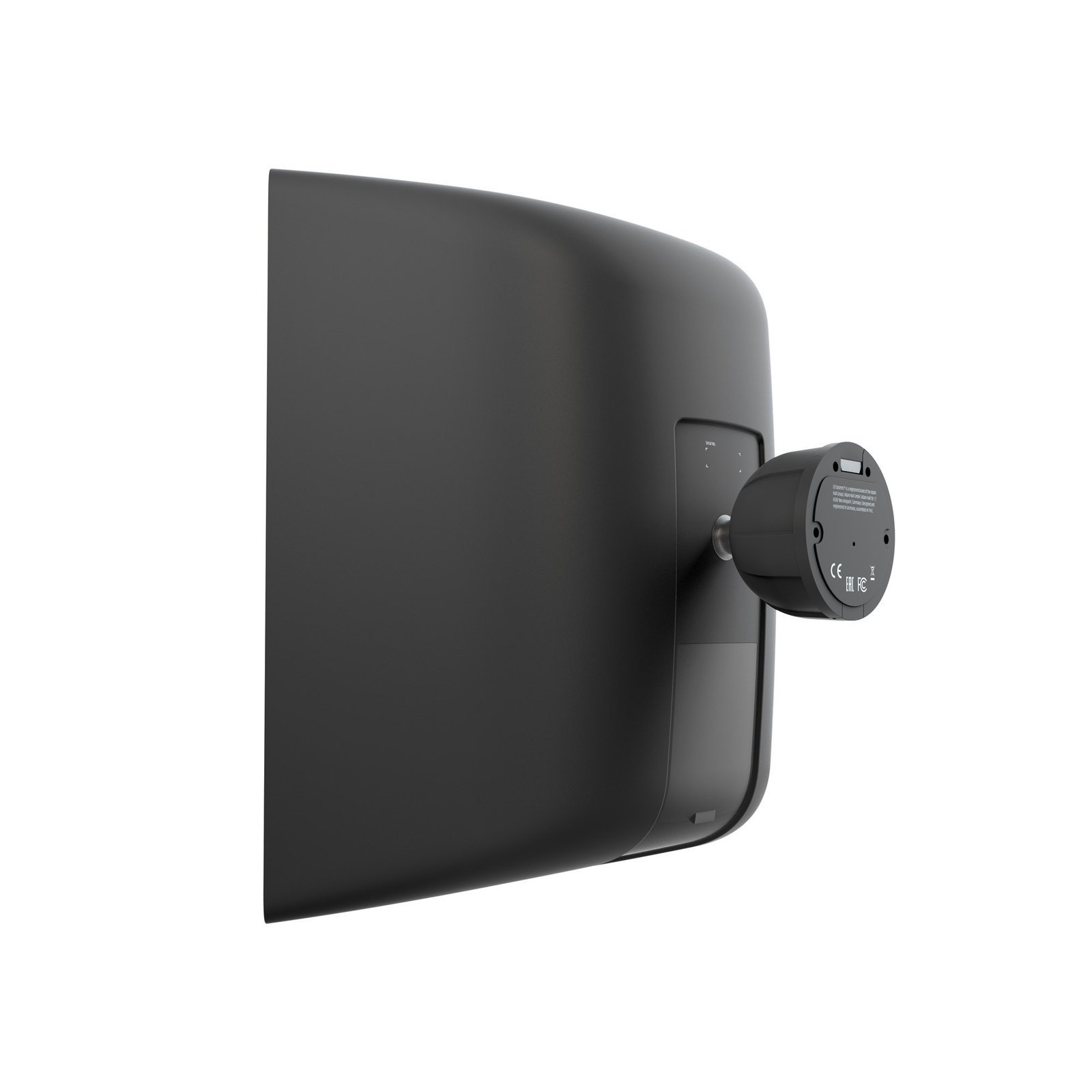

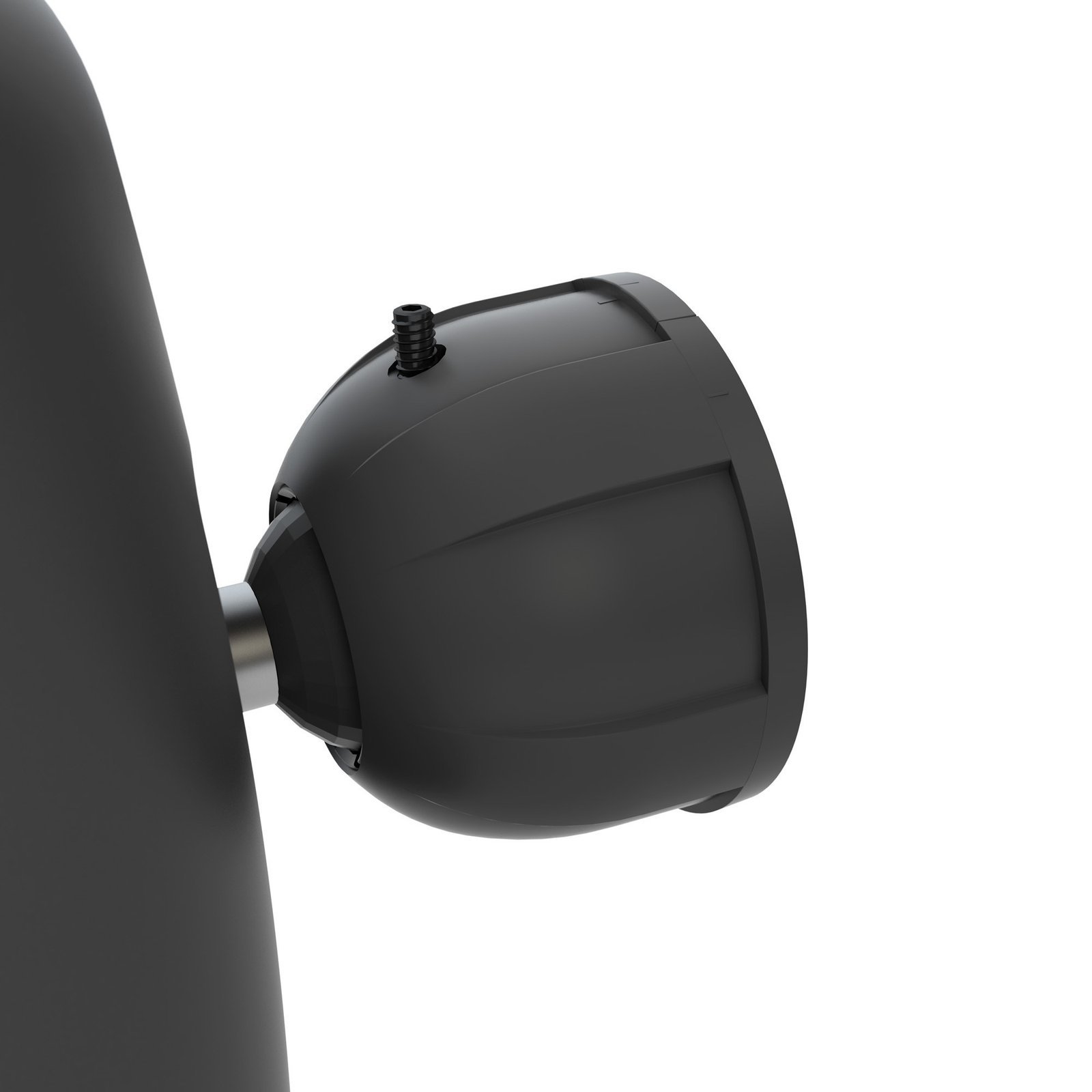

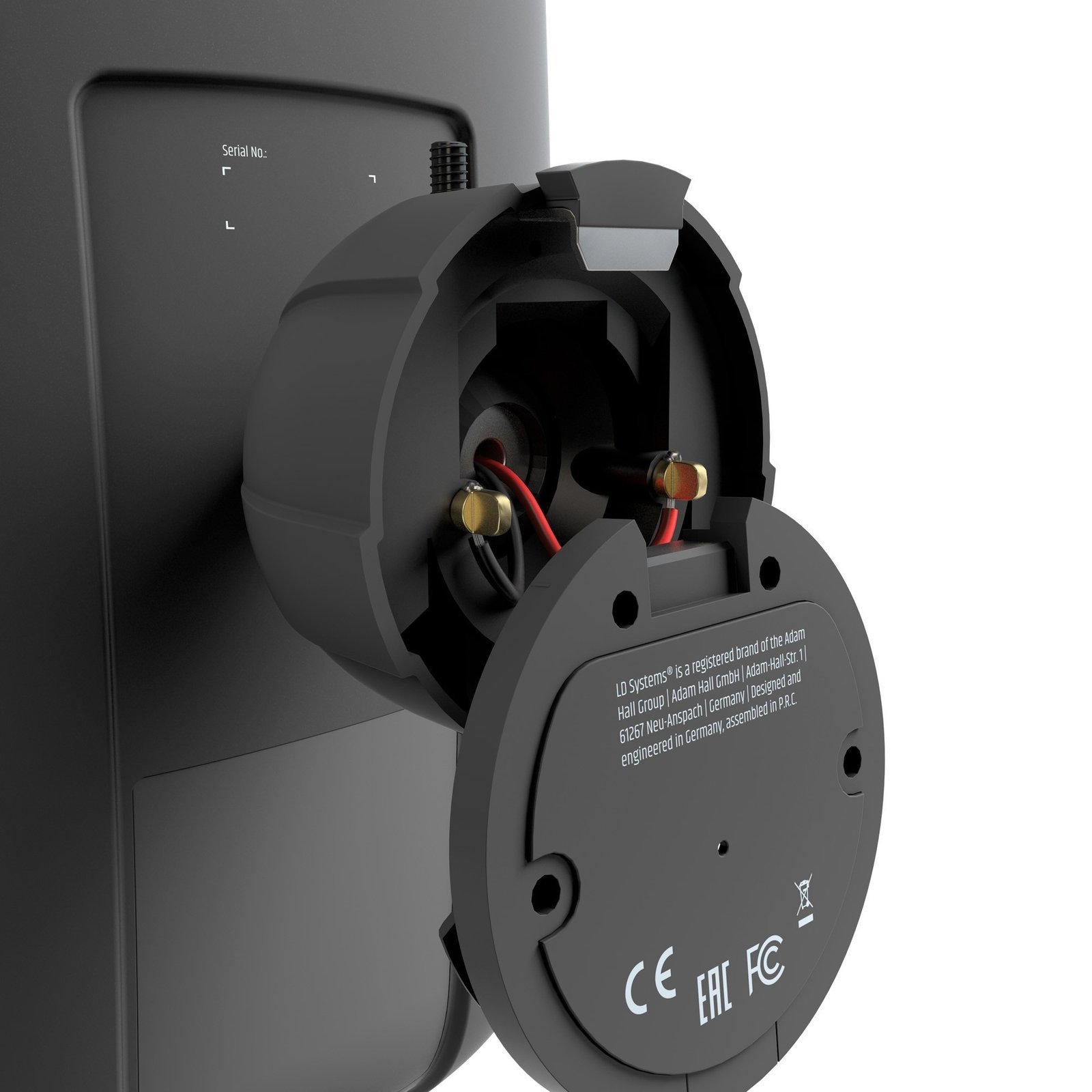

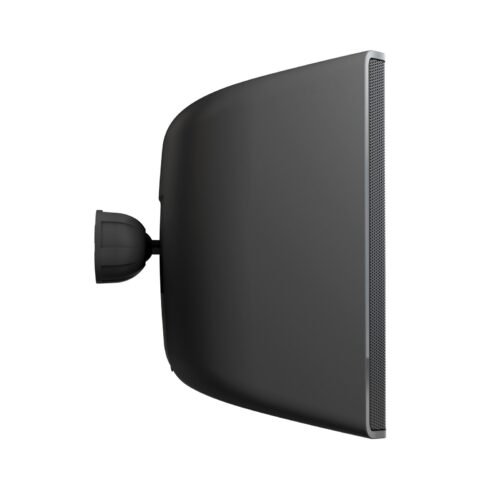

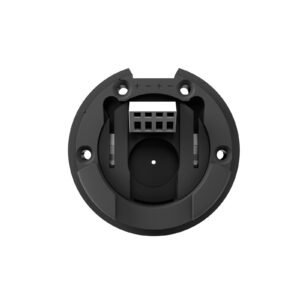

In terms of installation, the DQOR 8 T B comes equipped with a wall bracket for secure mounting and is finished in a sleek black RAL 9005 color that blends seamlessly into most environments. Its dimensions—255.8 mm wide, 413.9 mm tall, and 314.5 mm deep—and weight of 7.2 kilograms make it manageable to install without compromising on acoustic output. The terminal block input connector provides a reliable, professional-grade connection for easy wiring and system integration.
This loudspeaker is ideal for venues requiring clear sound reinforcement in both indoor and outdoor settings. Use it in restaurants, retail outlets, corporate offices, houses of worship, or public announcement systems where consistent audio quality and durability are essential. The LD System DQOR 8 T B adapts to a wide range of applications, ensuring that your sound system delivers professional-grade audio that meets the highest standards.
With the LD System DQOR 8 T B, you invest in a dependable, high-performance loudspeaker that combines power, clarity, and ruggedness. Backed by thoughtful engineering and versatile features, it delivers exceptional sound quality with flexible installation options, making it a smart choice for professional audio projects. Experience confidence in your audio system with this loudspeaker that is built to perform reliably, day in and day out.
