Flexible Mounting Options

Every cabinet in the LTX series is engineered with multiple suspension points and dedicated accessories, offering versatile mounting possibilities. The included KPTLTP bracket (for LTX6 and LTX8) allows wall or ceiling installation with adjustable tilt and swivel orientation, delivering uniform audience coverage. Larger models such as LTX10 and LTX12 feature C-shape brackets for easy wall, ceiling, or stage mounting. Additionally, LTX8, LTX10, and LTX12 come with standard pole adapters, making them equally suitable for portable sound setups.

Wide Audience Coverage

For precise high-frequency reproduction, the LTX series employs symmetrical 90°x90° dispersion horns, ensuring consistent sound for both vertical and horizontal installations. The detailed, low-distortion response covers large audiences effortlessly, while high-excursion woofers and carefully tuned vented cabinets provide extended low-end performance with deep, controlled bass.

Advanced Active Power

The active LTX versions are powered by advanced Class D amplifiers with Switch Mode Power Supply, delivering massive output with reduced size and weight. A sophisticated pre-amp section includes 24 dB/oct. phase-aligned crossover filters, active EQ tuning, and reliable POWERCON connectors. Independent HF and LF limiter circuits protect the system while guaranteeing distortion-free sound at maximum levels.

Reliable Passive Performance

The passive LTX models feature meticulously designed linear-phase crossover filters, HF protection circuits, and SPEAKON connectors. These ensure a natural, balanced sound and long-lasting speaker protection, making them an ideal solution for installations that demand reliability, efficiency, and uncompromised audio quality.

Features

• 1” compression driver
• 12” woofer
• 90° H x 90° V coverage
• 500W peak power handling
• Frequency response 50 Hz – 20 kHz
• SPL 1w/1m 96dB

For professionals seeking a reliable and high-performance loudspeaker system, the Proel LTX 12 P Passive Loudspeaker offers an outstanding solution. Whether you’re managing live sound for events, setting up a permanent installation in a venue, or enhancing an audio system for presentations, this speaker delivers clear, powerful sound with exceptional versatility. Its balanced design ensures that your audience experiences every detail of your audio with clarity and precision, making your sound setup both effective and professional.

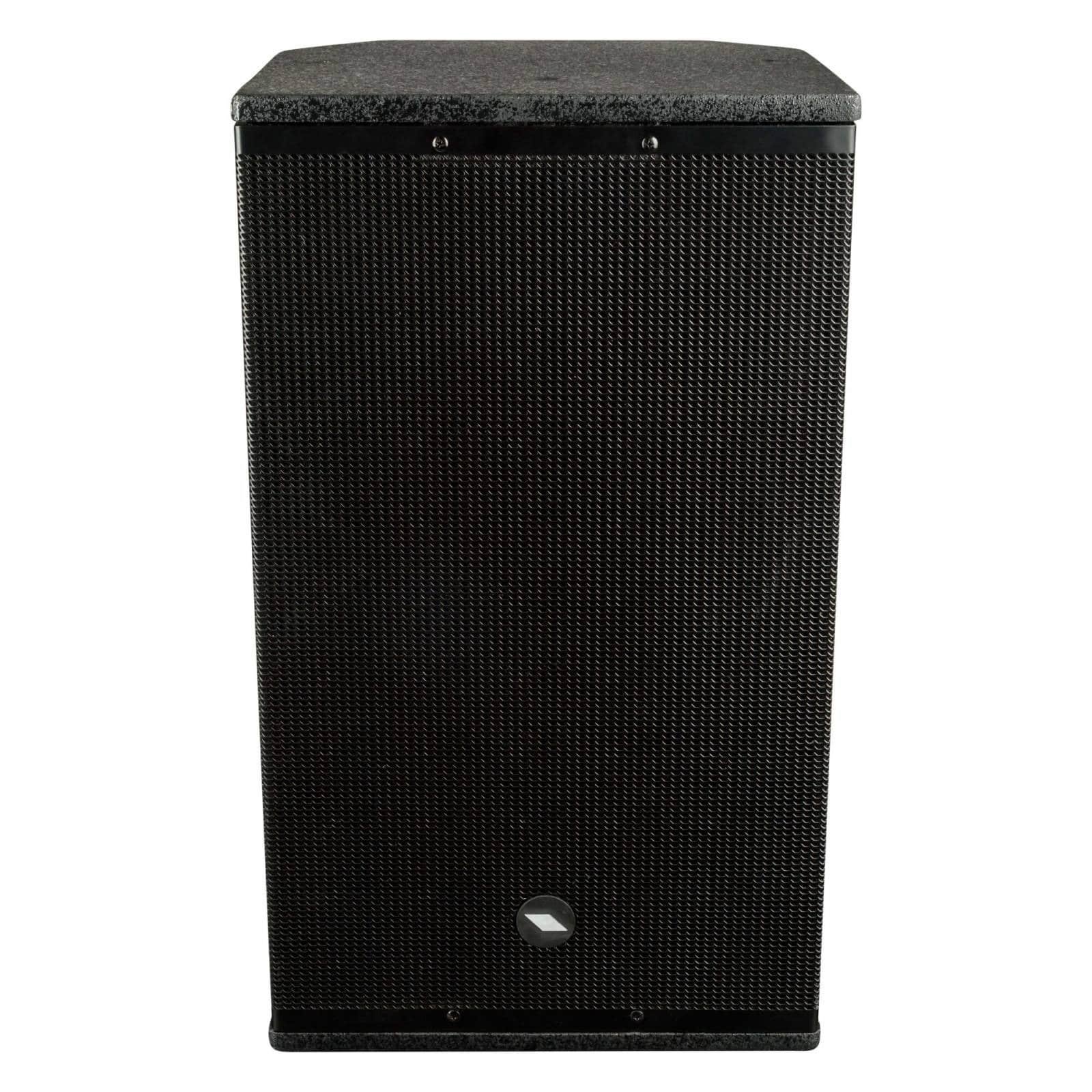

The Proel LTX 12 P features a 2-way vented enclosure that combines a robust 12-inch woofer with a 1-inch compression driver. This arrangement provides a full spectrum of sound, from deep, resonant lows to crisp, intelligible highs. For the user, this means the speaker handles a wide range of audio content with ease, ensuring vocals, instruments, and effects are reproduced faithfully without distortion. The 2.5-inch voice coil on the woofer enhances power handling and efficiency, allowing the speaker to maintain its performance even at higher volumes, which is critical for live sound environments where clarity must be preserved.

One of the standout qualities of this loudspeaker is its angular coverage of 90 degrees both horizontally and vertically. This wide dispersion ensures that sound is distributed evenly across the listening area, reducing dead zones and ensuring a more consistent experience for the entire audience. Whether the speaker is mounted on a stand or flown, this coverage helps maintain balanced sound levels throughout the venue, minimizing the need for constant adjustments.

Power handling capabilities are another key consideration, and the LTX 12 P excels with a continuous power rating of 250 watts and a peak power rating of 500 watts. This means the speaker can handle demanding audio passages without risk of damage or performance degradation. The 8-ohm impedance allows compatibility with a wide range of amplifiers, offering flexibility for different setups. An impressive sensitivity of 96 dB at 1 watt/1 meter translates to efficient sound output, enabling the speaker to deliver loud, clear audio with less power input.

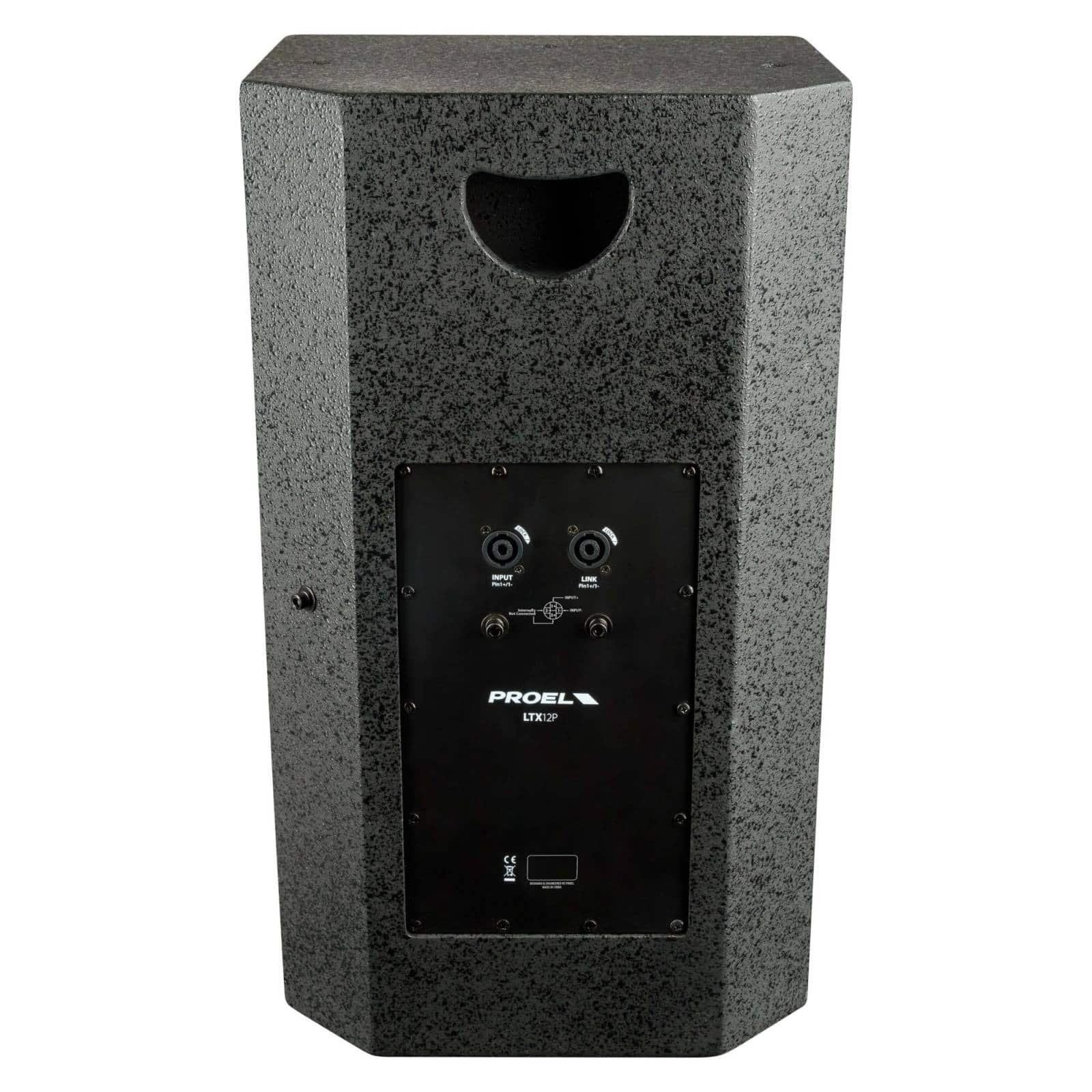

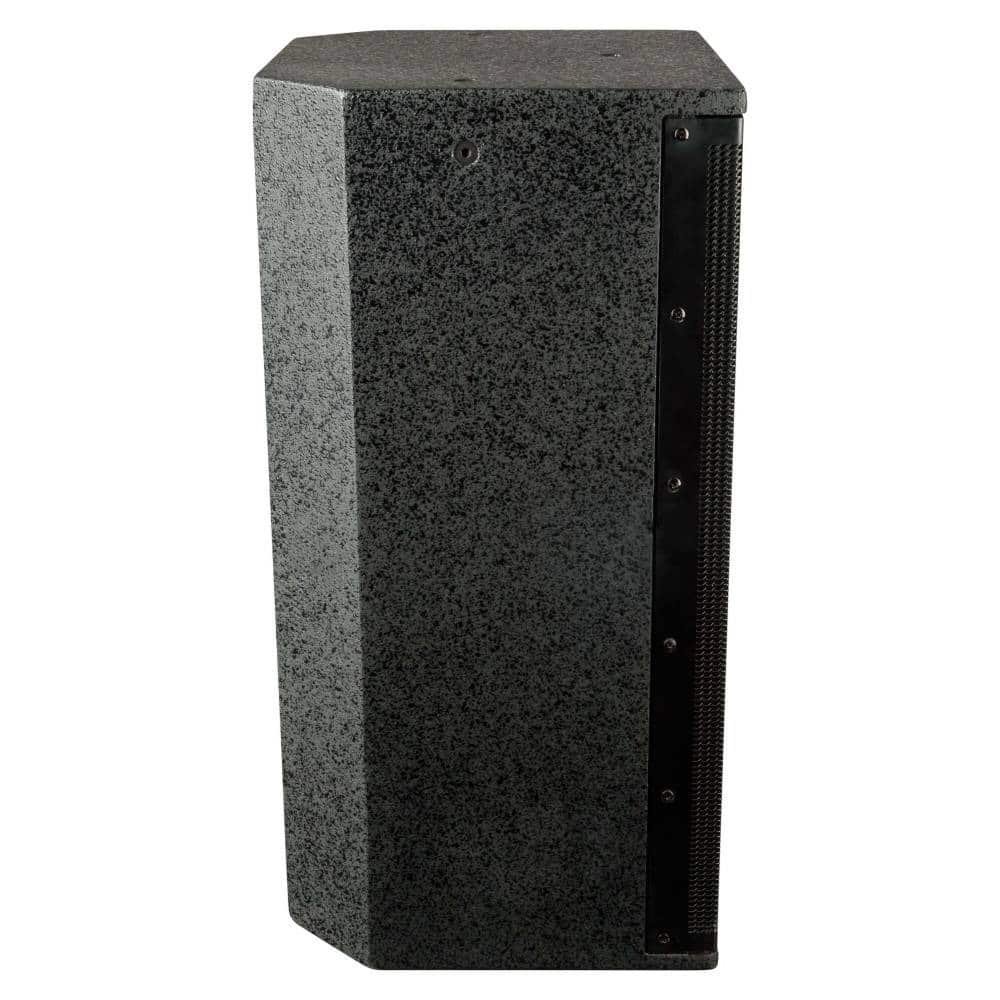

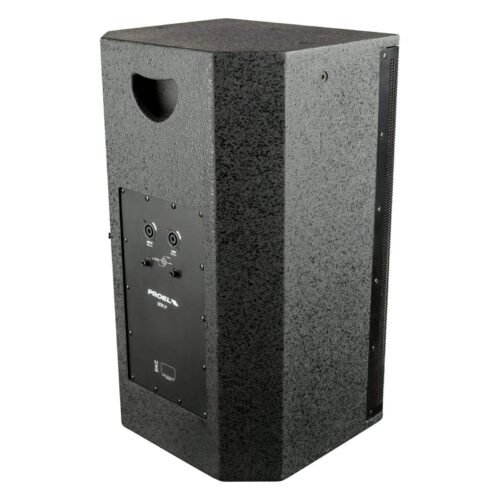

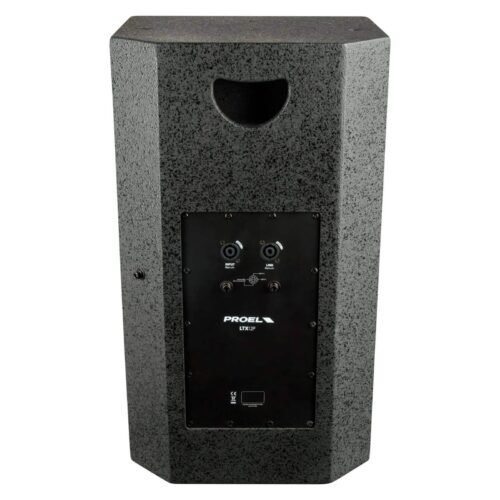

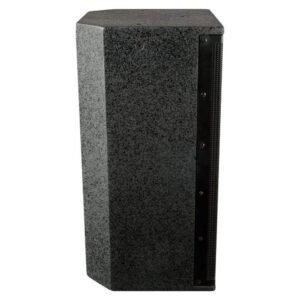

In terms of physical design and practicality, the Proel LTX 12 P is built for ease of use and durability. Its compact dimensions (345 mm wide, 595 mm high, and 300 mm deep) and manageable weight of 14.8 kilograms make it relatively easy to transport and position, even for one person. The cabinet’s black finish provides a professional aesthetic that fits well in various environments. Integral handles and multiple mounting options—including a bottom mounting pole socket and four M8 plus three M6 flying points—give you numerous installation possibilities. Optional tilt and swivel brackets or a C-shaped bracket further enhance adaptability for different speaker orientations and placements.

This loudspeaker system is ideal for a range of applications: from small to medium-sized venues, live music performances, corporate events, houses of worship, to DJ setups and fixed installations. Its high-quality components and thoughtful design ensure it can meet the demands of professional audio environments without compromising on sound fidelity or reliability.

With the Proel LTX 12 P Passive Loudspeaker, you invest in a speaker system that balances power, clarity, and flexibility. It is engineered to deliver consistent performance and adapt to a variety of sound reinforcement needs. Backed by Proel’s reputation for quality and durability, this loudspeaker provides peace of mind and confidence that your sound will always be heard exactly as intended. At a competitive price point of ₹45,068, it offers excellent value for professionals who demand superior audio performance in a versatile, user-friendly package.
