Flexible Mounting Options

Every LTX cabinet comes with multiple suspension points and dedicated accessories, offering versatile mounting solutions. The KPTLTP bracket (included with LTX6 and LTX8) allows wall or ceiling installation with tilt and swivel adjustment for uniform sound coverage. Larger models (LTX10 and LTX12) include C-shape brackets for wall, ceiling, or stage mounting. Additionally, LTX8, LTX10, and LTX12 feature a standard pole adapter, making them ideal for portable audio setups.

Wide Audience Coverage

Designed for precision, the LTX speakers feature 90° x 90° dispersion horns, delivering constant coverage for both horizontal and vertical installations. This ensures clear, distortion-free sound for large audiences, while high-excursion woofers combined with tuned vented cabinets provide extended frequency response with deep, tight bass.

Advanced Active Power

Active LTX models are powered by Class D amplifiers with Switch Mode Power Supply, delivering massive power in a compact design. With advanced pre-amp sections, up to 24 dB/oct. phase-aligned crossover filters, active EQ tuning, and POWERCON connectors, these systems ensure maximum efficiency. Independent HF and LF limiter circuits safeguard against distortion while maintaining crystal-clear sound at any volume.

Reliable Passive Performance

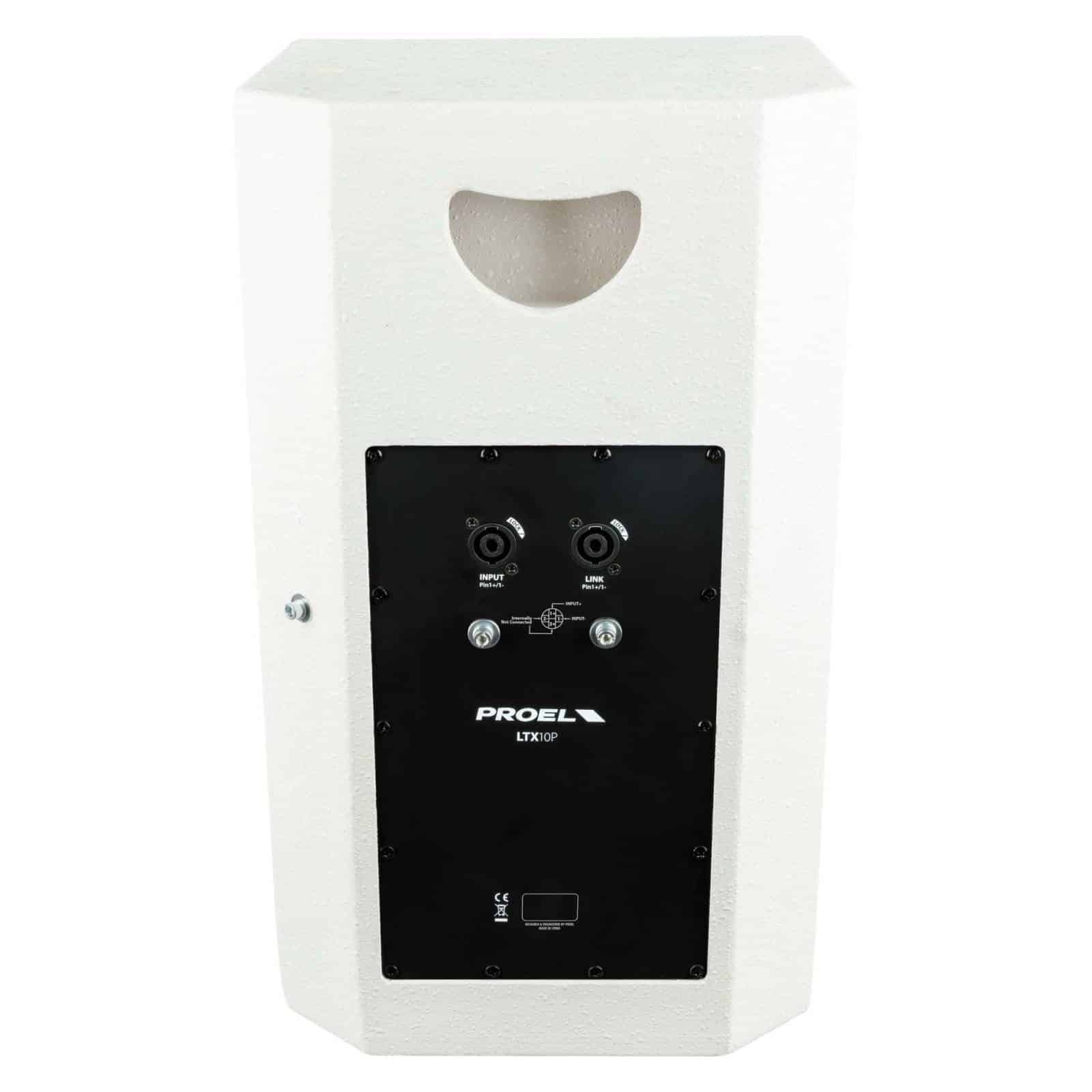

The passive LTX models are equipped with linear phase crossover filters, HF protection circuits, and SPEAKON connectors for secure, professional-grade connections. Built for durability and accuracy, these versions deliver dependable sound reinforcement across a wide range of applications.

Features

• 1” compression driver
• 10” woofer
• 90° H x 90° V coverage
• 500W peak power handling
• Frequency response 60 Hz – 20 kHz
• SPL 1w/1m 94 dB
