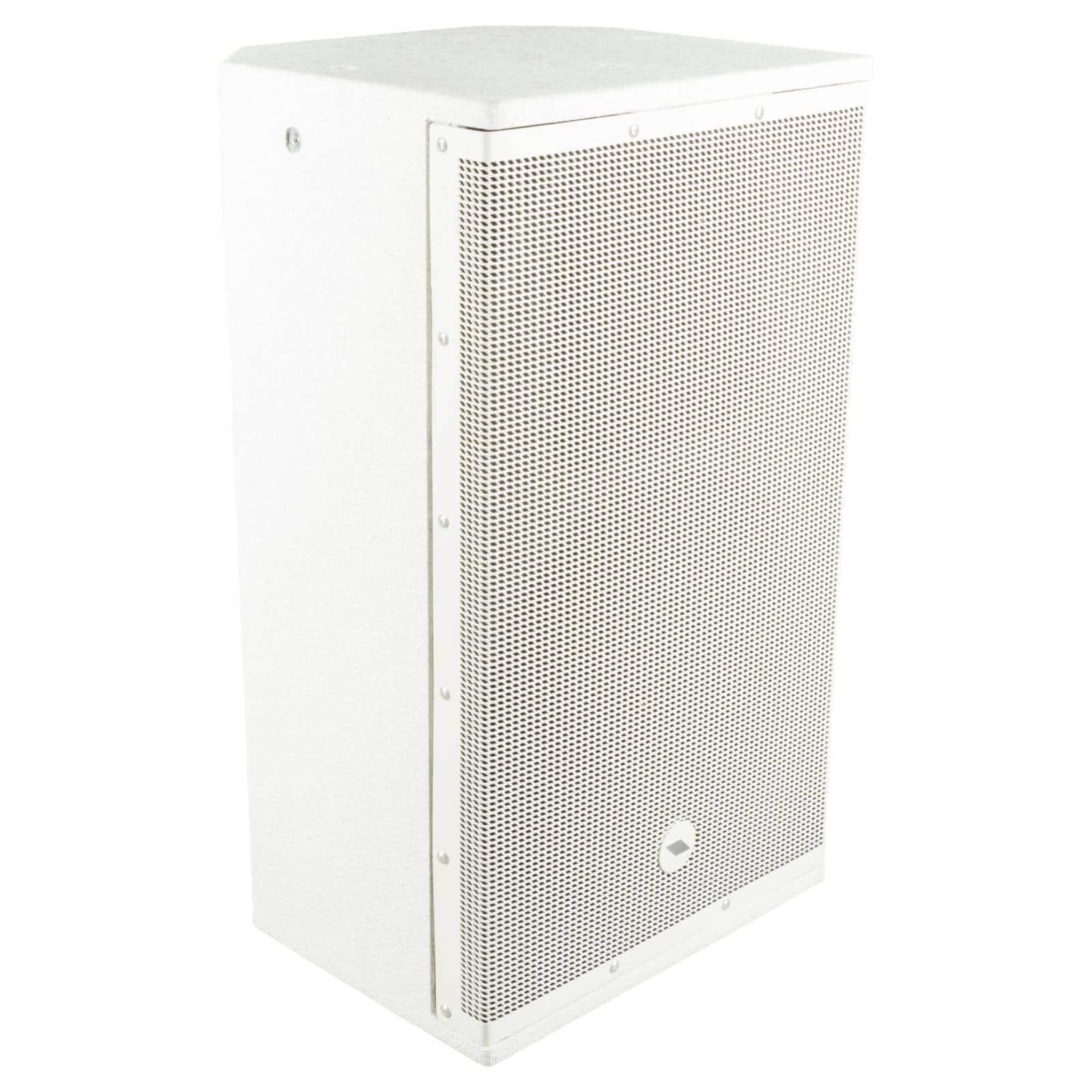

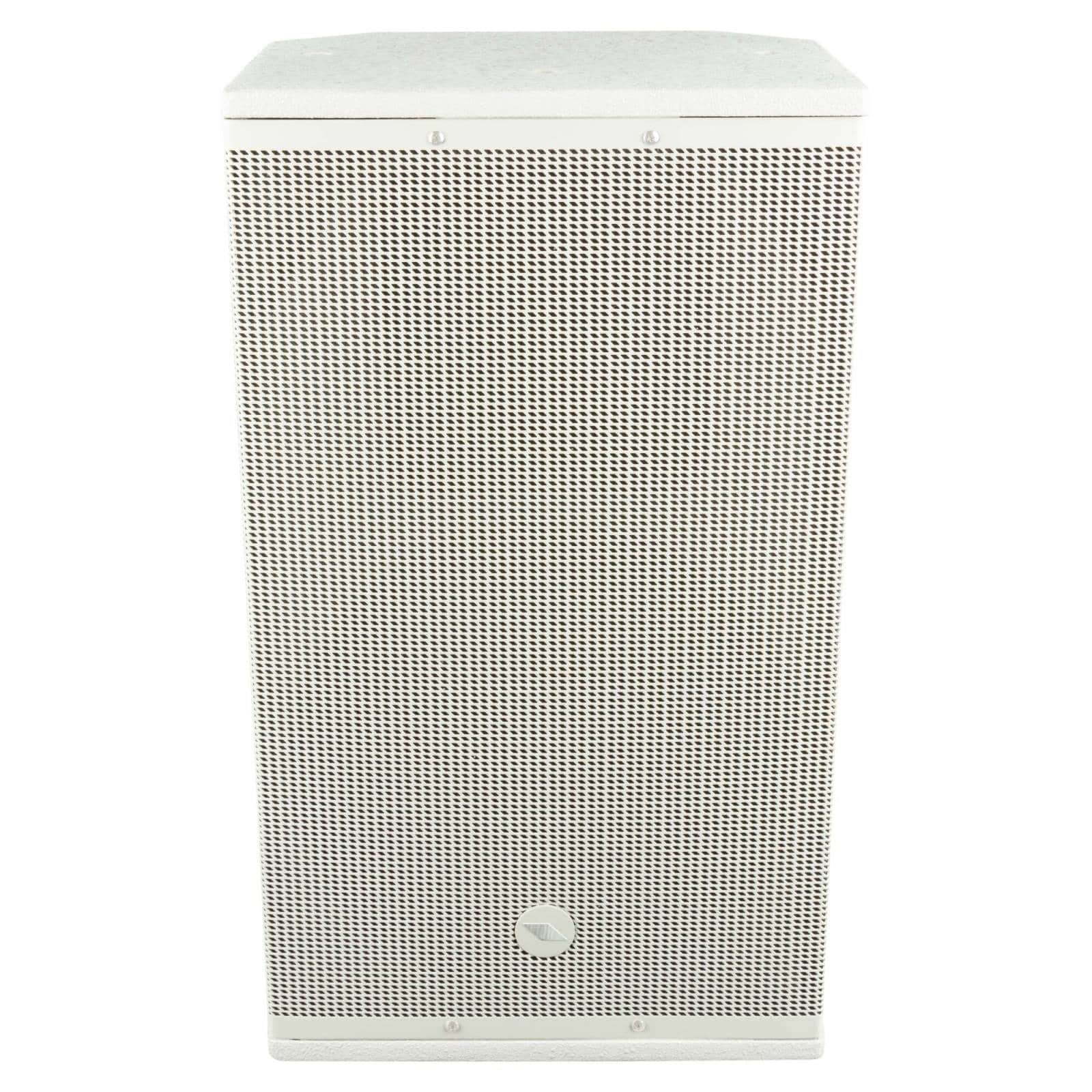

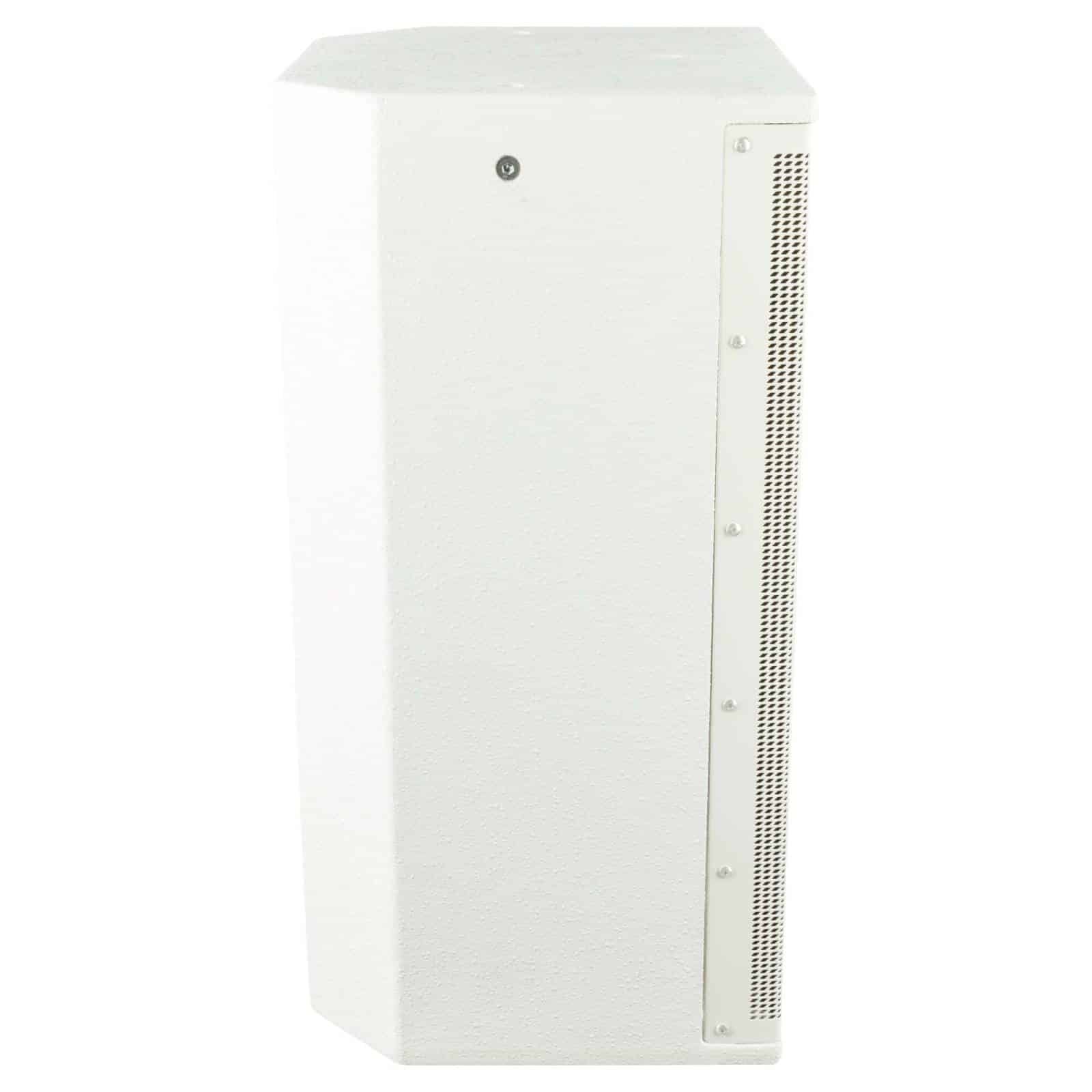

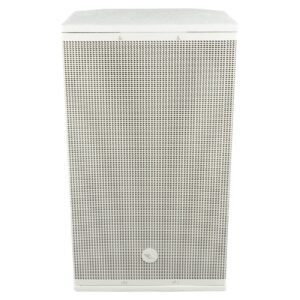

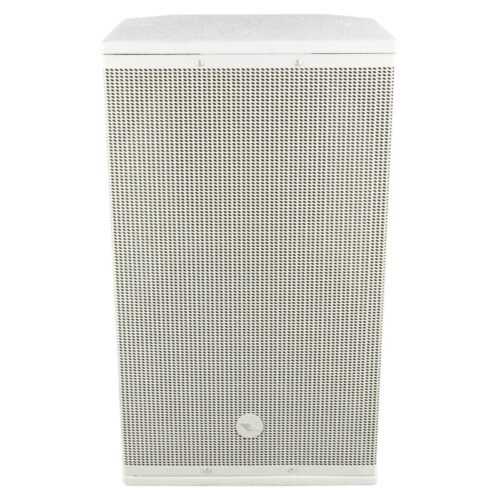

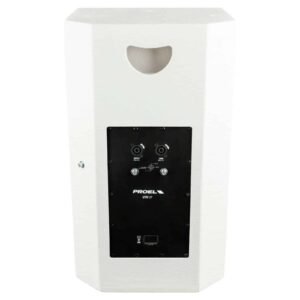

Proel LTX 12PW White color Passive Loudspeaker system
Brand:
Proel
Product Highlights
1″ neodymium dome tweeter – 12” woofer – 90° H x 90° V – 500 W program power – 50 Hz – 20 kHz frequency response – Max Spl 124 dB – White color
Experience powerful, clear sound with exceptional coverage, perfect for professional audio setups. Featuring a 12” woofer with a 2.5” voice coil and a 90° horizontal by 90° vertical dispersion, this speaker delivers consistent performance across a wide frequency range from 50 Hz to 20 kHz. Discover how this compact yet robust system can elevate your sound experience.
Original price was: ₹47,440.₹45,000Current price is: ₹45,000.
In stock
Estimated delivery dates: May 7, 2026 - May 11, 2026
In stock
Flexible Mounting Options
Every cabinet in the LTX series is engineered with multiple suspension points and dedicated accessories, offering versatile mounting possibilities. The included KPTLTP bracket (for LTX6 and LTX8) allows wall or ceiling installation with adjustable tilt and swivel orientation, delivering uniform audience coverage. Larger models such as LTX10 and LTX12 feature C-shape brackets for easy wall, ceiling, or stage mounting. Additionally, LTX8, LTX10, and LTX12 come with standard pole adapters, making them equally suitable for portable sound setups.
Wide Audience Coverage
For precise high-frequency reproduction, the LTX series employs symmetrical 90°x90° dispersion horns, ensuring consistent sound for both vertical and horizontal installations. The detailed, low-distortion response covers large audiences effortlessly, while high-excursion woofers and carefully tuned vented cabinets provide extended low-end performance with deep, controlled bass.
Advanced Active Power
The active LTX versions are powered by advanced Class D amplifiers with Switch Mode Power Supply, delivering massive output with reduced size and weight. A sophisticated pre-amp section includes 24 dB/oct. phase-aligned crossover filters, active EQ tuning, and reliable POWERCON connectors. Independent HF and LF limiter circuits protect the system while guaranteeing distortion-free sound at maximum levels.
Reliable Passive Performance
The passive LTX models feature meticulously designed linear-phase crossover filters, HF protection circuits, and SPEAKON connectors. These ensure a natural, balanced sound and long-lasting speaker protection, making them an ideal solution for installations that demand reliability, efficiency, and uncompromised audio quality.
Features
- 1” compression driver
- 12” woofer
- 90° H x 90° V coverage
- 500W peak power handling
- Frequency response 50 Hz – 20 kHz
- SPL 1w/1m 96dB
| Brand | Proel |
|---|---|
| System type | 2-way vented enclosure |
| High Frequency Device | 1” compression driver with 1" VC |
| Low Frequency Device | 12” woofer with 2.5” voice coil |
| Angular Coverage | 90° H x 90° V |
| Power Rating Peak | 500 W |
| Frequency Response | 50 Hz – 20 kHz |

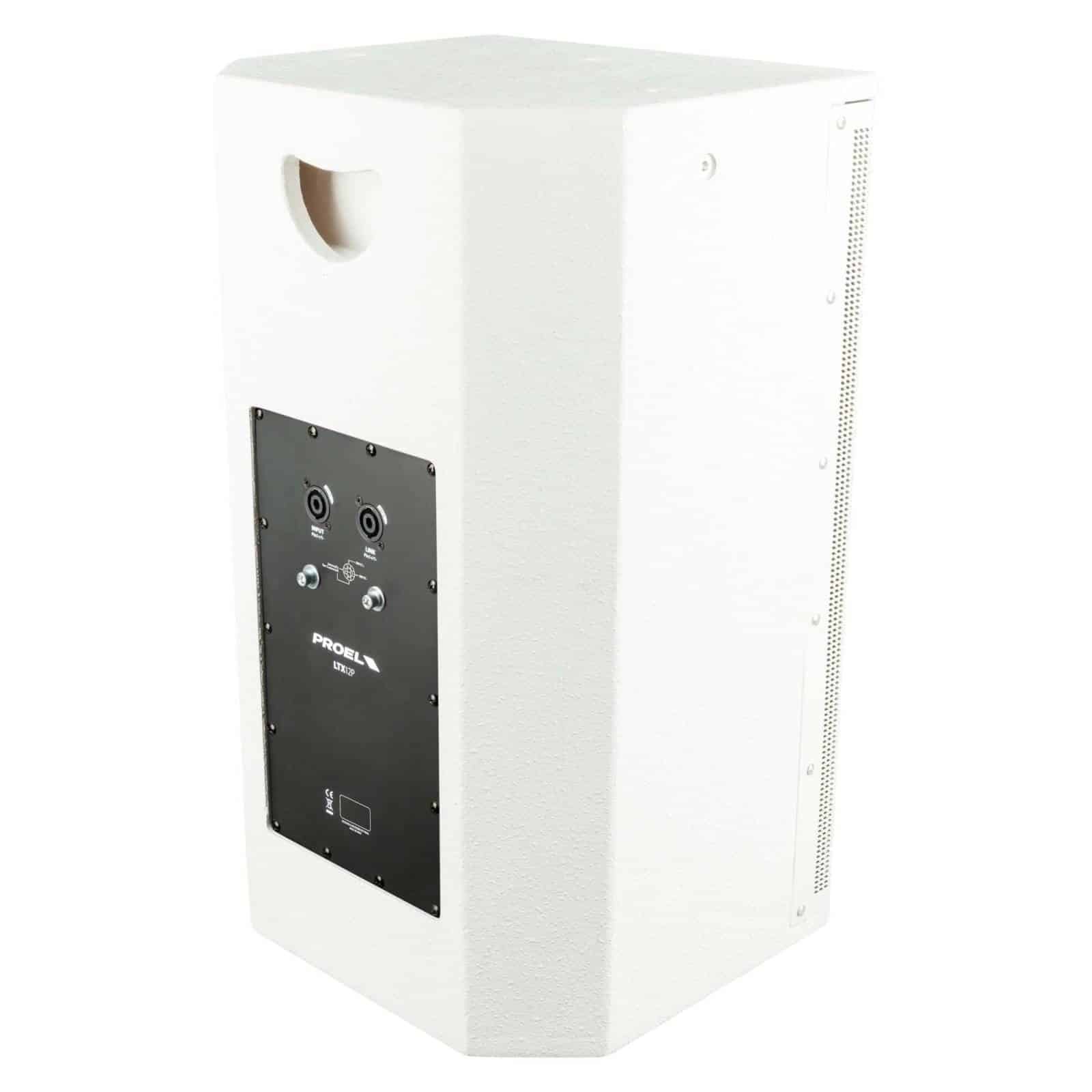

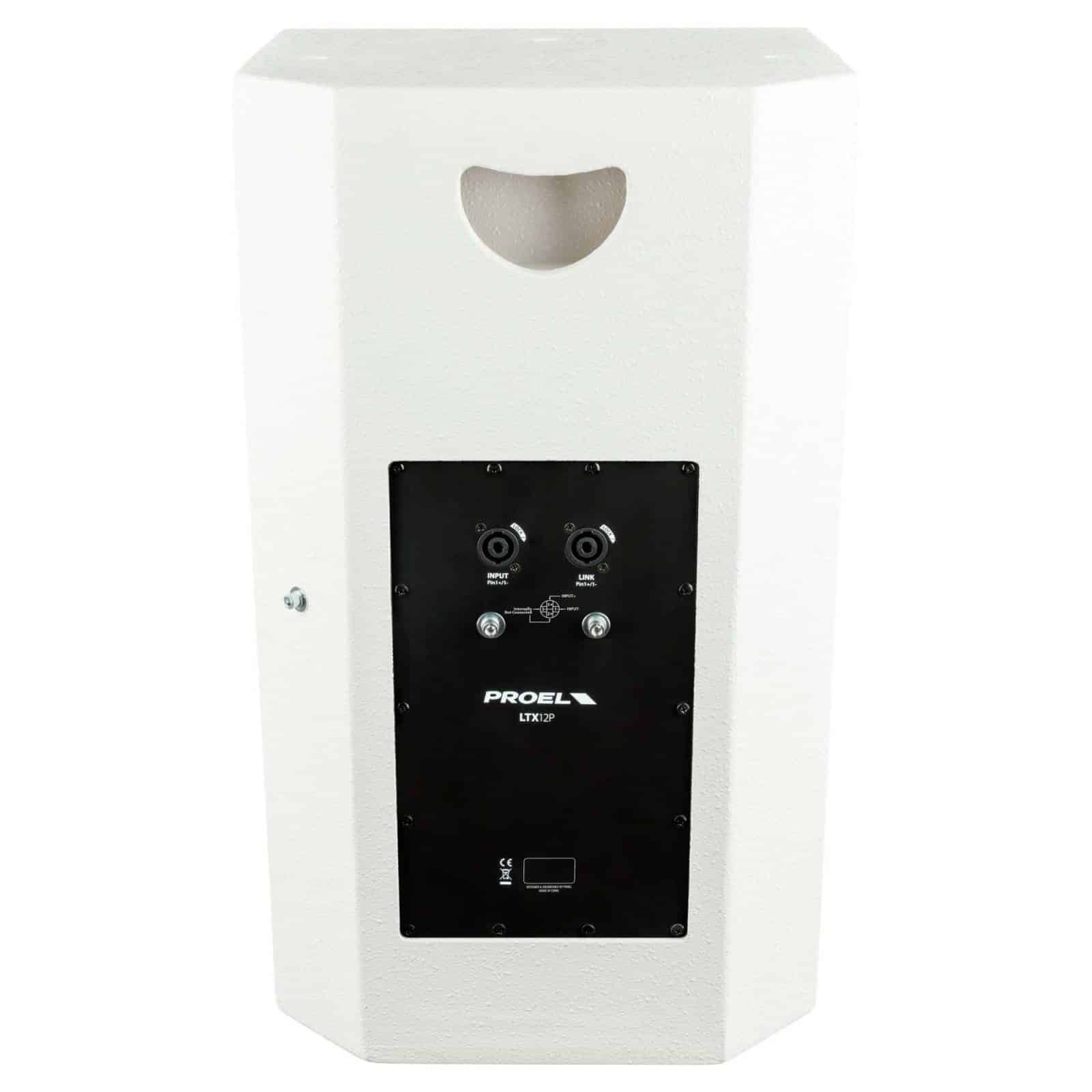

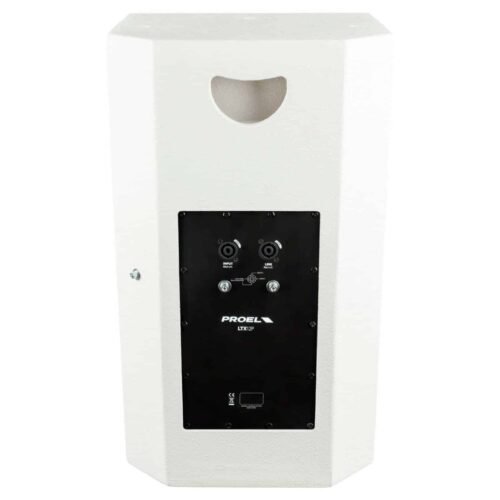

| Connectors | 2 x SPEAKON |
| Flying System | 4 x M8, 3 x M6 |
| Dimensions (W x H x D) | 345 x 595 x 300 mm |
| Handles | 1 x rear |
| Cabinet Color | White |
| Weight | 14.8Kg / 32.6 lbs |
| Mounting Pool | 1 x bottom |
| Mounting Bracket | Tilt and Swivel bracket (optional) |
| Power Rating Continuous | 250 W |
| Impedance | 8 ohm |
| SPL (1w / 1m) | 96 dB |
