Complete Speaker Series

LTX is a complete series of active and passive speakers, designed for a wide range of commercial and residential installations. Crafted with precision, the systems are housed in rugged plywood enclosures available in black or white, blending refined aesthetics with durability. Their unobtrusive design makes them suitable for any environment, whether modern or traditional.

Flexible Mounting Options

All LTX cabinets feature multiple suspension points and dedicated accessories, offering versatile mounting solutions. The included KPTLTP bracket (for LTX6 and LTX8) allows wall and ceiling installation with variable tilt and swivel orientation for uniform audience coverage. The C-shape brackets (for LTX10 and LTX12) enable seamless mounting on walls, ceilings, and stage structures. Additionally, LTX8, LTX10, and LTX12 come with a standard pole adapter, making them ideal for portable setups using speaker stands.

Superior Sound Coverage

For high-frequency reproduction, LTX speakers feature symmetrical 90×90° dispersion horns, delivering consistent coverage for both horizontal and vertical installations. These horns ensure precise, low-distortion audio even for large audiences. Paired with high-excursion woofers and carefully tuned vented cabinets, the LTX series produces extended response with deep, powerful, and tight bass tones.

Advanced Active Technology

The active versions of LTX are powered by advanced Class D amplifiers with Switch Mode Power Supply, providing immense power while keeping weight and size minimal. A sophisticated pre-amp section with up to 24 dB/oct phase-aligned crossover filters and active EQ ensures precise tuning. Equipped with POWERCON mains connectors, HF and LF independent limiter circuits, these models guarantee undistorted sound at high volumes and complete speaker protection.

Features

• 1” compression driver
• 8” woofer
• 90° H x 90° V coverage
• 160 W peak power handling
• Frequency response 70 Hz – 20 kHz
• SPL 1w/1m 92 dB

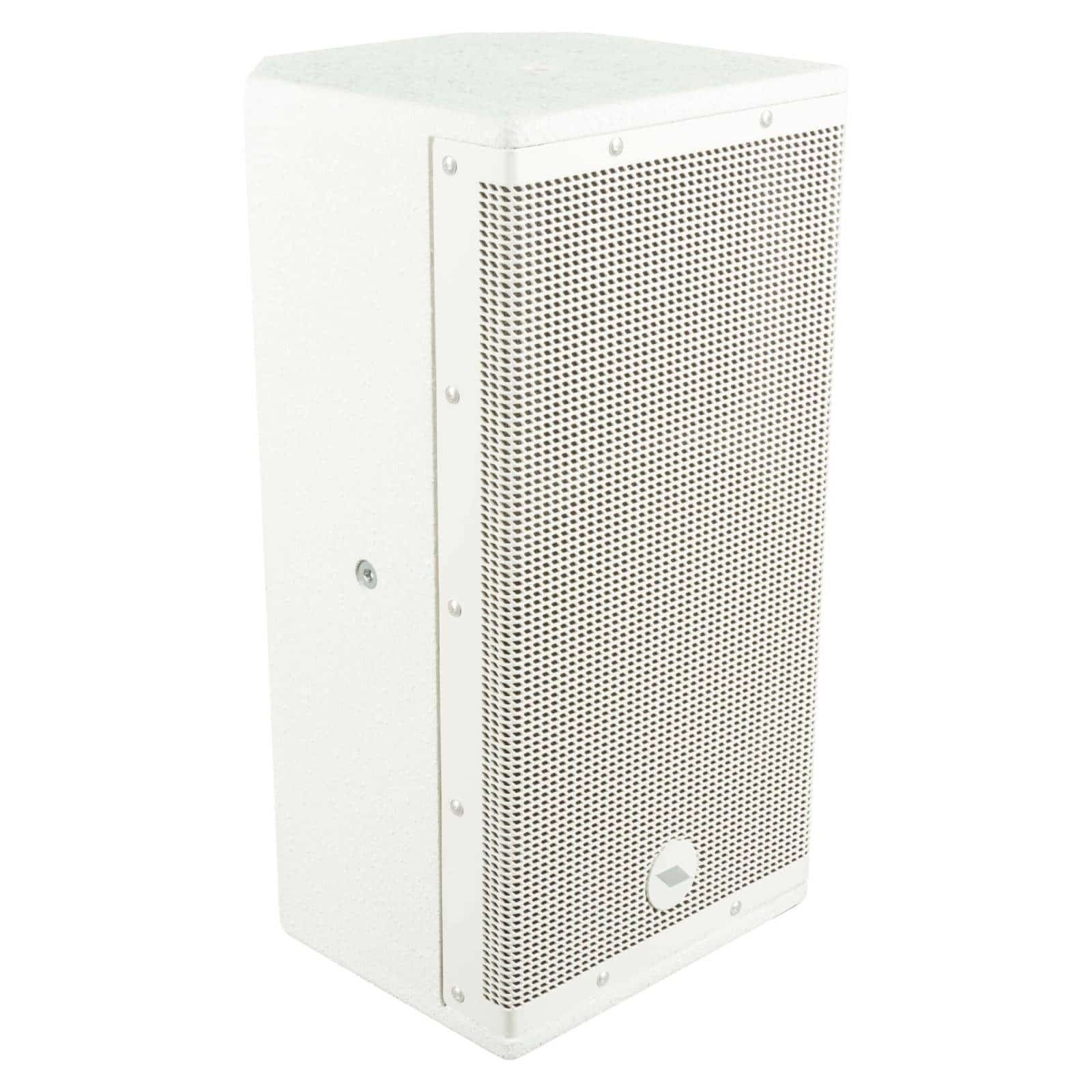

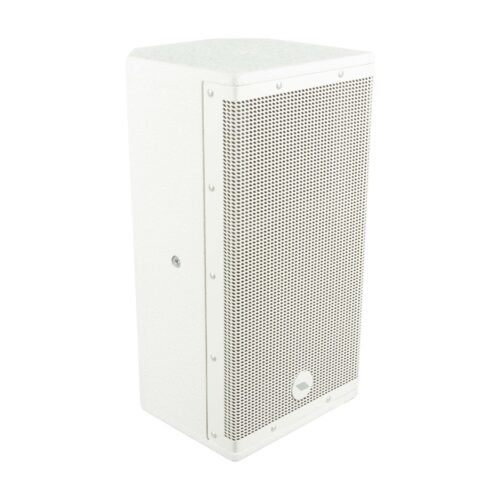

For professionals and enthusiasts seeking a reliable, high-quality sound reinforcement solution, the Proel LTX 8 PW White Passive Loudspeaker system offers an exceptional balance of performance, portability, and versatility. Whether you are setting up a live event, a corporate presentation, or a fixed installation, this loudspeaker delivers clear and powerful audio that ensures your message or music reaches the audience with precision and impact. Its compact design and white finish make it an ideal choice for environments where aesthetics matter as much as sound quality.

The Proel LTX 8 PW features a 2-way vented enclosure design that combines an 8-inch woofer with a 1-inch compression driver, providing a wide frequency response from 70 Hz to 20 kHz. This means you get rich low-end tones along with crisp, intelligible highs, ensuring your audio content sounds natural and full-bodied. The 90-degree horizontal and vertical coverage pattern guarantees consistent sound dispersion, minimizing dead spots and allowing for even audio distribution across the listening area. This is crucial in both small and medium-sized venues where uniform sound coverage enhances the overall experience.

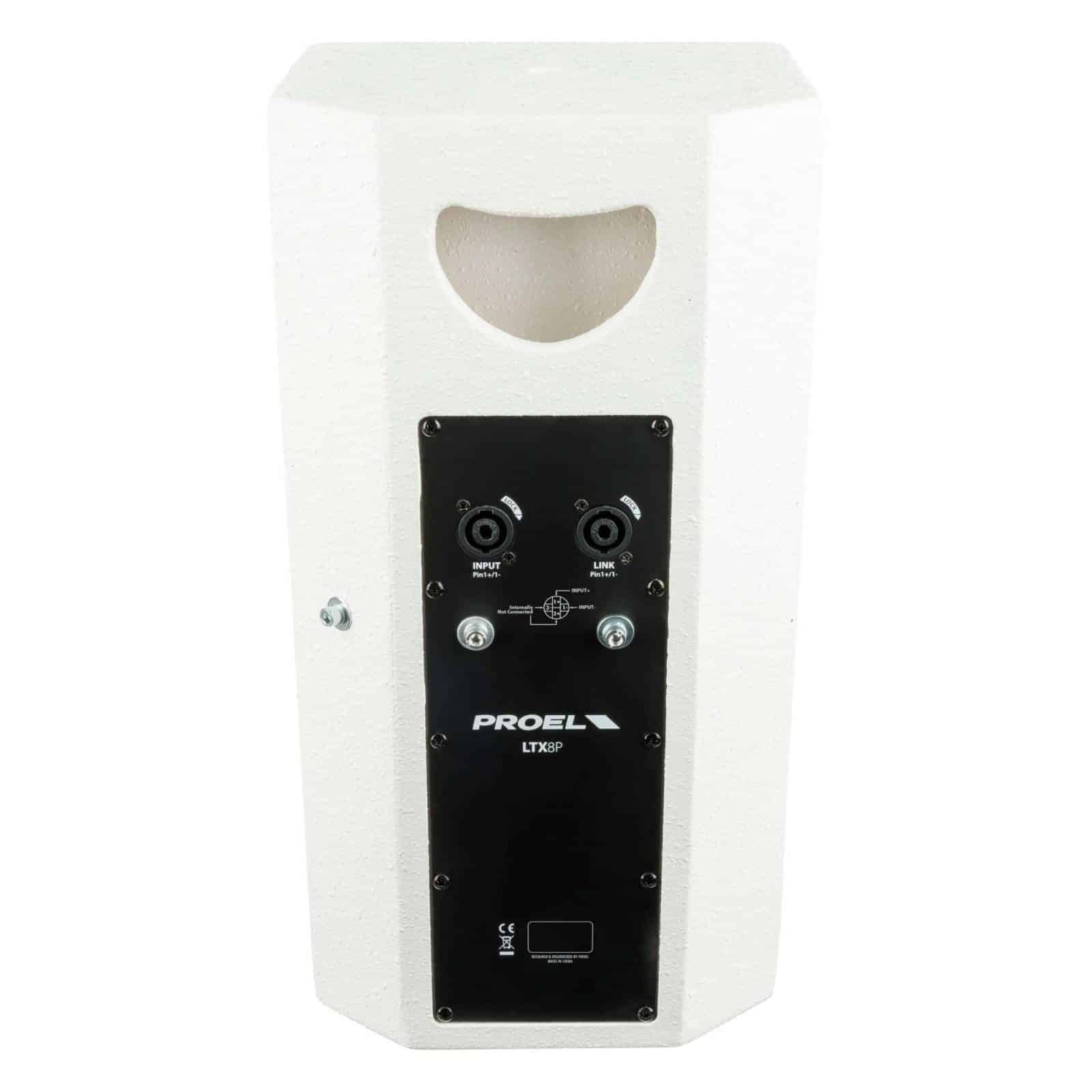

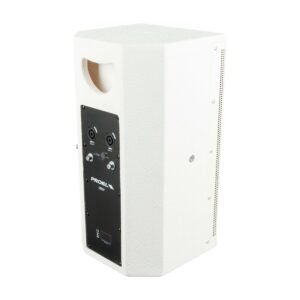

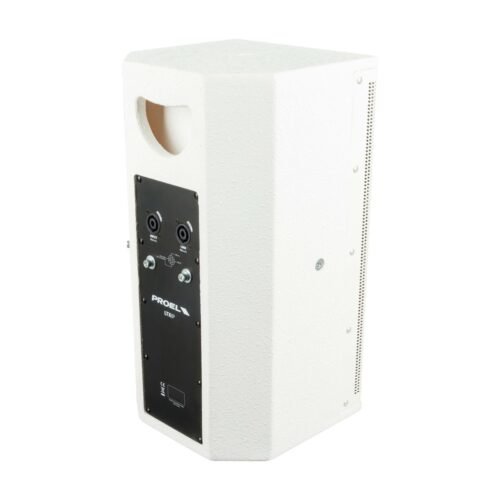

With a peak power rating of 320 watts and a continuous power handling capacity of 320 watts at 8 ohms, the Proel LTX 8 PW can handle demanding audio signals without distortion or damage. The speaker’s sensitivity of 92 dB at 1 watt/1 meter ensures efficient sound output even at lower amplifier power levels, making it energy-efficient and cost-effective in operation. For connectivity, it uses two SPEAKON connectors, which provide secure and professional-grade cable connections, reducing the risk of accidental disconnections during performances or presentations.

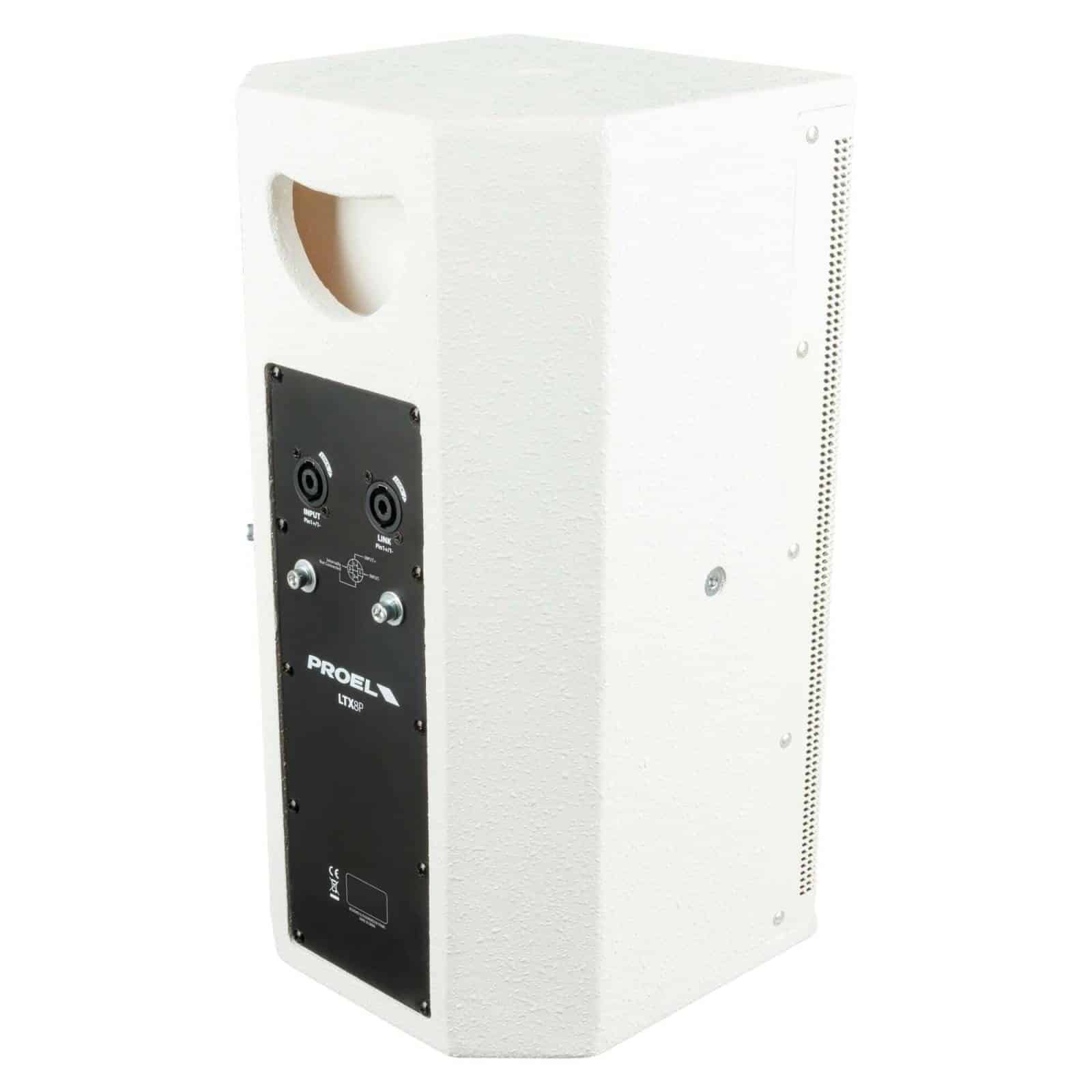

Practical design elements further elevate the convenience of the Proel LTX 8 PW. Its compact dimensions of 227 mm width, 442 mm height, and 220 mm depth allow for easy transport and installation without compromising acoustic performance. Weighing just 6.95 kg (15.3 lbs), it is lightweight enough for single-person handling, which simplifies setup and teardown. The speaker includes a rear handle for easy carrying, a bottom mounting pole socket for stand mounting, and a tilt and swivel bracket to achieve optimal speaker positioning. Optional C-shape brackets are available for more flexible mounting options, making this loudspeaker adaptable to a wide range of installation scenarios.

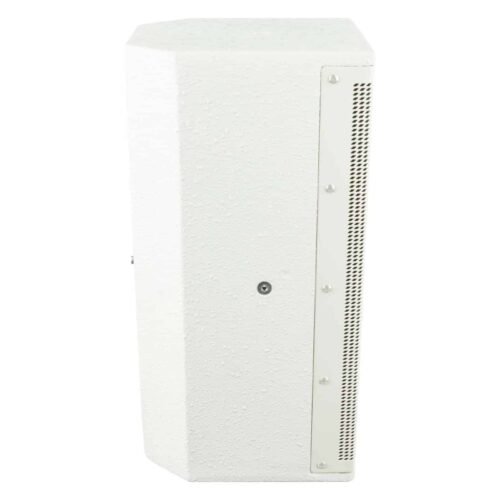

The white cabinet color is not only visually appealing but also suitable for venues that require discreet or stylish audio equipment, such as art galleries, wedding venues, retail spaces, or conference rooms. The robust construction ensures durability for frequent use, while the passive design means it can be easily integrated into existing sound systems without the need for dedicated power sources, offering straightforward scalability.

In summary, the Proel LTX 8 PW White Passive Loudspeaker system is a well-rounded audio solution that combines professional-grade sound quality with practical features tailored for ease of use and aesthetic appeal. Its powerful yet efficient audio reproduction, reliable build, and versatile mounting options make it an excellent investment for anyone who demands clear, consistent sound performance in a compact and stylish package. With Proel’s reputation for quality and the LTX 8 PW’s comprehensive specifications, you can confidently equip your venue or event with a loudspeaker that meets both your audio and operational needs.
