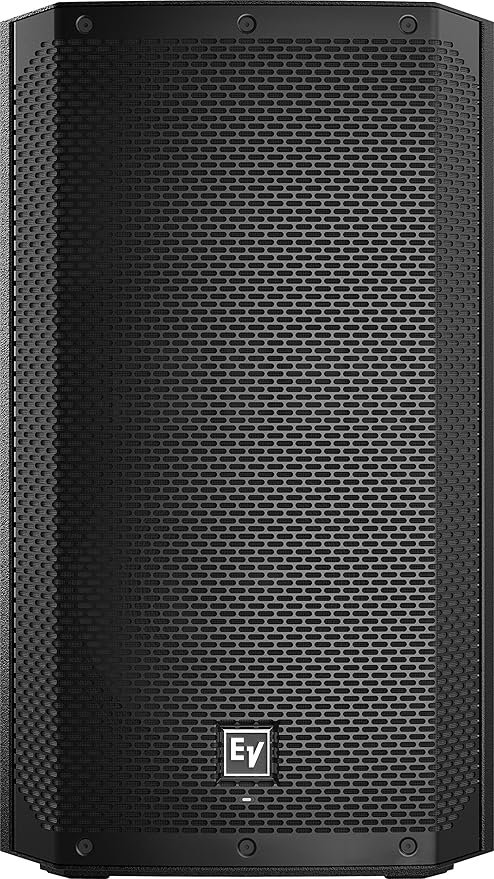

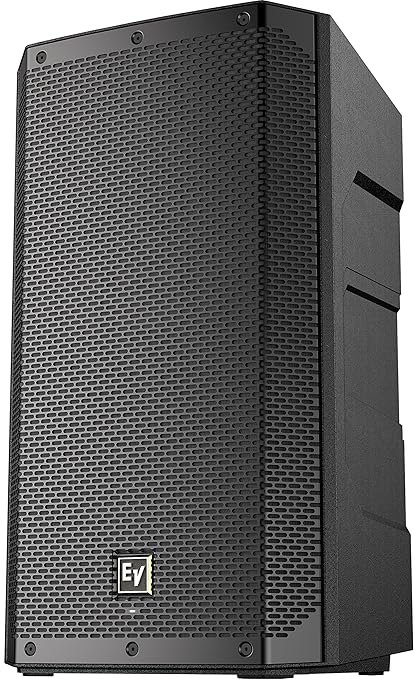

Electro Voice ELX200-12P 12″ powered loudspeaker

ELX200-12P features high-efficiency Class-D power amplifiers (up to 1200 W) with integrated QuickSmartDSP, and delivers up to 130 dB SPL utilizing transducers designed and engineered by EV (12-inch EVS-12M woofer coupled with a DH-1L 1-inch titanium compression driver). Powered full-range models allow easy setup via four presets (Music, Live, Speech, Club), sub/top system-match crossovers,

three-band EQ, five user-programmable presets (Store and Recall settings), visual monitoring of limiter status, input level control and meters, and master volume control to ensure optimal gain structure.

ELX200 powered models are ideal for portable and installed applications, with lightweight and durable polypropylene enclosures, three M10 threaded mounting points and the proven ZLX handle design for easy lifting.

The new QuickSmart Mobile wireless control and monitoring application, using Bluetooth Low Energy (BTLE) technology, allows intuitive system control, configuration and monitoring of up to six powered ELX200 loudspeakers simultaneously. Receive alerts when your system is being overdriven, and control your system while in front of your speakers, not behind. Bluetooth is available in select countries.

Powerful Sound Performance

The ELX200-12P delivers exceptional audio power with its high-efficiency 1200W Class-D amplifier, providing up to 130 dB SPL. Equipped with a 12-inch EVS-12M woofer and a DH-1L titanium compression driver, it ensures crystal-clear highs and deep lows. Designed and engineered by Electro-Voice, this loudspeaker offers superior sound quality and reliable performance for both portable and installed applications, making it the ideal choice for live events, clubs, and professional sound setups.

Advanced DSP Control

With integrated QuickSmartDSP technology, the ELX200-12P allows users to easily optimize sound through four presets—Music, Live, Speech, and Club. It features sub/top system-match crossovers, three-band EQ, five user-programmable presets, and visual monitoring of limiter status. The intuitive LCD interface enables effortless control over input levels, meters, and master volume, ensuring a perfectly balanced sound every time, no matter the venue or application.

Wireless Smart Management

Manage your sound system effortlessly using the EV QuickSmart Mobile app. Utilizing Bluetooth Low Energy (BTLE) technology, it enables wireless configuration, control, and monitoring of up to six ELX200 loudspeakers simultaneously. Stay informed with real-time alerts and make instant adjustments while standing in front of your speakers. This feature ensures precision control, convenience, and professional-level flexibility for live performances and installations.

Features

• EV QuickSmart Mobile application: quickly and wirelessly configure, control and monitor up to six ELX200 loudspeakers simultaneously, and receive immediate notification during critical performance conditions. Bluetooth is available in select countries.
• QuickSmartDSP features best-in-class processing. Easy setup via four presets, sub/top system-match, three-band EQ, five user-programmable presets, visual monitoring of limiter status, input level control and meters, and master volume control to optimize gain structure, all via LCD.
• High-efficiency 1200 W Class-D power amplifier delivers up to 130 dB peak SPL utilizing transducers designed and engineered by EV.
• EV-patented Signal Synchronized Transducers (SST) waveguide design provides precise and consistent coverage, minimal distortion, and maximized acoustical loading.

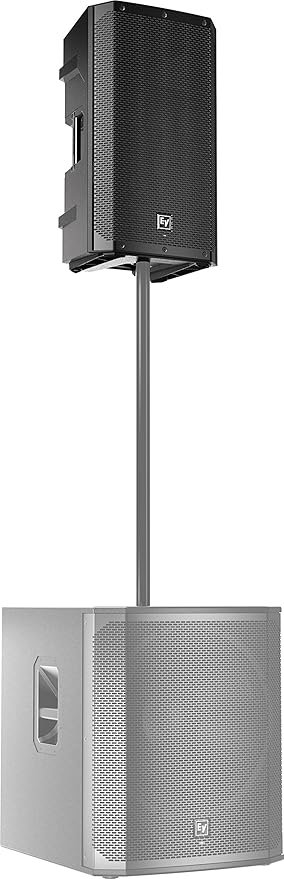

• Professional-grade hardware: three M10 threaded mounting points for forged eyebolts, integrated pole-mounts and the proven ZLX three-handle design for easy lifting.

For audio professionals and enthusiasts seeking a powerful, reliable, and clear sound reinforcement solution, the Electro Voice ELX200-12 P 12″ powered loudspeaker stands out as an exceptional choice. Whether you are setting up for live performances, DJ gigs, corporate events, or permanent installations, this loudspeaker delivers the high-quality audio output and robust build that ensure your sound reaches the audience with precision and impact.

One of the primary challenges in live sound is achieving clear vocal and instrumental reproduction without distortion, even at high volumes. The ELX200-12 P addresses this with a maximum sound pressure level (SPL) of 130 dB, meaning it can project loud and clean audio across medium-sized venues without strain. This high SPL ensures your audience hears every detail crisply, providing an immersive listening experience whether you are on a stage, in a conference hall, or at an outdoor event.

The speaker’s frequency response ranges from 57 Hz to 16 kHz at -3 dB, extending to 51 Hz to 20 kHz at -10 dB. This wide frequency range means you get rich, deep bass alongside clear highs, allowing the speaker to handle everything from deep, resonant kick drums to sparkling cymbals and vocals. The 12-inch EVS-12 M low-frequency transducer reproduces bass frequencies with authority, while the 1-inch titanium compression driver delivers crisp, articulate high frequencies. The 1700 Hz crossover frequency ensures a smooth transition between the low and high drivers, minimizing distortion and providing balanced sound clarity.

In terms of design, the ELX200-12 P features a rugged polypropylene enclosure, making it lightweight yet durable enough to withstand the rigors of transport and repeated use. The 18 AWG steel grille with powder coating protects the internal components from physical damage while maintaining acoustic transparency, so sound quality is never compromised. The speaker includes three M10 suspension points, allowing for secure mounting options whether you need to rig it in a venue or install it permanently. Its dimensions of 629 mm by 363 mm by 344 mm (24.8 in x 14.3 in x 13.6 in) and net weight of 15.6 kg (34.4 lb) strike a balance between portability and presence, making it manageable for one person to set up but substantial enough to deliver powerful sound.

Connectivity options are comprehensive, with a stereo RCA input, two XLR/TRS combo jacks, and an additional XLR connector. This flexibility allows you to integrate the speaker easily with a variety of audio sources and mixing consoles, providing versatility whether you are connecting microphones, mixers, or playback devices. The built-in 1200-watt power amplifier ensures that the speaker performs optimally without the need for external amplification, simplifying your setup and reducing the amount of gear you need to carry.

This loudspeaker is ideally suited for live music performances, DJ setups, public speaking events, and installations in clubs, houses of worship, or corporate environments. Its coverage pattern of 90˚ horizontal by 60˚ vertical means it distributes sound evenly across the audience area, reducing hotspots and dead zones. The power consumption range of 100 to 240 volts at 50 to 60 Hz makes it compatible with international power standards, adding to its usability in various locations.

In conclusion, the Electro Voice ELX200-12 P powered loudspeaker combines professional-grade audio performance with durable construction and versatile connectivity, making it an outstanding investment for anyone serious about sound quality and reliability. Priced at ₹138,564, it offers excellent value for a speaker that can handle demanding applications with ease. When you choose the ELX200-12 P, you are choosing a sound system that delivers clarity, power, and flexibility, ensuring your audio presentations always make a strong and confident impact.
