Mid/ Hi System

Midrange dimensions :                         12 x 3,5 “Midrange dimensions (mm) :             12 x 89 mmMidrange magnet :                                NeodymiumMidrange brand:                                    Custom-madeMidrange voice coil:                              1 “Midrange voice coil:                             25.4 mmTweeter dimensions:                            4 x 0.5 “Tweeter dimensions (mm) :               12.7 mmTweeter magnet :                                  NeodymiumTweeter brand :                                     Custom-madeTweeter voice coil :                                1 “Tweeter voice coil (mm) :                   25.4 mmWave Guide :                                          CD WaveguideLoudspeaker inputs :                             1Speaker input connections:               Custom-made multipinCabinet construction mid/high :      ClosedMid/Hi system cabinet material:       AluminiumMid/Hi system cabinet surface :         HD coated aluminum, multi layer                                                                        mesh (cloth)Mid/Hi system width :                          103 mmMid/Hi system height :                        1621 mmMid/Hi system depth :                         135 mmMid/Hi system weight :                        11.2 kg

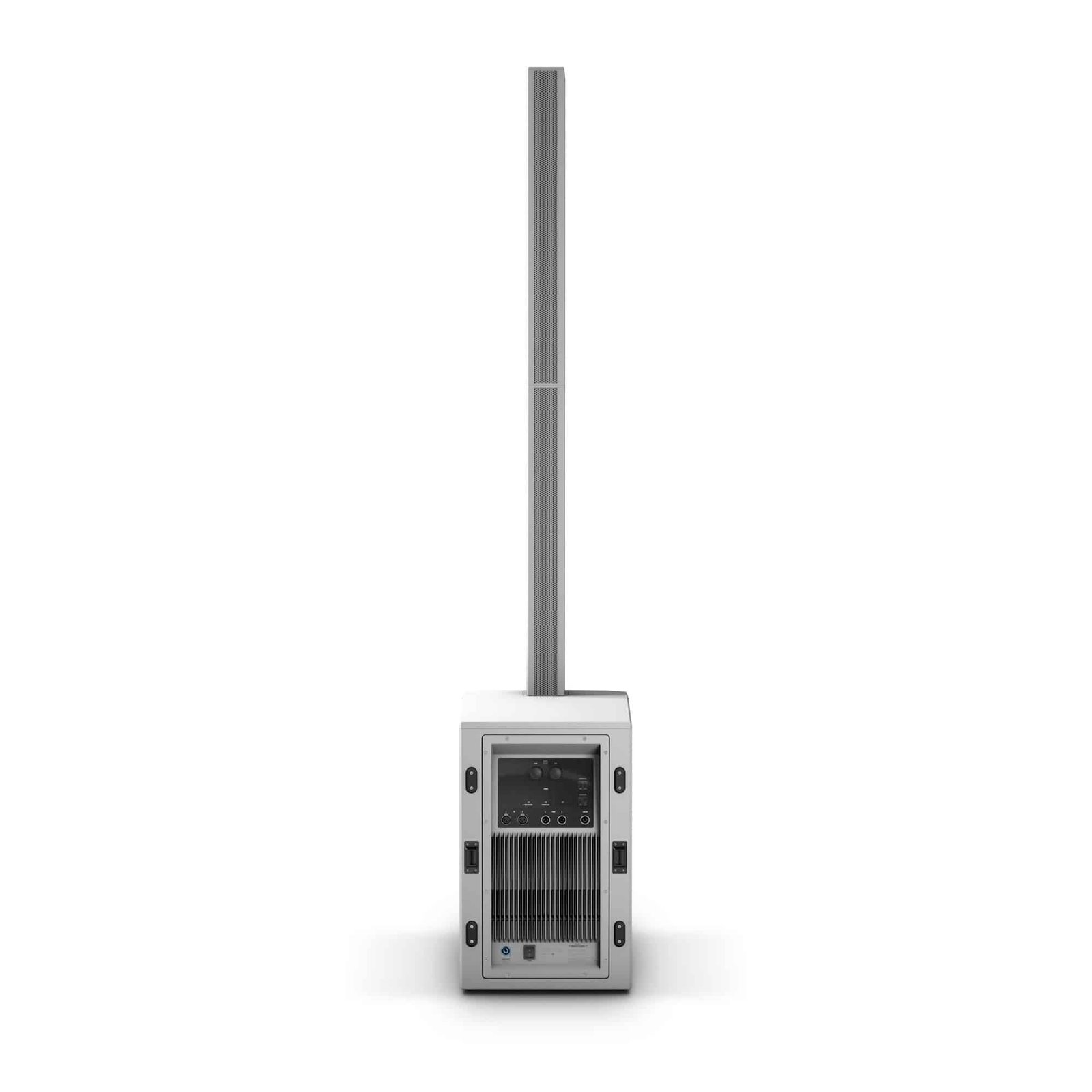

Amplifier module (integrated in subwoofer)

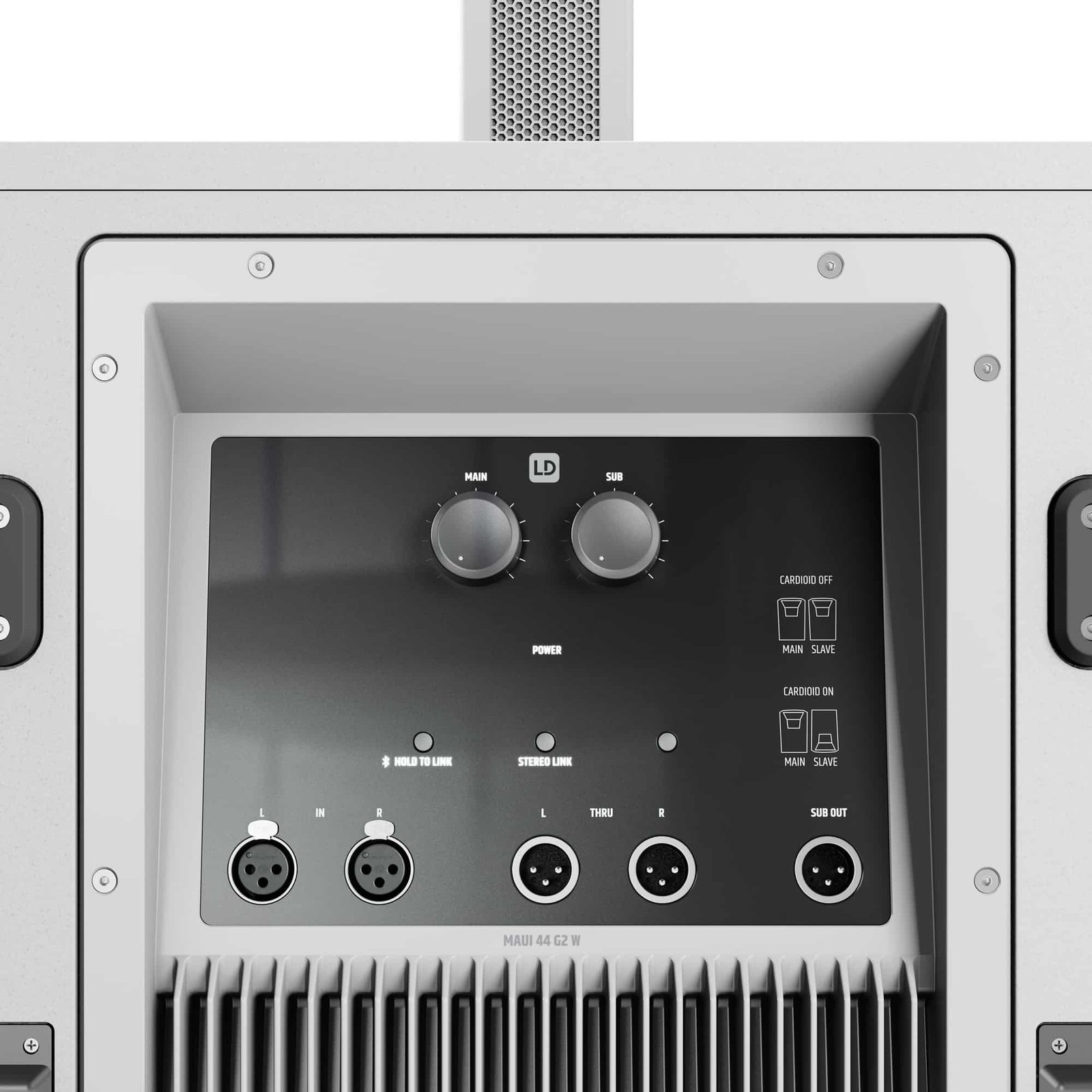

Amplifier :                                           Class DSystem output (RMS) :                    1500 WProtection circuits :                          DC protection, Multiband limiter, Short  circuit, Thermal protectionCooling :                                             ConvectionControls :                                            Bluetooth HOLD TO LINK button, Bluetooth STEREO LINK button,  Cardioid On/Off, Main level, Power On/Off, Sub levelIndicators :                                       Bluetooth, Bluetooth STEREO LINK, Cardioid On/Off, Follower mode, Limit, Power, Protect (protection circuit engaged), Signal, Subwoofer ModeMains connector :                                 Neutrik PowerConOperating voltage :                        100 V AC – 120 V AC, 50 – 60 Hz, 220 V AC – 240 V AC, 50-60 HzAmbient temperature (operating) :      0 – 40 °CRelative Humidity :                        < 80% (non-condensing)Line Inputs :                                       2Line Input Connectors :                 XLR femaleLine Outputs :                                    2Line Output Connectors :              XLR maleNumber of speaker outputs :           1Loudspeaker Output Connectors :    Custom-made multipinBluetooth Standard :                              A2DPBluetooth Audio Decoder :                    AAC, aptX, SBC

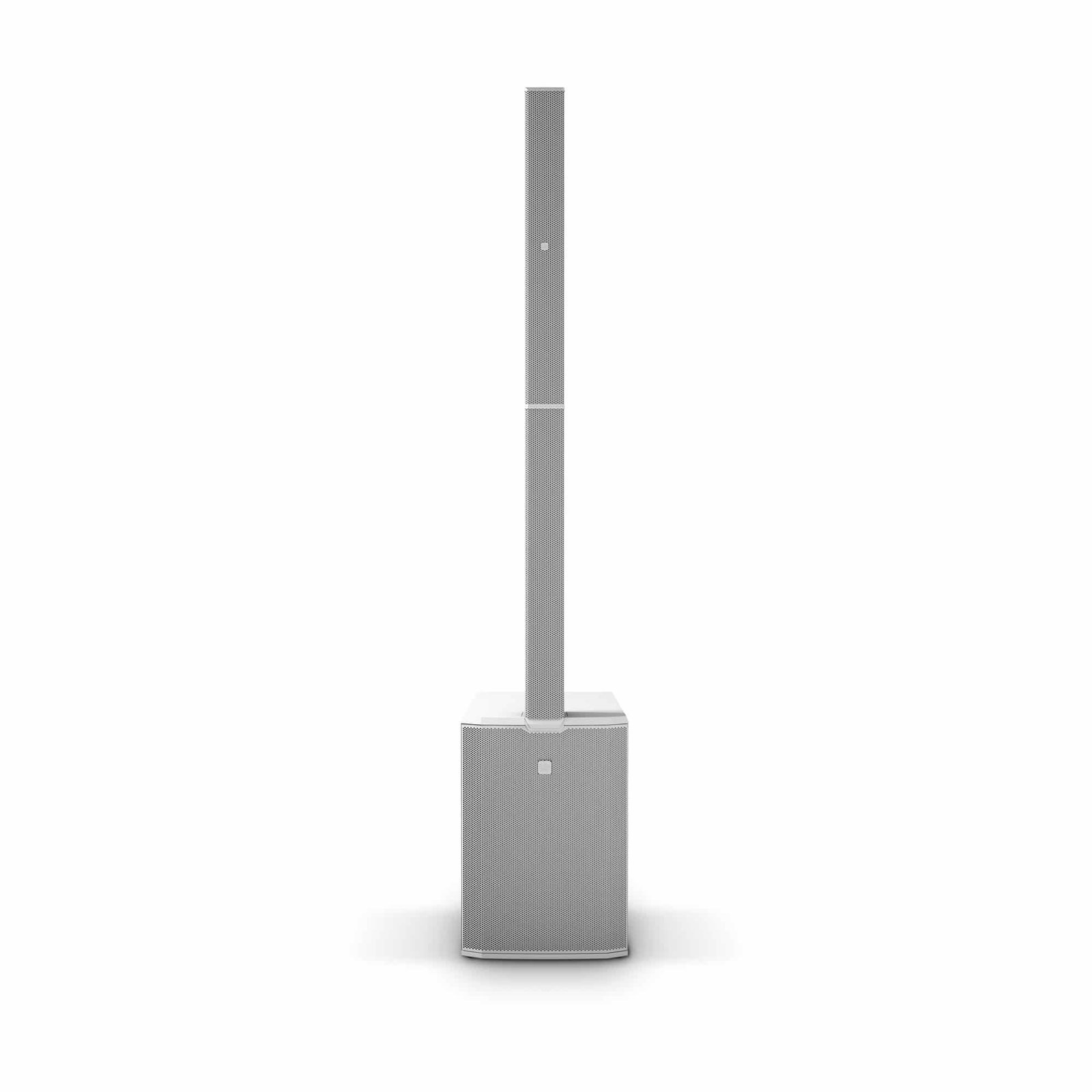

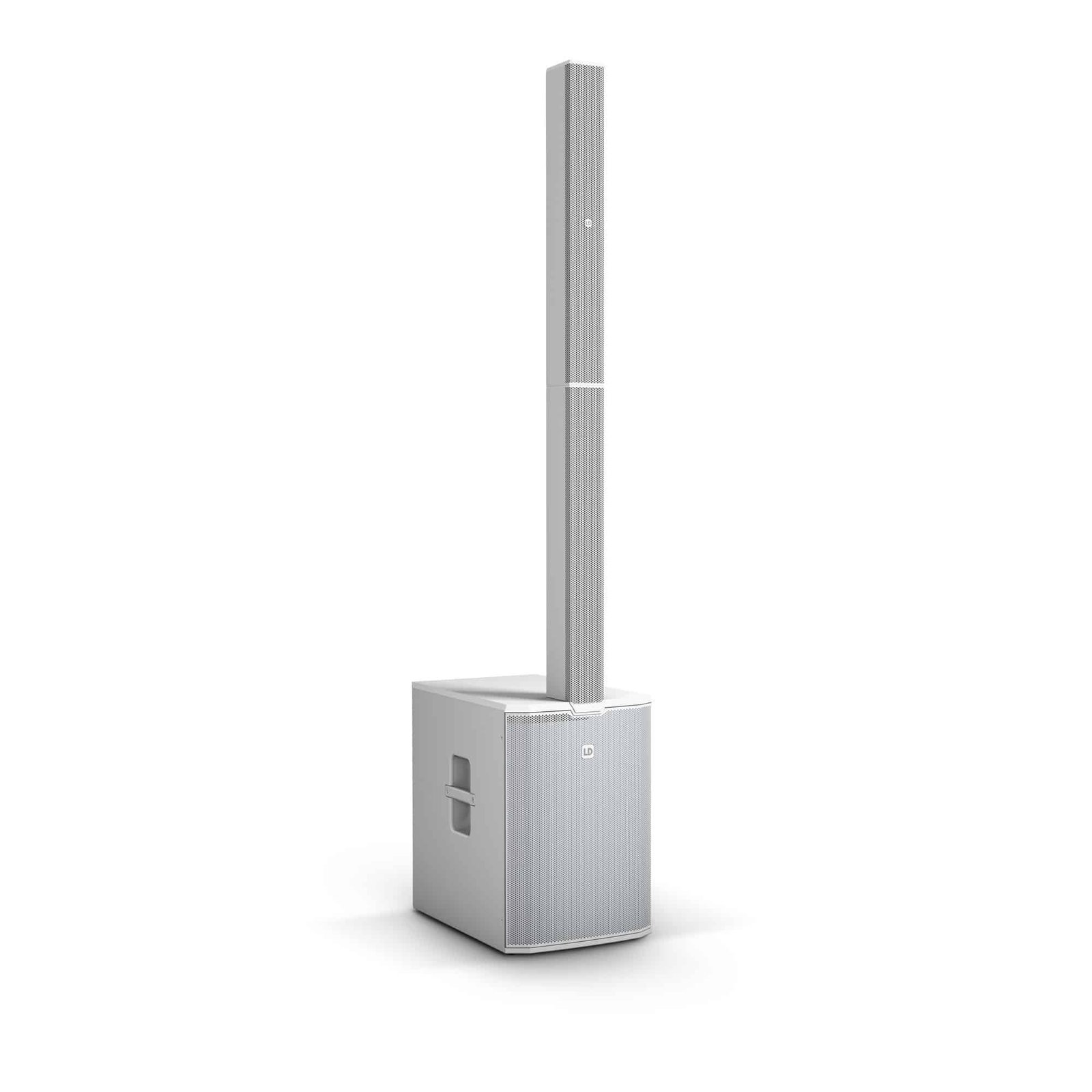

For professionals seeking a powerful, versatile, and elegantly designed loudspeaker system, the LD System MAUI® 44 G2 W Cardioid powered Column Loudspeaker in white offers an exceptional solution. Whether you are a touring musician, event organizer, or sound engineer, this system delivers crystal-clear sound with impressive volume and broad coverage, ensuring your audience experiences high-quality audio no matter the venue size. The MAUI 44 G2 W’s sophisticated design and advanced technology combine to meet the demands of live performances, corporate events, and fixed installations with ease and style.

One of the standout features of this loudspeaker is its maximum peak sound pressure level of 132 dB, which means it can produce extremely loud audio without distortion. This capability ensures that your sound reaches every corner of a large hall or outdoor space, providing an immersive listening experience for all attendees. The wide frequency response range of 37 Hz to 20,000 Hz guarantees full-spectrum sound reproduction, from deep, rich bass tones to crisp, clear highs, making it suitable for music, speech, and complex audio content alike.

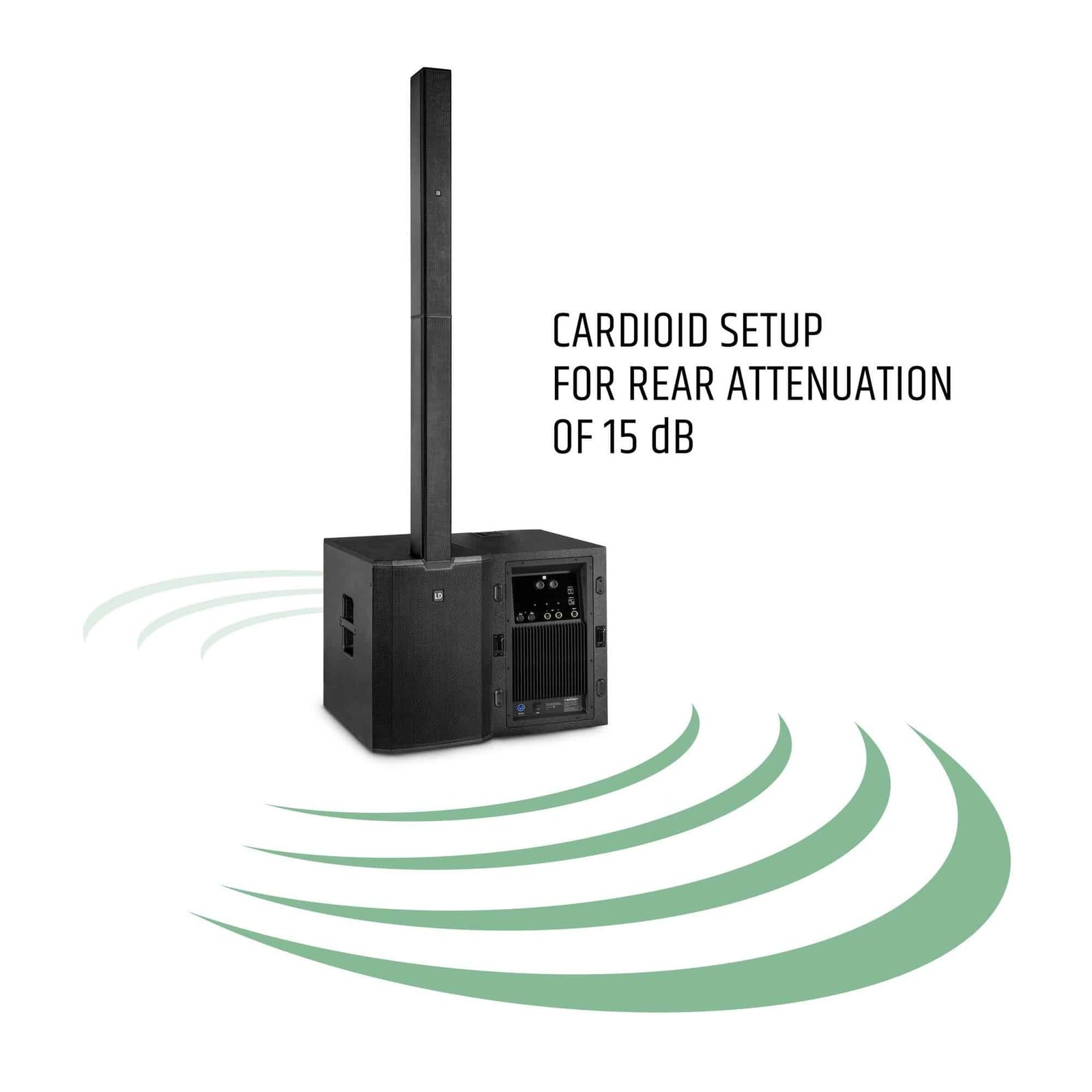

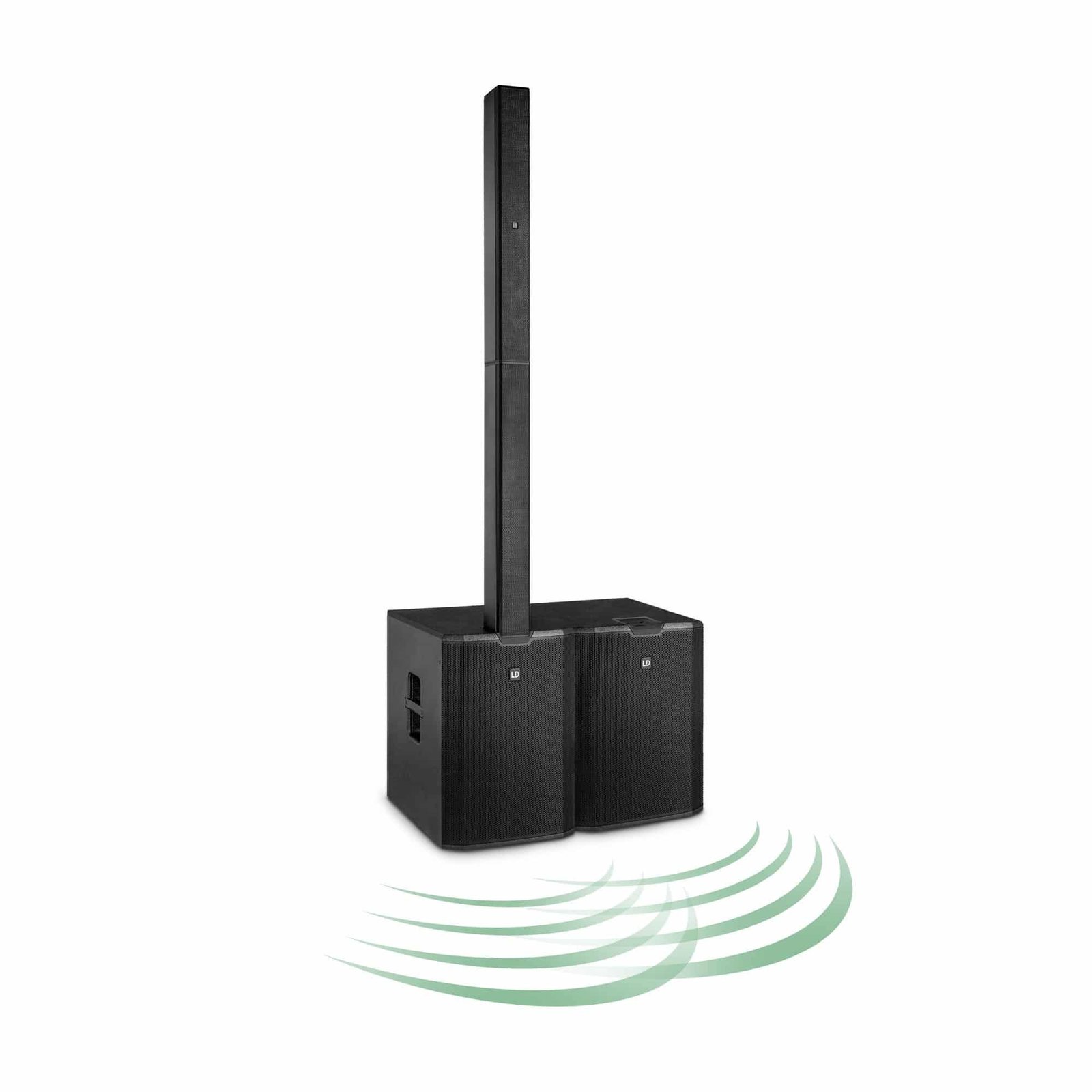

The MAUI 44 G2 W’s cardioid dispersion pattern is specifically engineered to focus sound projection forward while minimizing unwanted feedback and rear noise. This directional sound control helps reduce interference from stage monitors and ambient noise, enhancing clarity and reducing the need for excessive volume adjustments. The horizontal coverage angle of 120 degrees combined with a vertical dispersion of 25 degrees ensures broad audience coverage with consistent sound levels, which is especially valuable in wide or irregularly shaped venues. Additionally, the system offers mono and stereo operation modes, providing flexibility to adapt to various event setups.

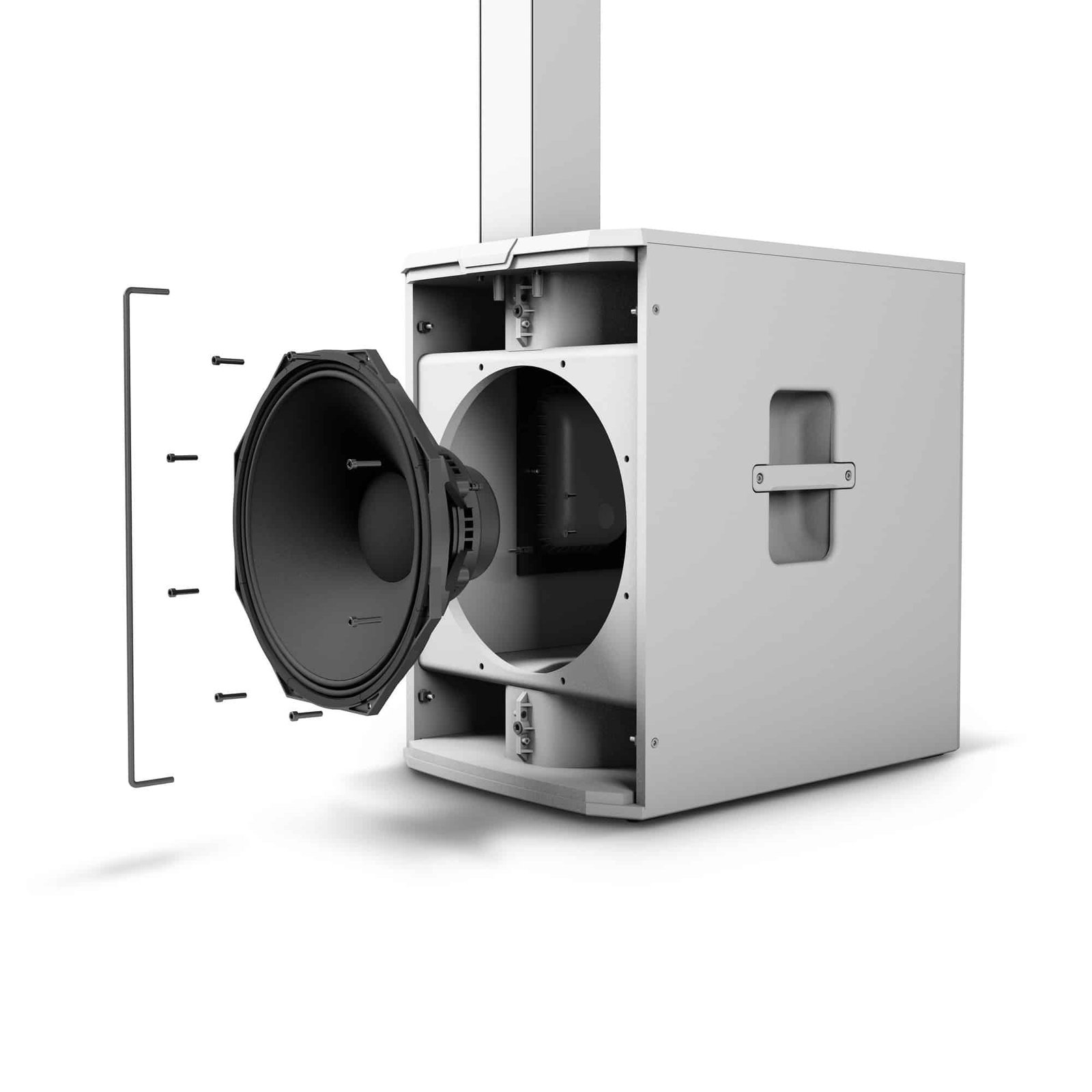

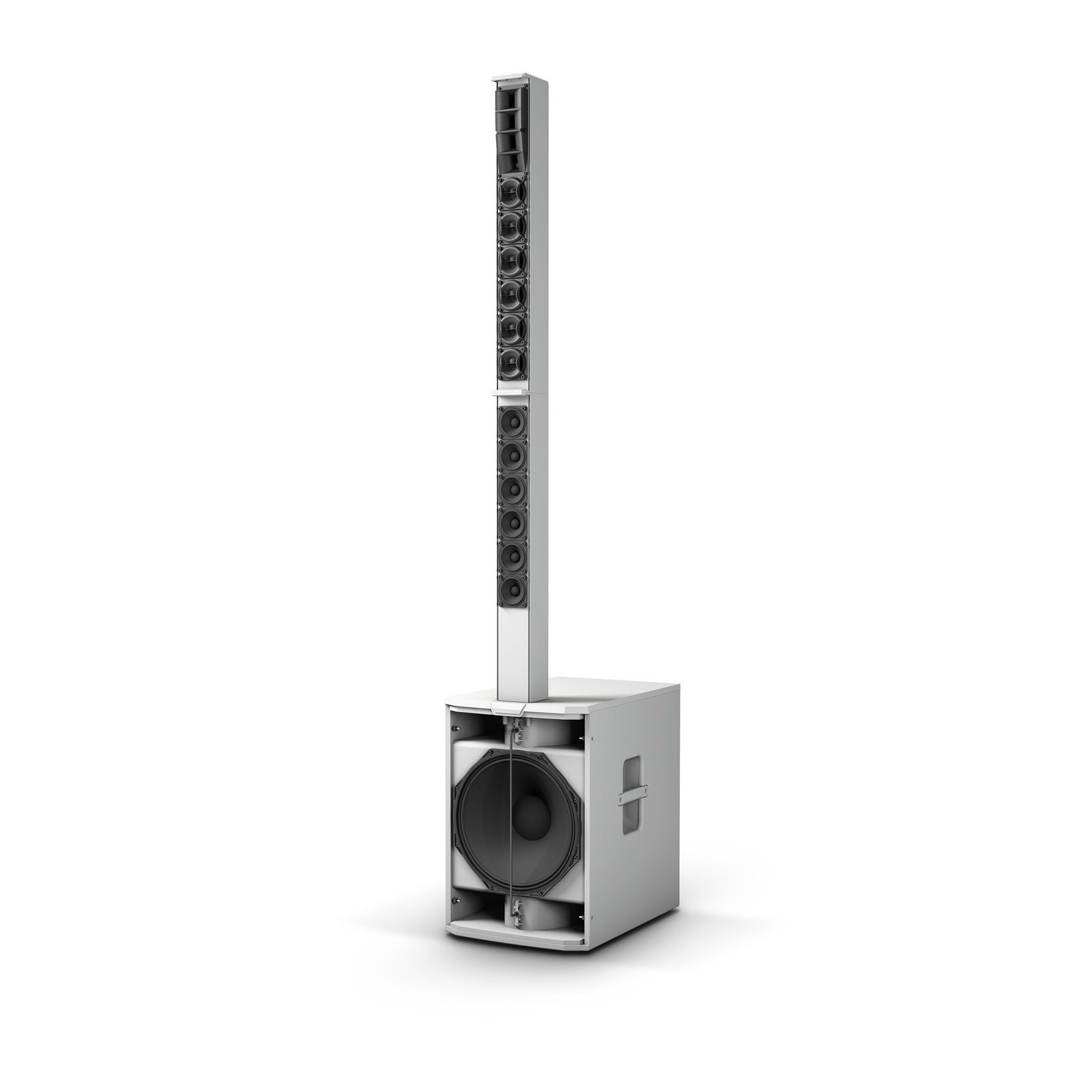

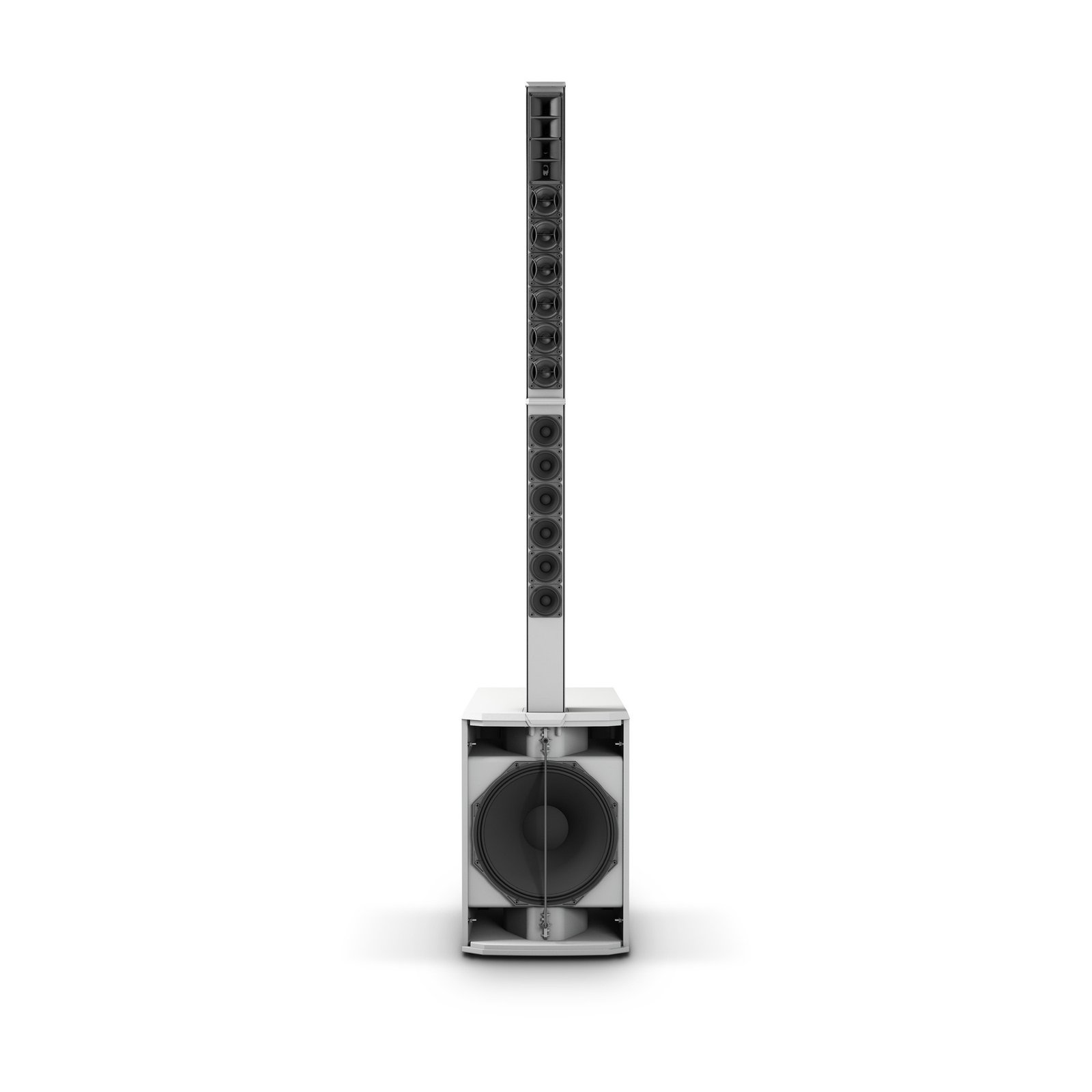

Built with high-quality materials, the cabinet uses 15 and 18 mm birch plywood, finished with a durable polyurea surface coating for enhanced protection against wear and environmental factors. This robust construction ensures long-term reliability for frequent transport and setup. The custom-made 15-inch neodymium woofer with a 4-inch voice coil delivers powerful bass response and high sensitivity, while the bass reflex cabinet design optimizes airflow and low-frequency output for punchy, clear bass performance without distortion. Despite its power, the complete system remains manageable in weight—47.6 kg total—allowing for relatively straightforward transport and installation.

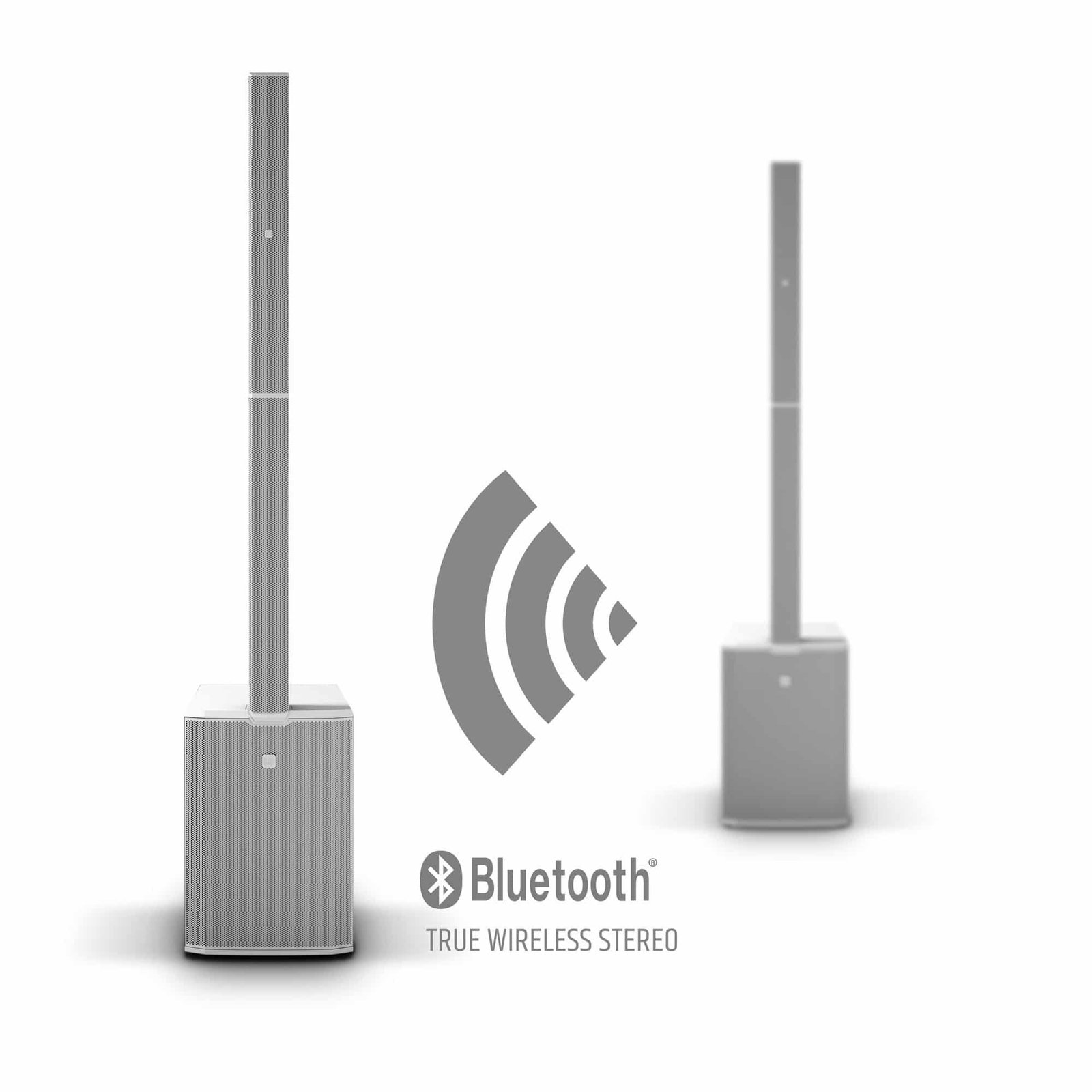

Bluetooth audio streaming and DSP-based signal processing add modern conveniences and precision control to the MAUI 44 G2 W. Bluetooth connectivity enables easy wireless playback from compatible devices, simplifying music and backing track integration. The onboard digital signal processing (DSP) optimizes sound quality and system performance by automatically adjusting parameters like equalization, limiting, and delay, which means you spend less time tweaking settings and more time focusing on your event’s success.

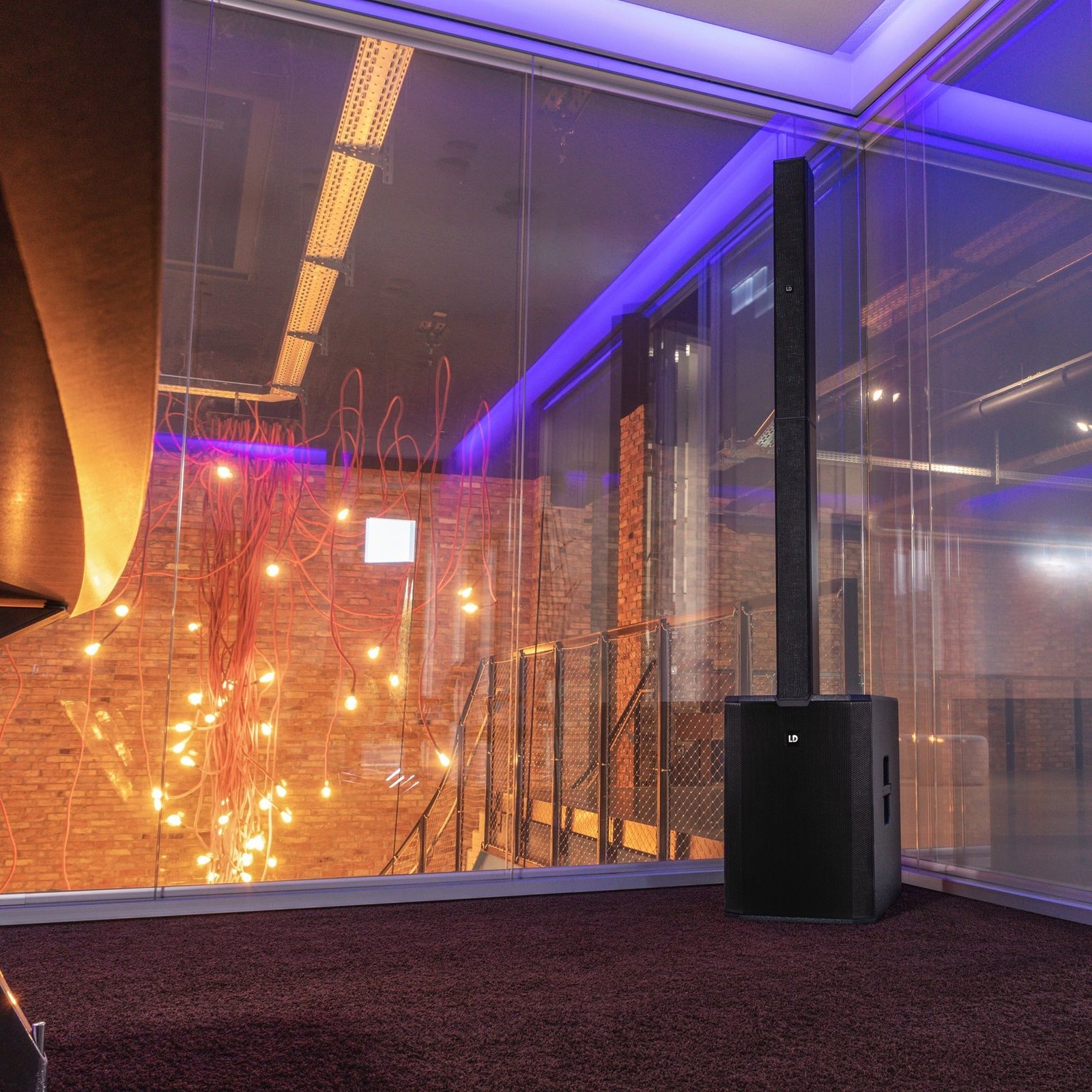

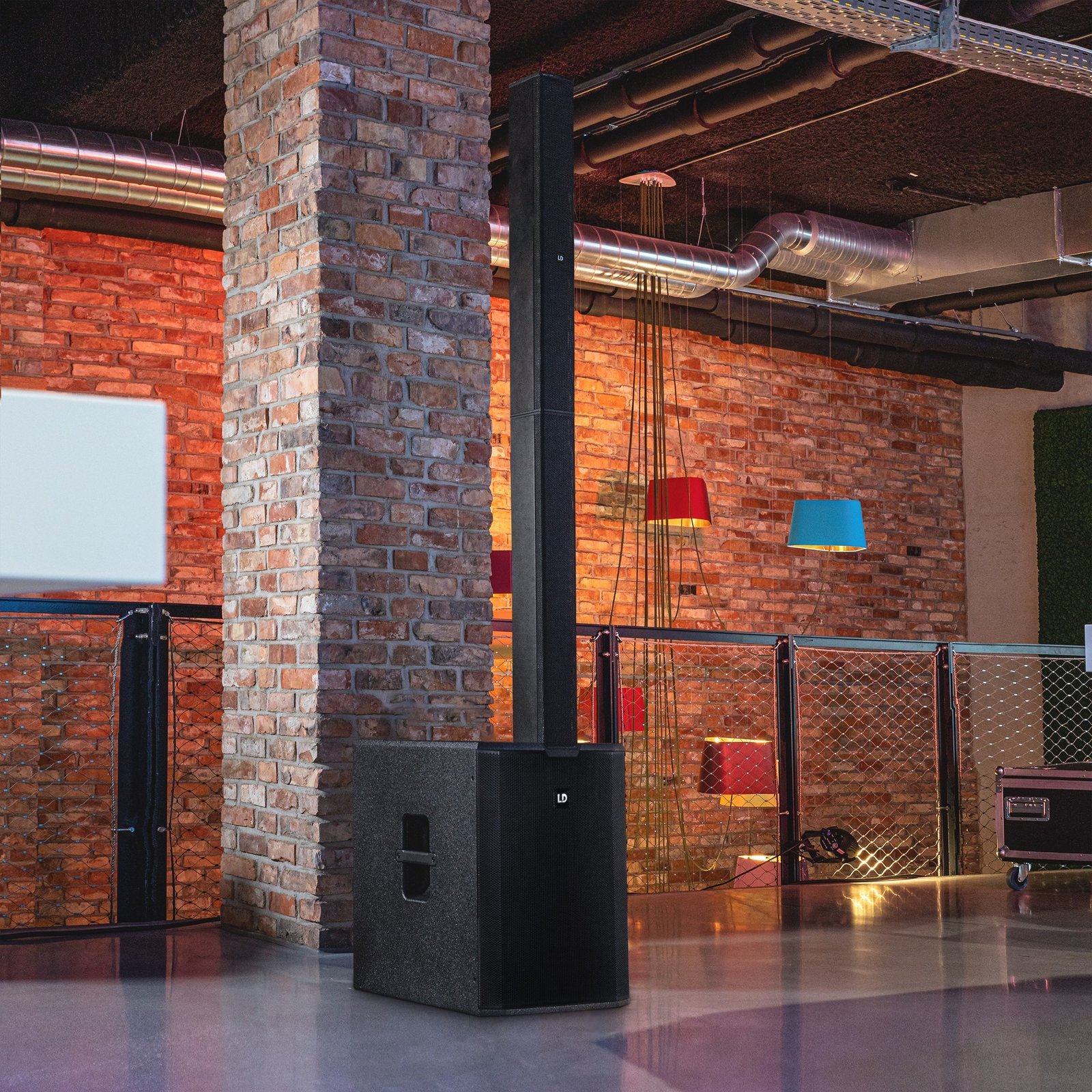

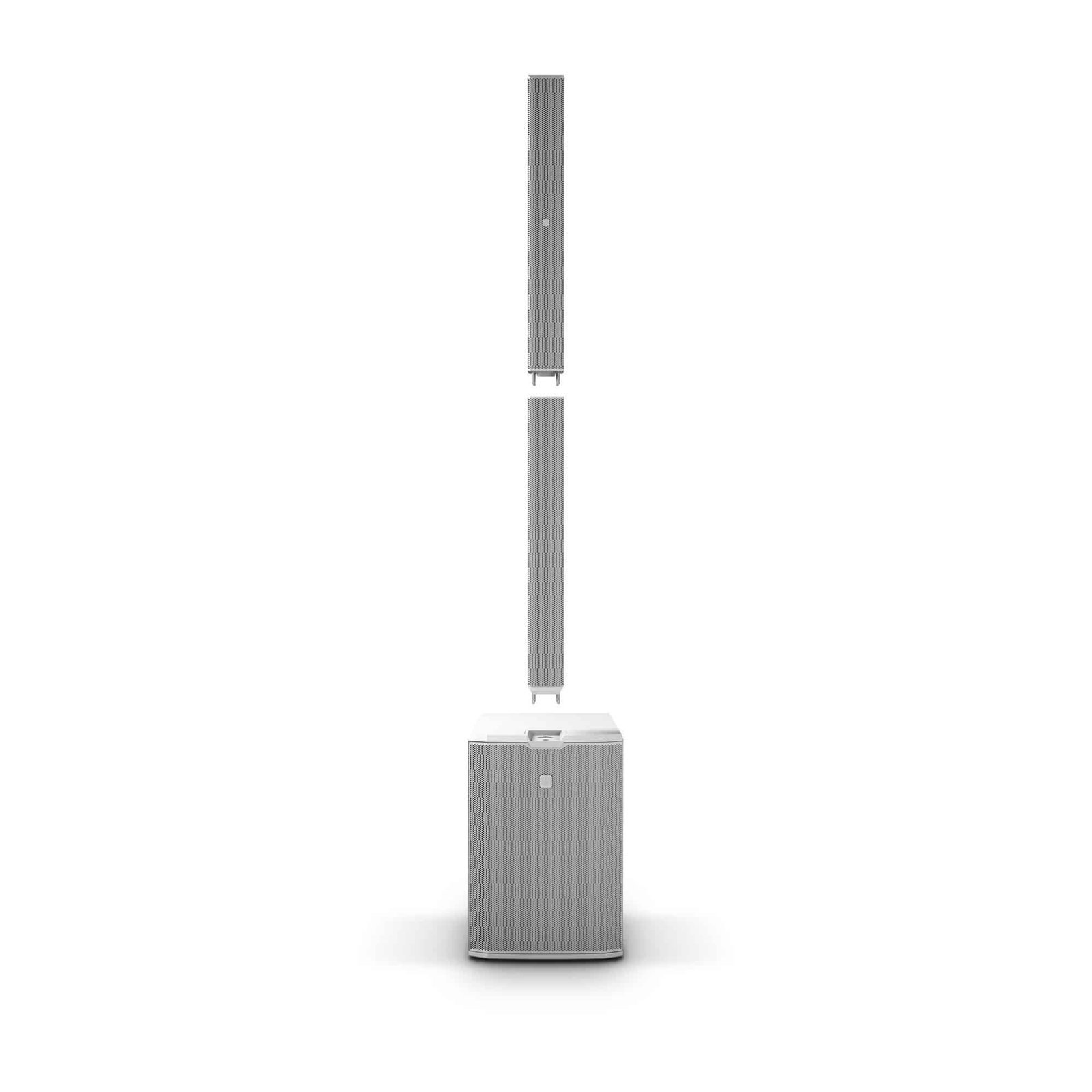

With dimensions tailored to professional use, the subwoofer measures 434 mm in width, 634 mm in height, and 637 mm in depth, and weighs 36.4 kg, making it a compact yet powerful addition to the column loudspeaker. The total height of the column is 2256 mm, providing an impressive vertical array that promotes wide sound dispersion and audience coverage without the need for additional rigging or stands. These practical dimensions and manageable weight make the system suitable for a variety of applications, including live concerts, corporate presentations, weddings, and house of worship installations.

In conclusion, the LD System MAUI 44 G2 W Cardioid powered Column Loudspeaker is a premium audio solution that combines power, flexibility, and durability in an elegant white finish. Its advanced features like cardioid dispersion, high SPL output, and DSP optimization mean you can confidently deliver outstanding sound performance in any professional setting. Investing in this system means securing reliable, high-quality audio that elevates your events and impresses your audience every time.
