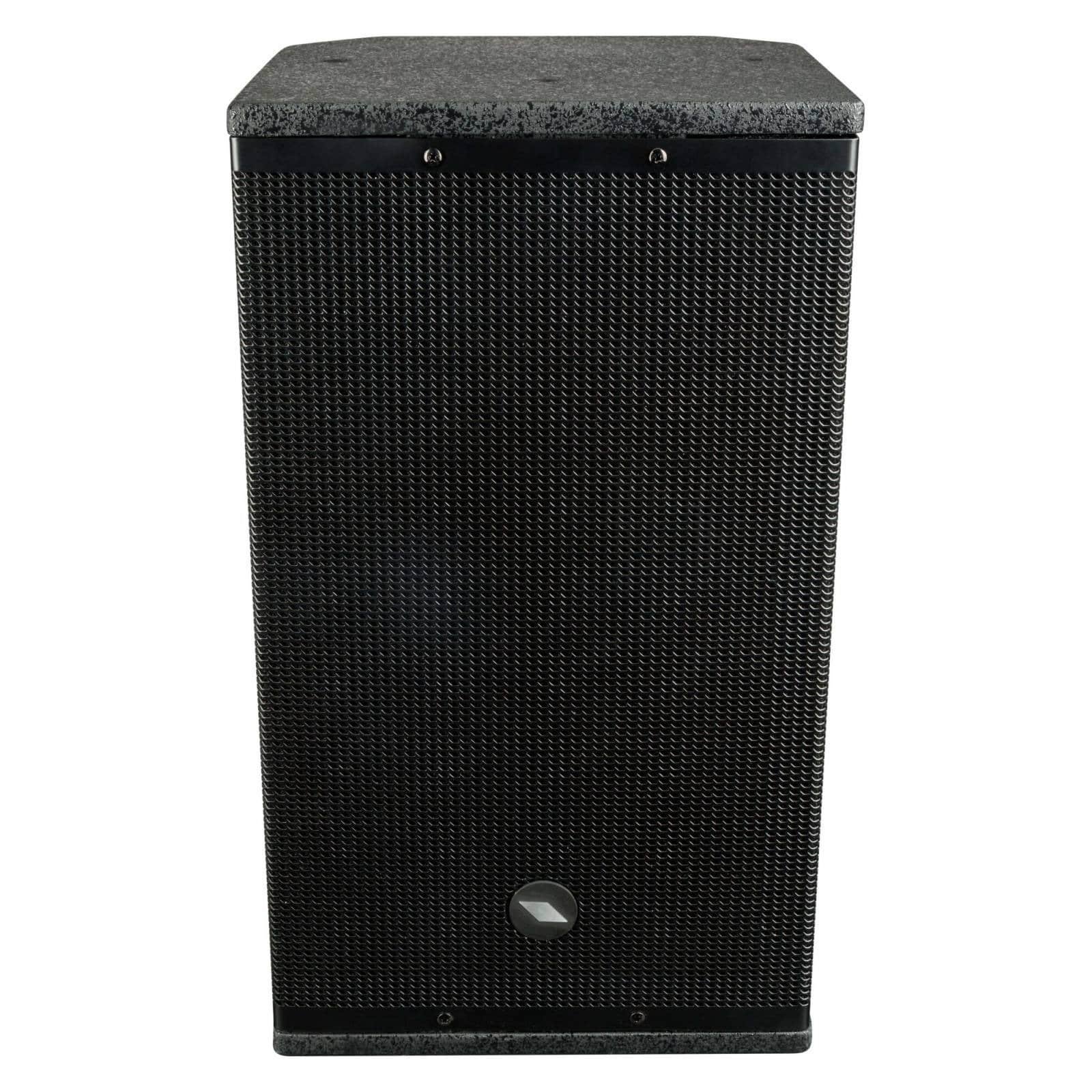

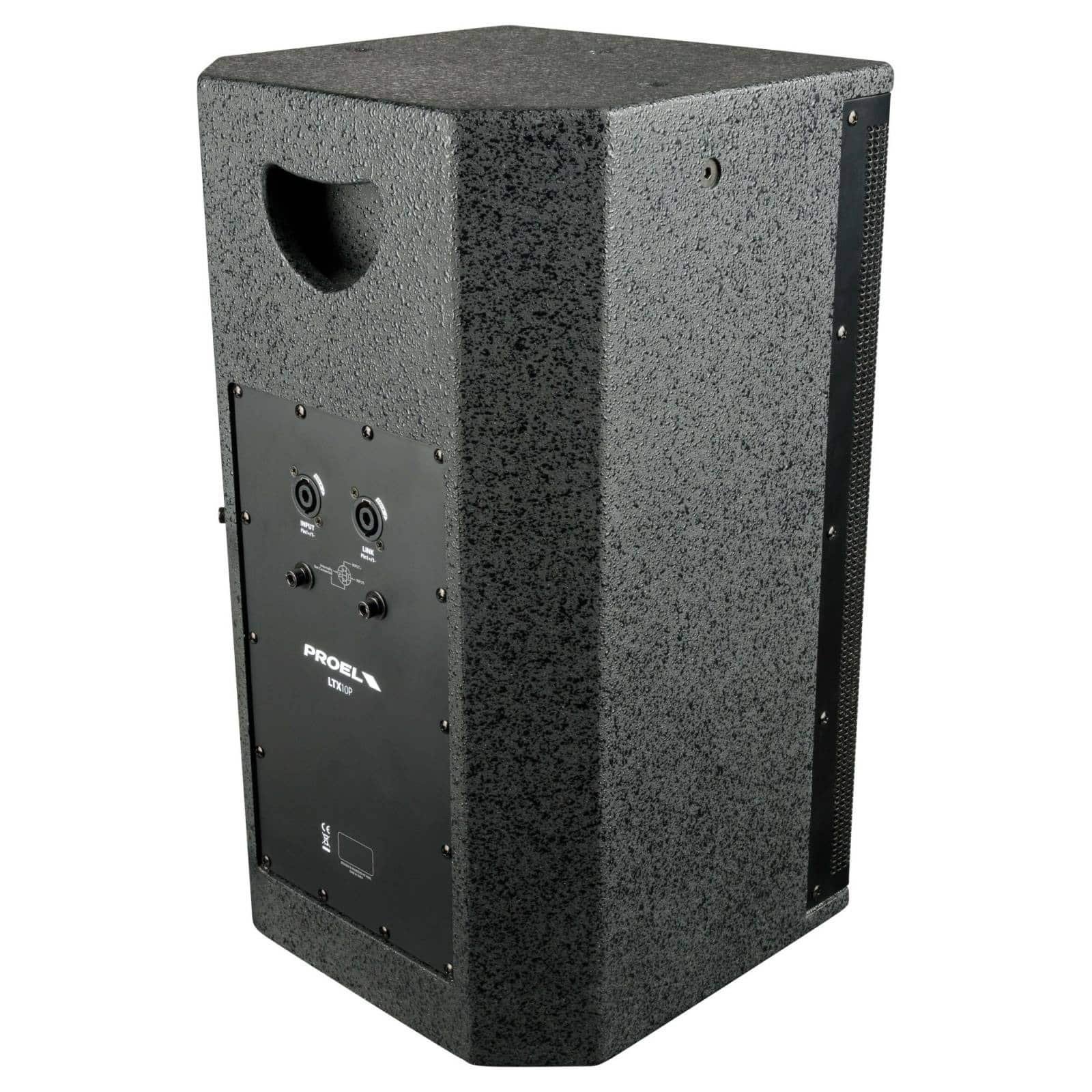

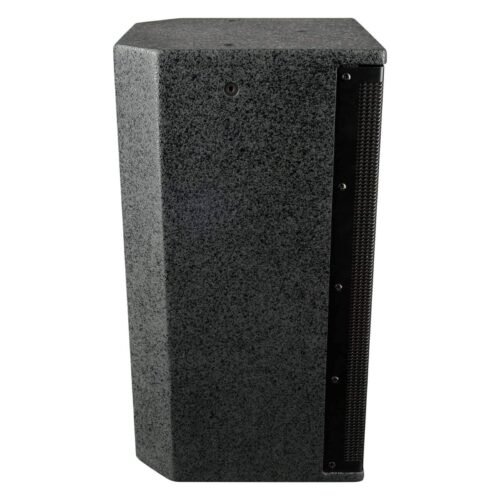

Proel LTX 10P Passive Loudspeaker system
Brand:
Proel
Product Highlights
LTX is a complete series of active and passive speakers designed specifically for a a wide range of commercial and residential installations. The speaker systems are hosted in rugged plywood enclosures available in black or white and offering a refined and unobtrusive aesthetics, capable of fitting into any environment.
Deliver powerful, clear sound with exceptional clarity and depth, perfect for professional audio setups. Featuring a robust 10-inch woofer paired with a 1-inch compression driver, this passive loudspeaker system offers a wide 90° horizontal and vertical coverage, ensuring even sound distribution in any venue. Discover how the Proel LTX 10 P can elevate your audio experience with its durable construction and versatile mounting options.
Original price was: ₹38,815.₹36,800Current price is: ₹36,800.
In stock
Estimated delivery dates: May 9, 2026 - May 13, 2026
In stock
Flexible Mounting Options
Every LTX cabinet comes with multiple suspension points and dedicated accessories, offering versatile mounting solutions. The KPTLTP bracket (included with LTX6 and LTX8) allows wall or ceiling installation with tilt and swivel adjustment for uniform sound coverage. Larger models (LTX10 and LTX12) include C-shape brackets for wall, ceiling, or stage mounting. Additionally, LTX8, LTX10, and LTX12 feature a standard pole adapter, making them ideal for portable audio setups.
Wide Audience Coverage
Designed for precision, the LTX speakers feature 90° x 90° dispersion horns, delivering constant coverage for both horizontal and vertical installations. This ensures clear, distortion-free sound for large audiences, while high-excursion woofers combined with tuned vented cabinets provide extended frequency response with deep, tight bass.
Advanced Active Power
Active LTX models are powered by Class D amplifiers with Switch Mode Power Supply, delivering massive power in a compact design. With advanced pre-amp sections, up to 24 dB/oct. phase-aligned crossover filters, active EQ tuning, and POWERCON connectors, these systems ensure maximum efficiency. Independent HF and LF limiter circuits safeguard against distortion while maintaining crystal-clear sound at any volume.
Reliable Passive Performance

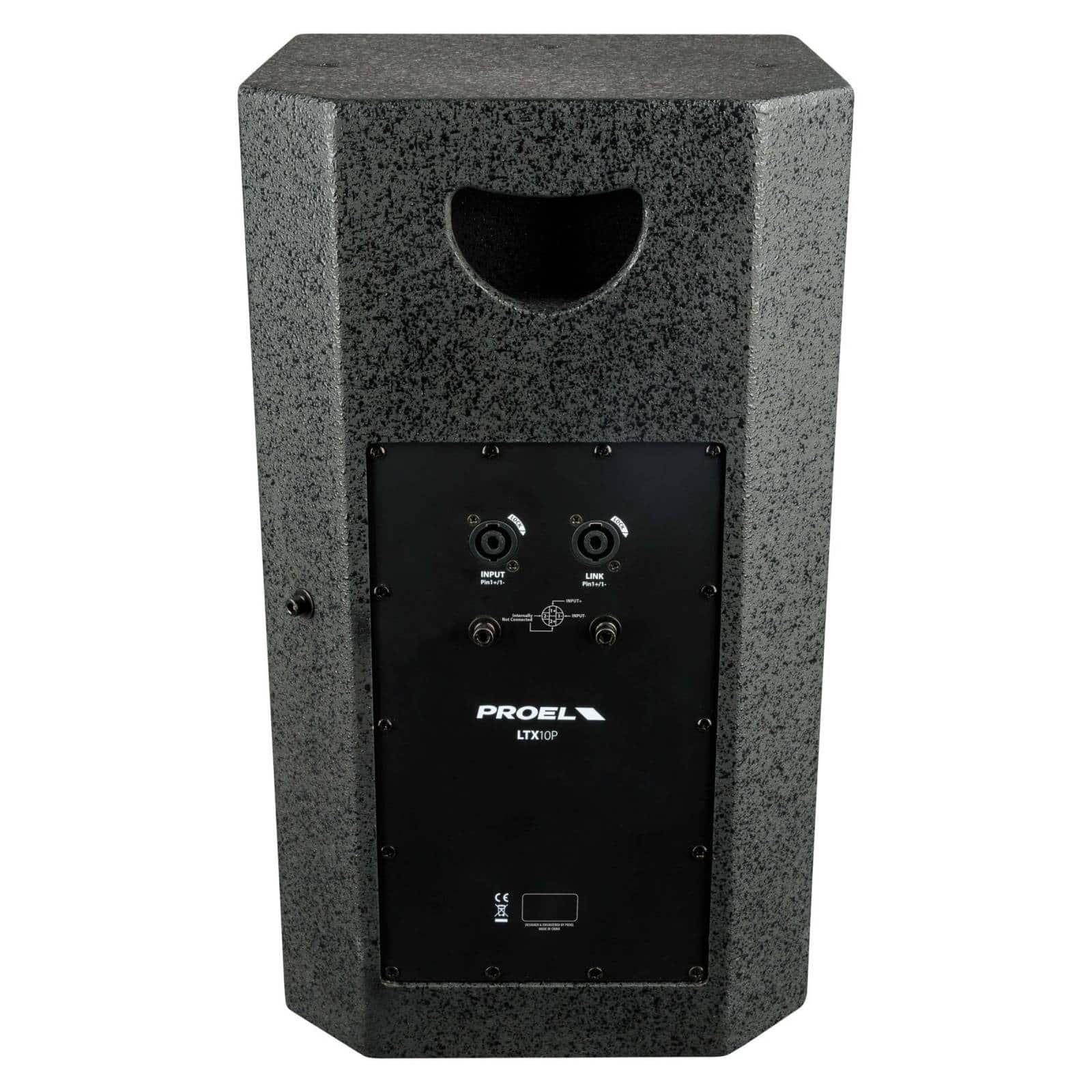

The passive LTX models are equipped with linear phase crossover filters, HF protection circuits, and SPEAKON connectors for secure, professional-grade connections. Built for durability and accuracy, these versions deliver dependable sound reinforcement across a wide range of applications.
Features
- 1” compression driver
- 10” woofer
- 90° H x 90° V coverage
- 500W peak power handling
- Frequency response 60 Hz – 20 kHz
- SPL 1w/1m 94 dB
| Brand | Proel |
|---|---|
| System type | 2-way vented enclosure |
| High Frequency Device | 1” compression driver with 1" VC |
| Low Frequency Device | 10” woofer with 2” voice coil |
| Angular Coverage | 90° H x 90° V |
| Power Rating Peak | 500 W |
| Frequency Response | 60 Hz – 20 kHz |
| Connectors | 2 x SPEAKON |
| Flying System | 4 x M8, 3 x M6 |
| Dimensions (W x H x D) | 295 x 515 x 280 mm |
| Handles | 1 x rear |
| Cabinet Color | Black |
| Weight | 11.7 kg / 25.8 lbs |
| Mounting Pool | 1 x bottom |
| Mounting Bracket | Tilt and Swivel bracket (optional) |
| Power Rating Continuous | 250 W |
| Impedance | 8 ohm |
| SPL (1w / 1m) | 94 dB |
