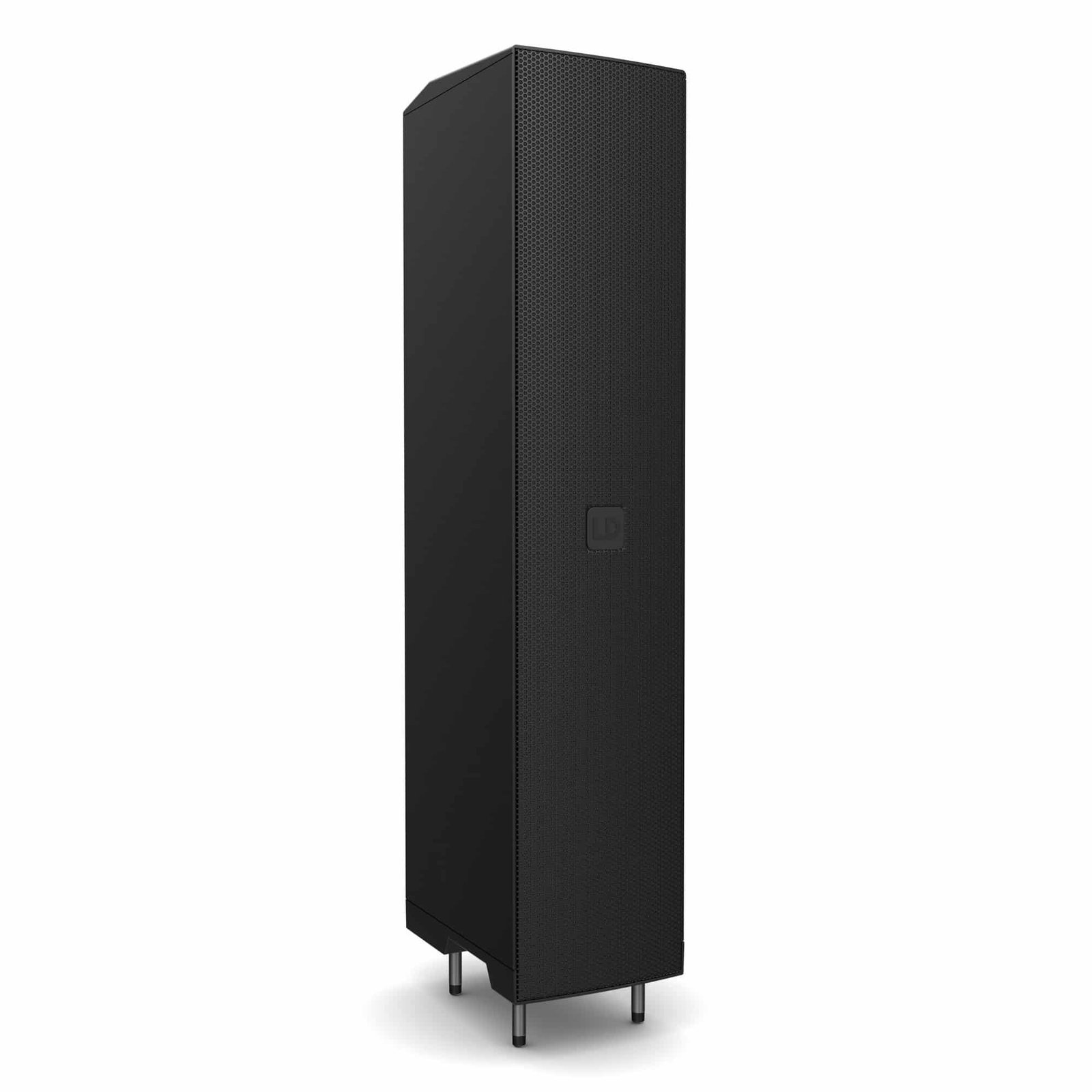

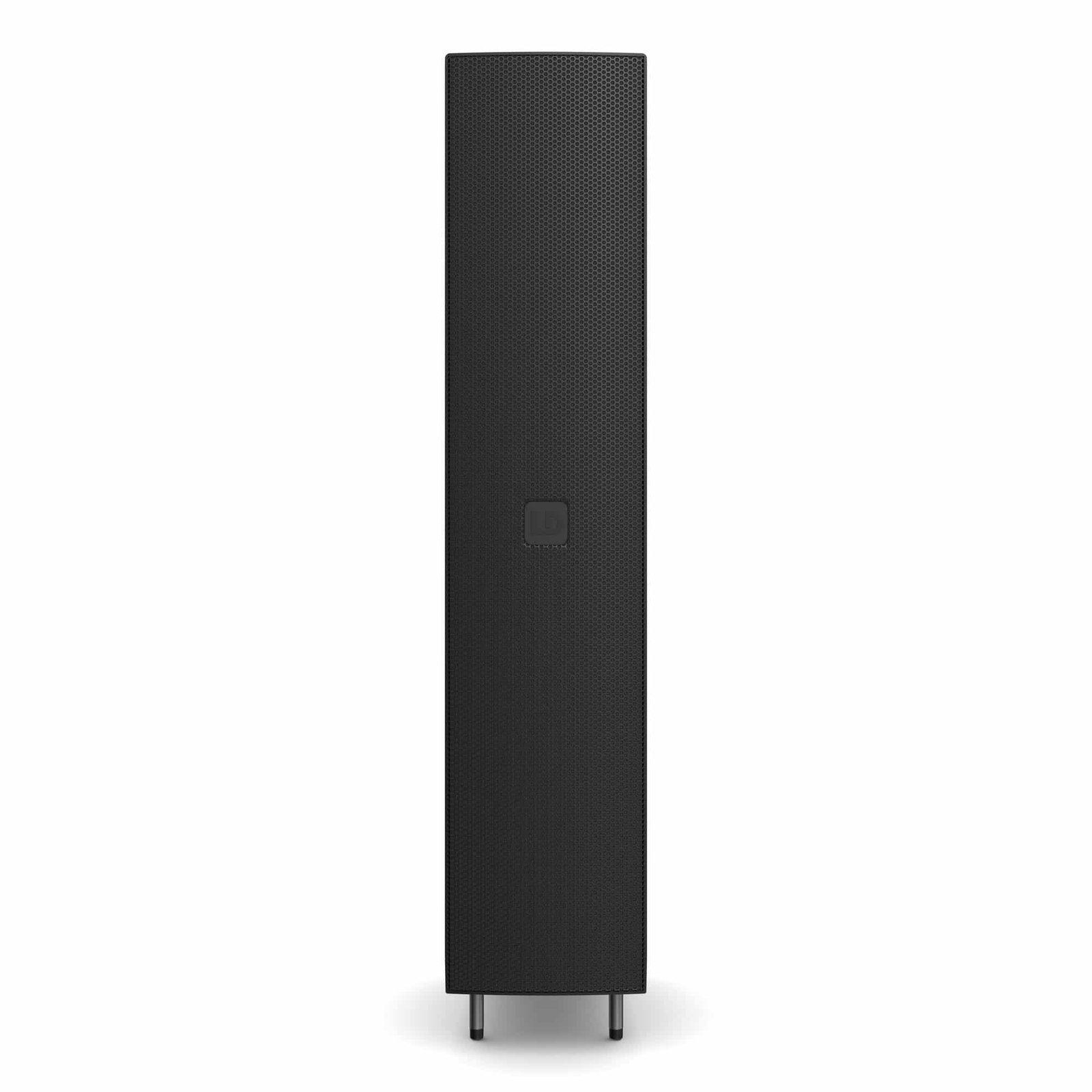

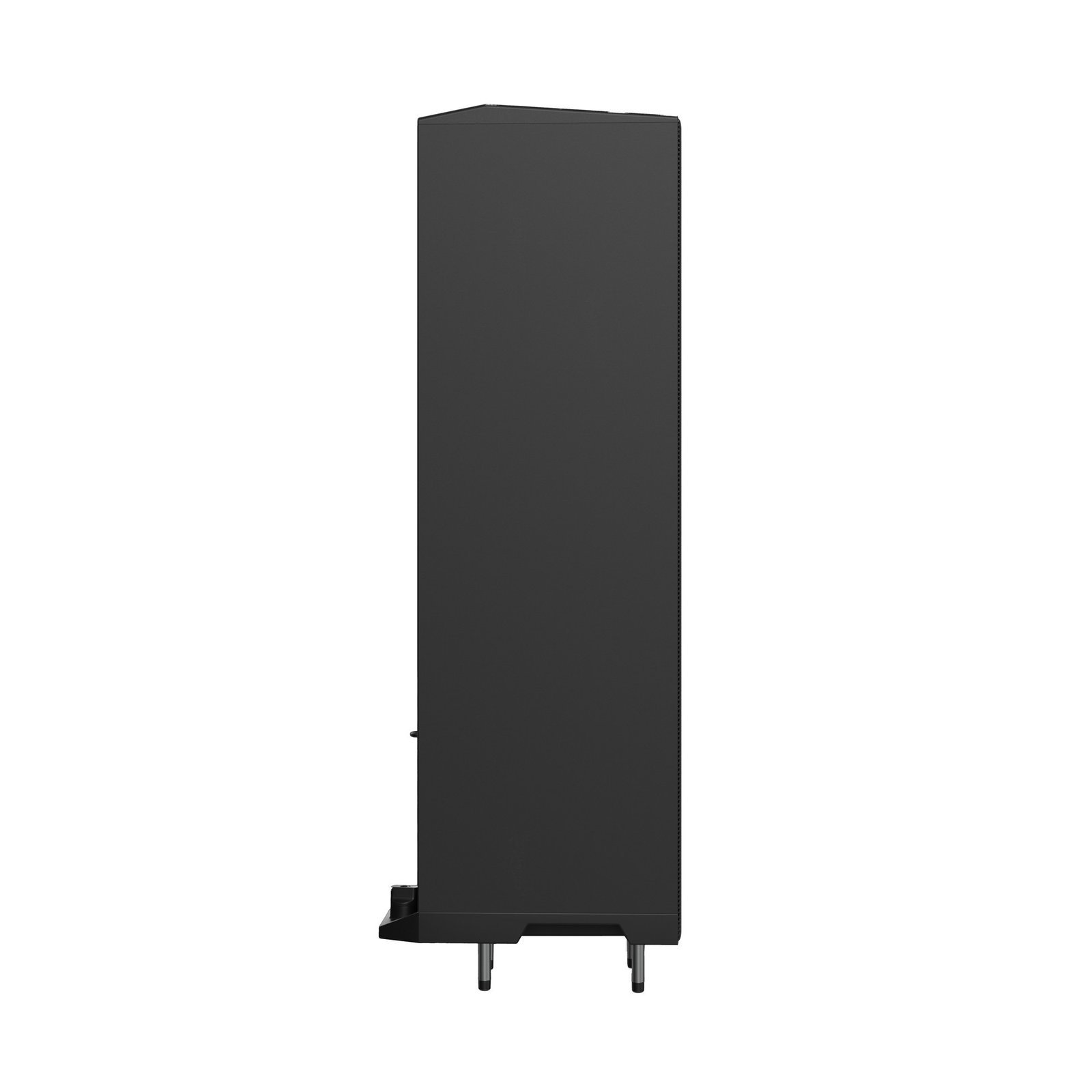

The MAILA COL full-range column module makes MAILA truly versatile. With its 4x 6.5” woofers, the elegant column element not only provides an extended low-mid range, but also includes a 4-channel DSP amplifier with 2.5 kW total power, which drives both the column itself and the MAILA SAT satellites.

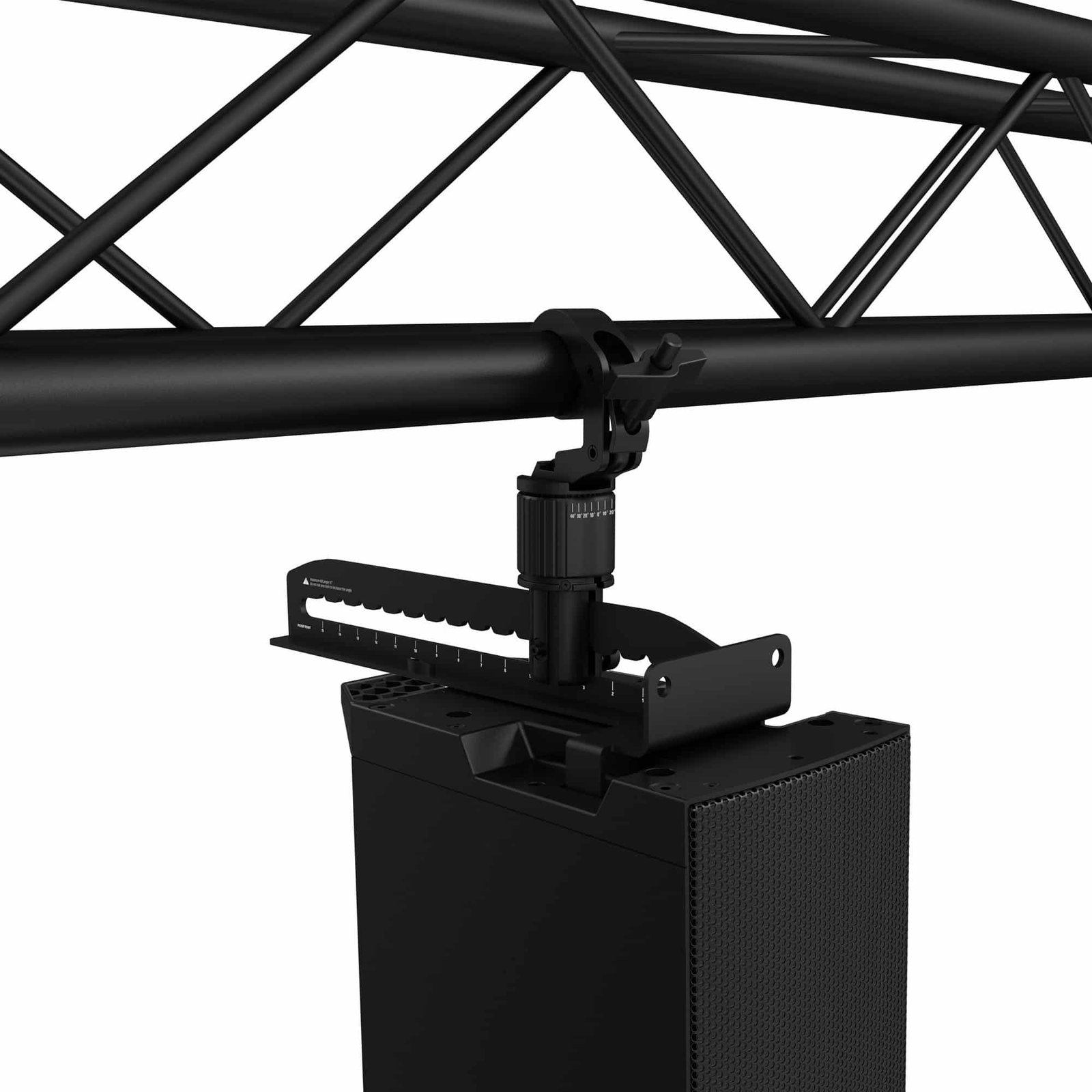

In this way, MAILA sets with column module can not only be used as a ground stack variant, but also as a flown array consisting of MAILA COL and up to eight MAILA SAT – especially useful for festivals and fixed installations. In addition, as with a classic line array, users can select different subwoofer arrangements and adapt them to the sound reinforcement requirements on site.

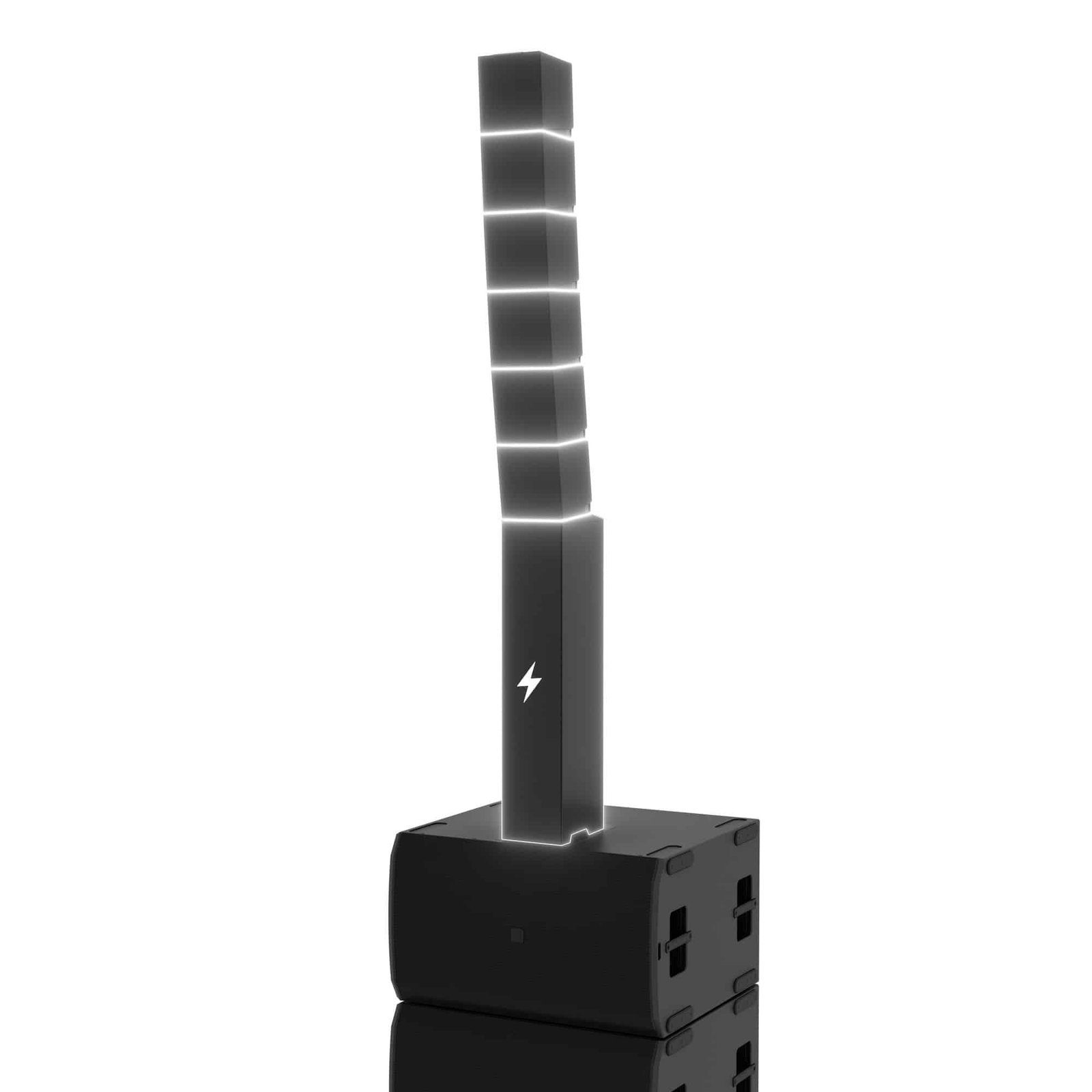

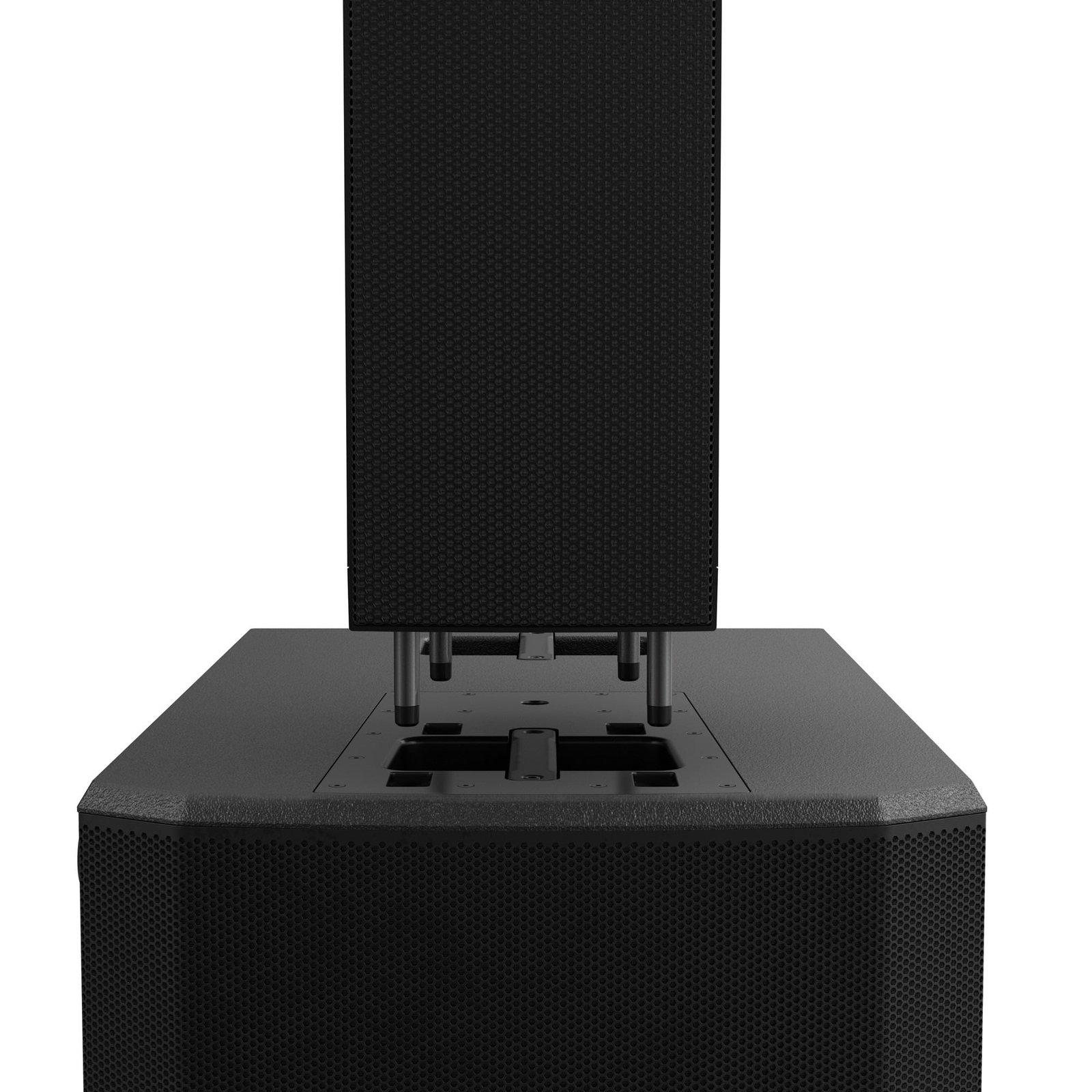

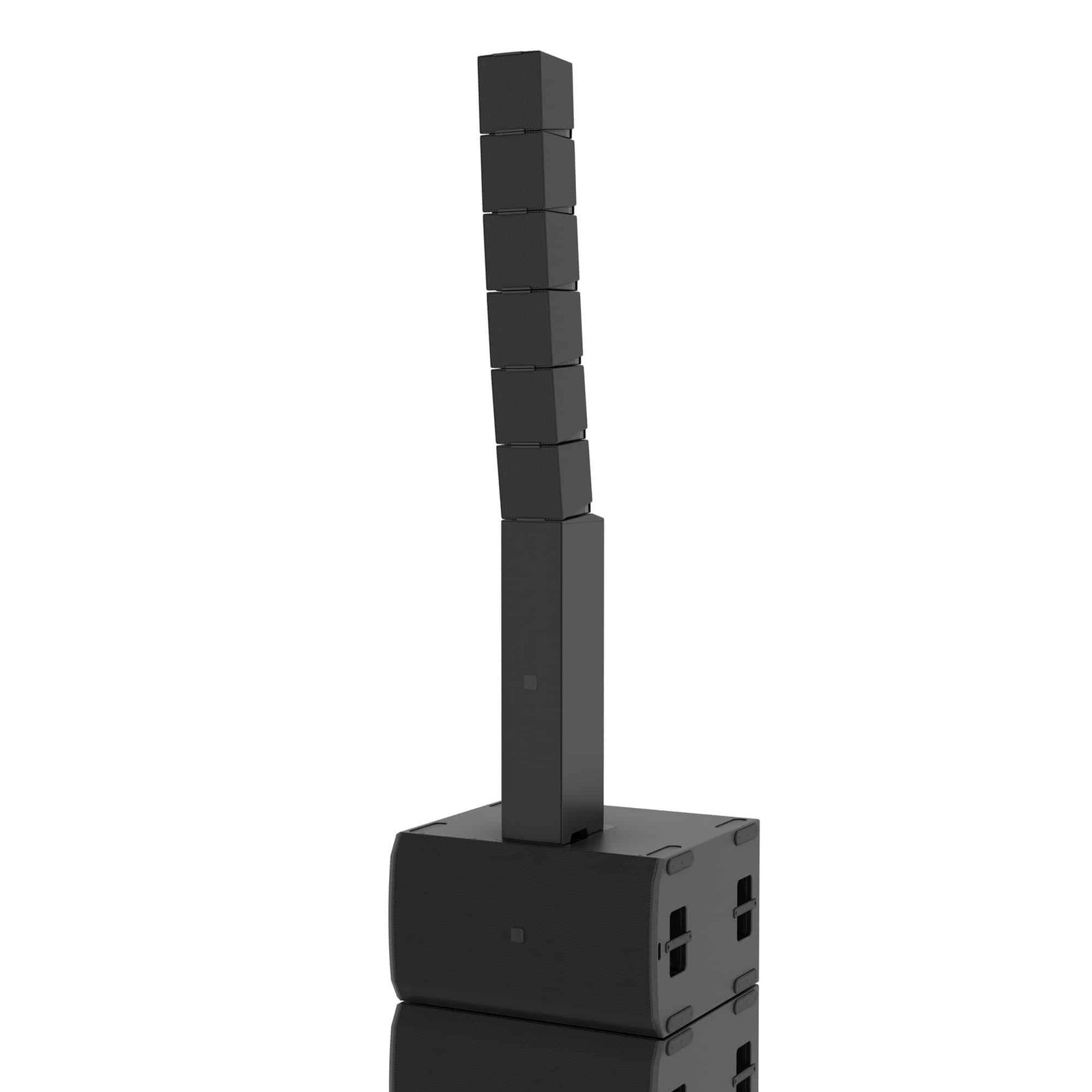

On the ground, the use of MAILA COL provides a further advantage: the interconnected column module allows ground stack sound setups that are significantly higher (up to 3.4 metres) than conventional systems and, with its greater throw, also enables uniform sound coverage in the far field.
Chassis material
| Product type | MAILA Column |
|---|---|
| Type | Powered |

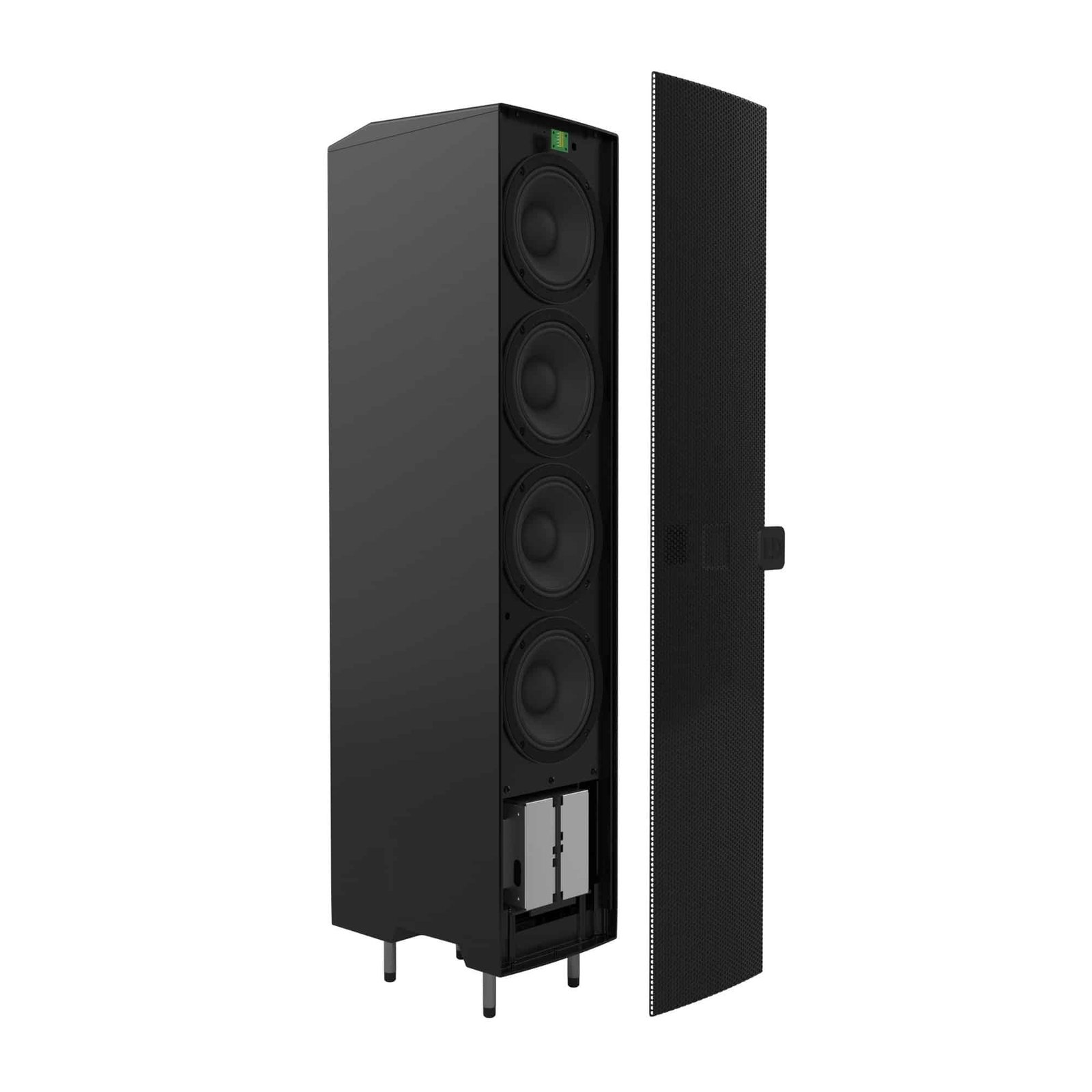

| Low/mid Woofer dimensions | 4 x 6.5 " |
| Woofer dimensions (mm) | 165.1 mm |
| Woofer magnet | Neodymium |
| Woofer brand | Custom-made |
| Woofer voice coil (inch) | 2 " |
| Woofer voice coil (mm) | 50 mm |
| Amplifier | Class D |
| System Power (RMS) | 2500 W |
| Frequency response (-6dB) | 105 Hz – 500 Hz |
| Max. SPL Peak (Pink noise) | 130 dB (fullspace @1m, Crest factor 4) |
| Max. SPL Peak (Sine burst) | 125.4 dB (fullspace @1m, 10% THD) |
| Max. SPL Average (Sine burst) | 122 dB (100 Hz – 2 kHz, fullspace @1m, 10% THD) |
| Protection circuits | limiter, over-current, thermal overload |
| Input impedance | 20000 Ohm(s) |

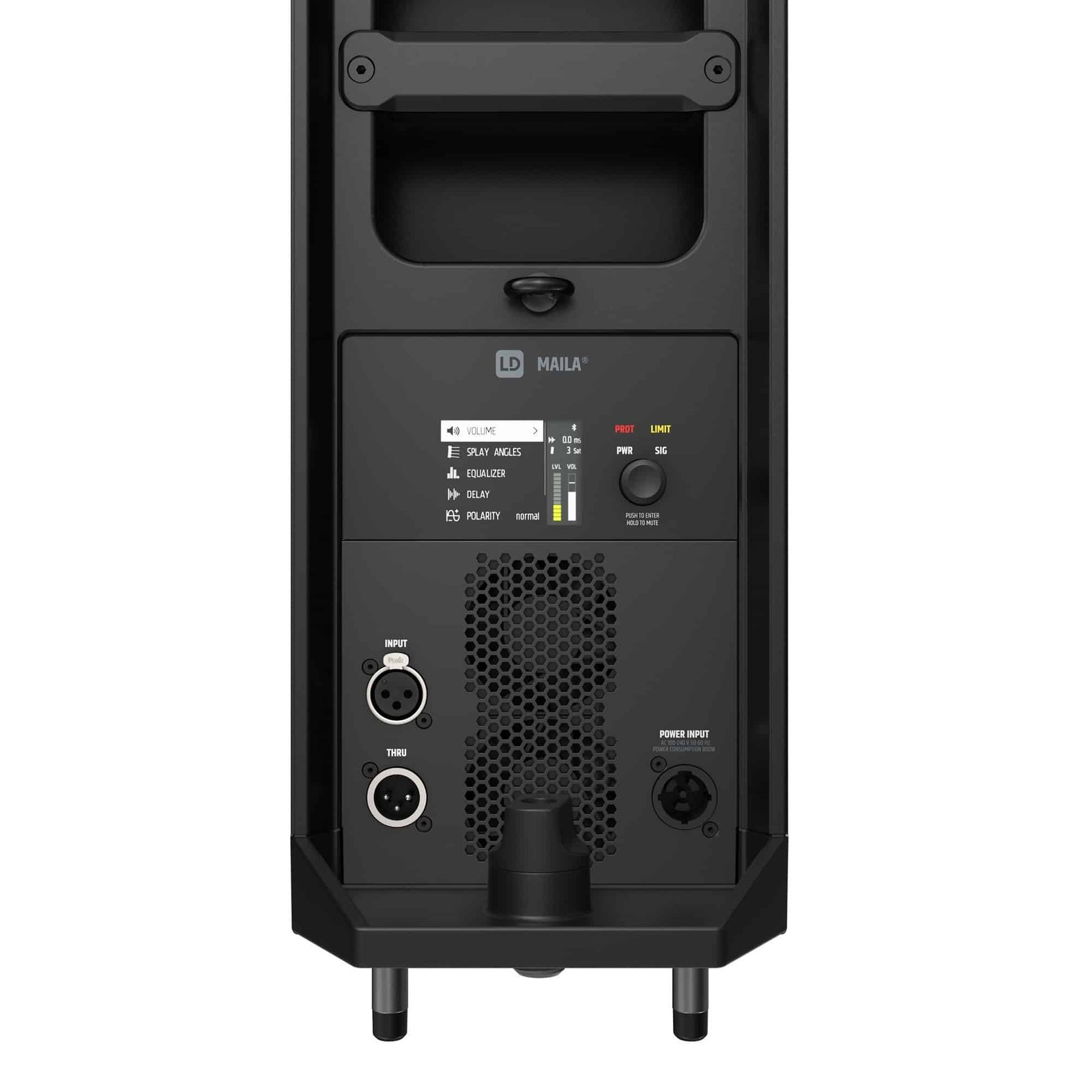

| Controls | Rotary/push encoder |
| Indicators | Indication LED, LC display, Limit, Power, Protect, Signal |
| Line inputs | 1 |
| Line input connectors | XLR |
| Line outputs | 1 |
| Line output connectors | XLR |
| Speaker output connections | SmartLink+® |
| Wireless Connectivity | LogoLink® for App Control |
| Power supply | SMPS |
| Power consumption (max.) | 800 W |
| Operating voltage | 100 V AC – 240 V AC, 50 – 60 Hz |
| Relative Humidity | < 80 %, not condensing |
| Cabinet material | Aluminium |
| Cabinet surface | Powder-coated |
| Cabinet construction | Bass Reflex |

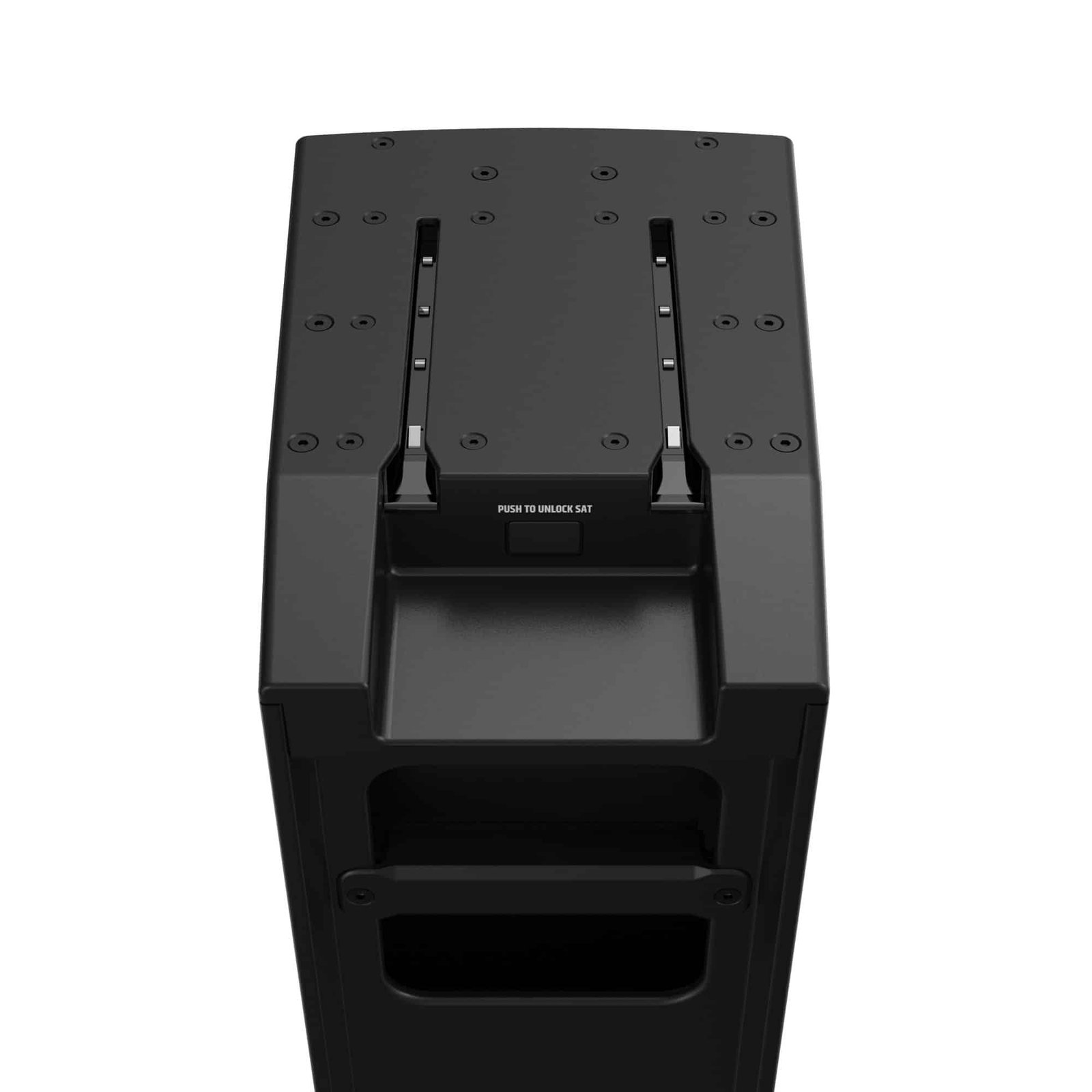

| Mounting | 3 x M10, 4 x Pin, EasyMount+® |

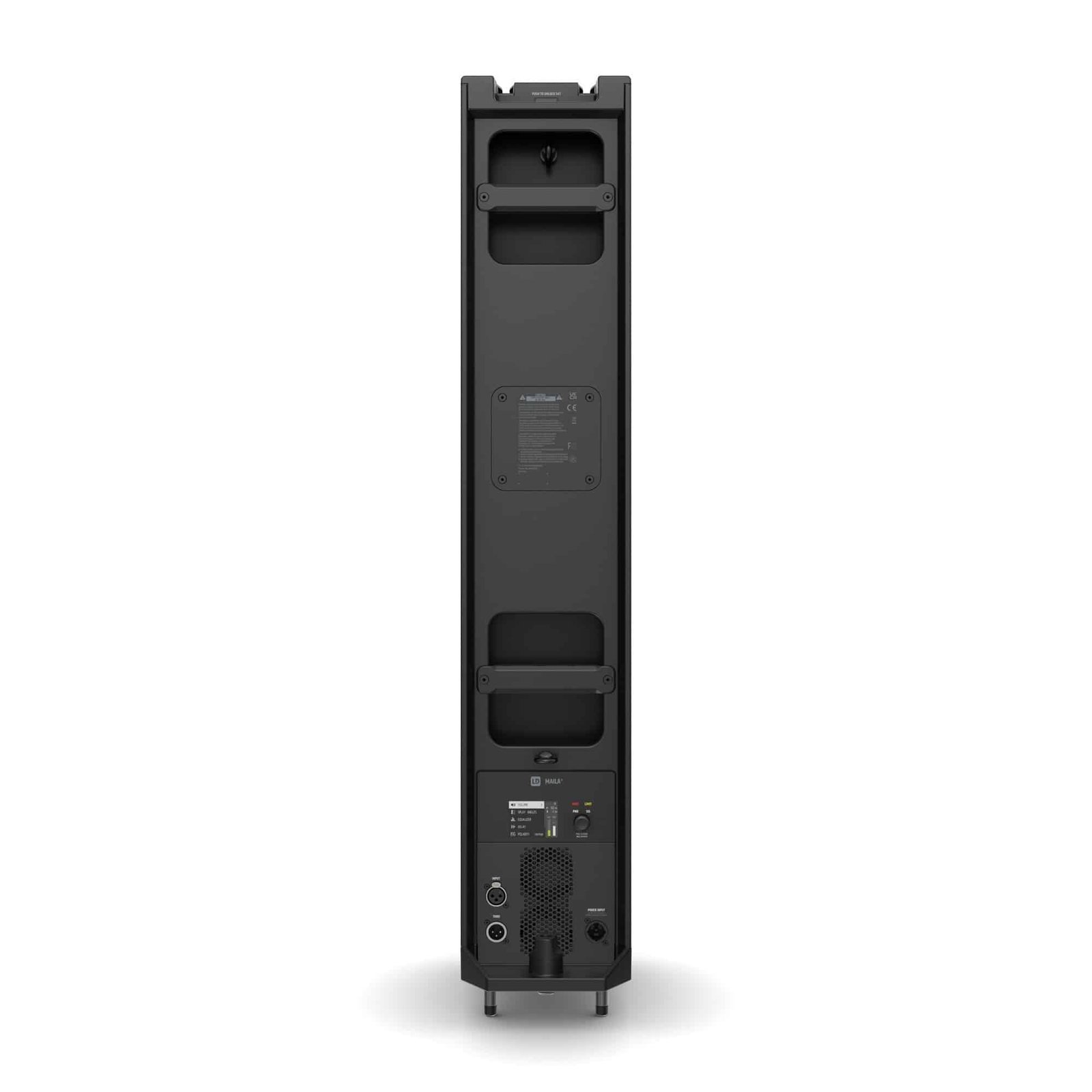

| Handles | 2 |
| Width | 205 mm |
| Height | 1028 mm |
| Depth | 354 mm |
| Weight | 36,195 kg |
