FOCAL KNOW-HOW

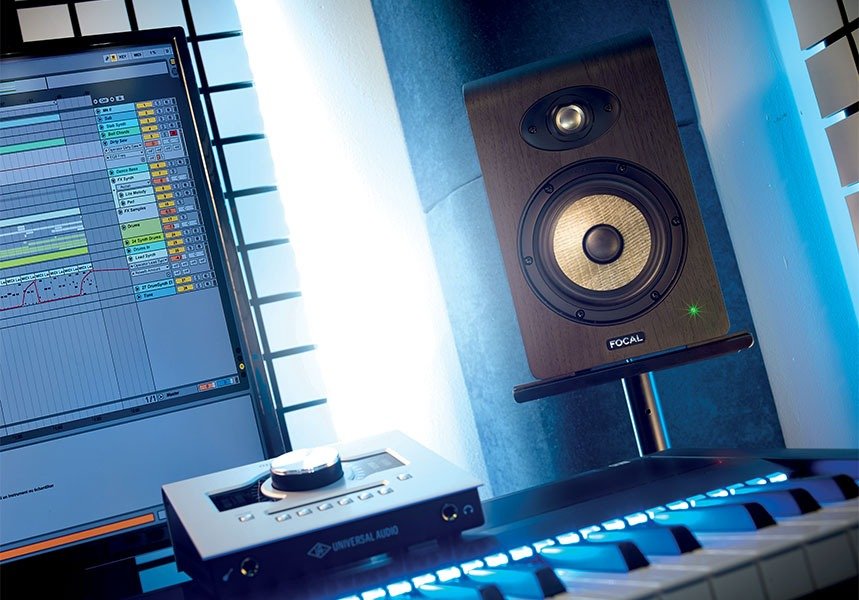

Shape monitors feature Focal innovations that deliver a high level of transparency. With different settings, different inputs and low-directionality loudspeakers for flexible listening positions, they meet the nearfield listening needs and acoustic characteristics of small spaces.

WIDE SOUND SPECTRUM

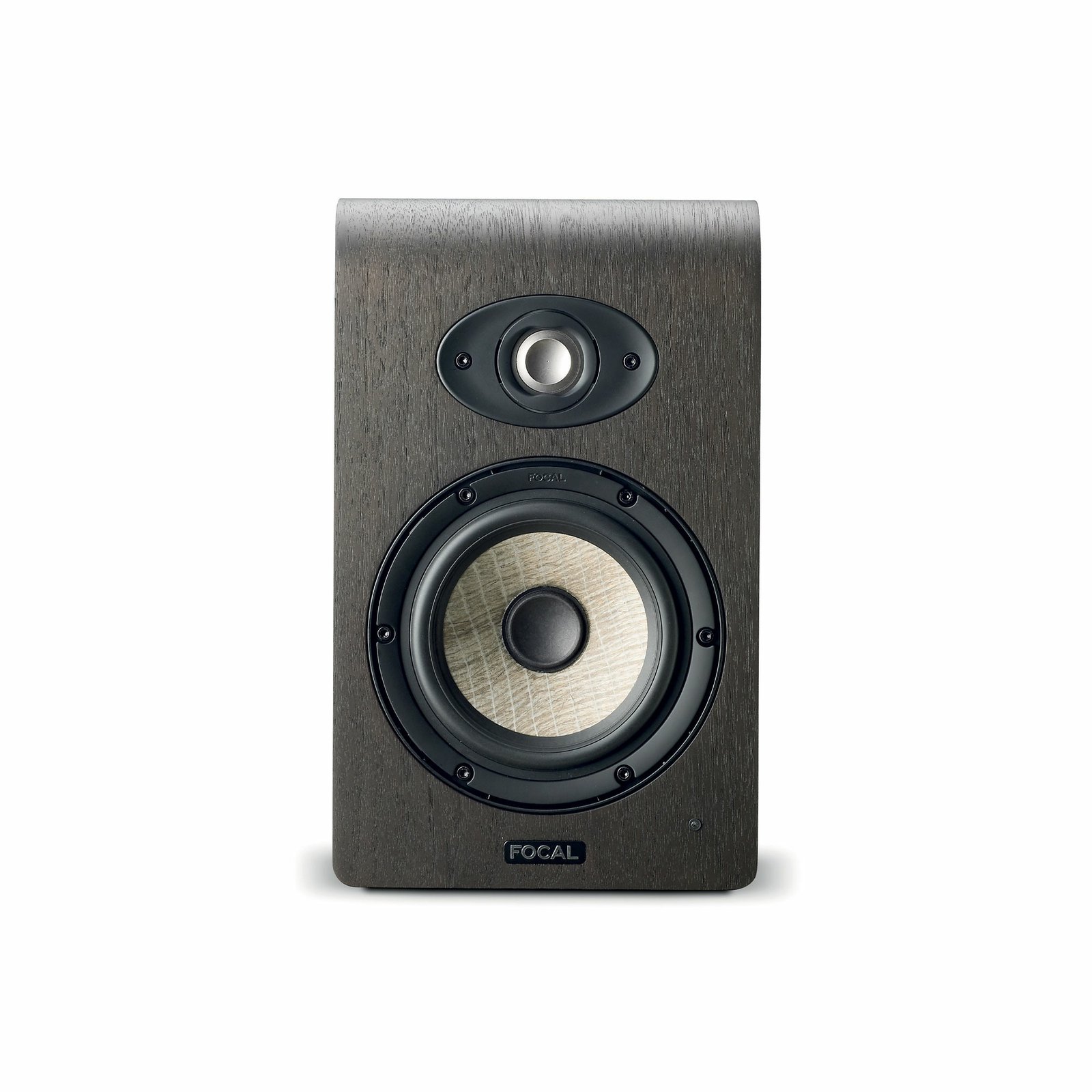

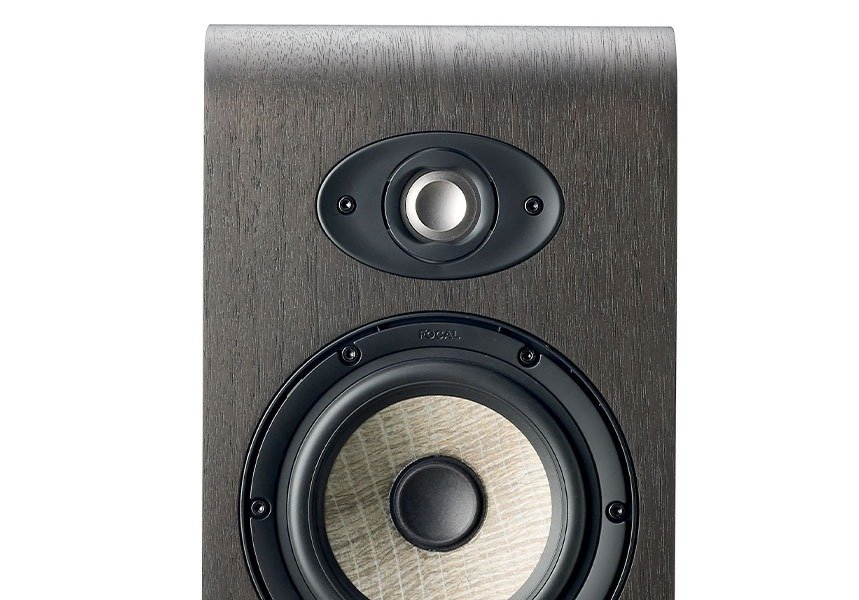

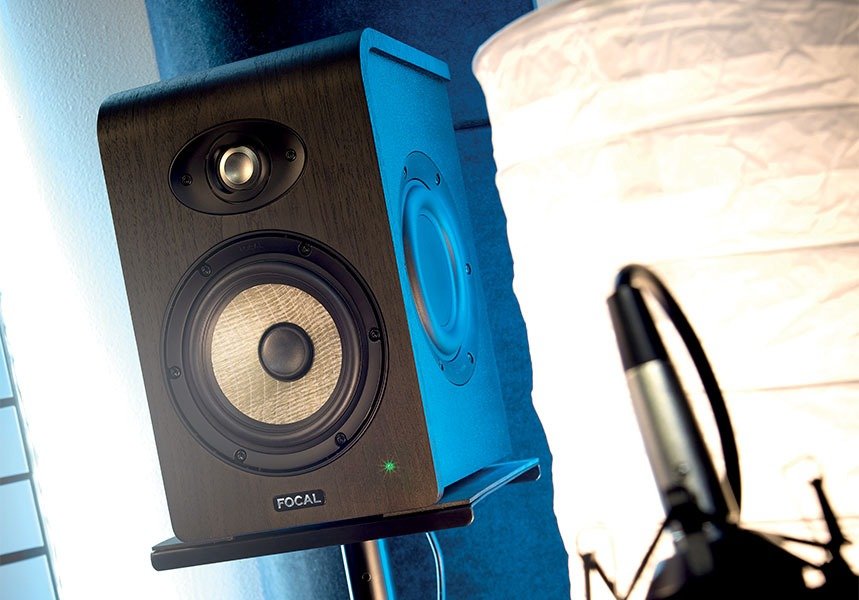

Its 13 cm woofer with Flax cone ensures precise, articulate bass. Low-midrange and midrange frequencies benefit from great neutrality, with no masking effect, greatly facilitating equalization of these ever-critical registers. The “M” profile tweeter is the source of very high definition, with formidable precision at very high frequencies.

Outstanding acoustic transparency

COMPACT DESIGN

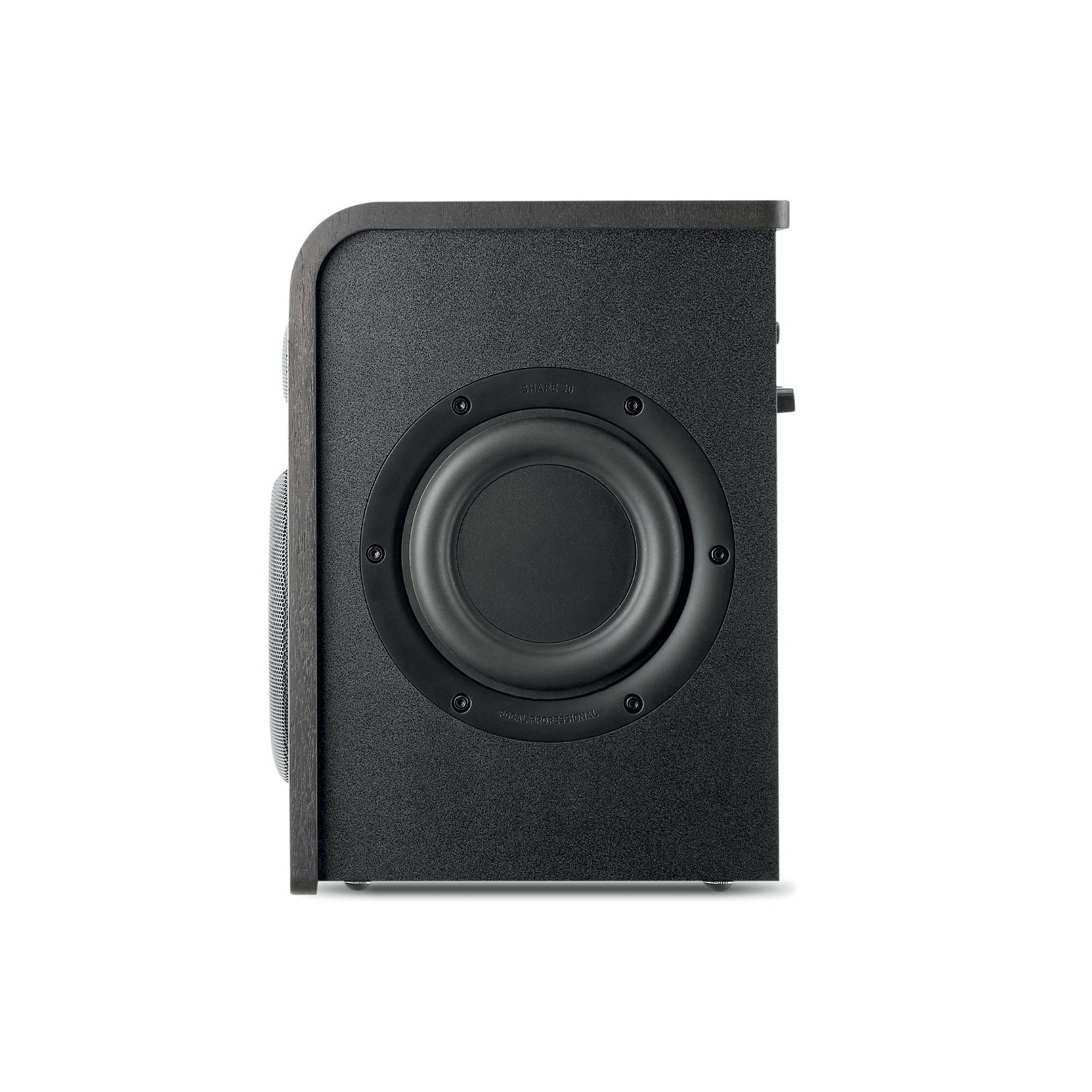

Its 13 cm woofer with Flax cone ensures precise, articulate bass. Low-midrange and midrange frequencies benefit from great neutrality, with no masking effect, greatly facilitating equalization of these ever-critical registersaThe MDF cabinet is covered on top and front with through-dyed real walnut veneer. The monitor’s compact size means it can be installed discreetly without loss of performance. Designed without a vent, it can also be positioned close to a wall.. The “M” profile tweeter is the source of very high definition, with formidable precision at very high frequencies.

Specifications

Sound – Acoustics

• Product type : 2-way monitor
• Loudspeakers :
  • Woofer : 5″ Flax membrane
  • Tweeter : 1″ Aluminium-Magnisium M shaped dome
• Frequency response (+/- 3dB) :
  50 Hz – 35 kHz
• Maximum SPL (peak@1m) :
  106 dB

Sound – Electronics

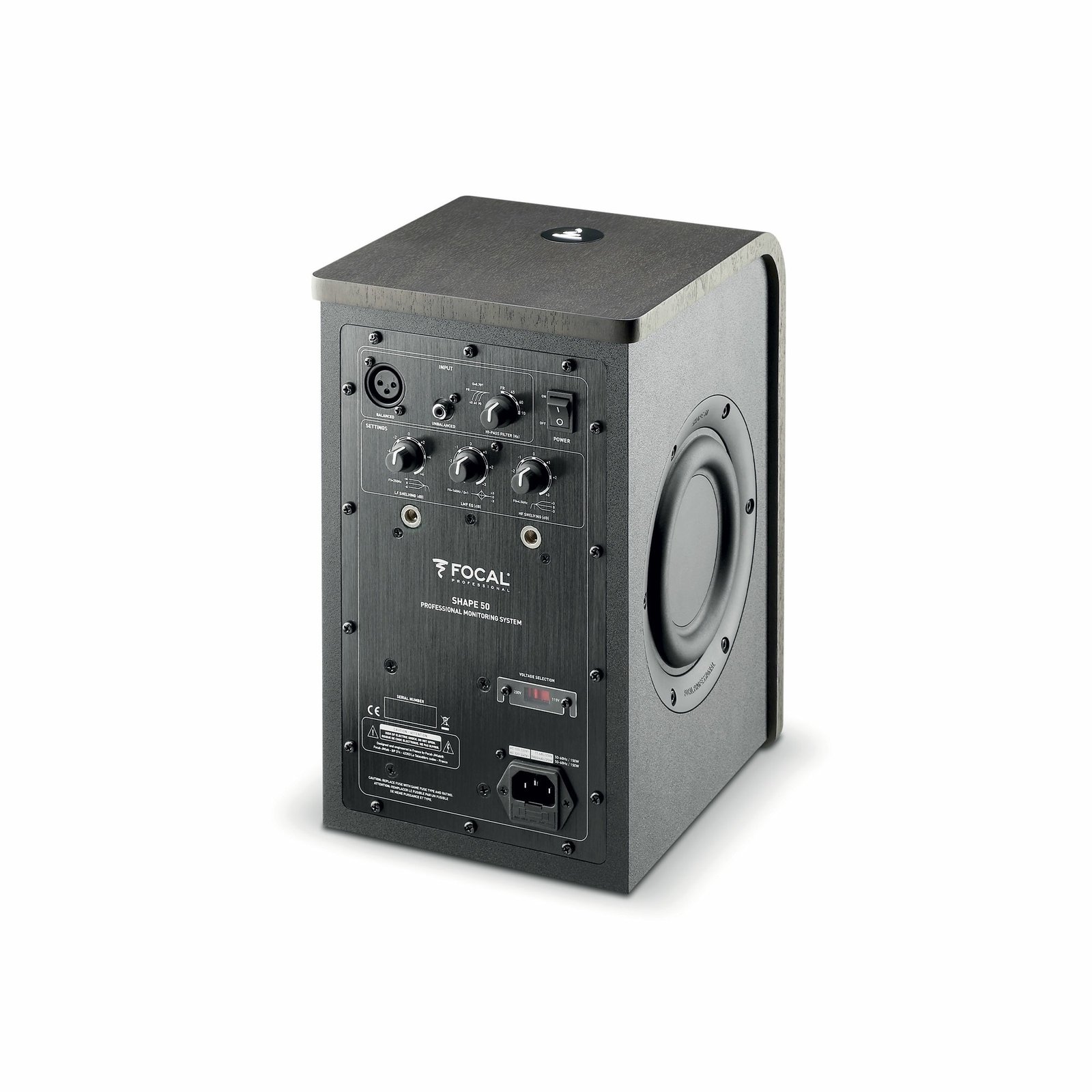

• Inputs :
  • XLR: symmetrical 10 kOhms
  • RCA: asymmetrical 10 kOhms with compensanted sensitivity
• High frequency amplifier : 25 W, class AB
• Mid-range and low frequency amplifier : 60 W, class AB
• Indicators and controls :
  • HPF, LF Shelv, LMF EQ, HF Shelv

Design

• Height : 31.2 cm / 12.3 in
• Width : 19.1 cm / 7.5 in
• Depth : 24.2 cm / 9.5 in
• Weight : 6.5 kg / 20.7 lb
