LD System DQOR 8 T W 8″ Two-way Passive Indoor/Outdoor Installation Loudspeaker 16 Ohm, 70/100 V, white

Chassis material

When it comes to delivering clear, powerful sound in challenging environments, the LD System DQOR 8 T W loudspeaker stands out as a reliable and versatile solution. Whether you need an audio system for indoor venues, outdoor events, or commercial installations, this speaker is engineered to provide consistent, high-quality sound that meets demanding professional standards. Its robust design and flexible installation options make it ideal for spaces where audio clarity and durability are paramount.

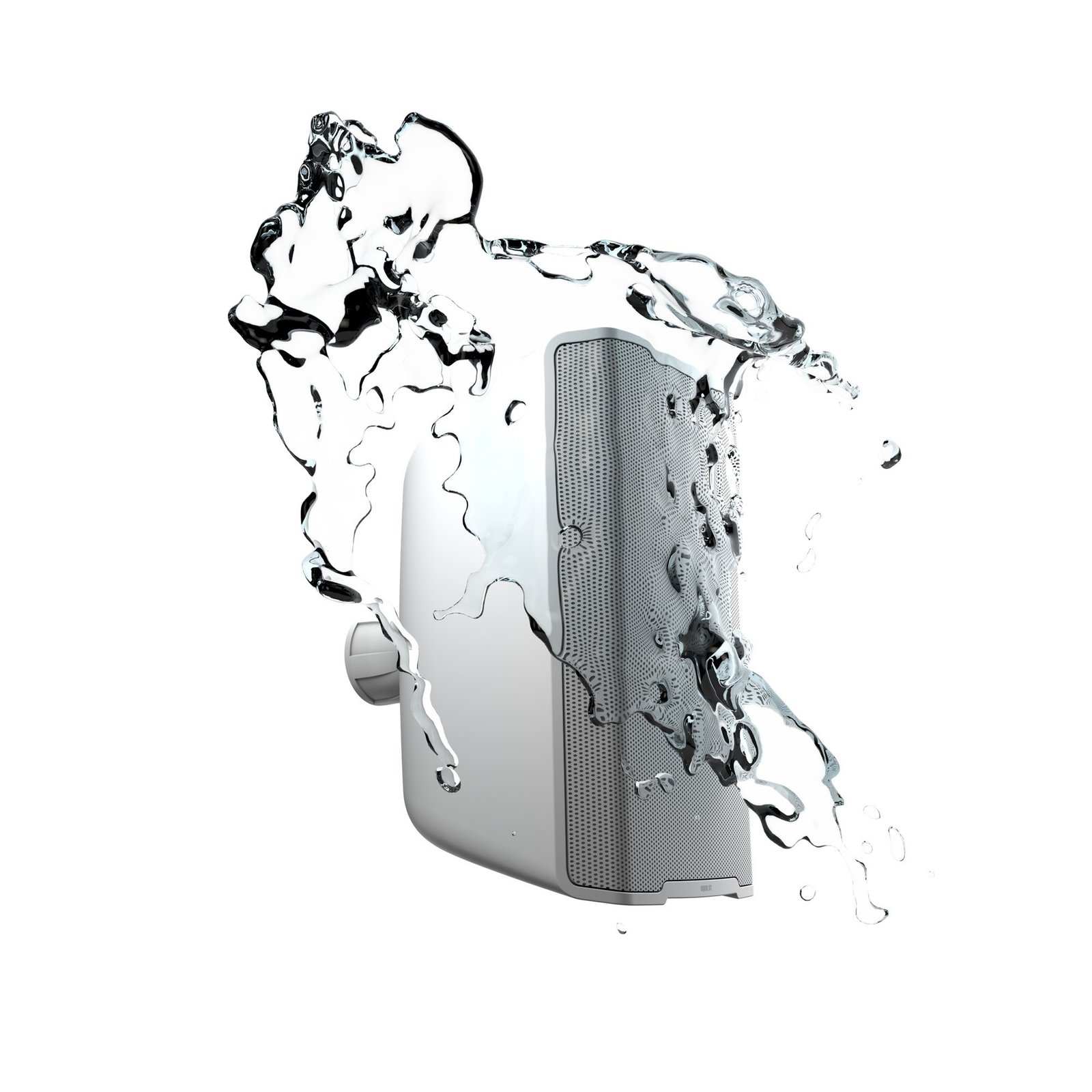

Many loudspeakers struggle to maintain sound quality and reliability when exposed to outdoor conditions or high volume levels. The LD System DQOR 8 T W addresses these issues with a weather-resistant IP55-rated enclosure, ensuring protection against dust and water spray. This means you can confidently use it in outdoor settings without worrying about damage from the elements, making it perfect for patios, open-air restaurants, or public announcement systems. Additionally, the speaker’s ability to operate within a wide ambient temperature range of -30 to 50 degrees Celsius ensures consistent performance in varied climates.

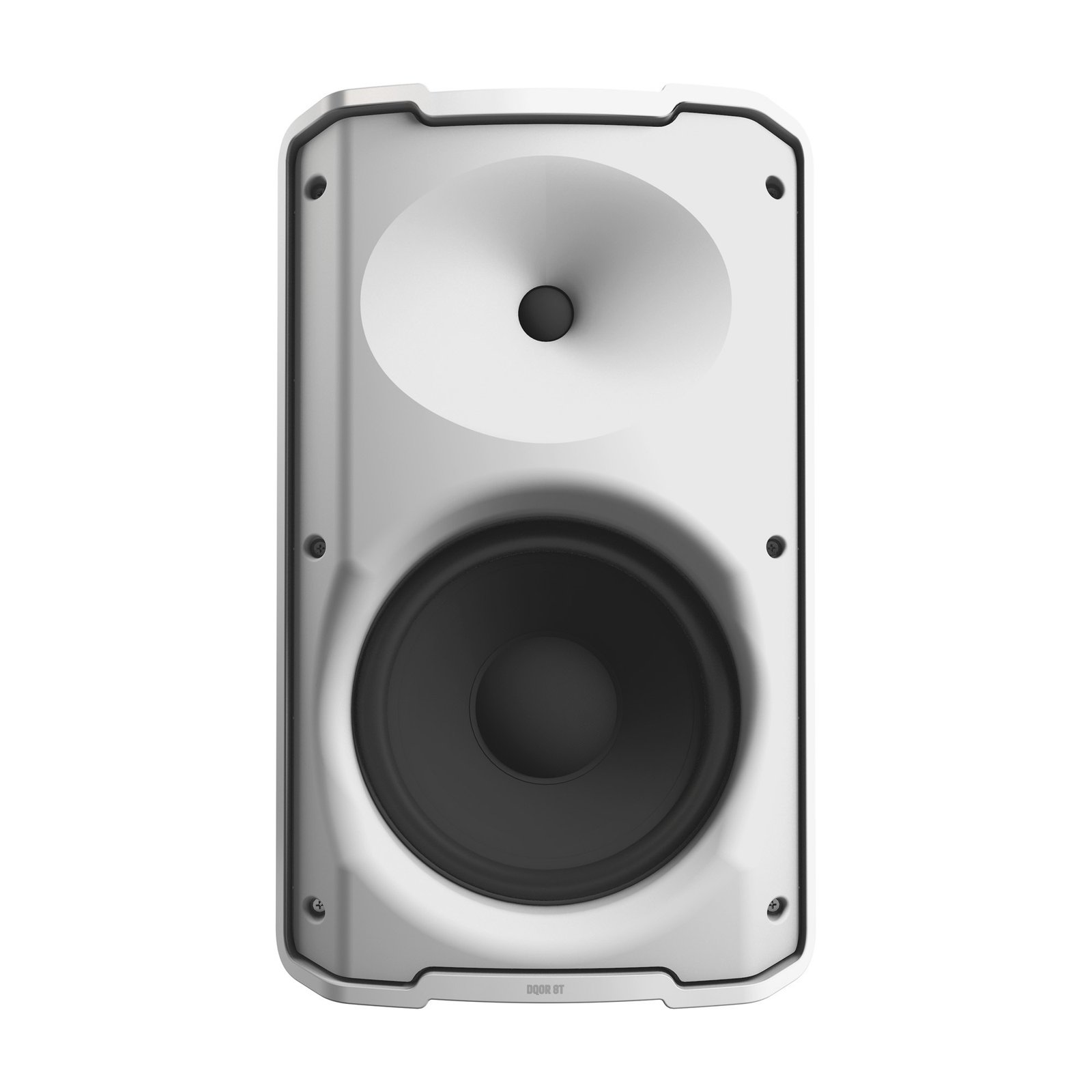

At the heart of the DQOR 8 T W is a two-way speaker system with an 8-inch bass driver and a 1-inch soft dome tweeter. This combination delivers a balanced frequency response from 62 Hz up to 20 kHz, allowing the system to reproduce both deep lows and crisp highs with clarity. The speaker’s 88 dB sensitivity rating at 1 watt/1 meter means it efficiently converts amplifier power into audible sound, ensuring clear audio even at moderate power levels. For the user, this translates to rich sound performance without the need for excessive amplification, saving on energy and equipment costs.

The speaker also features multiple operating modes with 16-ohm low impedance and 70/100 volt transformer taps. This versatility allows easy integration into various audio systems, from low-impedance setups for smaller venues to distributed line systems in larger installations. Transformer taps offer power settings from 3 watts up to 120 watts, giving you precise control over volume levels and enabling the speaker to match the size and acoustics of your space. Whether you need subtle background music or louder announcements, the DQOR 8 T W adapts to your needs.

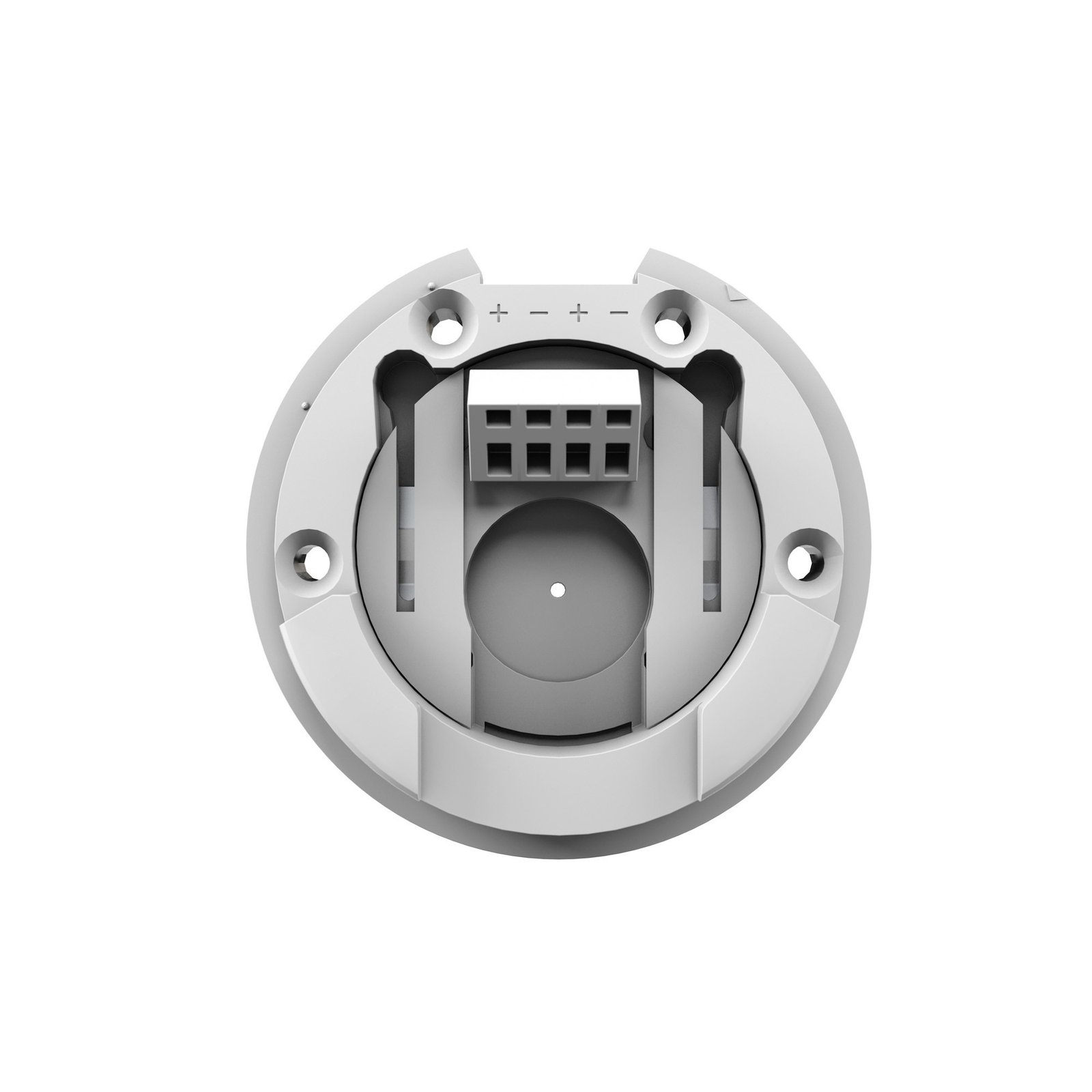

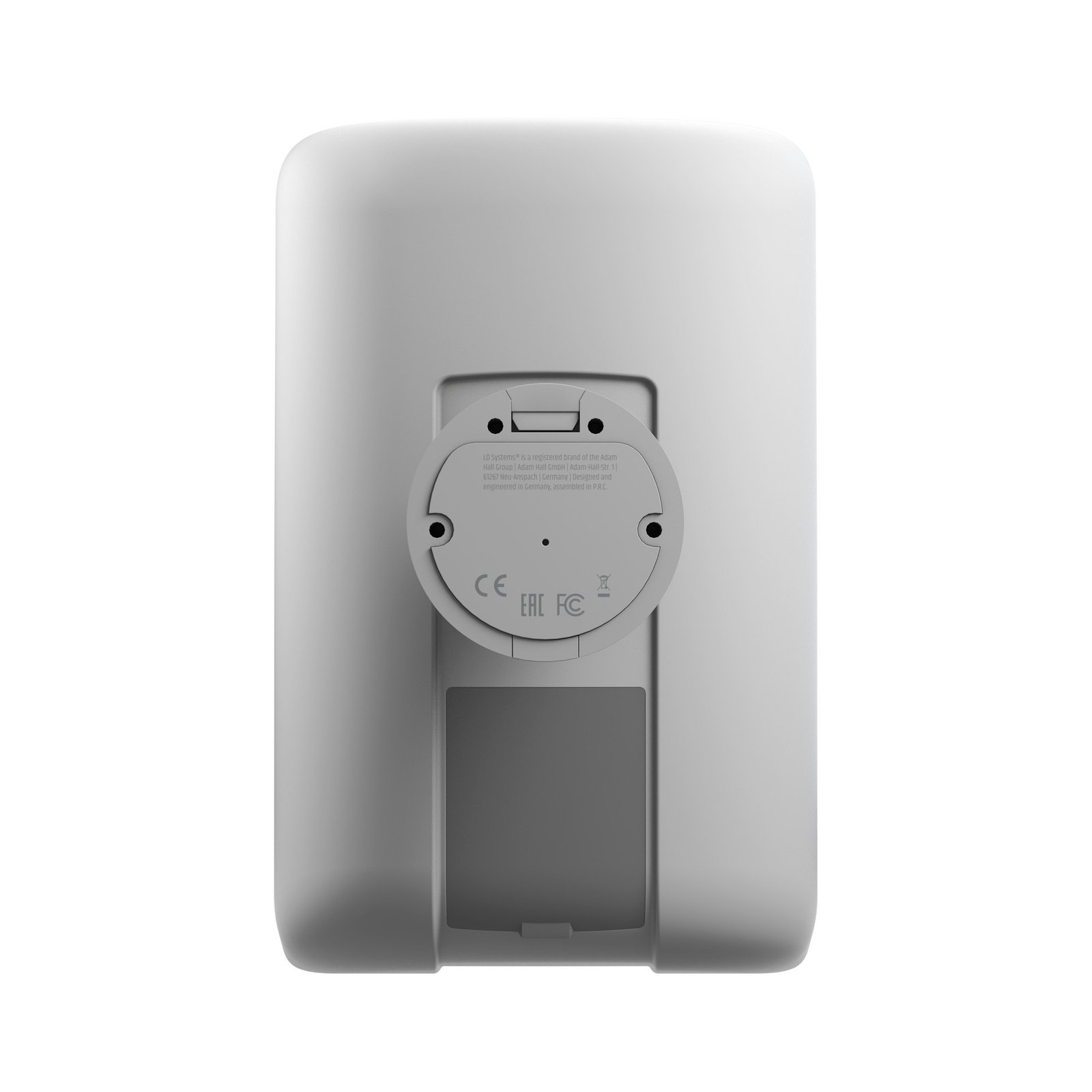

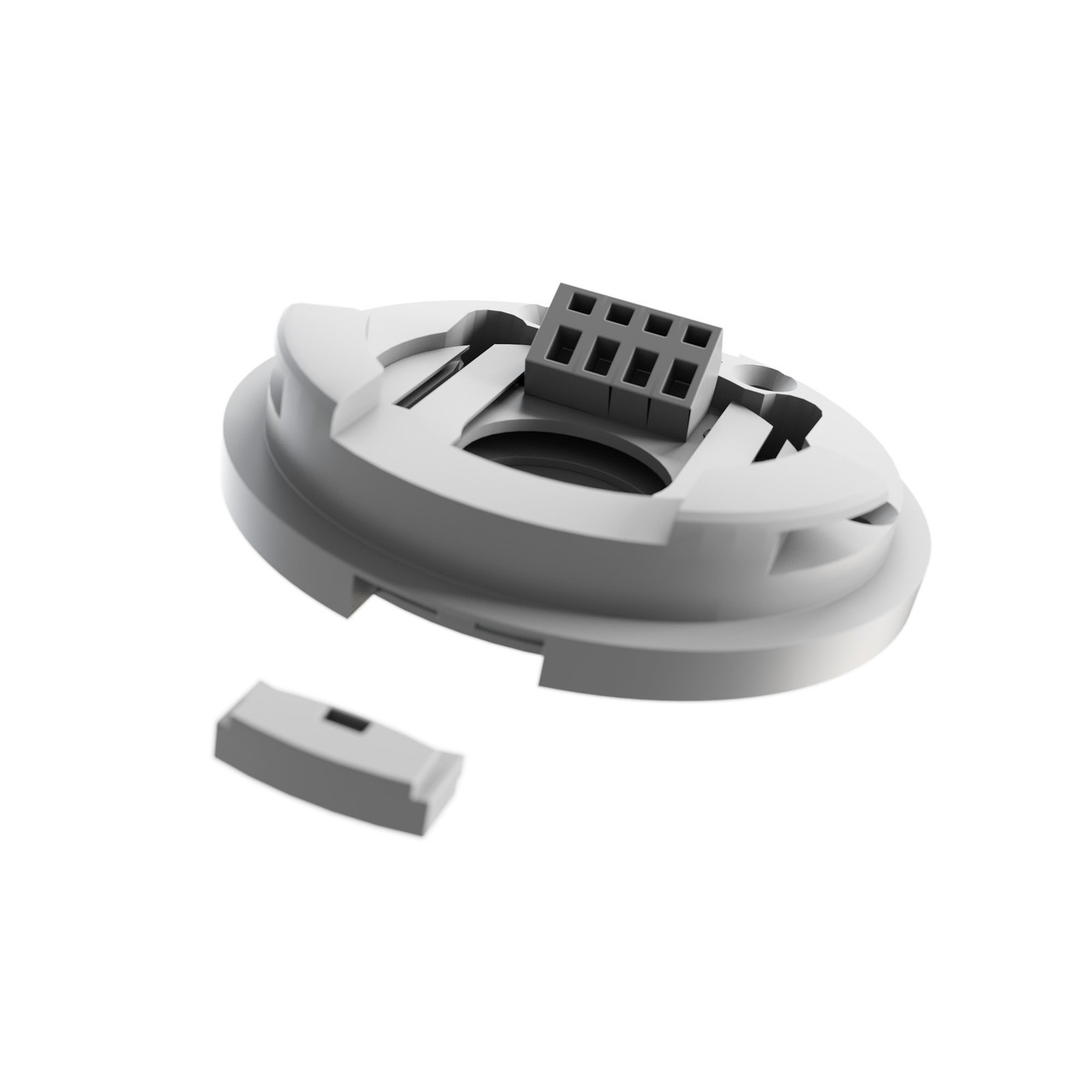

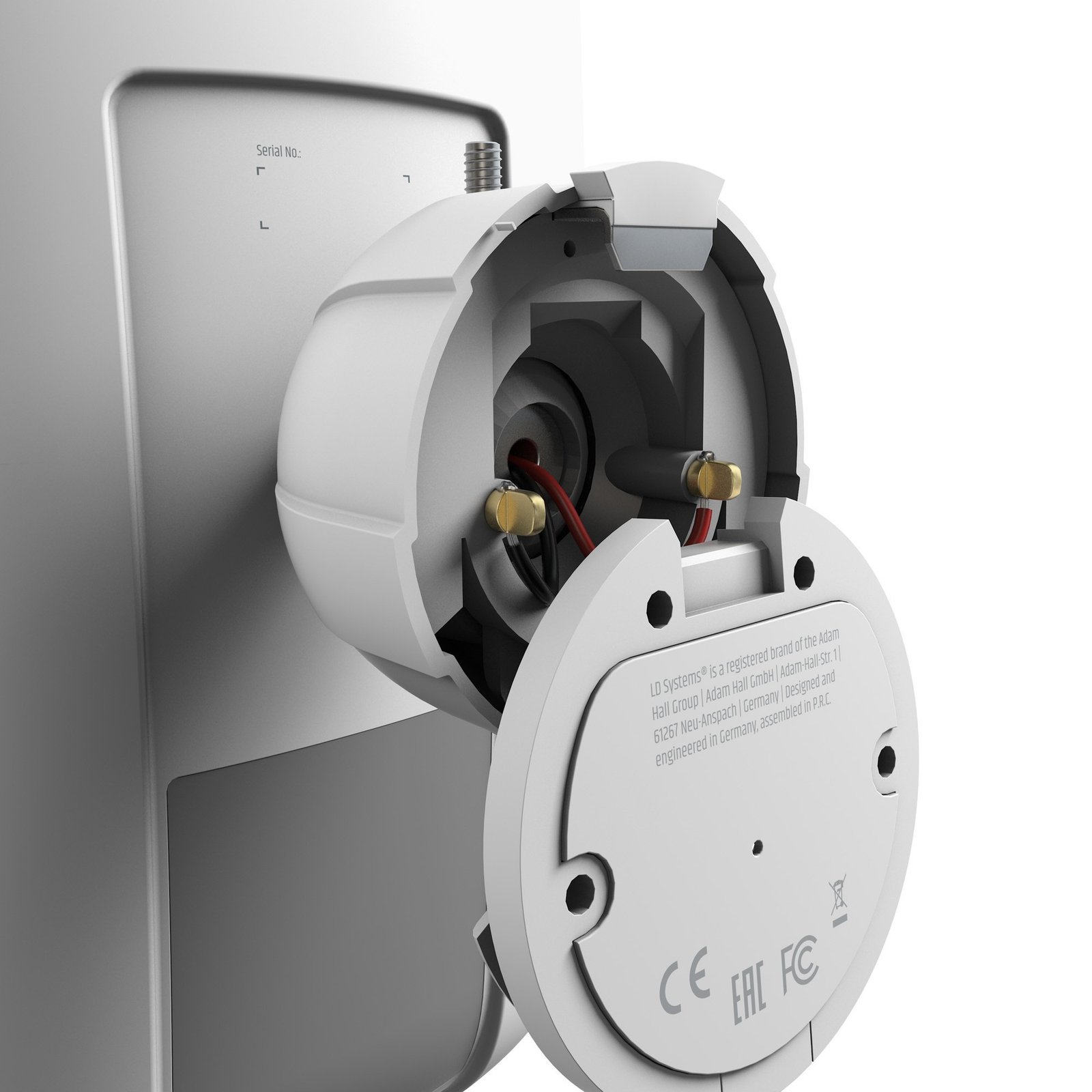

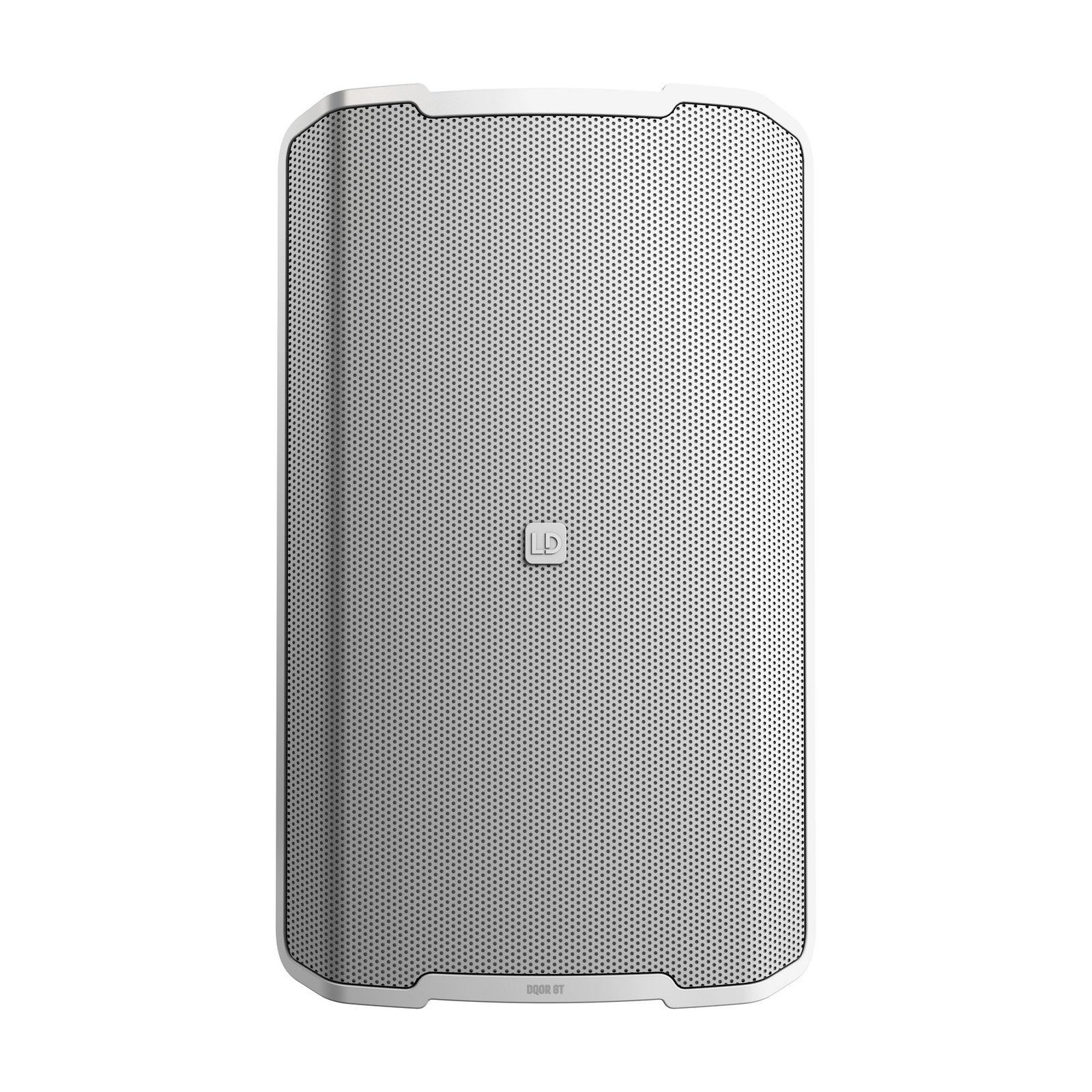

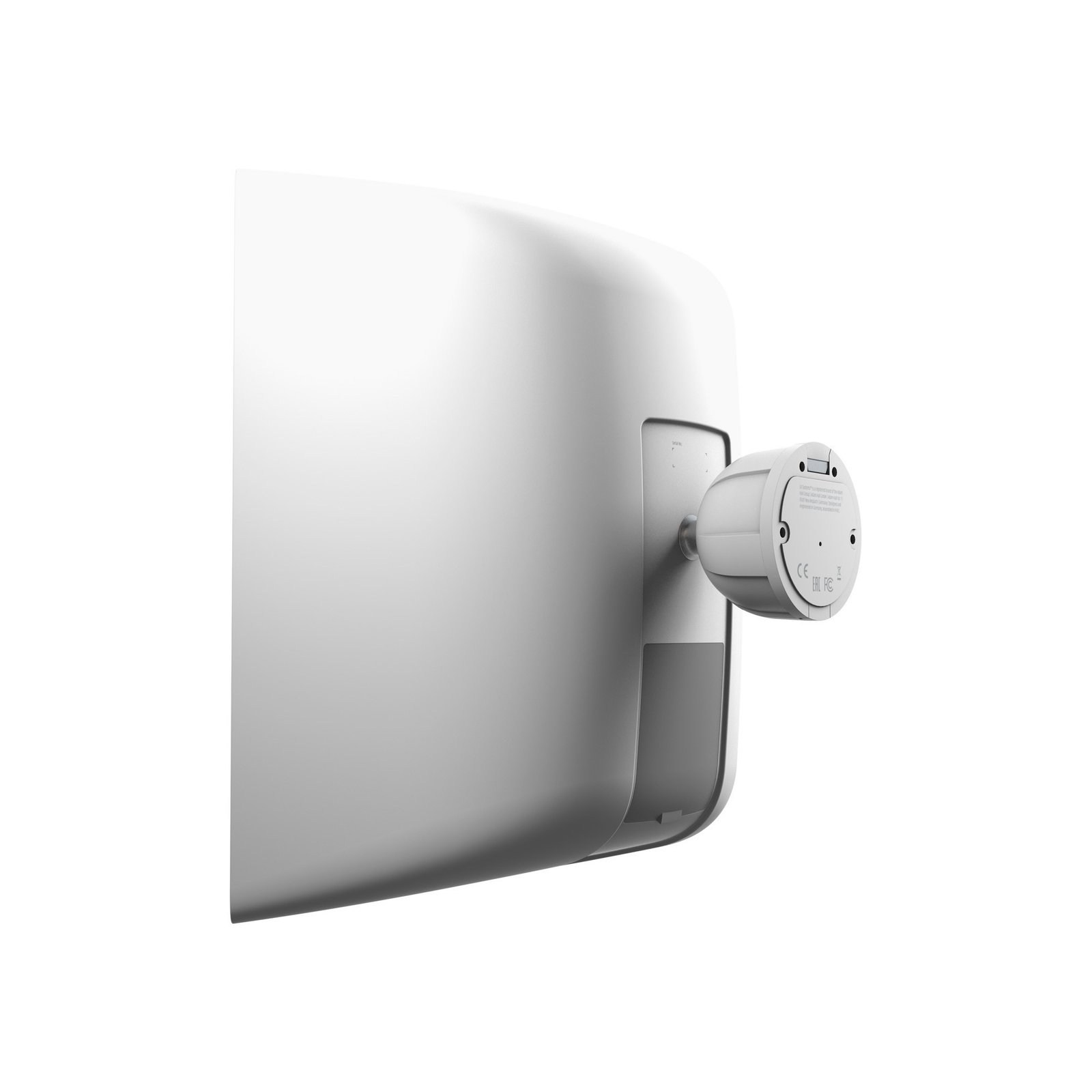

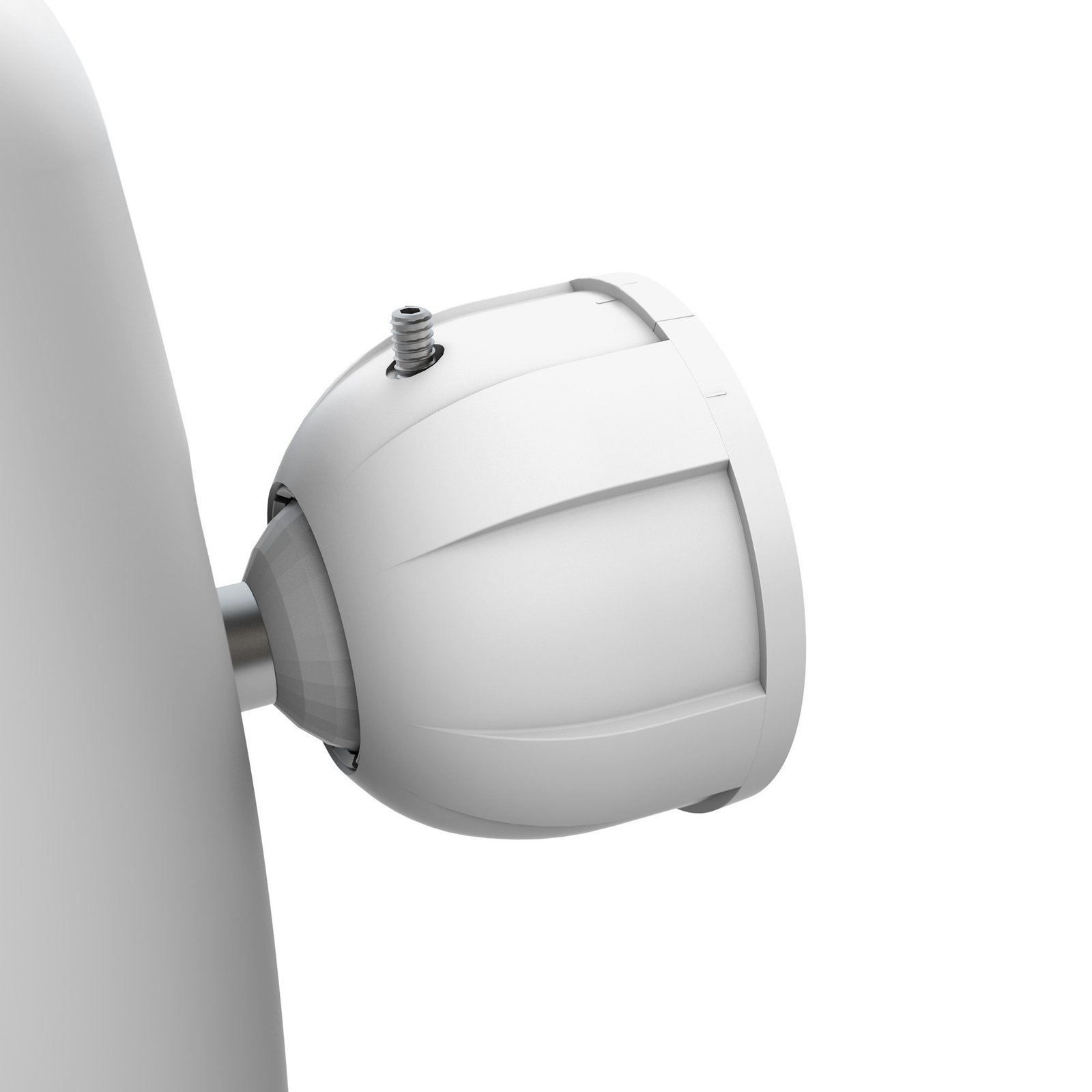

Installation is straightforward thanks to the included wall bracket and durable ABS chassis, combined with an aluminium front grille that protects the drivers without compromising sound quality. The speaker measures 255.8 mm wide, 413.9 mm high, and 314.5 mm deep, with a weight of 7.2 kg, making it manageable for wall mounting while remaining sturdy and stable. Connectivity is simplified with a 4-pin terminal block input, ensuring secure wiring and compatibility with professional audio setups.

Ideal for use in restaurants, conference rooms, retail stores, houses of worship, or outdoor public spaces, the LD System DQOR 8 T W white loudspeaker offers a professional-grade audio solution that balances power, clarity, and durability. Its sleek white finish (RAL 9005) blends unobtrusively with most environments, maintaining aesthetic appeal alongside functional excellence.

In summary, the LD System DQOR 8 T W loudspeaker is a dependable choice for anyone seeking robust, high-quality sound reproduction in both indoor and outdoor settings. Its combination of weather-resistant design, flexible power options, and precise audio performance ensures your message or music is heard clearly and consistently. Backed by professional-grade materials and thoughtful engineering, this speaker delivers confidence and long-term value for your audio installations.
