Original price was: ₹52,904.₹50,259Current price is: ₹50,259.
In stock
Fluid Audio’s inventors have been making speakers for over 25 years. Fluid Audio is pleased to introduce the NEW Fluid Audio CX7 Hi-Fi active reference monitor, which has undergone thorough design, tweaking, and voicing.
The CX7 is our newest generation coaxial design system, featuring an AMT ribbon tweeter and carrying on the history of our award-winning FPX7 monitors. Air Motion Transformer tweeters have gained popularity in the audio industry due to their clear sound, quick attack, and high efficiency. Dr. Oskar Heil created the AMT’s pleated diaphragm, which acts as bellows to “squeeze” the music out in an accordion-like manner. This design generates extremely fast response times and high-quality detail.

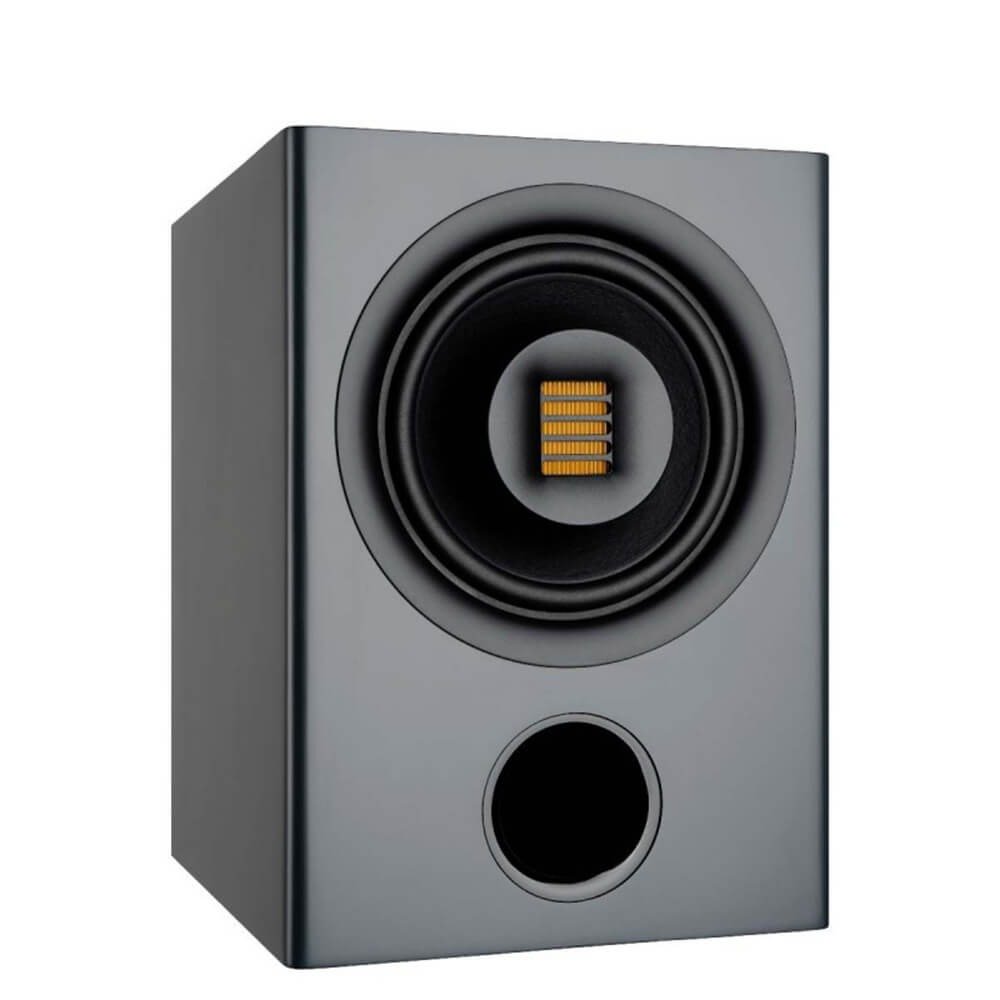

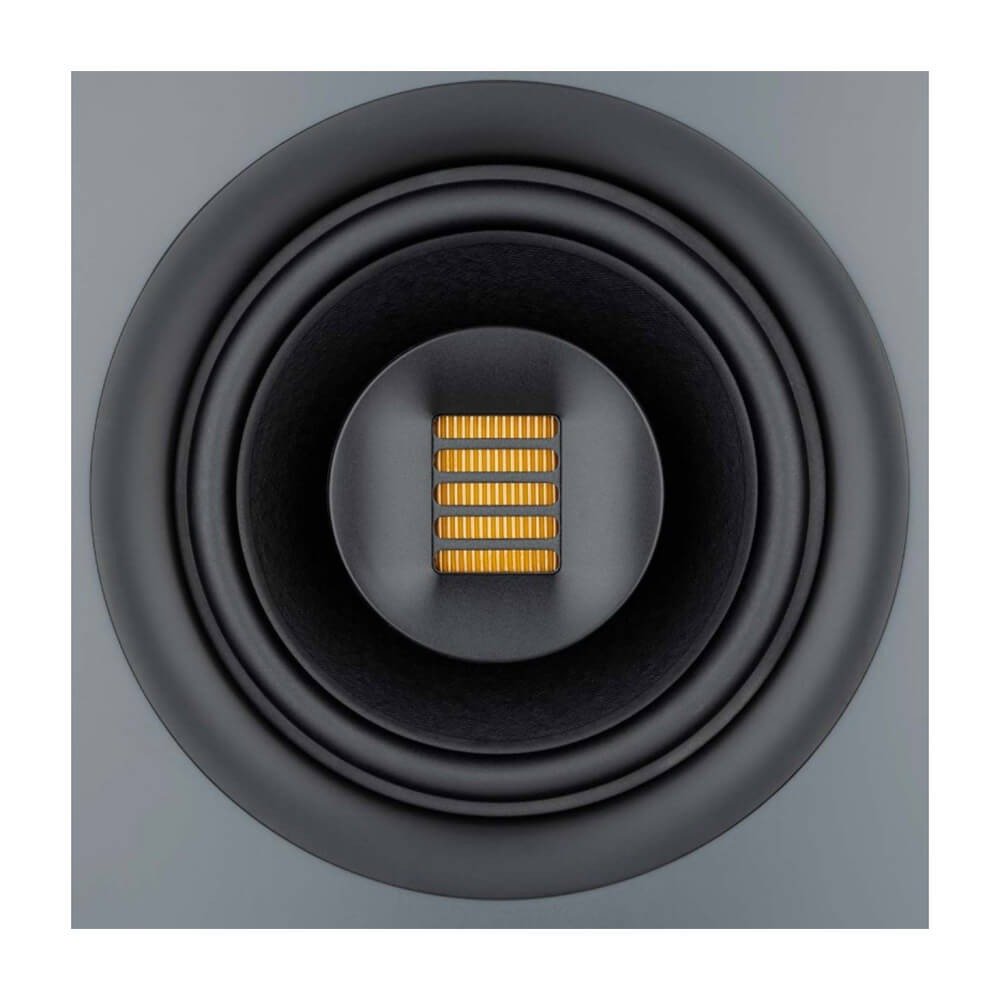

At the heart of the CX7 lies a 28mm x 43mm Air Motion Transformer (AMT) tweeter mounted coaxially within a 7″ woofer. This alignment creates a unified acoustic center, improving vertical off-axis response and enhancing imaging. The AMT tweeter, based on Dr. Oskar Heil’s pleated diaphragm design, delivers stunning clarity, fast transients, and expansive headroom with ultra-low distortion.
The custom 7″ woofer features a polypropylene-coated paper pulp cone, driven by a high-temperature voice coil and low-distortion magnet. Supported by a butyl rubber surround, this driver provides detailed, punchy low-end without harsh resonances — giving your mixes and music a solid, natural foundation.
The CX7 includes a precision-tuned front-facing bass port, enabling greater placement versatility and ensuring consistent bass output regardless of how close it’s positioned to walls. Enjoy tight, articulate low-end that’s always in control — even in small or untreated rooms.
| Max SPL | 116 dB (Dual Monitors) 113dB (Single) |
|---|---|
| Frequency Response | ± 2.2dB 40Hz-20kHz ; -3dB @ 38Hz |
| Crossover | Bass / Mid : 154Hz |
| Driver Dimensions | 2 x 8" Bass + 1 x 5" Midrange + ⌀ 1.1" x 1.7" AMT Tweeter AMT Tweeter unfolded size 4.5" x 1.1" / 114 x 28 mm (total radiation area) |
| Amplifier Power | 2 * 225 W Bass (Class D) |
| Signal Processing | AD Converter : 24 bit |
| Audio Input Connectors | Analog XLR/TRS, Digital AES (supports AES/EBU) and SPDIF connection |
| Acoustic adjustments rear panel | High Freq: -1, 0, +1 |
| Rear panel other | Digital / Analog selector |
