Specifications
Sound – Acoustics

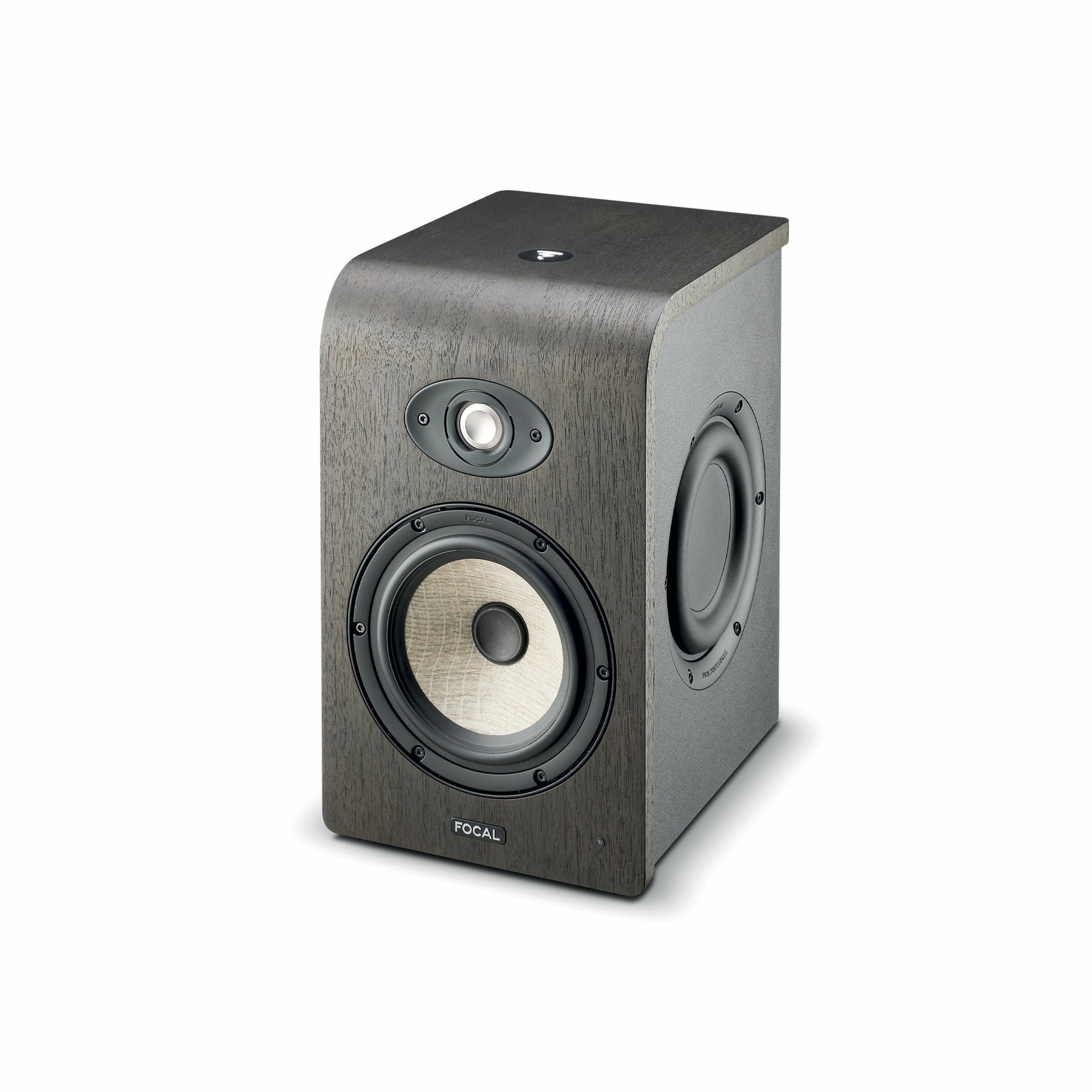

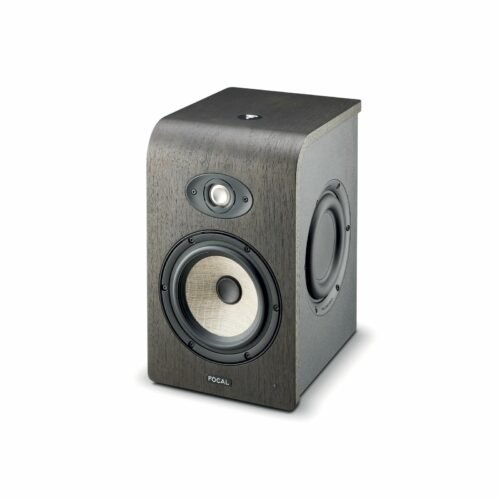

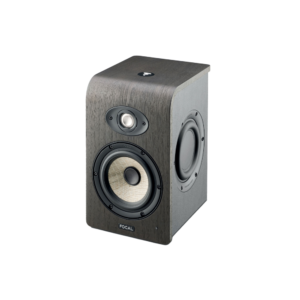

- Product type : 2-way monitor
- Loudspeakers :
• Woofer : 6,5″ Flax membrane
• Tweeter : 1″ Aluminium-Magnisium M shaped dome - Frequency response (+/- 3dB) :
40 Hz – 35 kHz - Maximum SPL (peak@1m) :
109 dB
Sound – Electronics

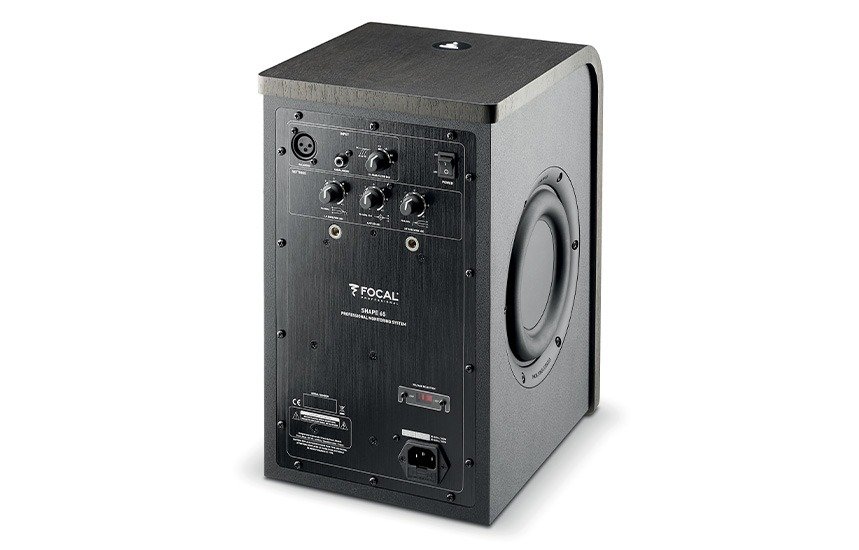

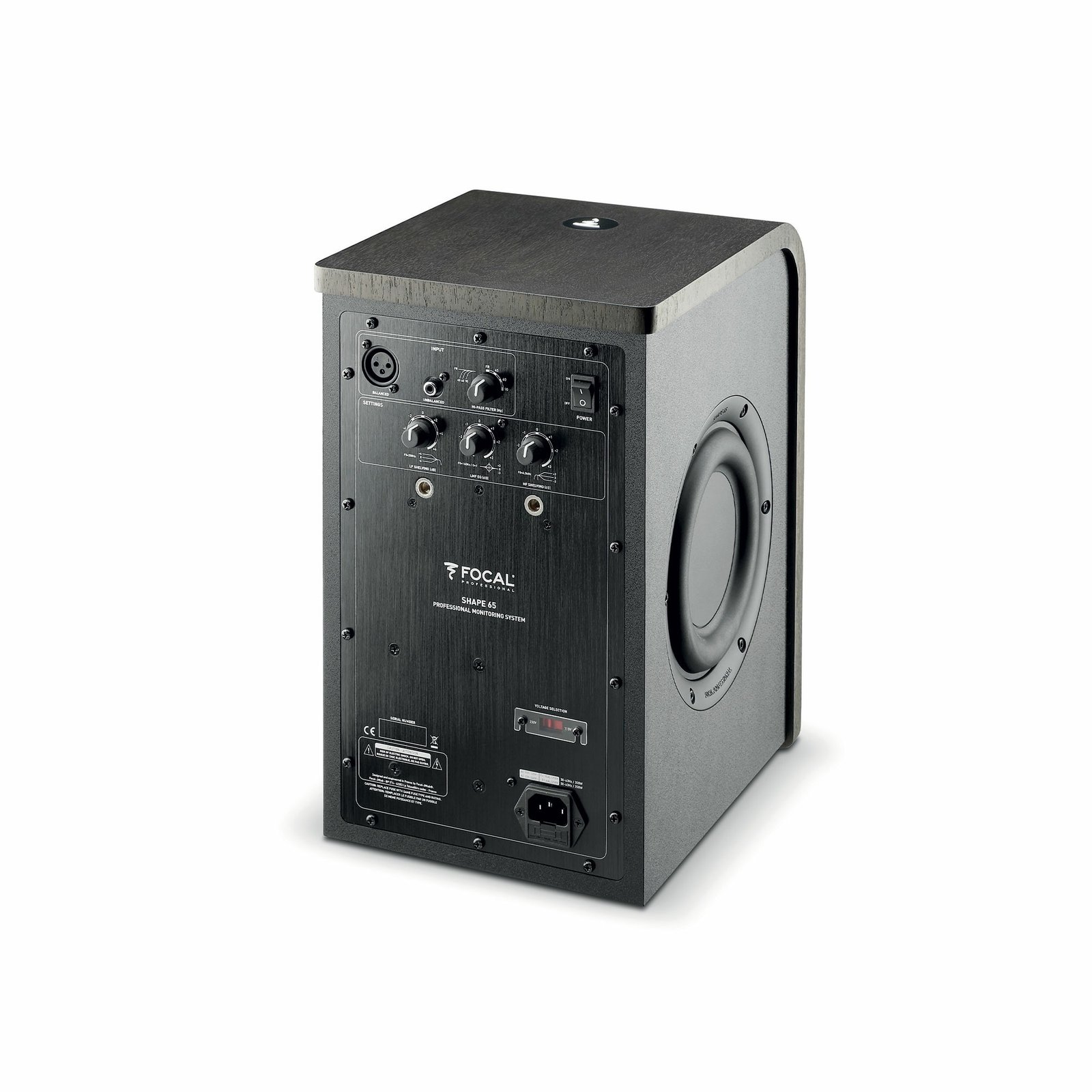

- Inputs :
• XLR: symmetrical 10 kOhms
• RCA: asymmetrical 10 kOhms with compensanted sensitivity - High frequency amplifier : 35 W, class AB
- Mid-range and low frequency amplifier : 80 W, class AB
- Indicators and controls :
• HPF, LF Shelv, LMF EQ, HF Shelv
Design
- Height : 35.5 cm / 14 in
- Width : 21.8 cm / 8.6 in
- Depth : 28.5 cm / 11.2 in
- Weight : 8.5 kg / 28.2 lb
