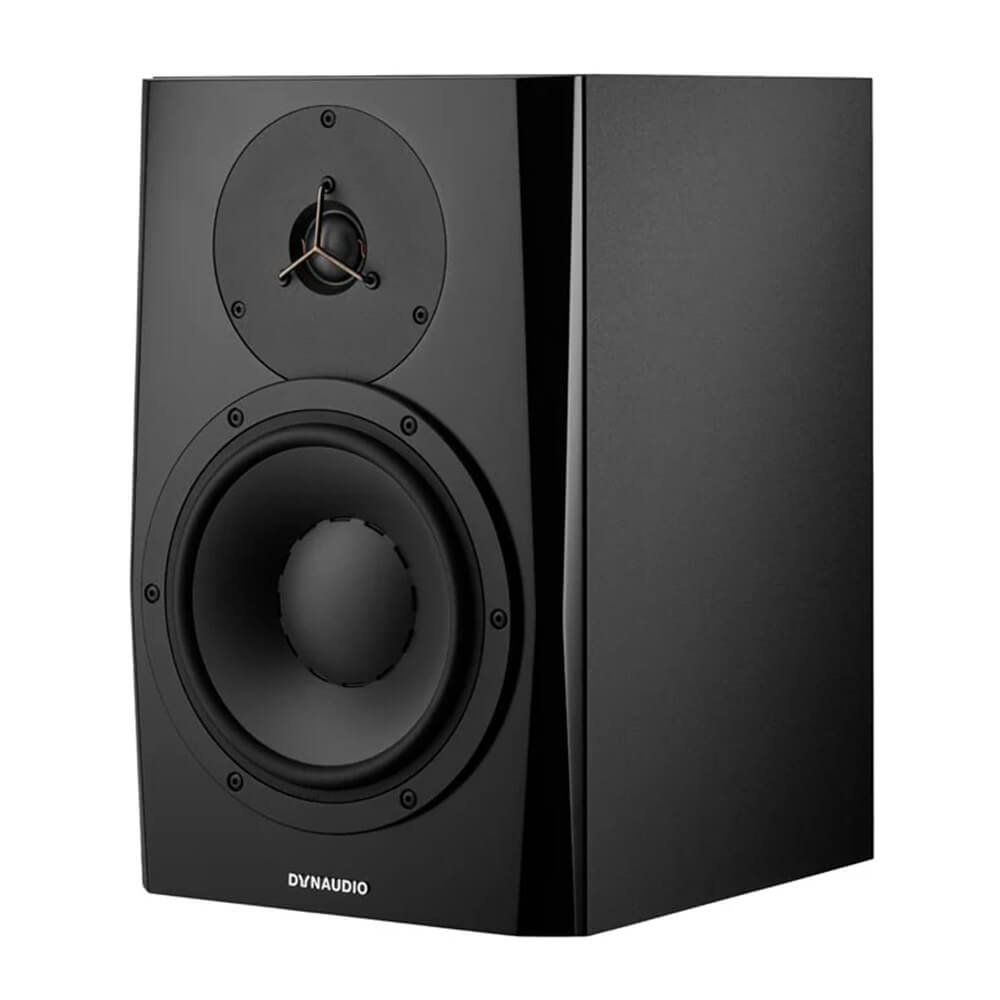

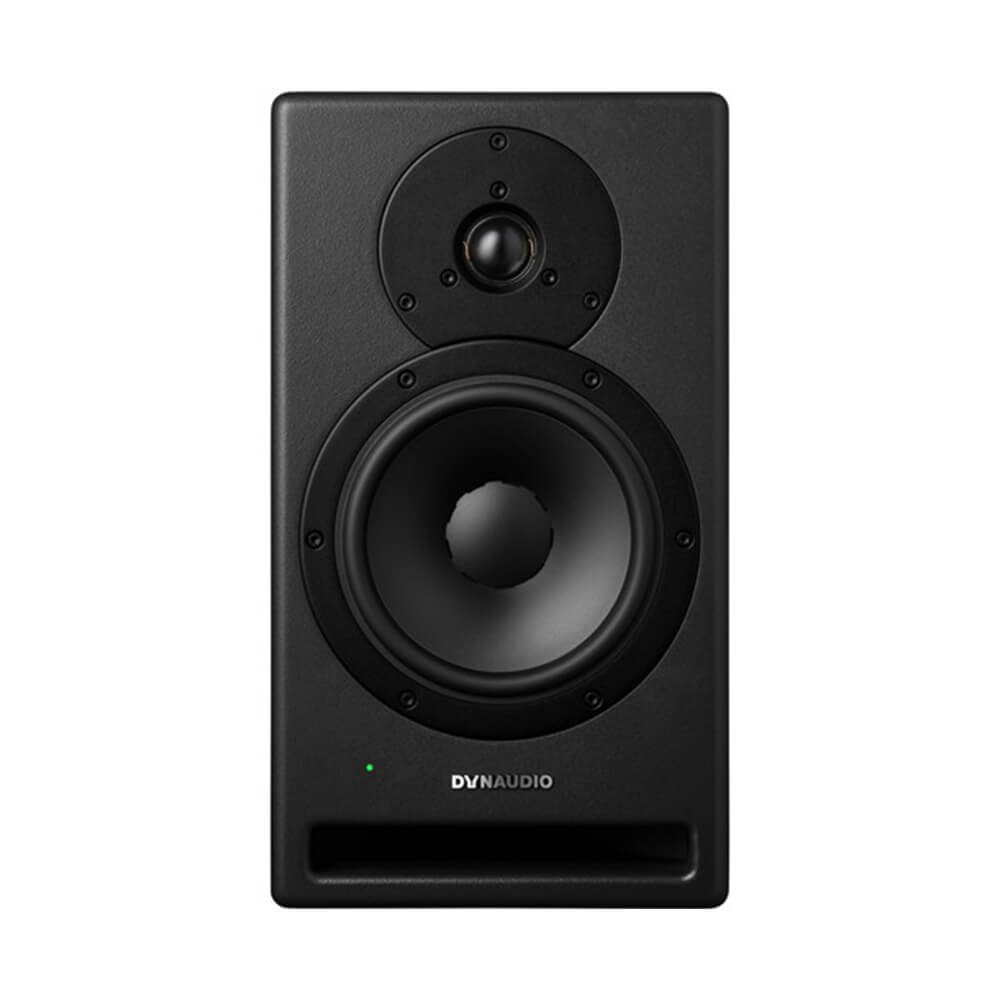

Dynaudio Core 7 Studio Monitor

Dynaudio Core 7 7-inch Powered Studio Monitor

Whether you’re recording prog metal or symphony, writing a feature film or game soundtrack, or mixing a TV program or Dolby ATMOS project, you must believe what your studio monitors are telling you. Dynaudio designed the Core 7 to meet this demand. The Core 7 is the smallest compact model in the Core family of high-end professional reference monitors. It boasts state-of-the-art Class D amplification, cutting-edge DSP, a super-inert 32 mm-thick baffle, and a flat frequency response from 44Hz to 21kHz (±3dB). Dynaudio’s new 1″ Esotar Pro HF driver delivers hours of accurate image precision while avoiding the listening fatigue that affects many other monitor designs.

Their MSP mid/woofer is another technical leap ahead, producing deep, precise bass and natural middle detail. You rely on your monitors to give you the truth about what you’re recording, and the Dynaudio Core 7 delivers in a versatile, small form that can be used nearfield, middle, as a primary monitor, or even soffit-mounted.

Esotar Pro tweeter.

Understands that listening fatigue is the bane of any studio engineer’s existence. Once it sets in, you’re done for the day. Dynaudio’s Esotar Pro tweeter has a unique component: the Hexis device, an inner dome that fits directly beneath the diaphragm and improves airflow, smoothes out frequency response, and eliminates unwanted internal resonances. The result is excellent imaging, outstanding transient detail, and smooth extended high-frequency response.

seven inches MSP mid-woofer.

Core 7’s mid/woofer driver offers yet another technical advancement. The MSP mid/woofer uses Dynaudio’s patented MSP (Magnesium Silicate Polymer) cone material, an aluminum voice coil, a glass-fiber former, and a sophisticated magnet design to give exceptional precision across its frequency range. MSP offers the ideal balance of lightweight, rigidity, and damping, allowing it to generate tight, deep bass as well as realistic midrange detail in a single driver for optimal imaging and point source localization.

Flexible positioning

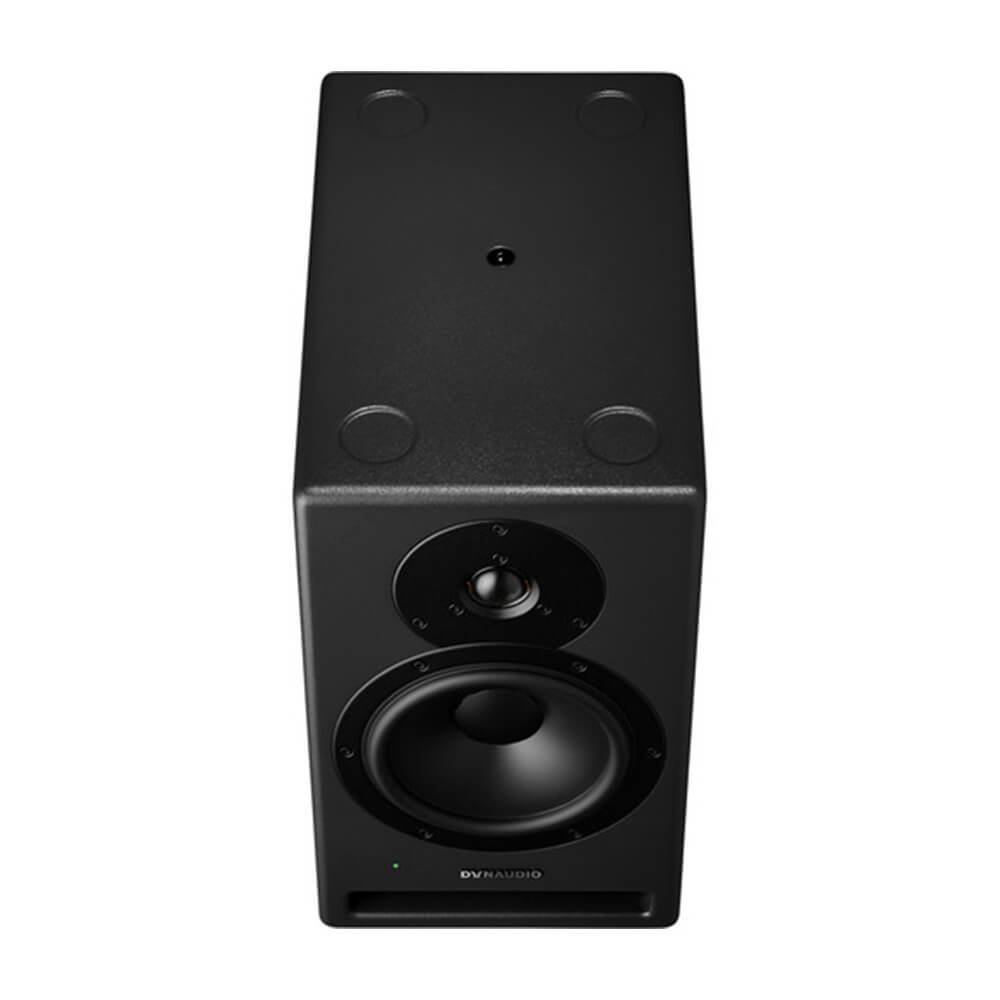

Dynaudio designed the Core 7 cabinet with indentations on all four sides to accept unique Dynaudio pads that preserve the cabinet’s finish and support the speaker on the mounting surface. Core 7 is also compatible with regular VESA mounting brackets and Dynaudio’s unique K&M bracket, allowing you to put it on a wall or ceiling as part of a multichannel or immersive-format display system like Dolby ATMOS.

Accurate input sensitivity and output SPL calibration.

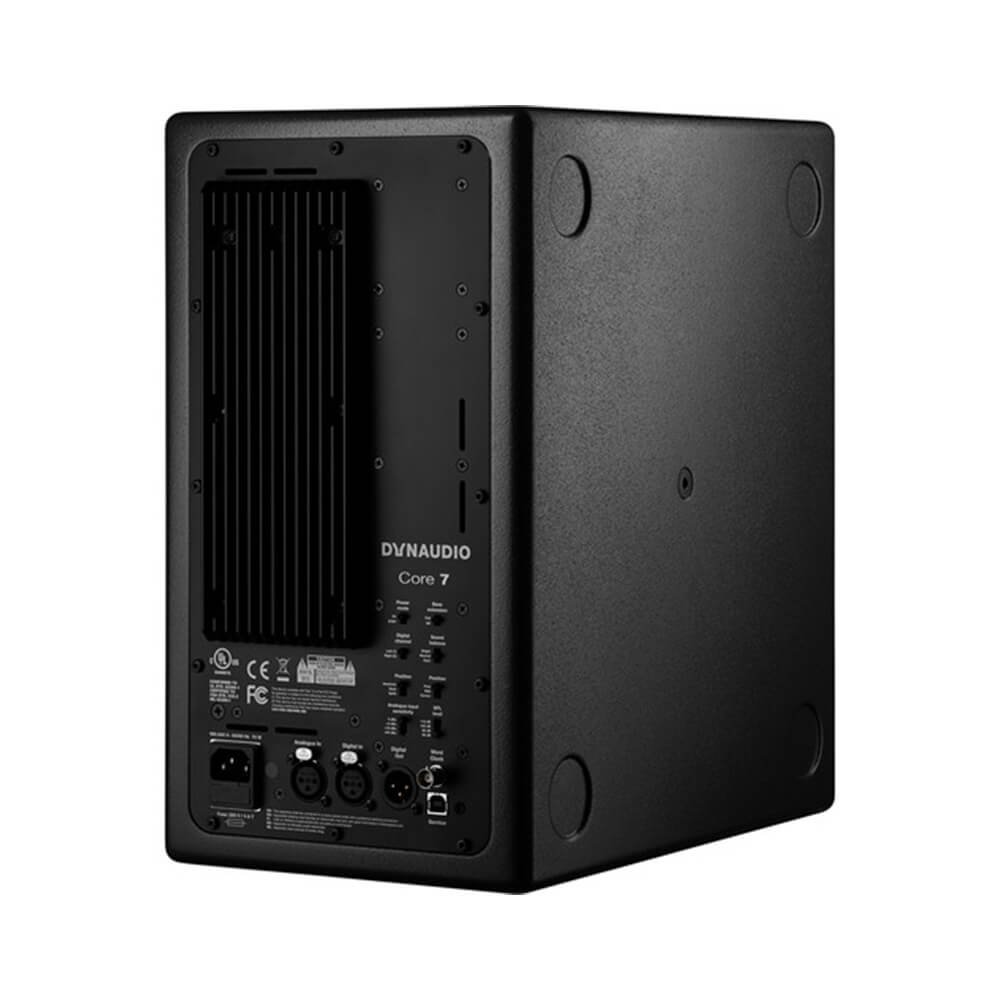

The noise floor and signal resolution of a monitoring system are crucial to its effectiveness. Whether you use the Core 7’s analog or digital inputs, you must be able to manage the gain staging between the monitor controller and the speaker system. To that purpose, Dynaudio provides a range of 0 dBu to +24 dBu to match the analog input sensitivity to the output level. Once adjusted, the Core 7 analyzes all analog signals in the DSP at a 192 kHz sampling rate and 64-bit resolution (from the 24-bit A/D converter) to provide the maximum level of mathematical precision.

Accurate input sensitivity and output SPL calibration.

The noise floor and signal resolution of a monitoring system are crucial to its effectiveness. Whether you use the Core 7’s analog or digital inputs, you must be able to manage the gain staging between the monitor controller and the speaker system. To that purpose, Dynaudio provides a range of 0 dBu to +24 dBu to match the analog input sensitivity to the output level. Once adjusted, the Core 7 analyzes all analog signals in the DSP at a 192 kHz sampling rate and 64-bit resolution (from the 24-bit A/D converter) to provide the maximum level of mathematical precision.

In addition, there is a switch to select the maximum output SPL with the highest bit depth in the DSP. Set the maximum level at 112 dB. If you prefer to operate at lower volumes, use a lower SPL setting to optimize the bit depth of the DSP for both inputs. When using the AES digital inputs, you must specify the channel (left or right) of the AES stream to utilize for that monitor. The DSP in Core 7 runs at the incoming sample rate and either locks to the digital audio clock or word clock to ensure the most accurate signal possible.

Sophisticated, user-friendly DSP

When establishing a monitoring system, placement is crucial. That’s why Dynaudio included the Core 7 with two DSP filter switches to control its position and room boundary locations. The DSP is pretty complicated, but fortunately, it is simple to use. If you position the monitors on the meter bridge of a large-format mixing console, just set them to Desk to correct for the initial reflection caused by the mixing board. If you put the monitors in a specially designed wall, setting the Position 1 filter to Soffit will compensate for the enhanced low-end response.

Switching the Position 2 filter between Wall and Corner compensates for the boundary effects caused by putting a monitor close to walls or ceilings. These filters serve to correct for the reflections caused by the boundary walls, particularly at lower frequencies. If you’re utilizing the Core 7 with a subwoofer to increase the low-frequency response, you may additionally engage an 80Hz Linkwitz-Riley highpass filter.

Unique Sound Balance Filter

You may also utilize DSP to change the overall appearance. The Sound Balance filter varies from the shelving-EQ tweeter and woofer adjustments found on most active monitors. Instead of merely raising or lowering the tweeter level, which affects phase response, the Core 7 uses a full-spectrum bandpass filter that tilts based on the desired tone response. In the Dark mode, the whole frequency response is skewed such that 20 kHz is down by 1.5dB and 20 Hz is up +1.5dB. In Bright mode, the tilt is reversed. This soft filter retains the drivers’ appropriate phase response while producing the desired overall tone.

An essential tool for the discriminating audio expert.

Dynaudio intended the Core 7 to be utilized in a variety of professional audio production applications, including music mastering, mixing, and recording; theatrical re-mixing; editorial and game sound design, or anyplace maximum performance and versatility are required in a small form factor. It may be utilized for nearfield, middle, or main surveillance and can even be put on the soffit. It’s ideal for high-SPL immersive audio and other multichannel formats, since it has both analog and digital connections, DSP-controlled acoustic response, and variable placement. Whatever your monitoring requirements, the Dynaudio Core 7 provides precise monitoring accuracy and no listening fatigue. So, no matter how long the session lasts, you’ll get exactly what you hear.
