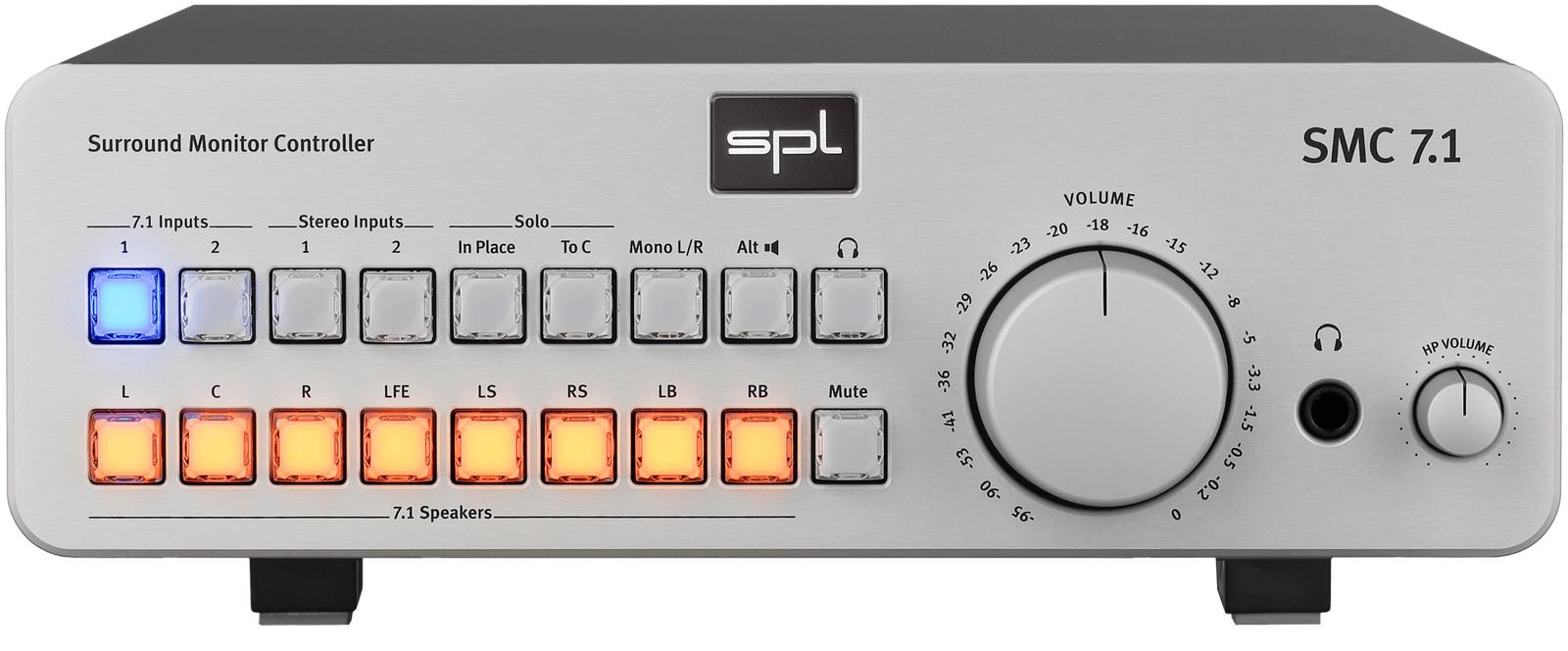

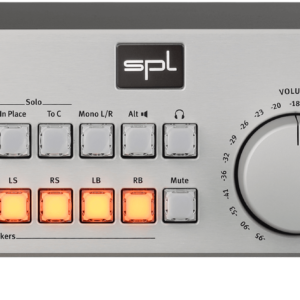

SMC 7.1

Surround Monitor Controller

The SMC 7.1 expands analog surround monitoring to 8 channels and offers Solo, Solo-In-Place and Solo-To-Center as well as a headphone jack.

Inputs & Speaker Management

Two 7.1 and two stereo input sources can be connected to the SMC 7.1. This is important because in monitoring, two productions are always compared with each other.

A subwoofer can be added to a stereo input by activating the LFE button.

Each loudspeaker can be switched on and off individually, and the SMC 7.1 remembers the last speakers used for each source.

The Solo-In-Place function now turns the loudspeaker on/off switches into solo buttons. This allows each loudspeaker to be heard alone at its position.

Solo-To-Center places the selected loudspeaker on the center speaker, so that it can be listened to exactly from the front in case critical listening is required.

An alternative output is available for connecting a pair of stereo loudspeakers.

The 45mm all-aluminium rotary knob moves an 8-level potentiometer.

Mute is especially important when the DAW is sending full-range audio garbage due to a problem. Mute can be used

quickly to protect speakers and hearing.

As an alternative to the speakers, headphones can be used for monitoring. The headphones can be switched on and have their own volume control.

Expansion Rack

The SMC 7.1 can be installed in the Expansion Rack to be screwed into a 19-inch rack.

The Expansion Rack is equipped with a switch that can passively route the stereo output signal of the SMC 7.1 to four stereo outputs.

In this combination, the SMC 7.1 is expanded by three additional stereo outputs.

This allows a 7.1 loudspeaker array and full-range, mid and nearfield stereo speakers to be controlled and monitored.

In the realm of professional audio production, precision and control over your monitoring environment are paramount. The SPL SMC 7.1 Surround Monitor Controller in Silver offers an exceptional solution for audio engineers and producers who demand flawless surround sound monitoring and flexible input management. Whether you are mixing a complex 7.1 surround project or simply need comprehensive control over multiple studio monitors, this device ensures you hear your work exactly as intended, enabling confident decision-making and superior audio quality.

Monitoring multiple audio sources and outputs can be challenging, especially when working with surround sound formats. The SPL SMC 7.1 addresses these challenges by providing an extensive array of inputs and outputs—16 inputs and 8 outputs—allowing seamless integration with a wide range of professional studio equipment. This flexibility means you can effortlessly switch between different sources, such as DAWs, reference players, or external processors, without compromising signal integrity or workflow efficiency. The convenience of having all your inputs centralized in one controller translates into less time managing gear and more time focusing on creative tasks.

One of the standout features of the SPL SMC 7.1 is its support for true 7.1 surround sound monitoring through dedicated analog inputs and outputs. It includes four XLR analog inputs and two DB-25 connectors specifically designed for 7.1 surround input, ensuring that the full spatial audio detail is preserved and accurately reproduced. On the output side, the controller offers a DB-25 connector for 7.1 speaker output, supplemented by two XLR connectors for alternate speakers and an additional XLR output dedicated to subwoofer control. This comprehensive output configuration means you can easily set up multiple monitoring environments or switch between main and alternate speaker systems, giving you the flexibility to evaluate mixes in different acoustic scenarios and guarantee mix translation across all playback systems.

In addition to its multi-channel capabilities, the SPL SMC 7.1 features a professional-grade headphone output with a dedicated volume control, ensuring accurate and comfortable headphone monitoring. Two XLR meter outputs provide the ability to connect external metering devices, giving you precise visual feedback on your signal levels and helping you maintain optimal gain staging and prevent clipping. The unit’s robust build, measuring 4.6 inches in height, 11 inches in width, and 13 inches in depth, and weighing 4 kilograms, reflects SPL’s commitment to durable, studio-grade hardware that fits neatly into any professional rack or desktop setup without occupying excessive space.

This monitor controller is ideal for audio post-production studios, music production facilities, and broadcast environments where surround sound mixing is routine. Its ability to handle multiple inputs and outputs, combined with precise volume control and monitoring options, makes it an indispensable tool for engineers who need to verify spatial imaging and mix balance across a variety of speaker setups. Whether you are mixing cinematic surround sound for film or creating immersive music productions, the SPL SMC 7.1 ensures that your monitoring environment keeps pace with your creative demands.

Priced at ₹209,045, the SPL SMC 7.1 Surround Monitor Controller delivers professional-grade performance, flexibility, and reliability that justify its investment. Backed by SPL’s reputation for engineering excellence, this controller provides a critical link between your audio sources and monitoring systems, empowering you to produce mixes that translate accurately in any listening environment. With the SPL SMC 7.1, you gain the confidence that your surround sound projects are being monitored with precision, enabling you to focus on what truly matters—crafting exceptional audio experiences.
