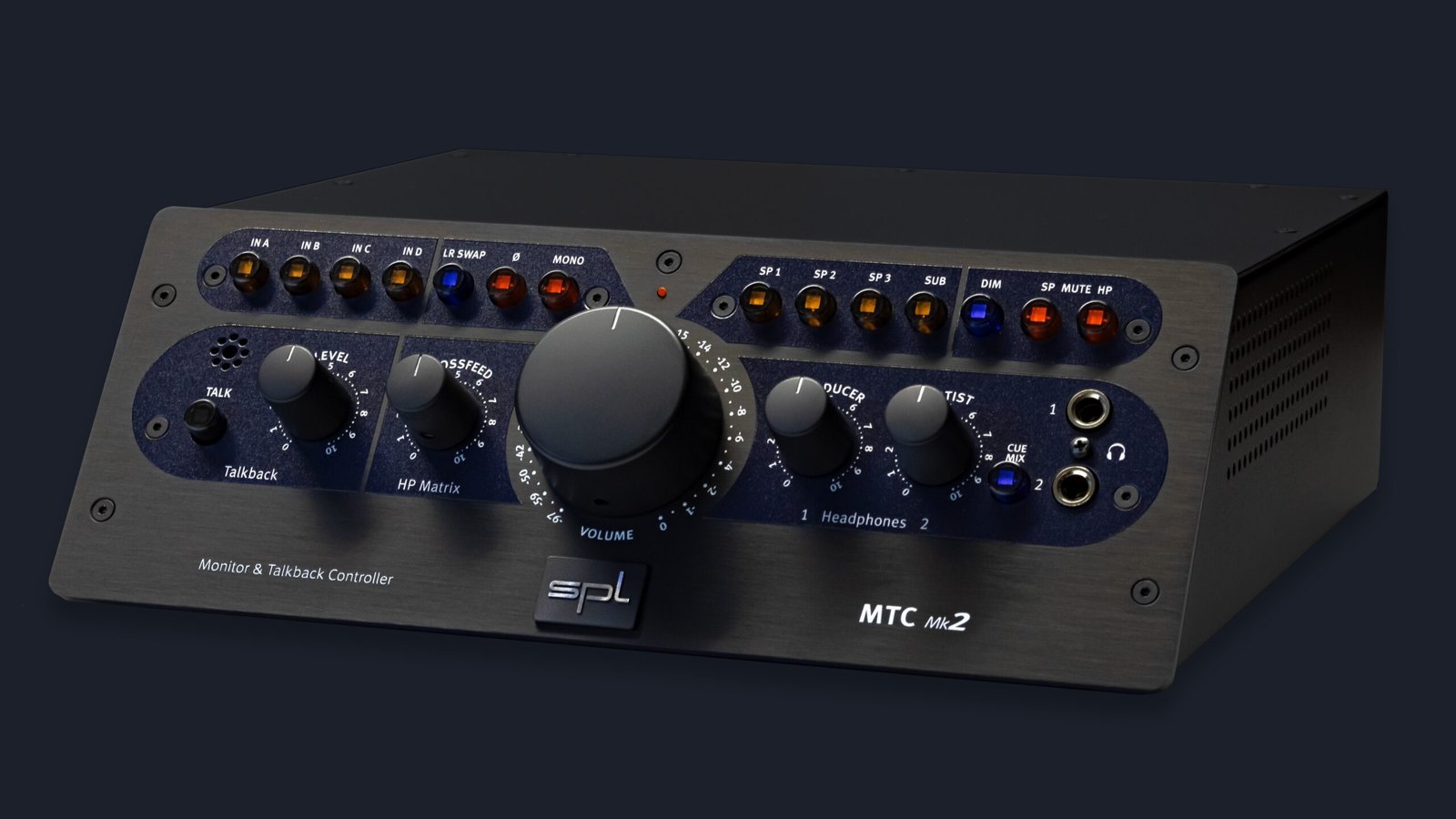

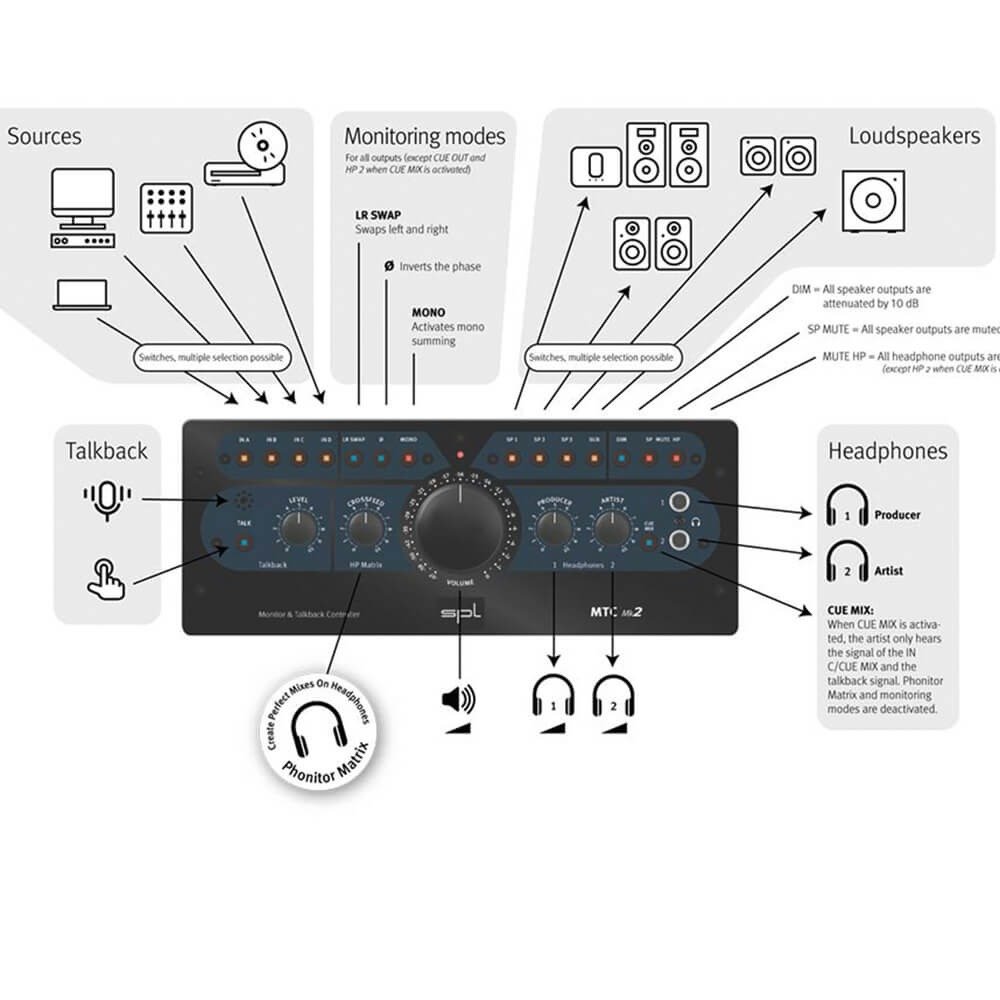

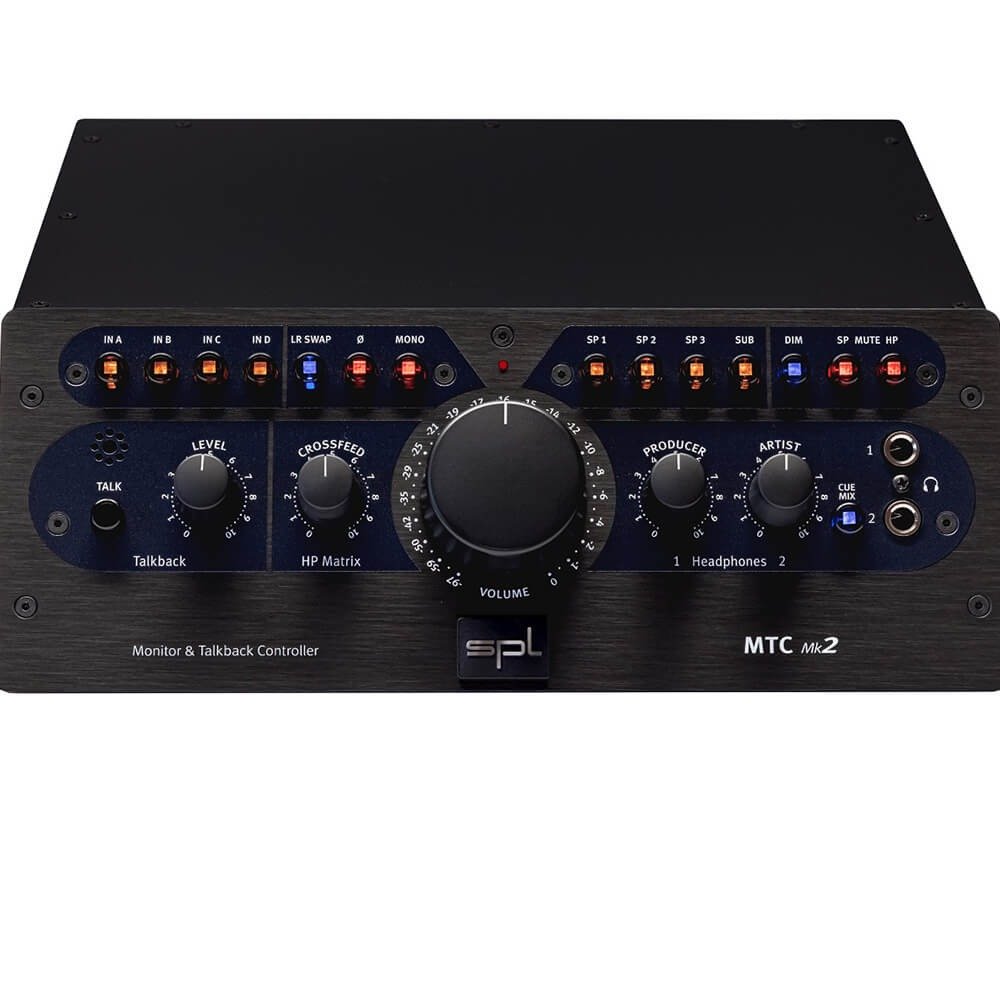

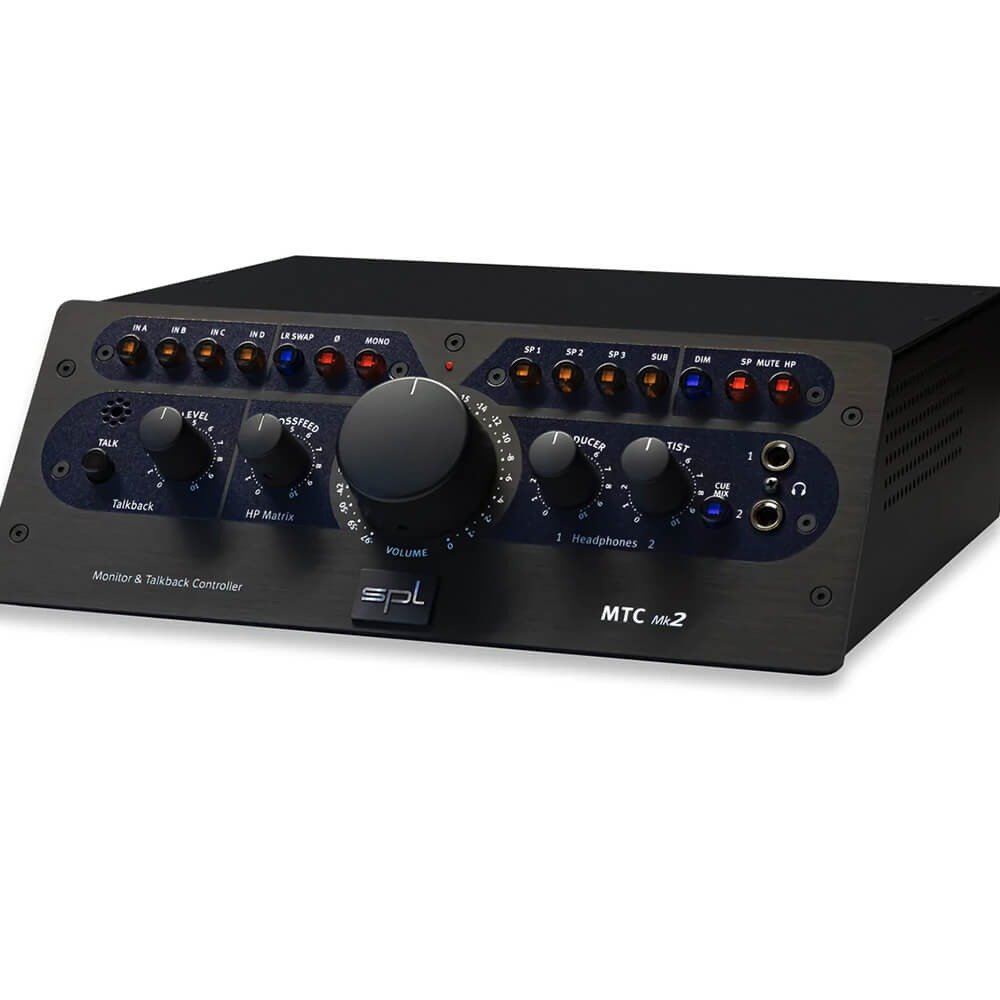

Run your whole studio monitoring and talk to the artist – from one desk-top controller. The SPL MTC Mk2 is a monitor and talkback controller for modern music production. It combines source and speaker selection, monitoring modes, a premium talkback system, two headphone amps with Phonitor Matrix and a dedicated artist mix input.
Why customers choose it
Who it is for
Recording and production studios, producers and home studios with more than one pair of monitors who record artists and need talkback and a cue mix.
Specifications
| Type | Monitor and talkback controller |
|---|---|

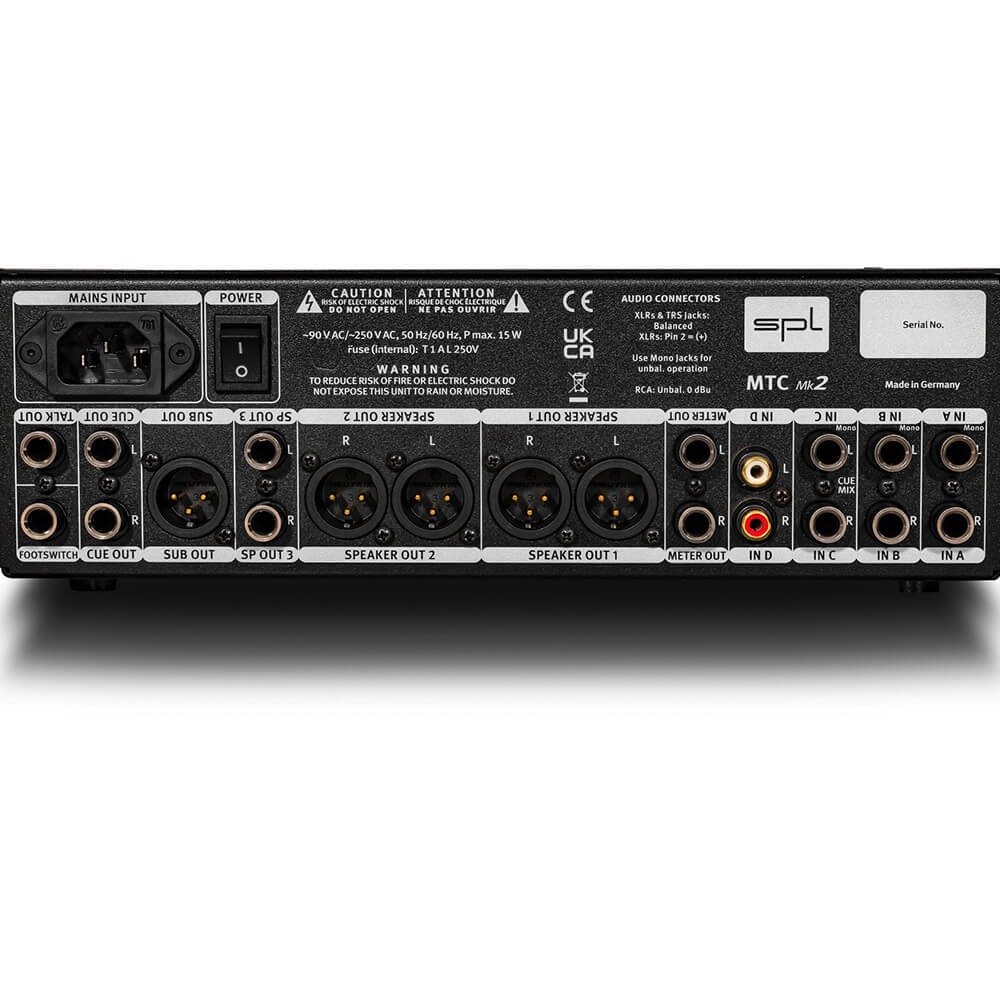

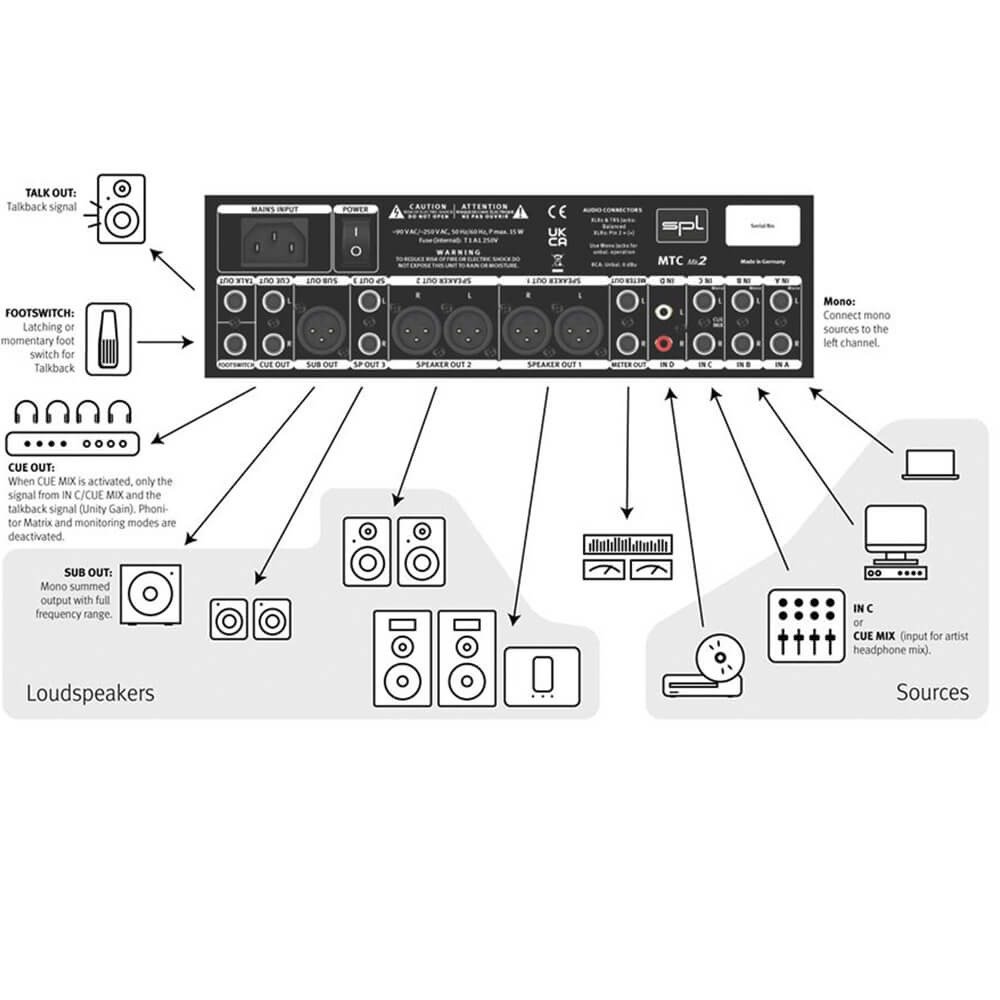

| Inputs | 4 stereo: 3 x TRS (balanced), 1 x RCA |

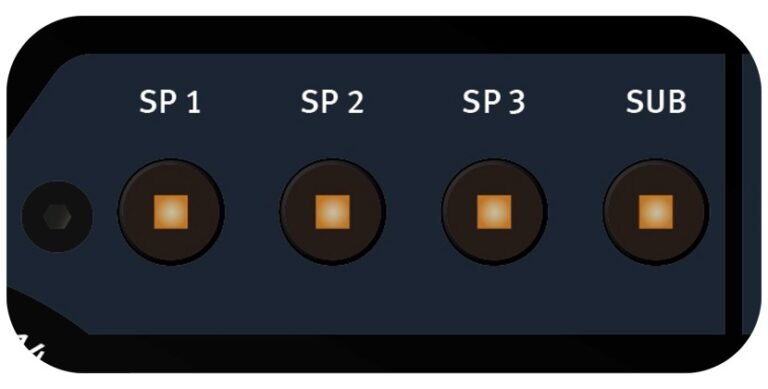

| Speaker outputs | 3 stereo pairs + 1 subwoofer (XLR) |

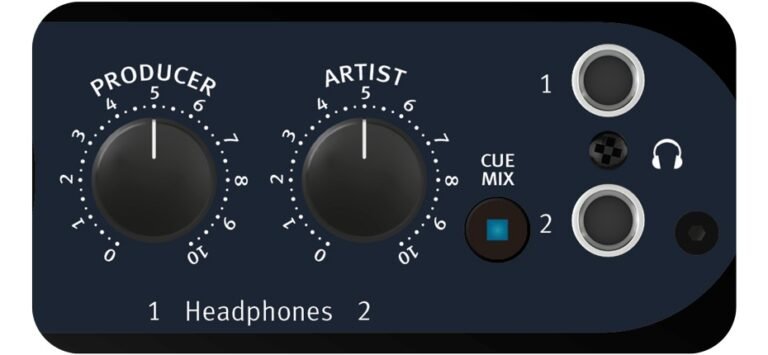

| Headphone outputs | 2, with Phonitor Matrix |

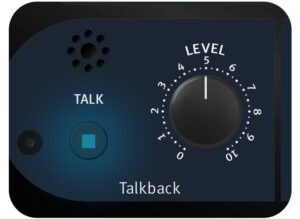

| Talkback | Built-in condenser capsule, TALK OUT, footswitch input |
| Dim | -10 dB |
| Max input level | 22.5 dBu |
| Output impedance | 75 Ohm |
| Frequency range (-3 dB) | 10 Hz – 150 kHz |
| THD+N (0 dBu) | 0.0027 % |
| Dynamic range | 116.3 dB |
| Mains | 85 – 264 V AC, 47 – 440 Hz, 15 W |
| Size (W x H x D) | 272 x 91 x 275 mm |
| Weight | 3 kg |
| Power Supply | Internal, 85 – 264 V AC |
Good to know
- A mono source should go to the left channel of an input to be heard in the centre.
- DIP switches on the rear add -6 dB and/or -10 dB output attenuation for very sensitive monitors (both on = about -13 dB).
- Internal power supply works on 85-264 V AC, so it suits Indian mains directly.
- SP MUTE and HP MUTE protect speakers and ears if the DAW sends full-level noise.
FAQ
Can I talk to the singer in the booth?
Yes. The built-in talkback mic feeds the artist headphone output and CUE OUT, and TALK OUT can feed a speaker in the recording room.
Can I connect a CD or turntable preamp?
Yes. Input D is RCA, meant for a reference player with RCA outputs.
