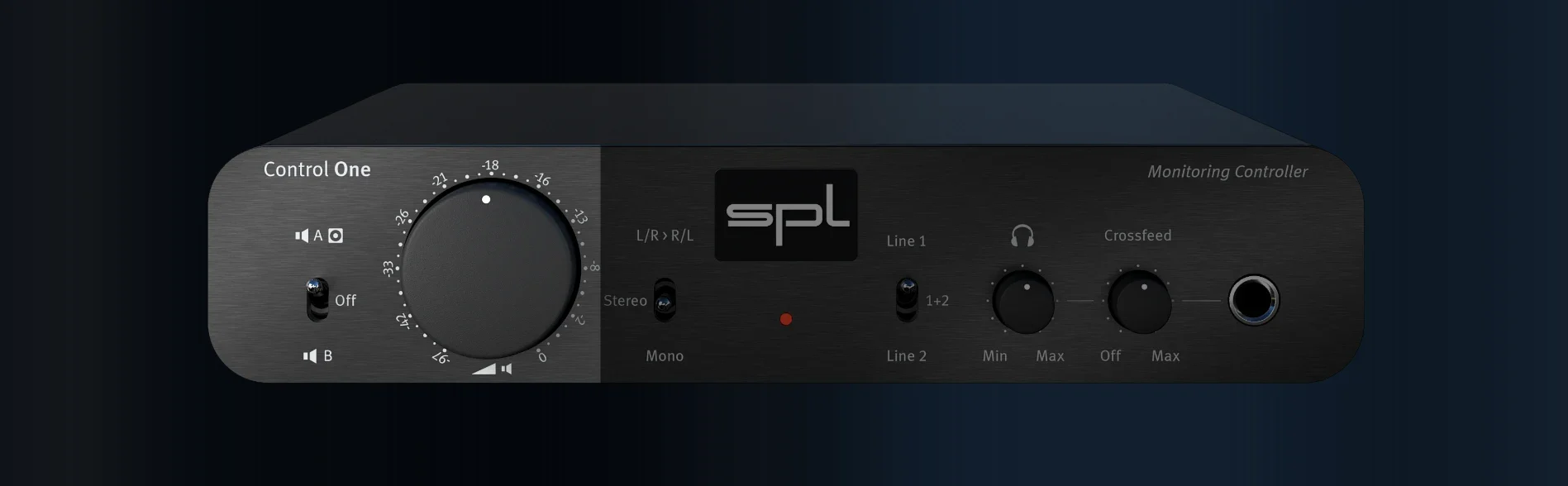

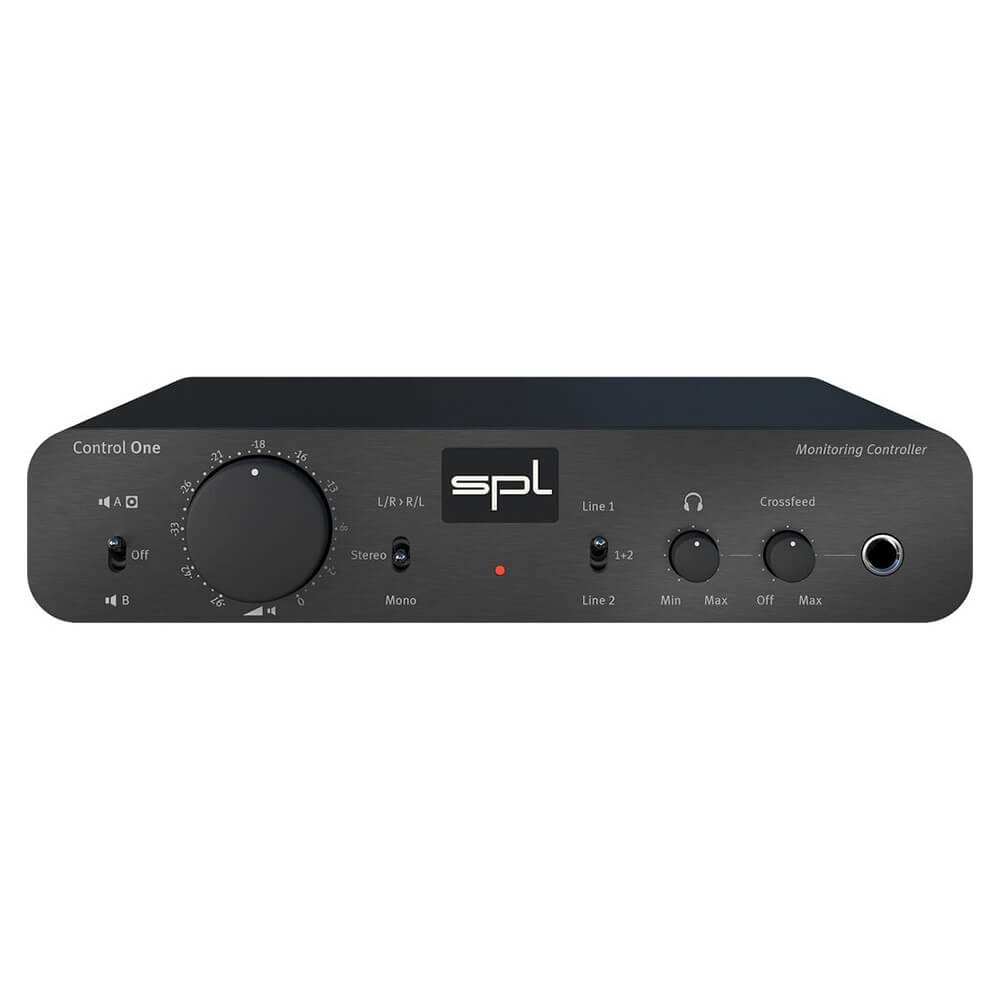

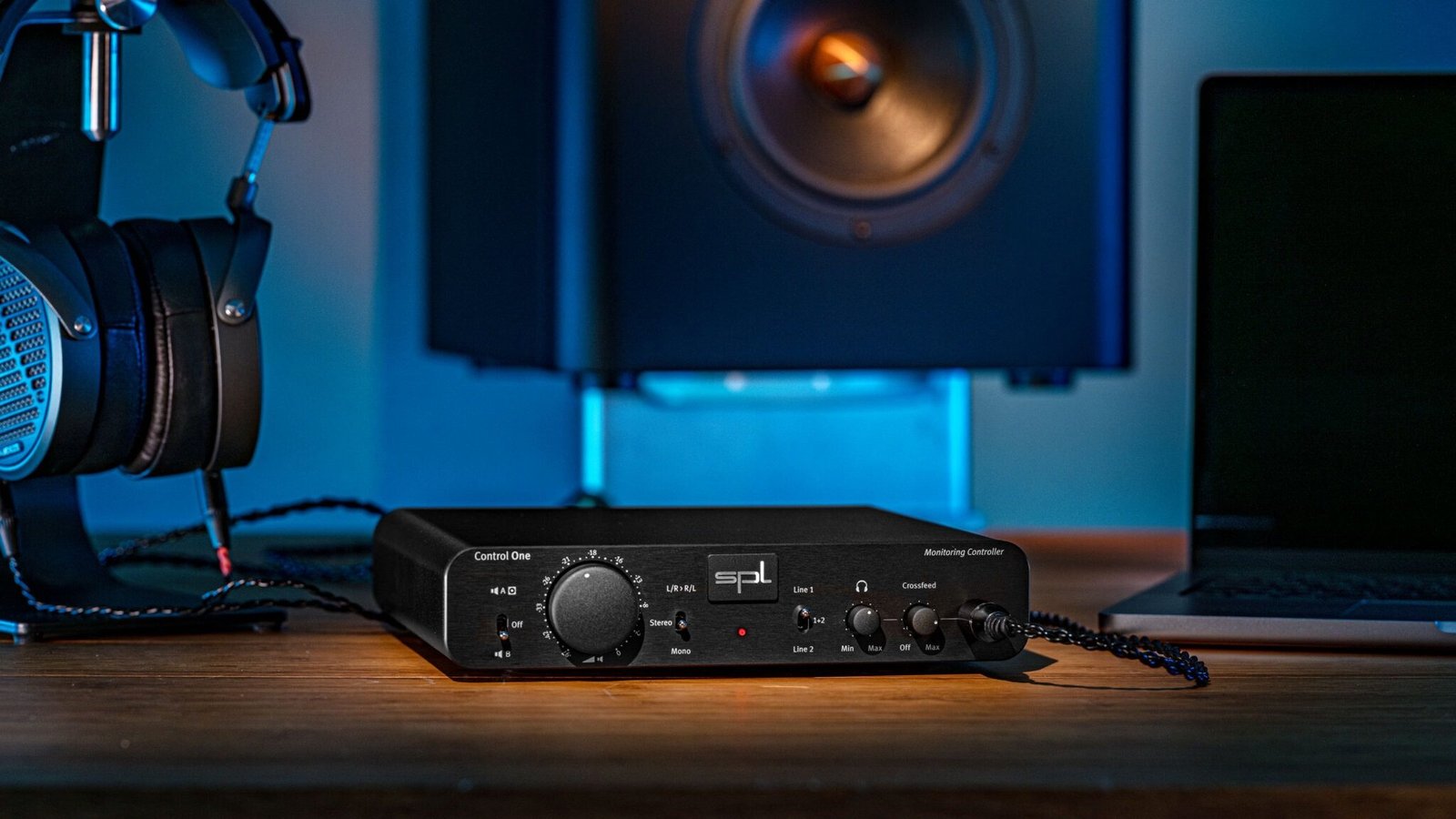

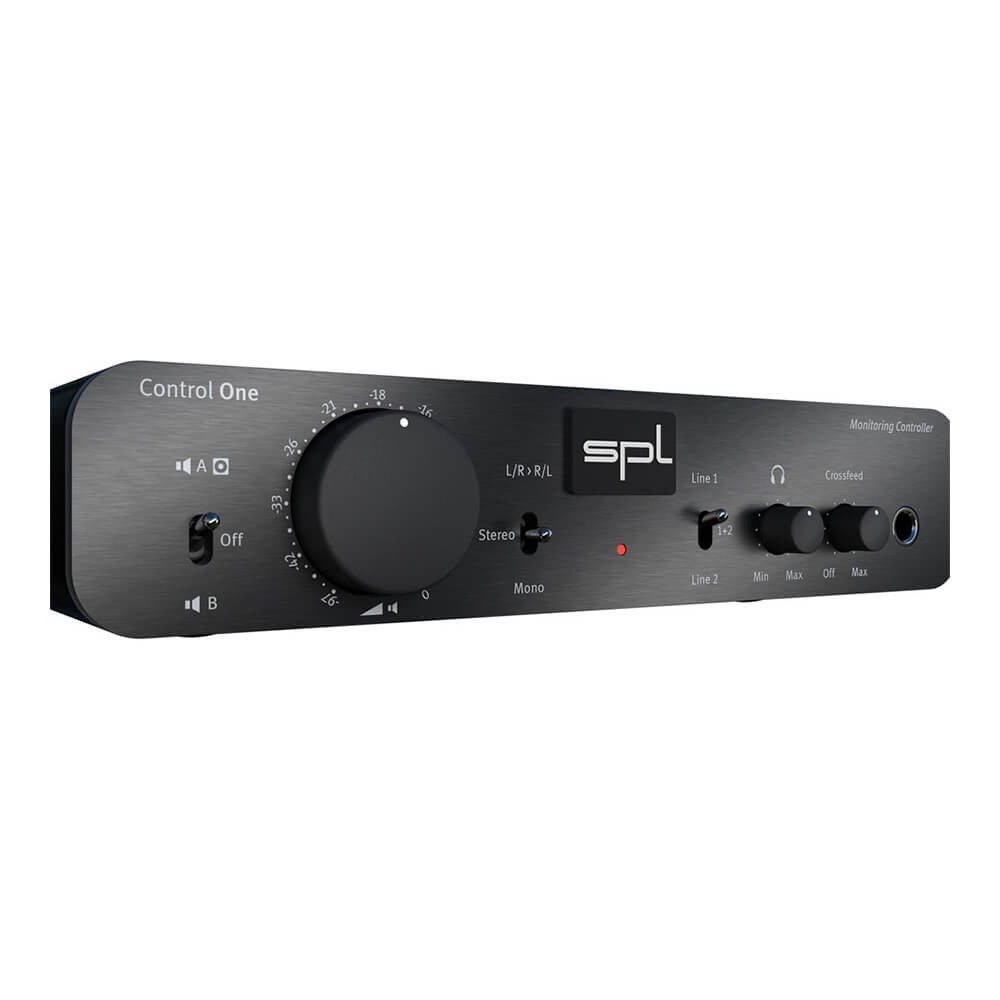

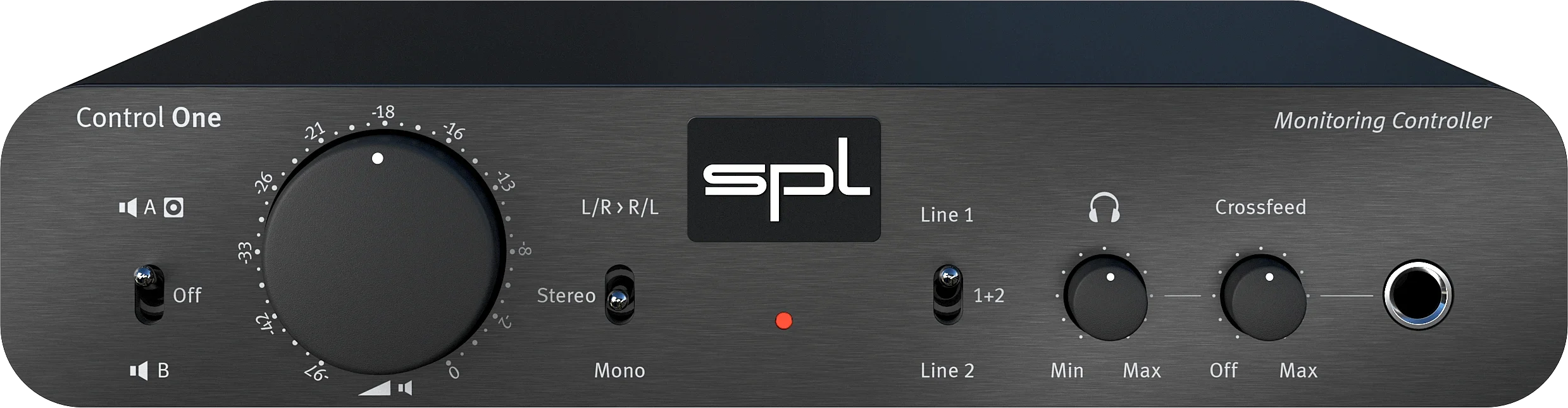

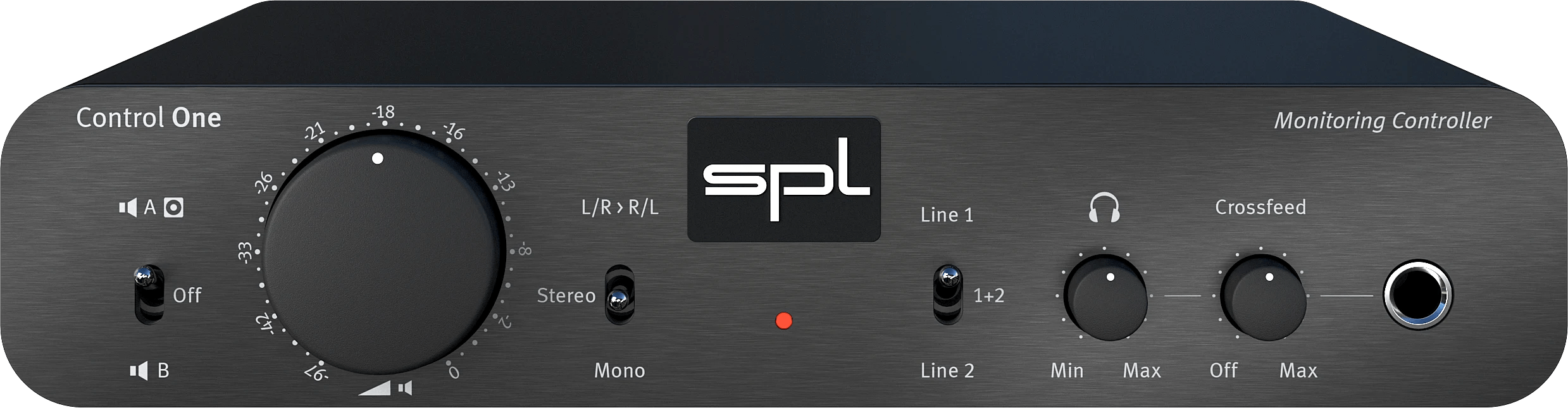

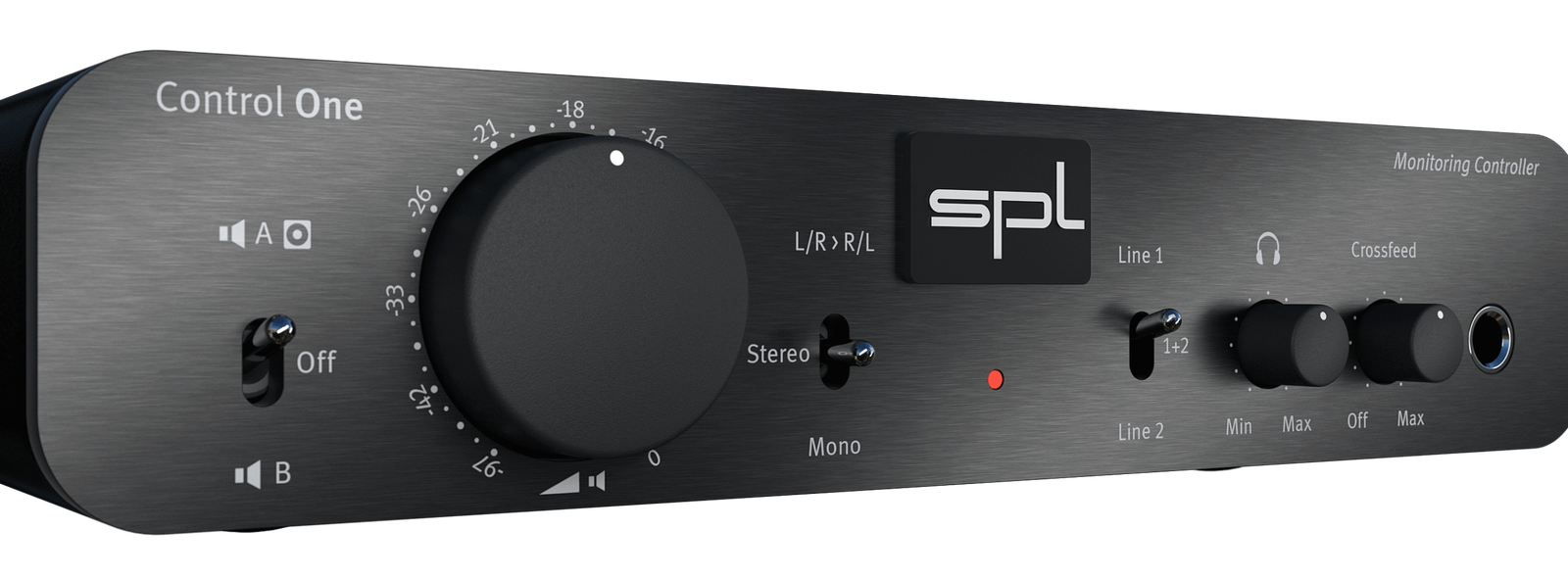

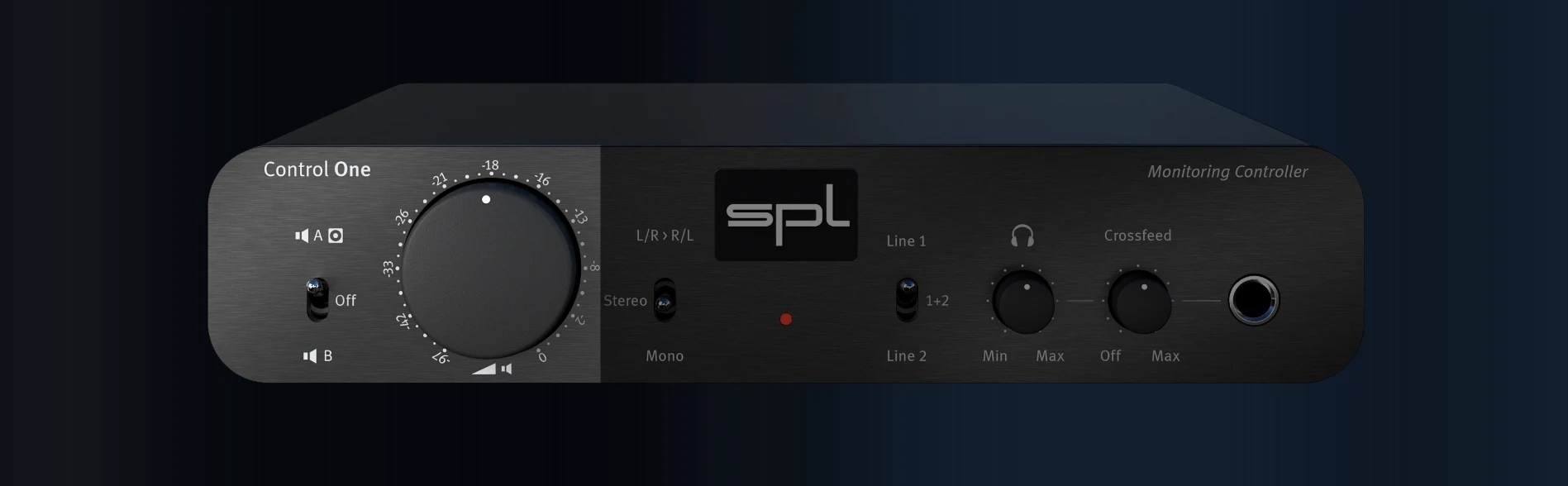

Take control of your speakers and headphones with one big, smooth volume knob – and mix with confidence. The SPL Control One is an analog monitor controller from the SPL Series One, built for a fast workflow and high sound quality on speakers and headphones.
Why customers choose it
Who it is for
Home and project studios, producers and audiophiles who use an audio interface or DAC and want proper speaker switching and a great headphone amp.
Specifications
| Type | Analog monitor controller |
|---|---|

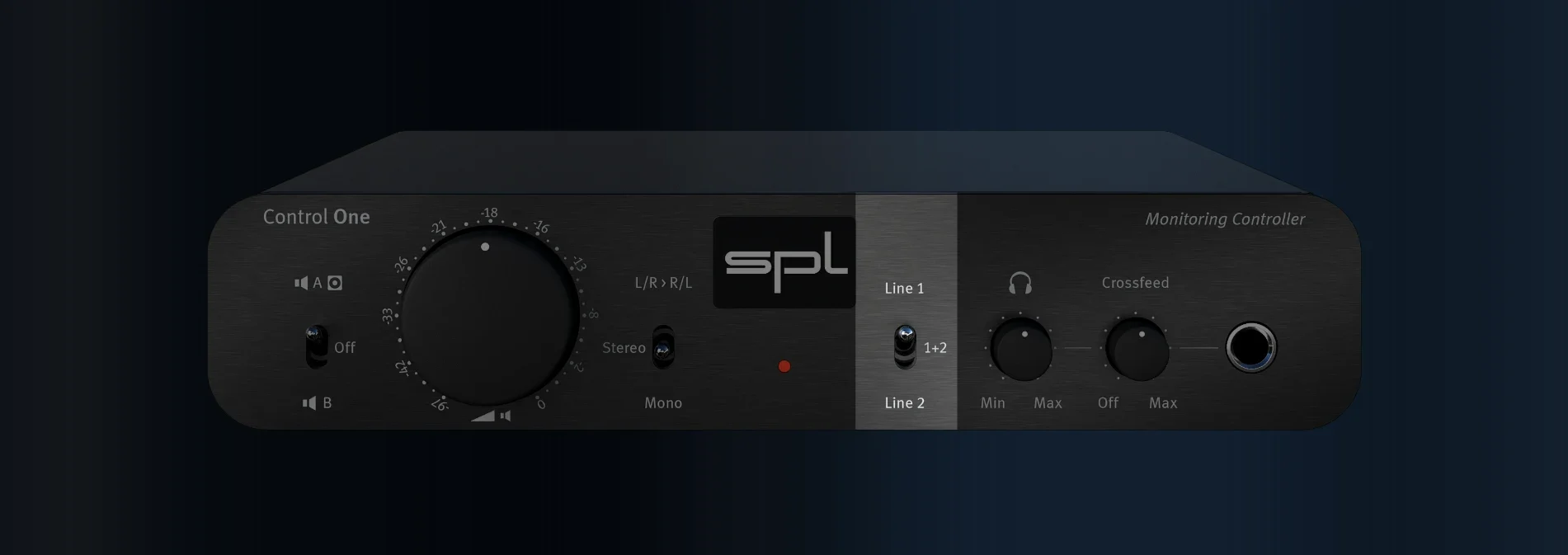

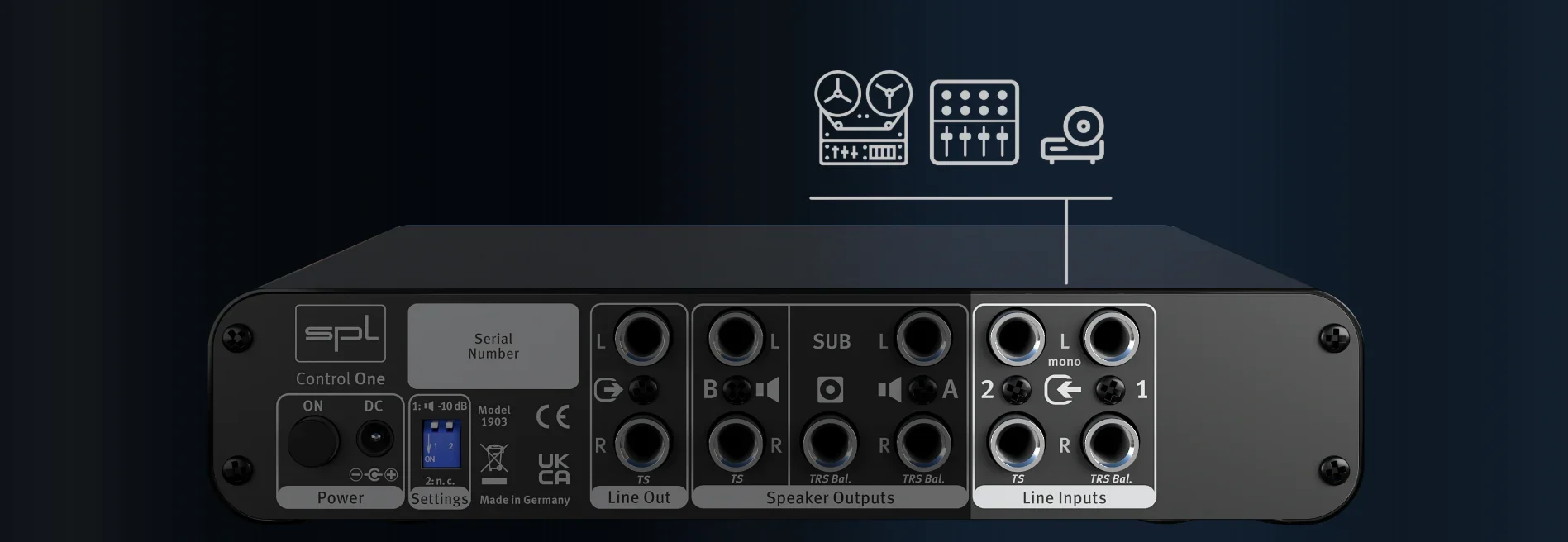

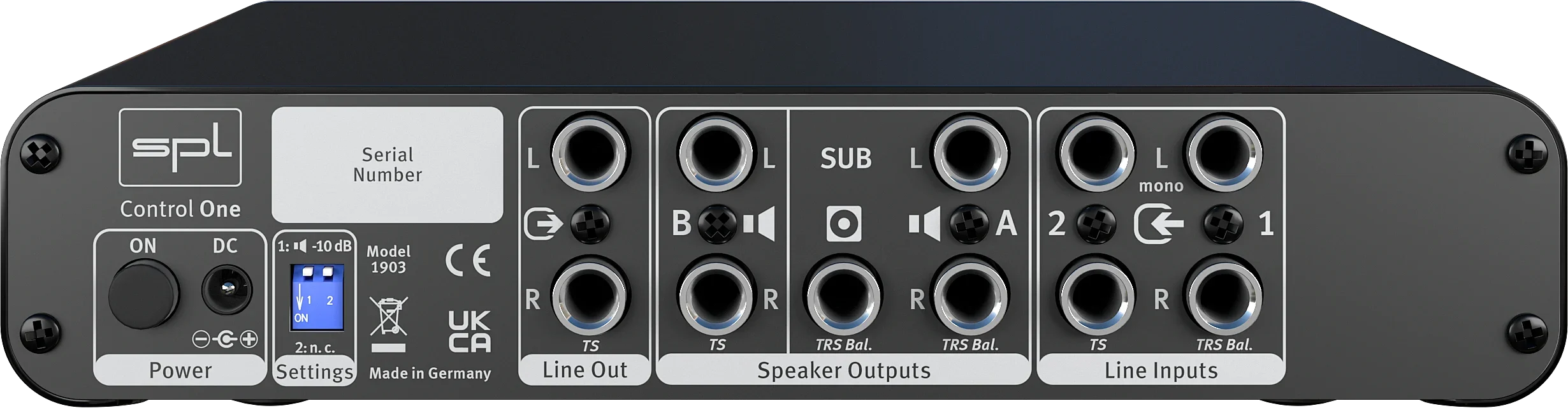

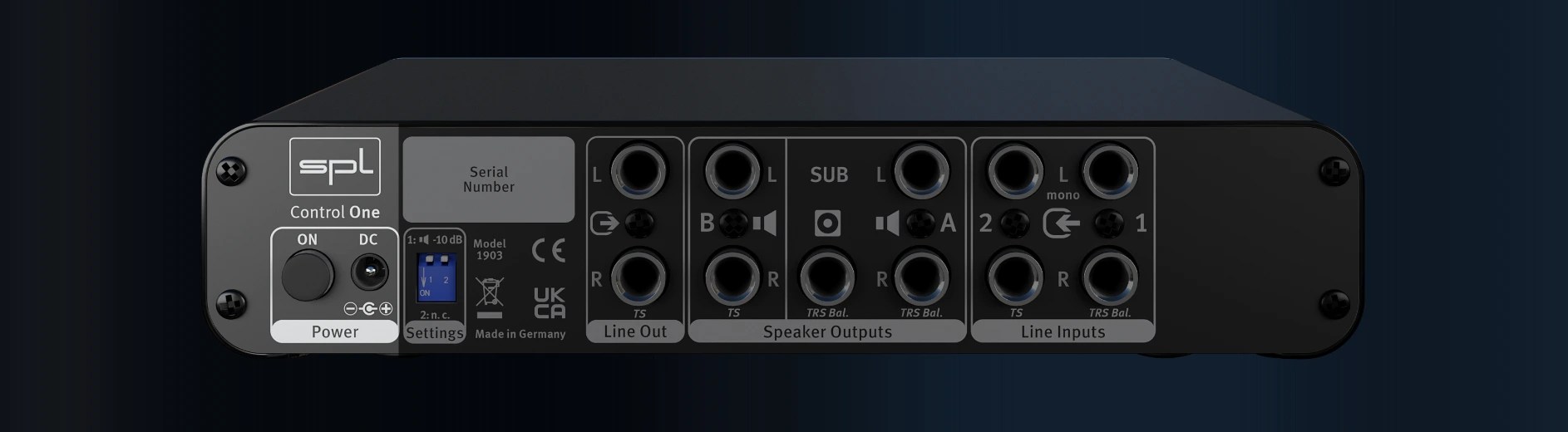

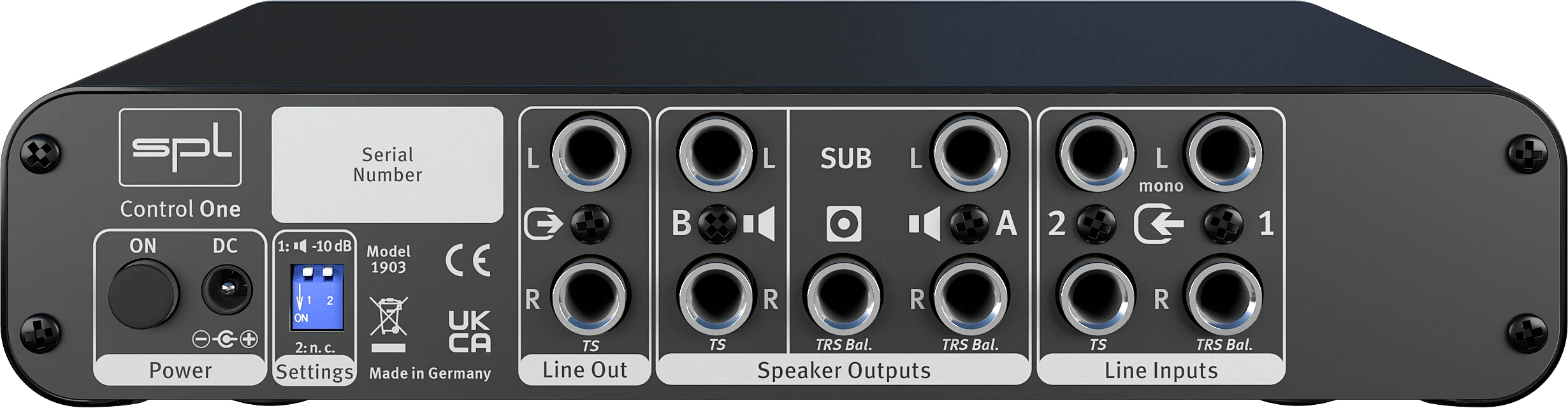

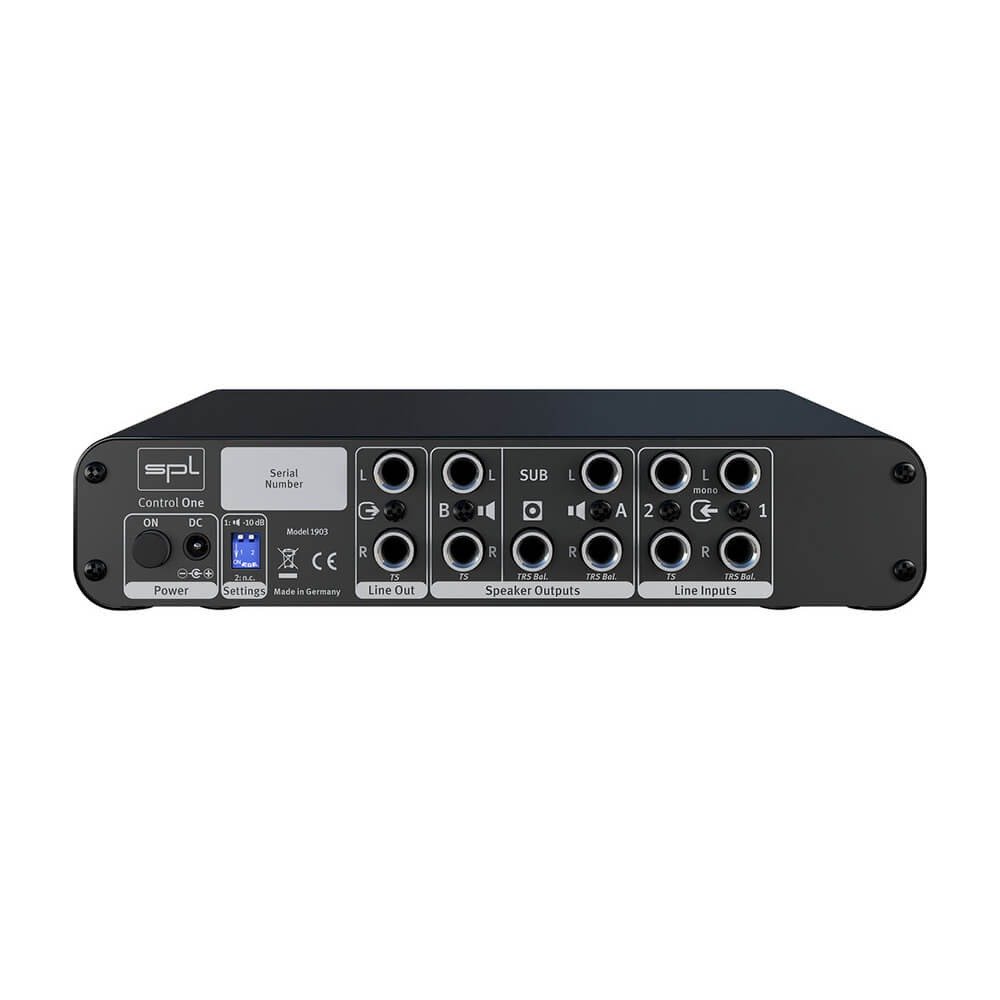

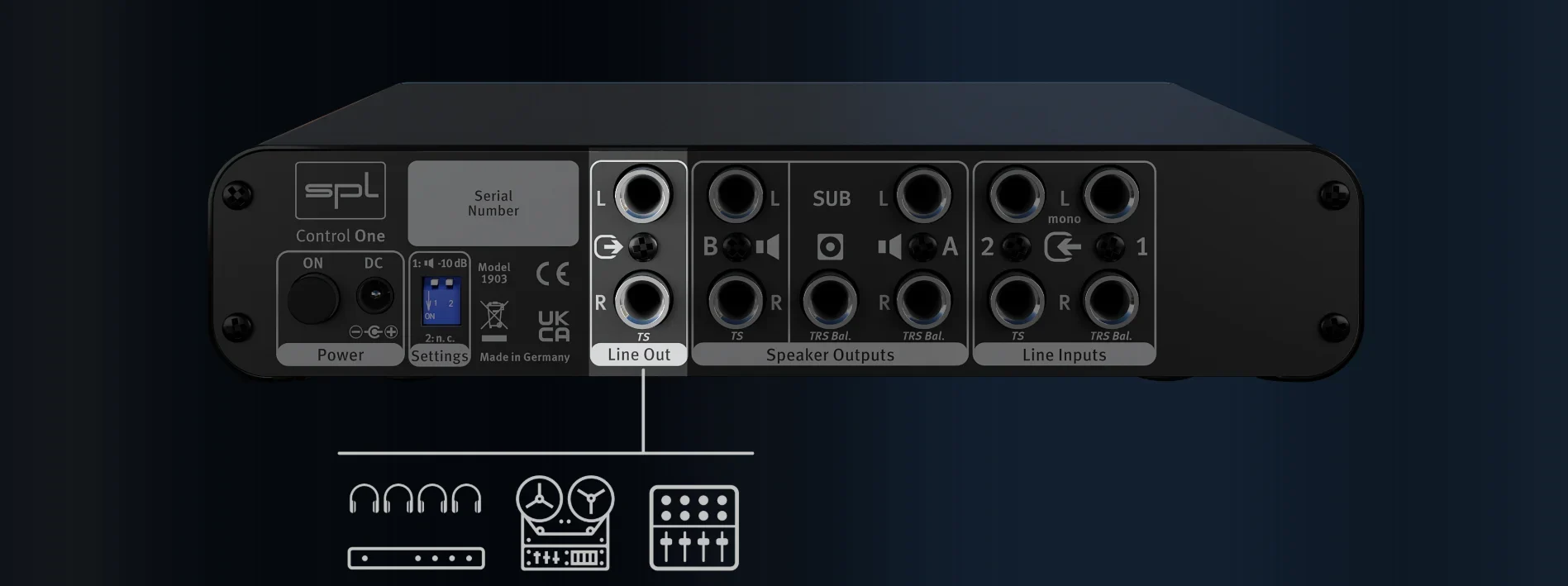

| Inputs | Line 1 (balanced TRS), Line 2 (unbalanced) |

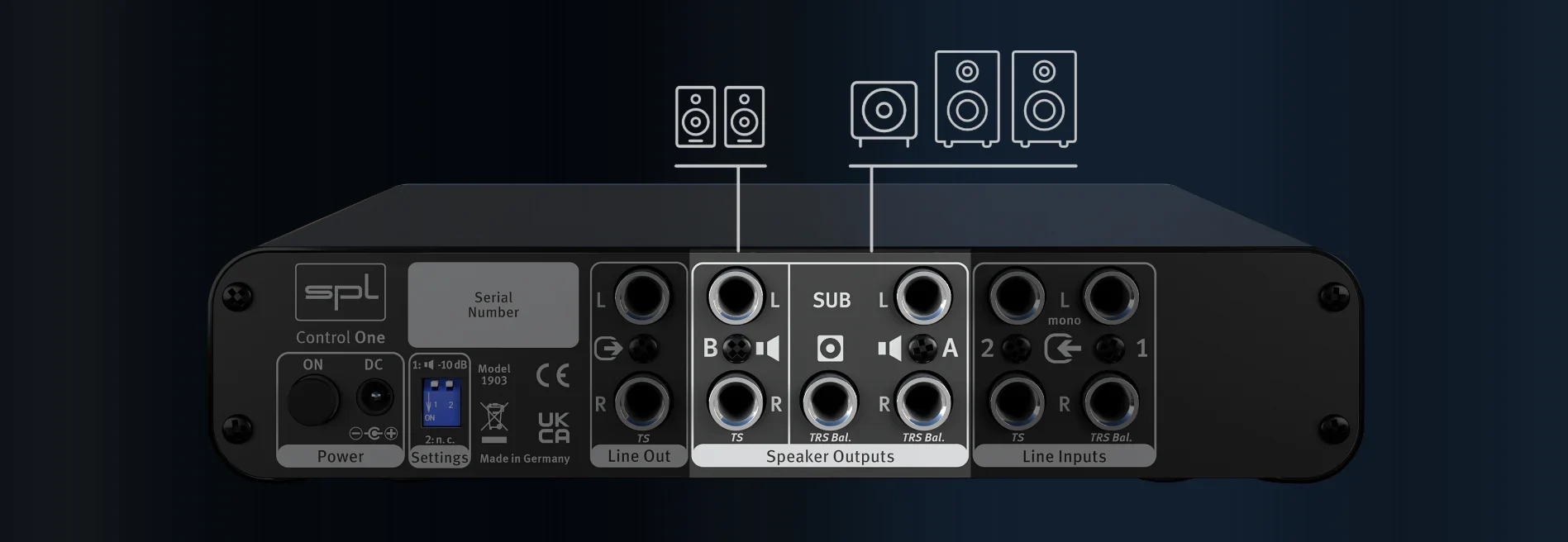

| Speaker outputs | 2 stereo pairs + subwoofer (full range) |
| Max output level | +22 dBu (speaker outputs, 600 Ohm) |
| Frequency range (-3 dB) | 10 Hz – 200 kHz |
| Dynamic range | 121 dB |

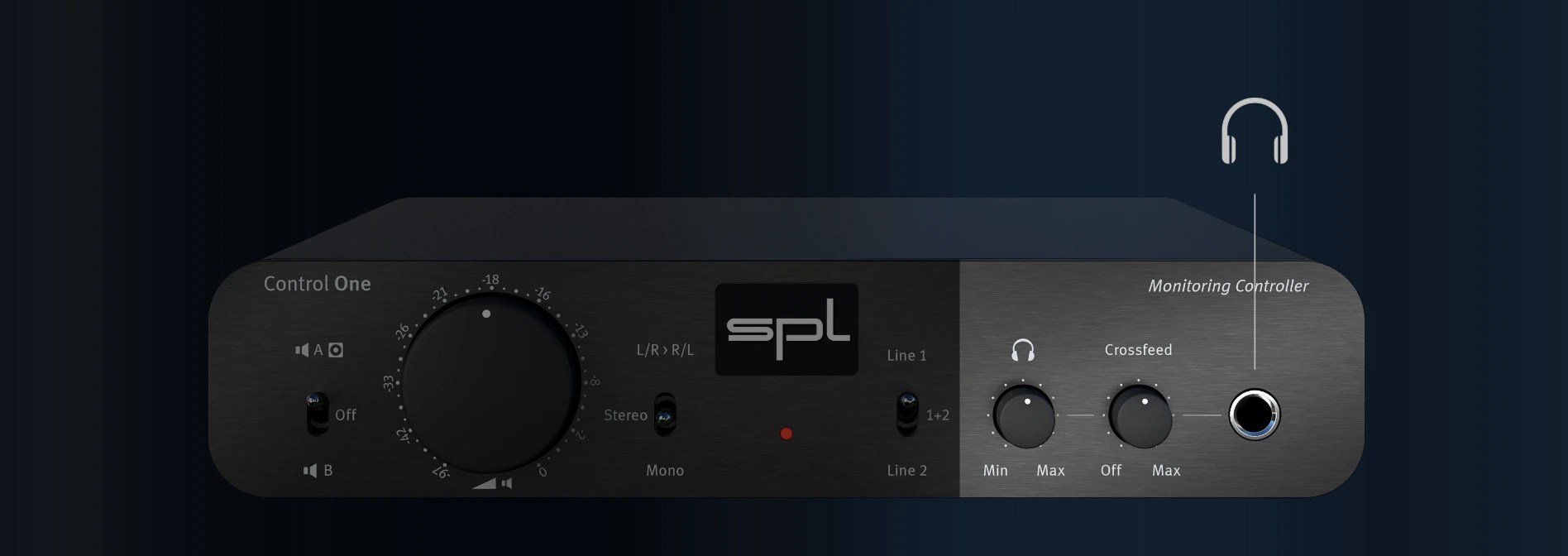

| Headphone output | 6.35 mm (1/4 in) TRS, 20 Ohm source impedance |
| Headphone power | 2 x 190 mW (600 Ohm), 2 x 330 mW (250 Ohm), 2 x 400 mW (47 Ohm) |
| Power supply | External 12 V DC adapter (100-240 V AC) |
| Size (W x H x D) | 210 x 49.6 x 220 mm |
| Weight | 1.5 kg |

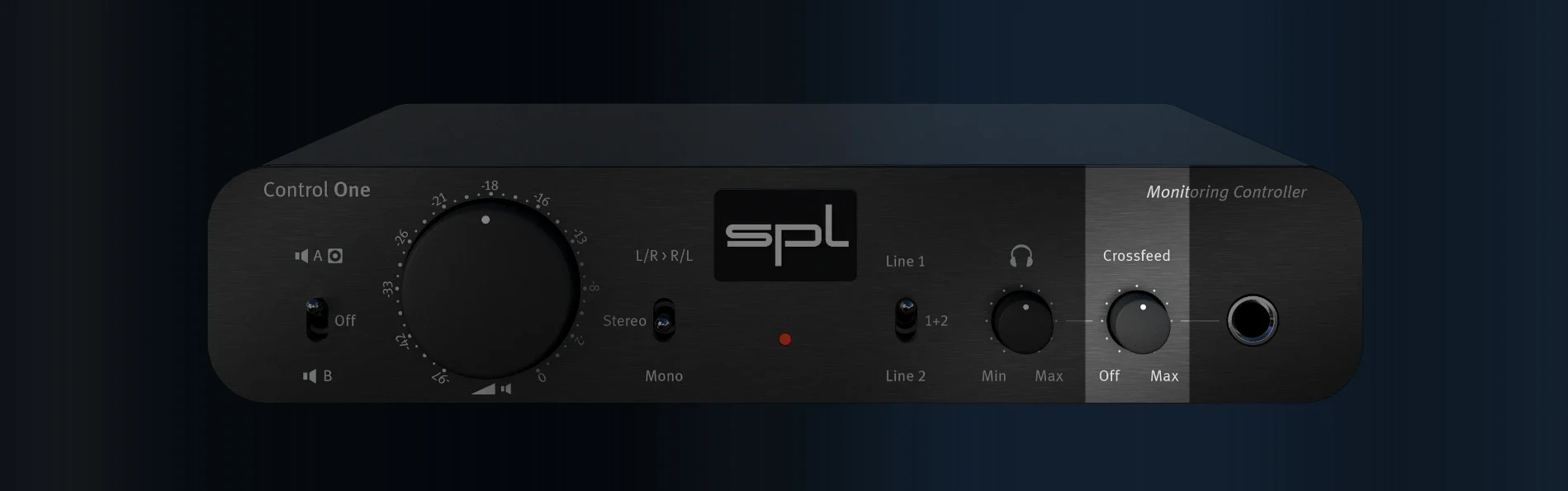

| Crossfeed | Phonitor Matrix |
Good to know
- Power comes from an external 12 V adapter (Mean Well GE18/12-SC, 100-240 V AC).
- The subwoofer output is full range (no built-in low-pass filter), so set the crossover on your subwoofer.
- Need recording too? The SPL Marc One adds a 32-bit USB AD/DA converter.
FAQ
Can I use two pairs of studio monitors?
Yes. There are two switchable stereo speaker pairs plus a subwoofer output.
Does it have USB?
No. Control One is fully analog; connect it after your interface or DAC. For USB, see the SPL Marc One.


































Reviews
There are no reviews yet.
