Yorkville Sound EF12 Elite 12” Unpowered Loudspeaker

Yorkville Sound EF12 Elite 12” Unpowered Loudspeaker

Name: Yorkville Sound EF12 Elite 12” Unpowered Loudspeaker - suhavimart.com
Price: 241682.00 INR
Availability: InStock

Seen It For Less?

₹241,682.00

2 in stock

Estimated delivery dates: Jul 13, 2026 - Jul 17, 2026

Category: Loudspeaker Brand: Yorkville Sound

Brand

JBL

System Type

Unpowered Loudspeaker

Power Rating

1200 W Peak (600 W Program)

Biampable

Nominal Impedance (Ohms)

8Ω

Sensitivity (dB AT 1Watt/1m)

97 dB

Max SPL

128 dB Peak (125 dB Continuous)

Frequency Response (Hz +/- 3dB)

55 Hz - 18 kHz

Crossover Frequency

1900 Hz

HF Driver(s)

3" Voice Coil (1" Titanium Diaphragm)

HF Horn

ABS Plastic Custom Waveguide

HF Dispersion (°H x °V)

60° x 40°

HF Protection

3x SK3 Protection Bulbs

LF Driver(s)

12" (3" Voice Coil)

Inputs - 1/4 IN Jacks

Inputs - Speakon 4-pin

Bar Handles

3 (1 Top, 1 Left Side, 1 Right Side)

Flypoints

8 (2 Top, 2 Bottom, 2 Each Side), 1 Pullback

Flying Hardware

1/4 - 20

Pole Mount Adapter (1 3/8

1 (Bottom)

Enclosure Materials

15 mm (5/8") 11-ply Russian Birch

Grille

Perforated Metal

Covering / Finish

Black Ultrathane Paint

Dimensions (DWH)

14" x 16" x 25.5" (35.53 cm x 40.5 cm x 64.8 cm)

Weight

51 lbs / 23 kg

Our expertly trained sales engineers are ready to help!

📞 +91 8368252534 | 💬 WhatsApp

EF12

Elite 12” Unpowered Loudspeaker

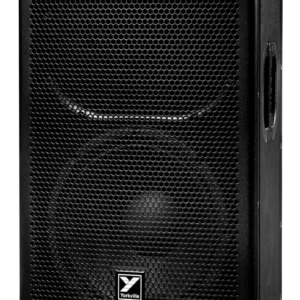

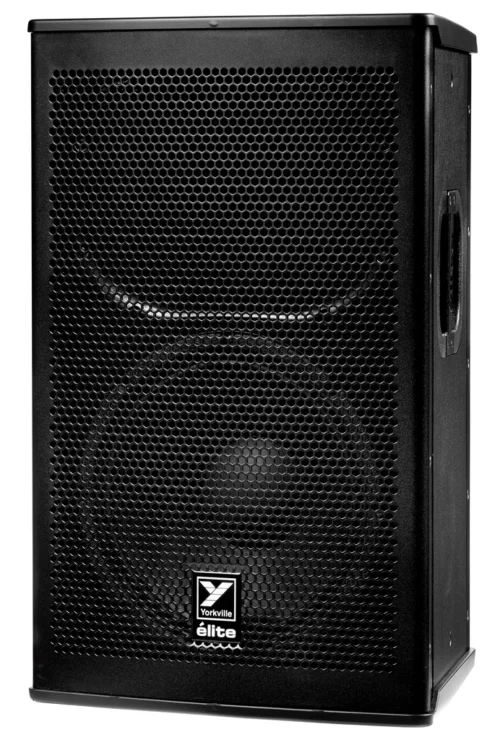

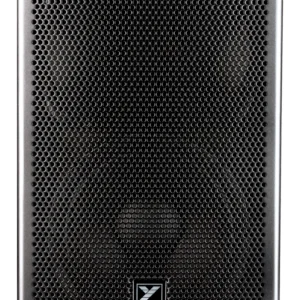

The EF12 is a 12-inch 2-way passive loudspeaker that brings the sound, performance, and reliability of the Elite series to installations and venues that already have power amplifiers.

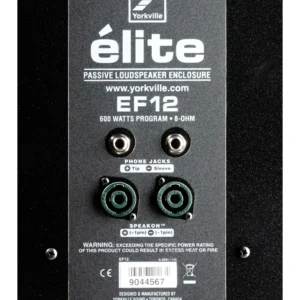

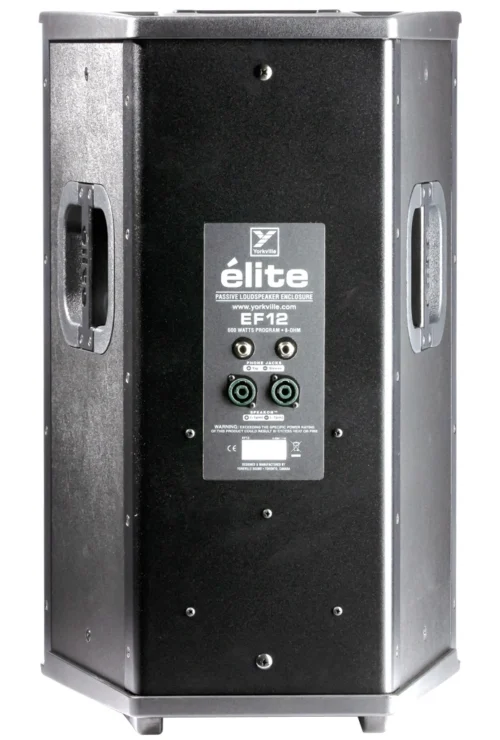

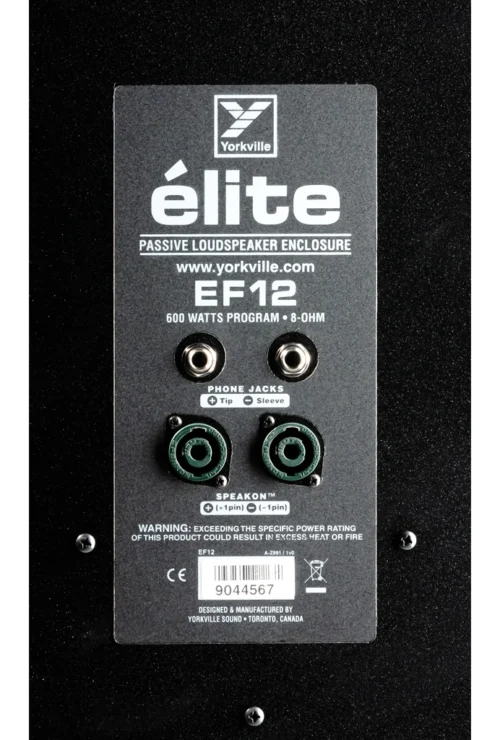

Made with premium components, the EF12 is rated for 1200 watts of peak power (600 watts program) at 8 ohms, and the rear panel has 1/4″ and Speakon™ inputs.

The cabinet offers durable birch construction, and the total weight is less than 55 pounds so the EF12 is easy to transport and stack.

10-inch (EF10) and 15-inch (EF15) versions are also available.

Features

1200 W Peak Power (600 W Program)
12” Woofer with 3” Voice Coil
3” Compression Driver
ABS-Coated Birch Plywood Construction
Made In Canada

Brand	JBL
System Type	Unpowered Loudspeaker
Power Rating	1200 W Peak (600 W Program)
Biampable	No
Nominal Impedance (Ohms)	8Ω
Sensitivity (dB AT 1Watt/1m)	97 dB
Max SPL	128 dB Peak (125 dB Continuous)
Frequency Response (Hz +/- 3dB)	55 Hz – 18 kHz
Crossover Frequency	1900 Hz
HF Driver(s)	3" Voice Coil (1" Titanium Diaphragm)
HF Horn	ABS Plastic Custom Waveguide
HF Dispersion (°H x °V)	60° x 40°
HF Protection	3x SK3 Protection Bulbs
LF Driver(s)	12" (3" Voice Coil)
Inputs - 1/4 IN Jacks	2
Inputs - Speakon 4-pin	2
Bar Handles	3 (1 Top, 1 Left Side, 1 Right Side)
Flypoints	8 (2 Top, 2 Bottom, 2 Each Side), 1 Pullback
Flying Hardware	1/4 – 20
Pole Mount Adapter (1 3/8	1 (Bottom)
Enclosure Materials	15 mm (5/8") 11-ply Russian Birch
Grille	Perforated Metal
Covering / Finish	Black Ultrathane Paint
Dimensions (DWH)	14" x 16" x 25.5" (35.53 cm x 40.5 cm x 64.8 cm)
Weight	51 lbs / 23 kg
