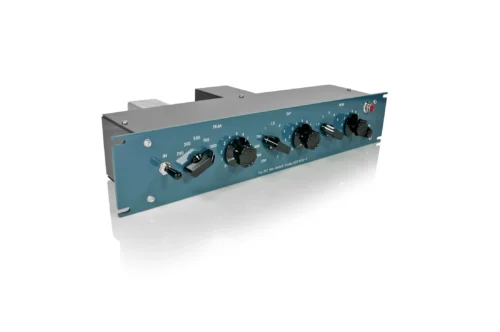

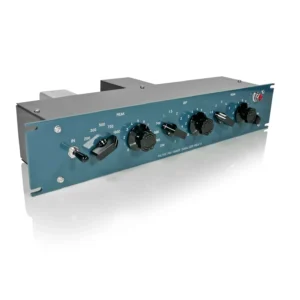

The MEQ-5 midrange EQ with an API 2520 gain stage. The Pultec MEQ-5-SS has the same input transformer and passive midrange EQ as the tube MEQ-5, with a genuine API 2520 op-amp gain stage driving a Triad output transformer. It gives exact control of the 300 Hz–5 kHz “power region”.
Why customers choose it
Who it is for
Engineers who shape guitars, vocals and keys and prefer the solid-state Pultec flavour.
Specifications
| Type | Midrange Equalizer |
|---|---|
| Amplifier | API 2520 solid state, Triad output transformer |
| Low-midrange peak boost | 200, 300, 500, 700, 1000 Hz, 0 – 10 dB |
| High-midrange peak boost | 1.5, 2, 3, 4, 5 kHz, 0 – 8 dB |
| Dip Atten | 200, 300, 500, 700 Hz and 1, 1.5, 2, 3, 4, 5, 7 kHz, 0 – 10 dB |
| Input Impedance | ~600 Ohms |
| Output Impedance | ~50 Ohms |
| Noise | Below -80 dBm |
| Distortion | ≤ 0.15% at 10 dBm into 600 Ohms |
| Amplifier response | 20 Hz to 20 kHz; +0, -1 dB ref 1 kHz including input/output transformers |
| Output Level | +21 dBm maximum |
| Finish | Pultec blue |
| Built | By hand, to order, in Fort Collins, Colorado |
Good to know
- Rack-mount unit for a standard 19-inch rack.
- Hand-built to order by Pulse Techniques in Fort Collins, Colorado.
