Compact Mixing Power
The MQ Series mixers are designed to offer exceptional audio performance in a compact and stylish package. With high input density, full feature sets, and superior sound quality, they deliver professional-grade mixing at an affordable price point.
Italian Engineering Excellence
Carefully designed and engineered in Italy by PROEL’s R&D team, MQ mixers are built with precision and care. Every unit is housed in an ultra-rugged metal chassis to ensure extended durability and reliable stage-proof performance.
Professional-Grade Features

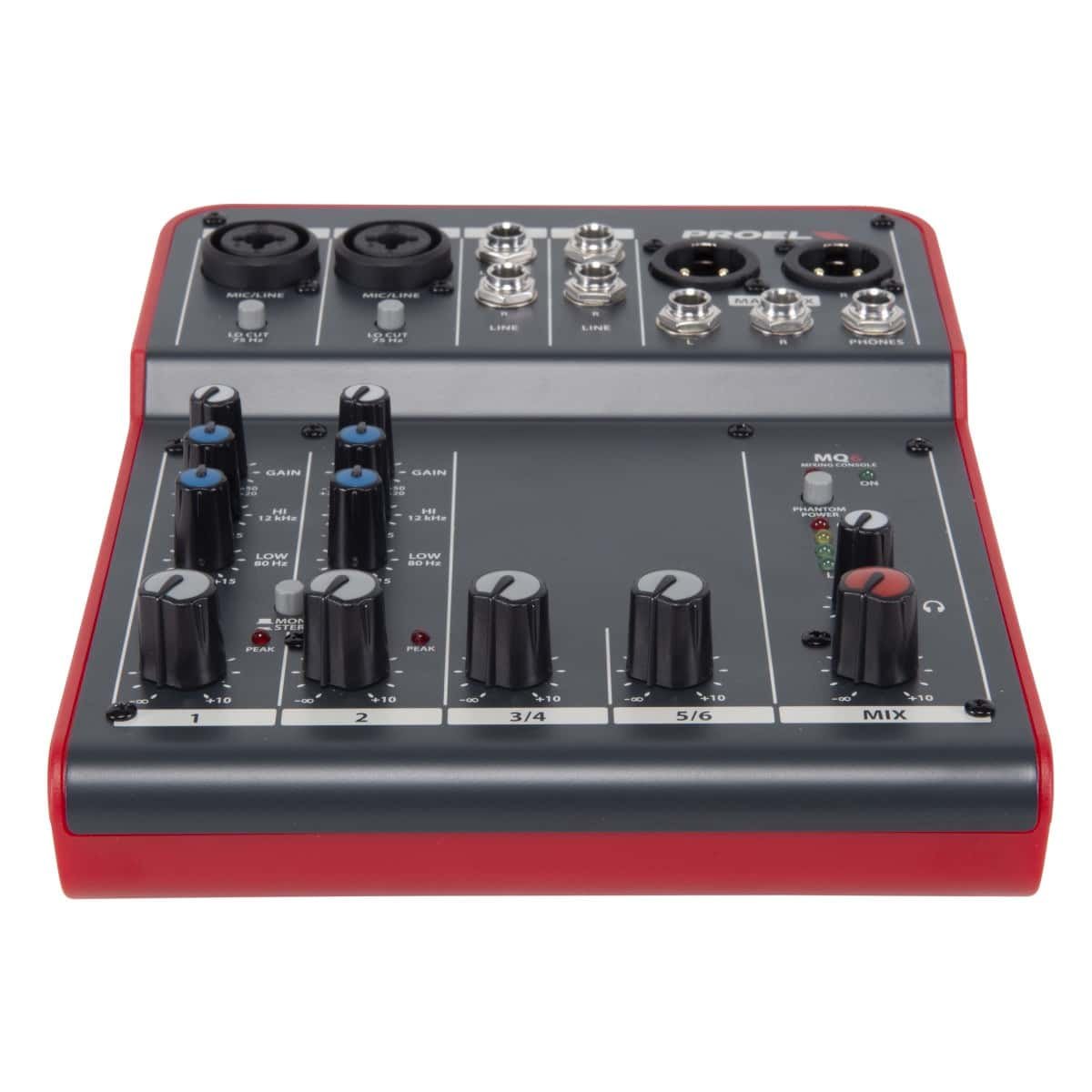

The MQ6 and MQ6FX deliver the power of professional consoles in ultra-compact formats, offering clean and accurate sound. The MQ6FX includes a 24-bit DSP, providing musicians and performers with studio-grade effects, despite its portable size.
Durable Stage Construction
Every MQ mixer is crafted for long-lasting performance, featuring ultra-rugged metal construction, electronically balanced main mix outputs, low-noise preamplifiers, headphone outputs, LO-CUT filters, phantom power, and LED VU meters — ensuring professional sound quality with maximum reliability.
Features
- Ultra- compact 6-input 2-bus mixer
- 4 MONO MIC/LINE inputs with 2-band EQ, LO-CUT filter and PHANTOM power
- 2 low-noise, very high-headroom microphone preamplifiers
- 2 STEREO LINE inputs
- HEADPHONES output
- Electronically balanced MAIN MIX outputs with XLR-M and ¼” JACK connectors
- Two 4-LED VU-METERS
- Stage-proof construction and ultra-rugged metal chassis
- Designed and engineered in Italy by PROEL
Specifications
| GENERAL SPECIFICATIONS | |||
| Maximum level | all outputs | +22 dBu | |
| Crosstalk | meas. at 1 KHz | > 82 dBu | |
| HUM & Noise | unweighted | < -93 dBu | |
| THD + Noise | at +4dB, 1kHz | < 0,008 % | |
| MONO INPUT CHANNEL | |||
| Mic Input | sensitivity | from -10 to -50 dB | Balanced XLR-F |
| impedance | 2 Kohm | ||
| Line Input | sensitivity | from +20 to -20 dB | Balanced JACK |
| impedance | 10 Kohm | ||
| Lo cut | 75Hz, 18dB/oct. | ||
| EQ | HIGH (shelving) | ±15 dB @ 12KHz | |
| LOW (shelving) | ±15 dB @ 80Hz | ||
| STEREO INPUT CHANNEL | |||
| Line Input | sensitivity | -10 dB | Balanced JACK |
| impedance | 10 Kohm | ||
| MASTER SECTION | |||
| MAIN MIX | nom. out level | +4 dBu | Balanced JACK and XLR-M |
| HEADPHONES | min. impedance | 32 ohm | |
| max. out level | (2x) 193 mW | Stereo JACK | |
