Complete Speaker Solution

LTX is a complete series of active and passive speakers designed for a wide range of commercial and residential installations. Each system is built into rugged plywood enclosures, available in black or white, ensuring durability along with a refined, unobtrusive aesthetic that seamlessly blends into any environment.

Flexible Mounting Options

Every LTX cabinet is designed with multiple suspension points and comes with dedicated accessories for versatile installation. The KPTLTP bracket (included with LTX6 and LTX8) enables wall and ceiling mounting with variable tilt and swivel orientation for uniform audience coverage. Larger models like LTX10 and LTX12 feature C-shape brackets, allowing unobtrusive installation on walls, ceilings, or stage structures. Additionally, LTX8, LTX10, and LTX12 include a standard pole adapter for portable use with floor stands.

Uniform Sound Coverage

For crystal-clear high-frequency reproduction, LTX speakers utilize symmetrical 90×90° dispersion horns, ensuring consistent sound for large audiences in both horizontal and vertical setups. High-excursion woofers, combined with carefully tuned vented cabinets, deliver extended low-frequency response with deep, tight bass, making the system ideal for music and speech applications.

Advanced Active Technology

The active versions of LTX speakers are powered by next-generation amplifiers with Switch Mode Power Supply and Class D output stages. These deliver massive power while remaining compact and lightweight. Each unit integrates a sophisticated pre-amp section with 24 dB/oct. phase-aligned crossover filters, active EQ for fine-tuning, and POWERCON connectors. Independent HF and LF limiters ensure distortion-free sound and complete speaker protection, even at maximum volume.

Features

• 1” compression driver
• 12” woofer
• 90° H x 90° V coverage
• 600 W peak power amplifier
• Frequency response 50 Hz – 20 kHz
• SPL max peak 124 dB

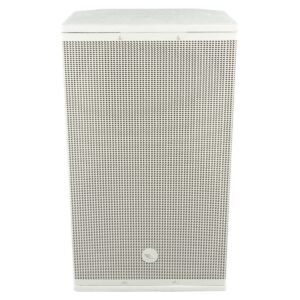

When it comes to delivering powerful, clear sound in a variety of settings—from live performances and DJ sets to corporate presentations and public speaking events—the quality of your speaker system is paramount. The Proel LTX12 AW Active Speaker is designed to meet the demands of professionals who need reliable, high-performance audio equipment that combines portability, durability, and exceptional sound clarity. If you want a speaker that can handle everything from deep bass to crisp highs without distortion, this 600-watt active speaker offers a compelling solution.

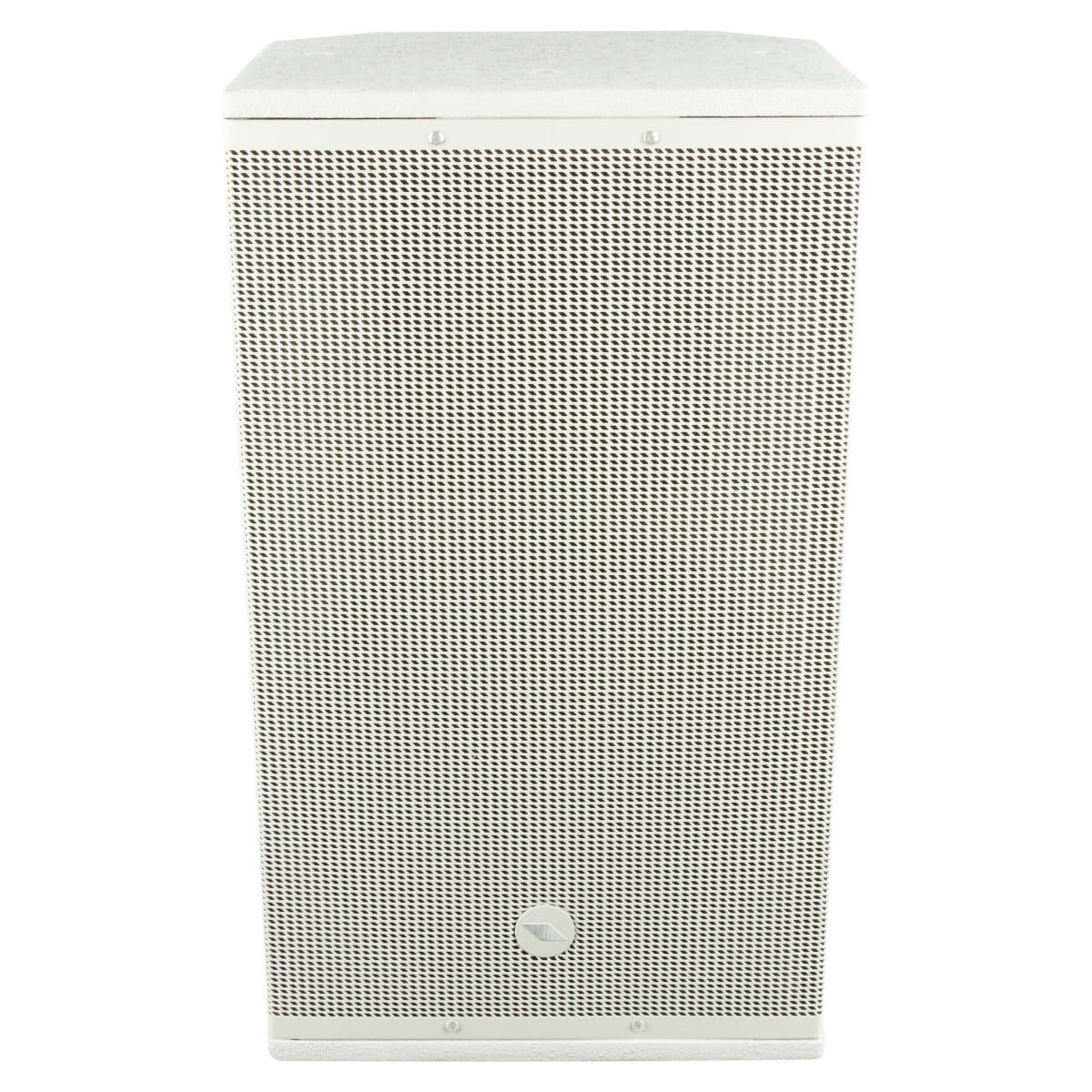

The Proel LTX12 AW is a two-way vented enclosure system that incorporates a 12-inch woofer with a 2.5-inch voice coil and a 1-inch compression driver with a 1-inch voice coil for high frequencies. This combination ensures a wide frequency response from 50 Hz to 20 kHz, meaning you get rich, full-bodied lows and sharp, detailed highs. For the customer, this translates into an immersive listening experience whether you are playing music or delivering spoken word. The 90-degree horizontal and vertical coverage ensures consistent sound dispersion, so your audience hears clear, balanced audio from almost any angle within the room.

Power is another critical factor, and the LTX12 AW does not disappoint. It delivers a total peak power of 600 watts, with dedicated amplifiers: a 250-watt Class D amplifier driving the low frequencies and a 50-watt Class AB amplifier dedicated to the high frequencies. This split amplification design means that each driver gets the precise power it needs, preventing distortion and maximizing efficiency. The result for you is loud, punchy sound that remains clean even at high volume levels, with a maximum sound pressure level (SPL) of 124 dB—ideal for medium to large venues.

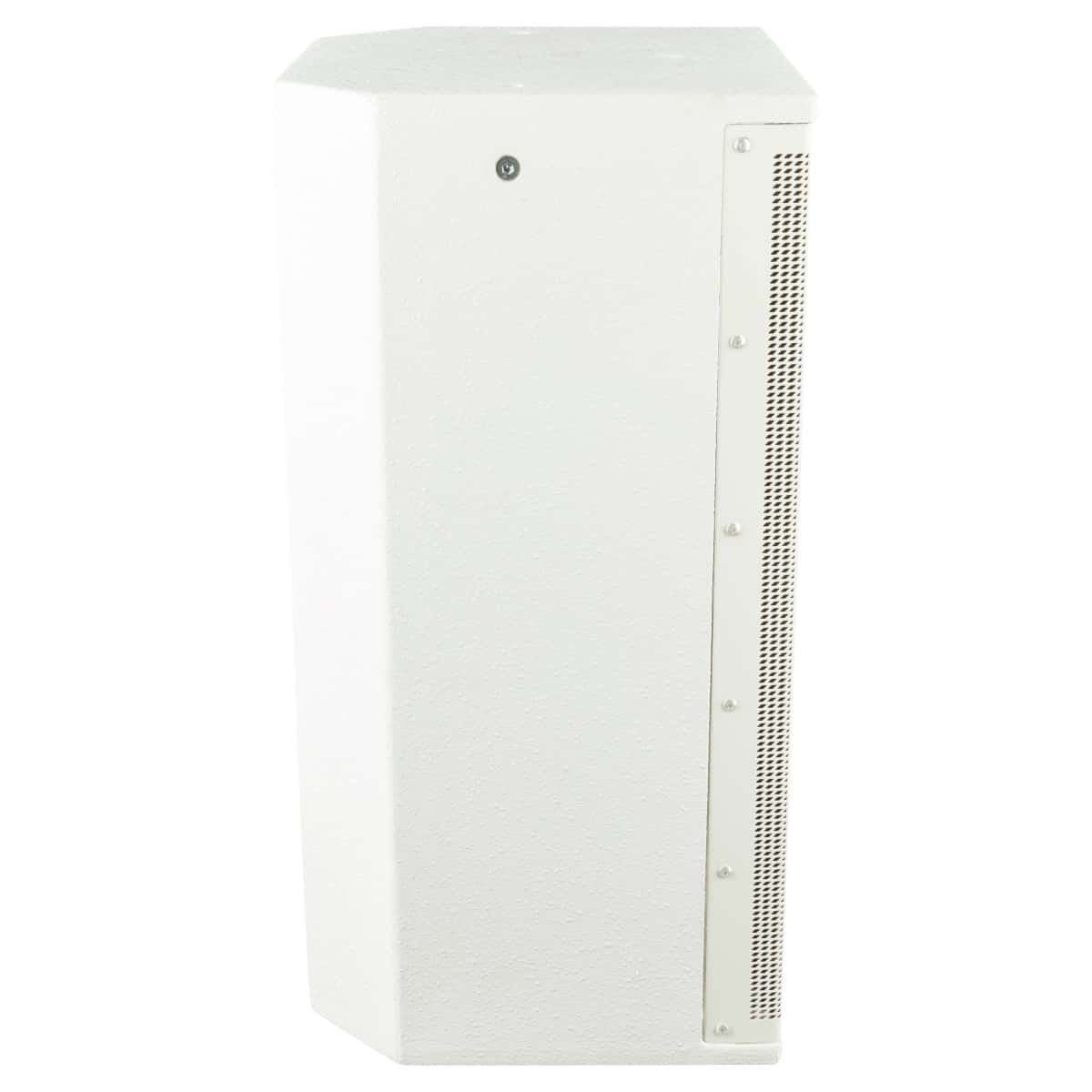

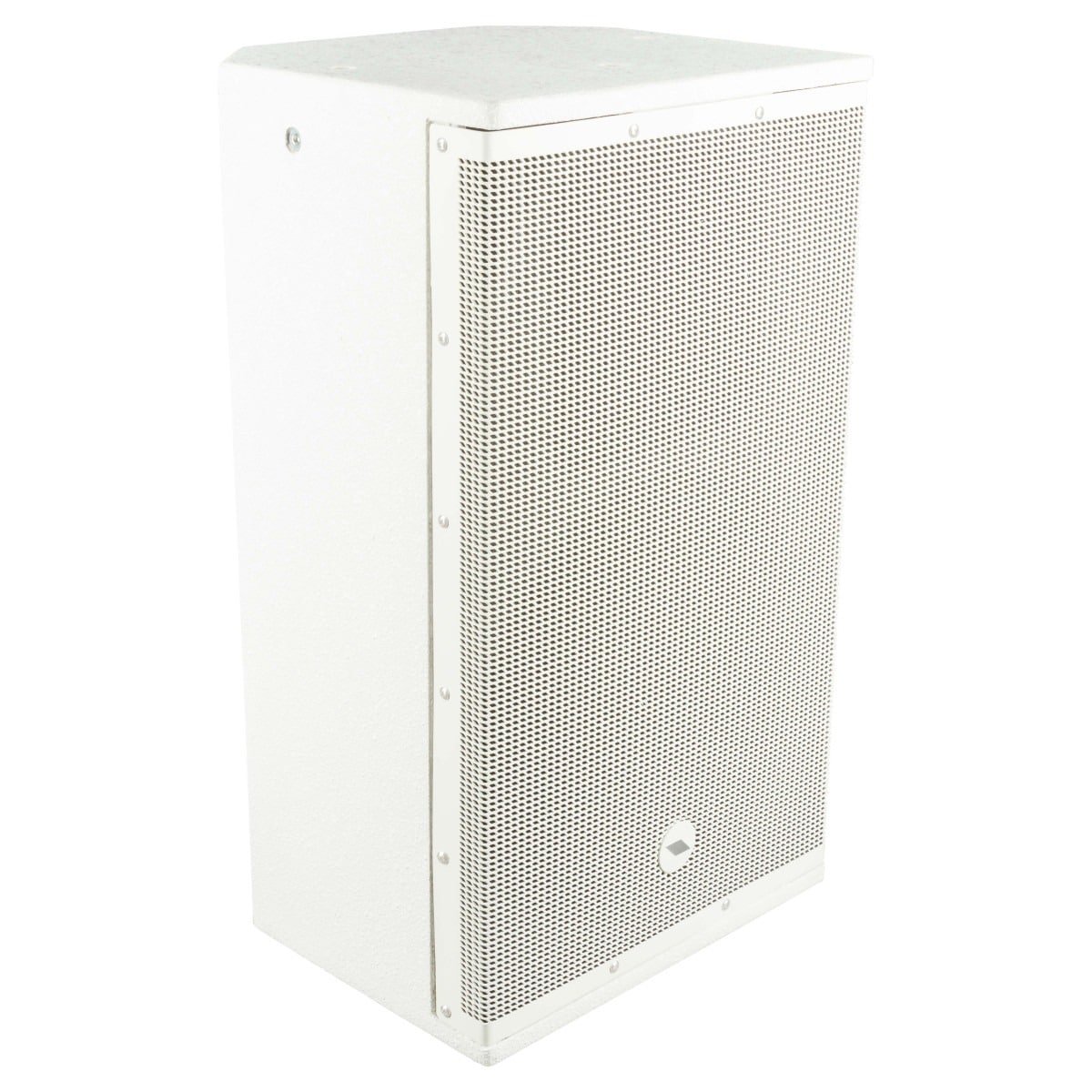

In terms of build and practical use, the Proel LTX12 AW features a robust plywood cabinet finished in white, which is both sturdy and aesthetically versatile for different environments. Weighing only 15 kilograms (33.1 pounds), it strikes a balance between portability and durability, making it easy to transport and set up. The speaker includes one rear handle and mounting options such as a bottom pole mount and four M8 and two M6 flying points, so it can be securely installed or flown for permanent or temporary setups. Optional accessories like tilt and swivel or C-shape brackets provide additional mounting flexibility.

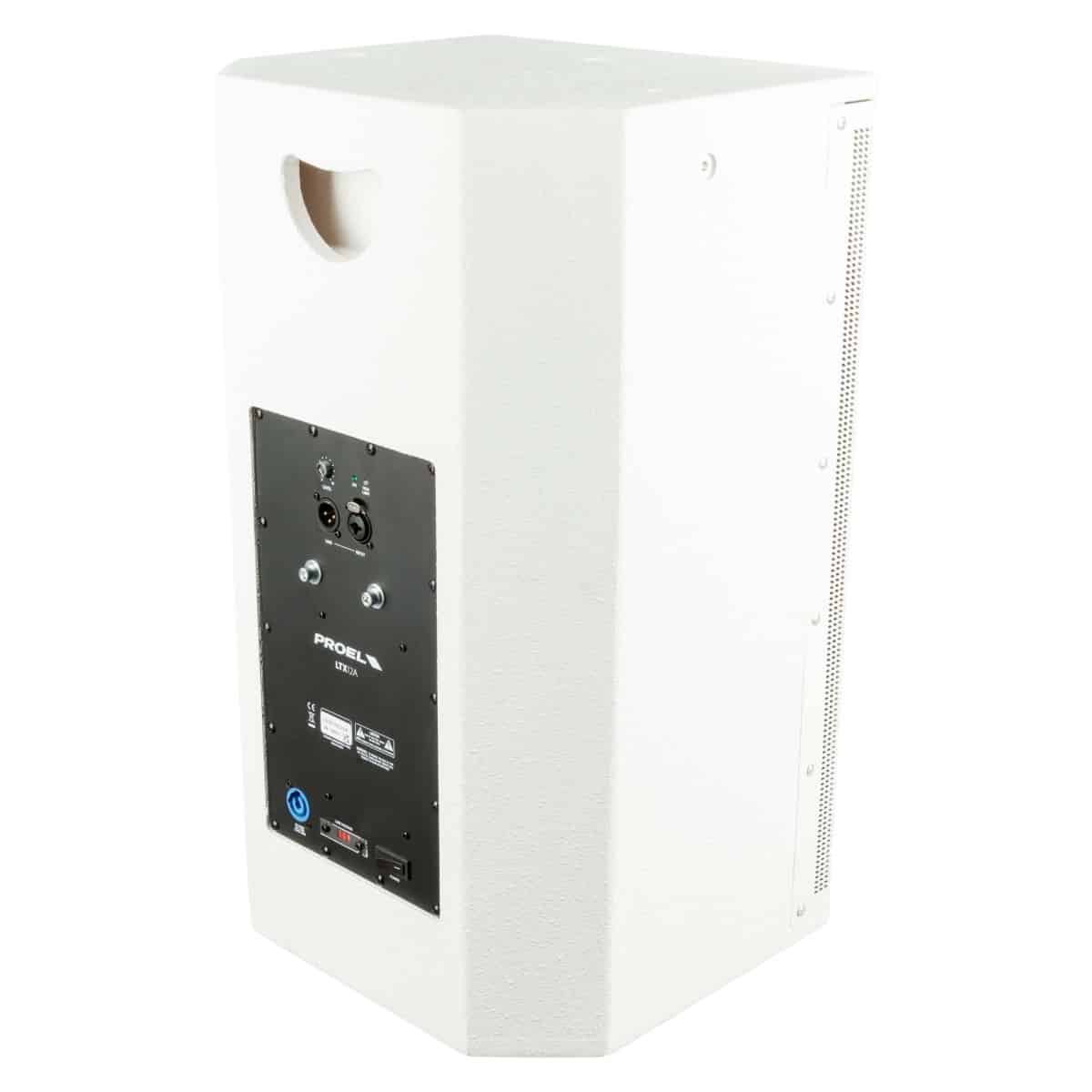

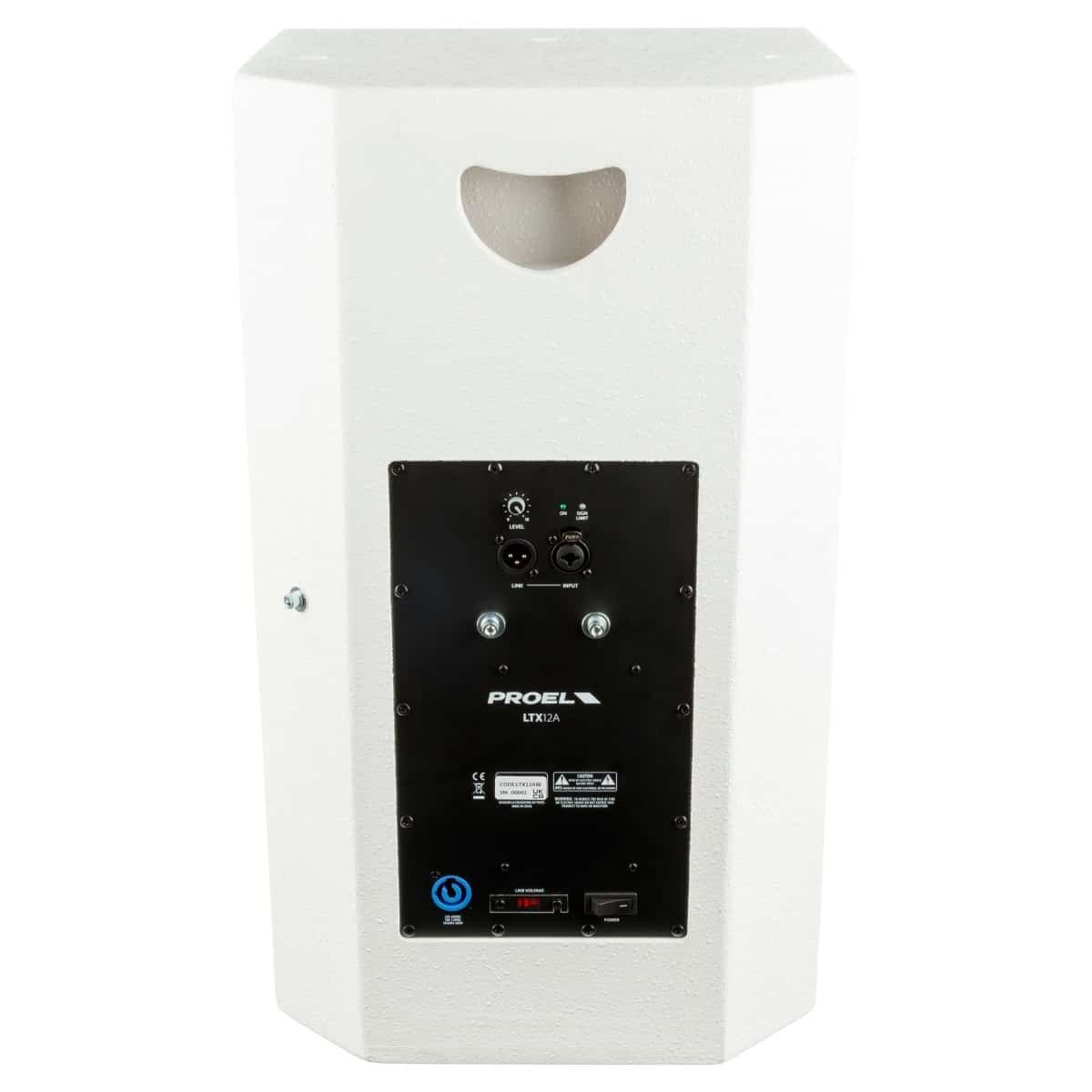

Connectivity is straightforward with COMBO inputs and XLR link outputs, allowing you to daisy-chain multiple speakers or connect to a variety of audio sources without hassle. Analog processing keeps the signal path simple and reliable, while the built-in power supply supports both 230V and 115V with a line voltage selector, making it suitable for use in different regions without needing an external transformer. The user-friendly level control lets you fine-tune your volume directly on the speaker, giving you immediate control in live environments.

This active speaker is perfect for a range of applications, from live music and DJ performances to conferences, houses of worship, and corporate events. Its balanced sound output, high power capacity, and flexible mounting options make it adaptable to various acoustical environments and installation needs. Whether you are a touring musician, an event organizer, or an audio professional seeking a reliable, high-quality speaker, the Proel LTX12 AW delivers consistent performance with minimal setup time.

In summary, the Proel LTX12 AW Active Speaker combines professional-grade sound quality, robust build, and practical features in a compact, white-finished enclosure. Its powerful 600-watt amplification system and precise driver design ensure clear, distortion-free audio across a wide frequency range. With versatile mounting options and simple connectivity, this speaker equips you to meet the demands of any event or venue confidently. Investing in the LTX12 AW means choosing a speaker that will reliably elevate your sound experience, providing excellent value for its price point and helping you make a strong impression every time.
