Complete Speaker Series

LTX is a complete series of active and passive speakers designed specifically for a wide range of commercial and residential installations. The speaker systems are hosted in rugged plywood enclosures available in black or white and offering a refined and unobtrusive aesthetics, capable of fitting into any environment.

Versatile Mounting Options

All the cabinets feature multiple suspension points and dedicated accessories for a wide choice of mounting options. The KPTLTP bracket (included with LTX6 and LTX8) allows to install the speakers on walls and ceiling with variable tilt and swivel speaker orientation, offering the possibility to obtain a more uniform coverage of the audience. The C-shape brackets (for LTX10 and LTX12 models) allow to mount the speaker on walls, ceiling and stage structures for unobtrusive installation. LTX8, LTX10 and LTX12 are fitted with a standard pole adapter that allows to use the speaker also as a portable audio system with a standard floor speaker stand.

Advanced Active Amplification

The active versions are powered by amplifiers featuring the latest technologies for amplification, such as Switch Mode Power Supply and CLASS D output stages, and providing a massive amount of power with reduced size and weight. They include a sophisticated pre-amp section with up to 24 dB/oct. phase aligned crossover filters and active EQ filters for the system’s fine tuning, together with POWERCON mains connectors. The HF and LF independent LIMITER circuits ensure an undistorted sound even at the loudest level and a total loudspeaker protection.

Features

• 1” compression driver
• 8” woofer
• 90° H x 90° V coverage
• 320 W peak power amplifier
• Frequency response 70 Hz – 20 kHz
• SPL max peak 121 dB

When it comes to delivering clear, powerful sound in a variety of settings, the Proel LTX8 AW Active Speaker stands out as an exceptional choice. Whether you are a professional DJ, a small venue operator, or an event organizer, this speaker offers a reliable solution to your audio needs with its impressive power output, precise audio reproduction, and sleek design. Its compact size combined with robust construction ensures that you can easily transport and set up the system while enjoying high-quality sound that meets demanding applications.

One of the most compelling reasons to choose the Proel LTX8 AW is its 320-watt peak power capability, which means you get loud, clean audio without distortion even at high volumes. This is particularly important for live performances or public speaking events where clarity and volume are crucial. The speaker’s 2-way vented enclosure design features an 8-inch woofer with a 1.5-inch voice coil paired with a 1-inch compression driver, delivering a balanced sound profile across low and high frequencies. The result is a full, rich sound that maintains clarity whether you are playing music, broadcasting speech, or mixing audio.

With a frequency response range of 70 Hz to 20 kHz, the LTX8 AW covers the essential audio spectrum for most applications, ensuring that both bass and treble are reproduced accurately. The maximum sound pressure level of 121 dB means it can fill medium-sized rooms or outdoor spaces with ease, providing ample volume for audiences without sacrificing audio fidelity. The 90-degree horizontal and vertical coverage angle allows for wide dispersion, making sure that sound reaches listeners evenly across the venue rather than being focused in a narrow beam.

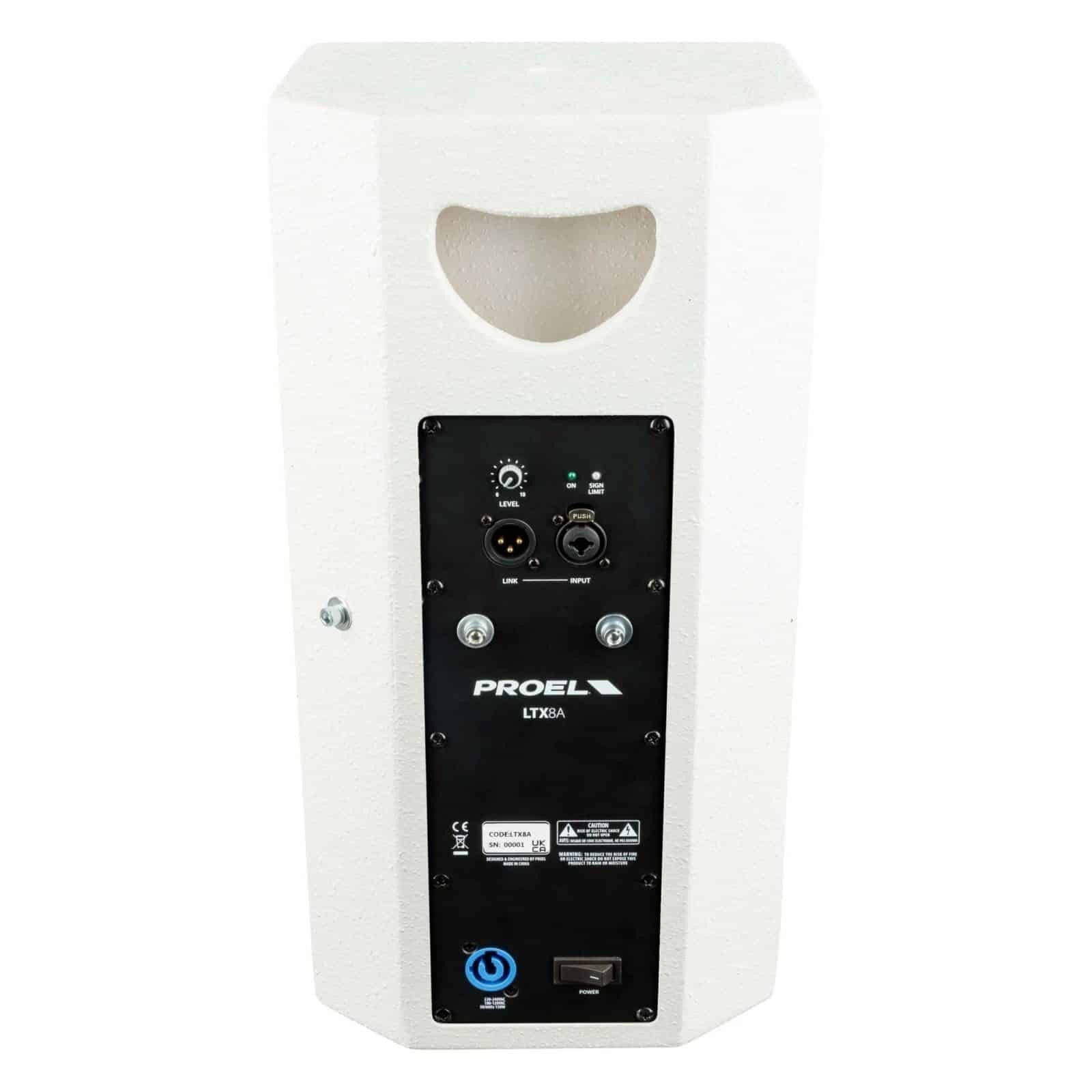

The speaker’s internal amplification is split between two Class D amplifiers—one delivering 80 watts continuous power to the high-frequency driver and another 80 watts to the low-frequency woofer. This separation helps optimize performance and efficiency, reducing distortion and heat buildup while maintaining consistent power delivery. The built-in analog processing ensures smooth, natural sound without the complexity of digital signal processing, making it easier to integrate into various setups. Connectivity options include a COMBO input and an XLR link output, allowing you to daisy-chain multiple speakers or connect to professional audio equipment seamlessly.

Designed with practicality in mind, the Proel LTX8 AW features a sturdy plywood cabinet finished in a clean white color that blends well with most event environments. Its compact dimensions (227 mm wide, 442 mm high, and 220 mm deep) and lightweight build (7.0 kg) make it highly portable without compromising durability. The speaker includes a rear handle for easy carrying, as well as multiple mounting options including bottom mounting points and three M8 and two M6 threaded points for secure rigging. It also comes with a tilt and swivel bracket, allowing flexible positioning when mounted, and an optional C-shape bracket is available for more specialized installations.

This speaker excels in a variety of use cases. It is ideal for small to medium venues such as conference rooms, houses of worship, cafes, or rehearsal studios where clear, reliable sound is needed without excessive bulk. DJs and mobile performers will appreciate the ease of setup and the ability to produce loud, professional-grade sound from a compact unit. The white finish also makes it a preferred choice for installations where aesthetics matter, such as weddings or corporate events.

In summary, the Proel LTX8 AW Active Speaker offers a perfect balance of power, clarity, and portability in a well-built package. Its 320-watt peak output, high-quality components, and flexible mounting options make it a versatile solution for professionals seeking a dependable speaker that delivers consistent, high-fidelity sound across a wide range of applications. Priced competitively and backed by a trusted brand, this speaker provides excellent value and performance, giving you the confidence to create outstanding audio experiences wherever you go.
