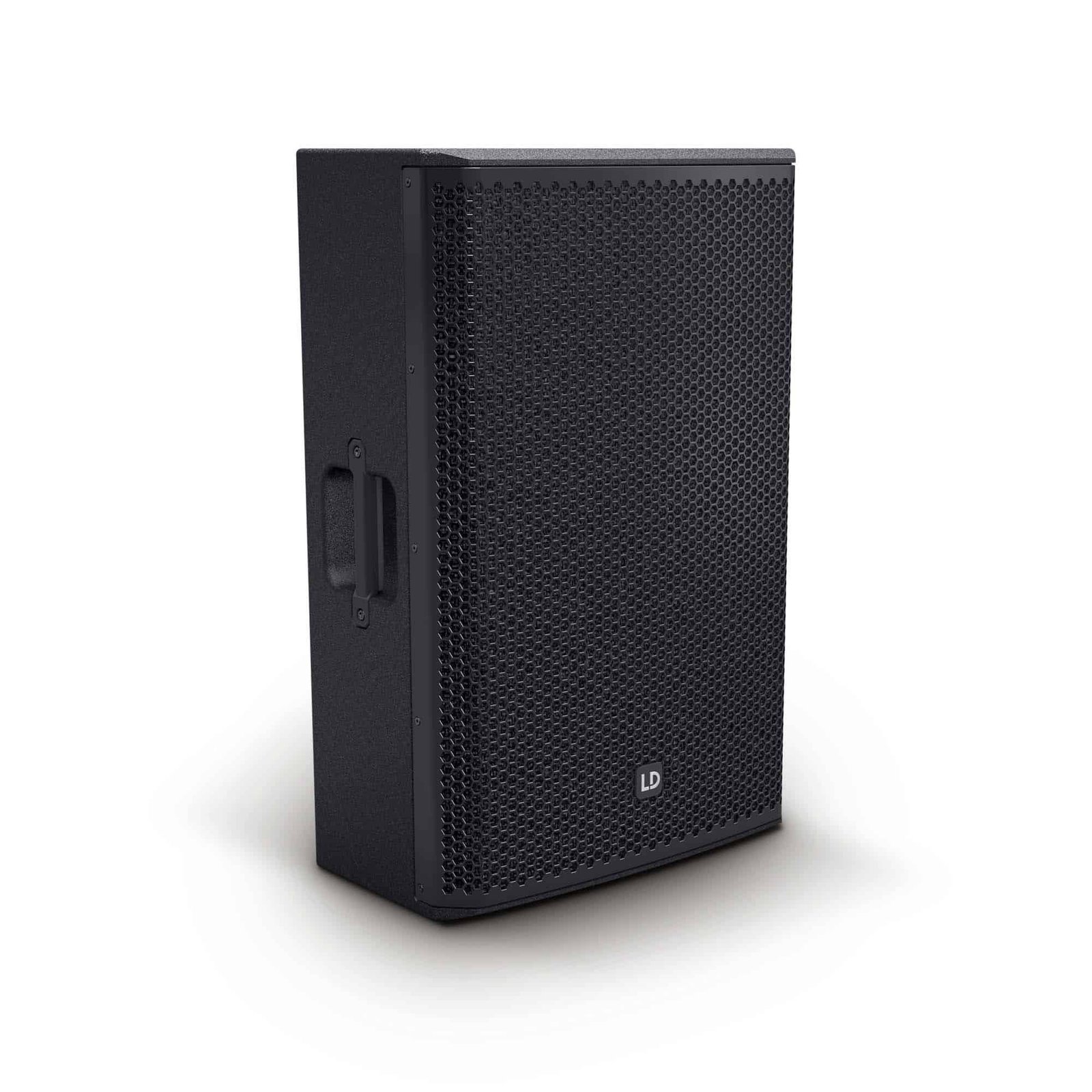

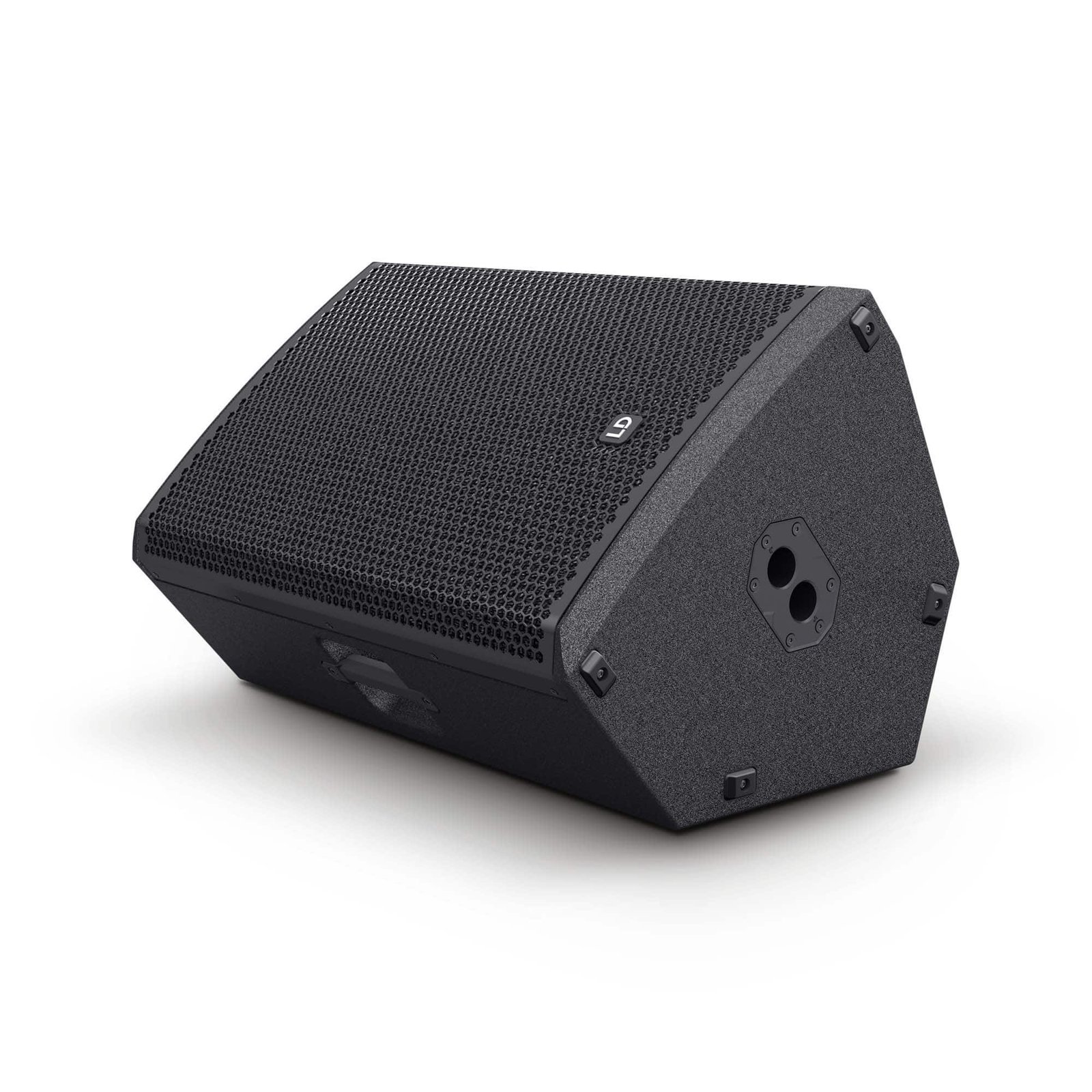

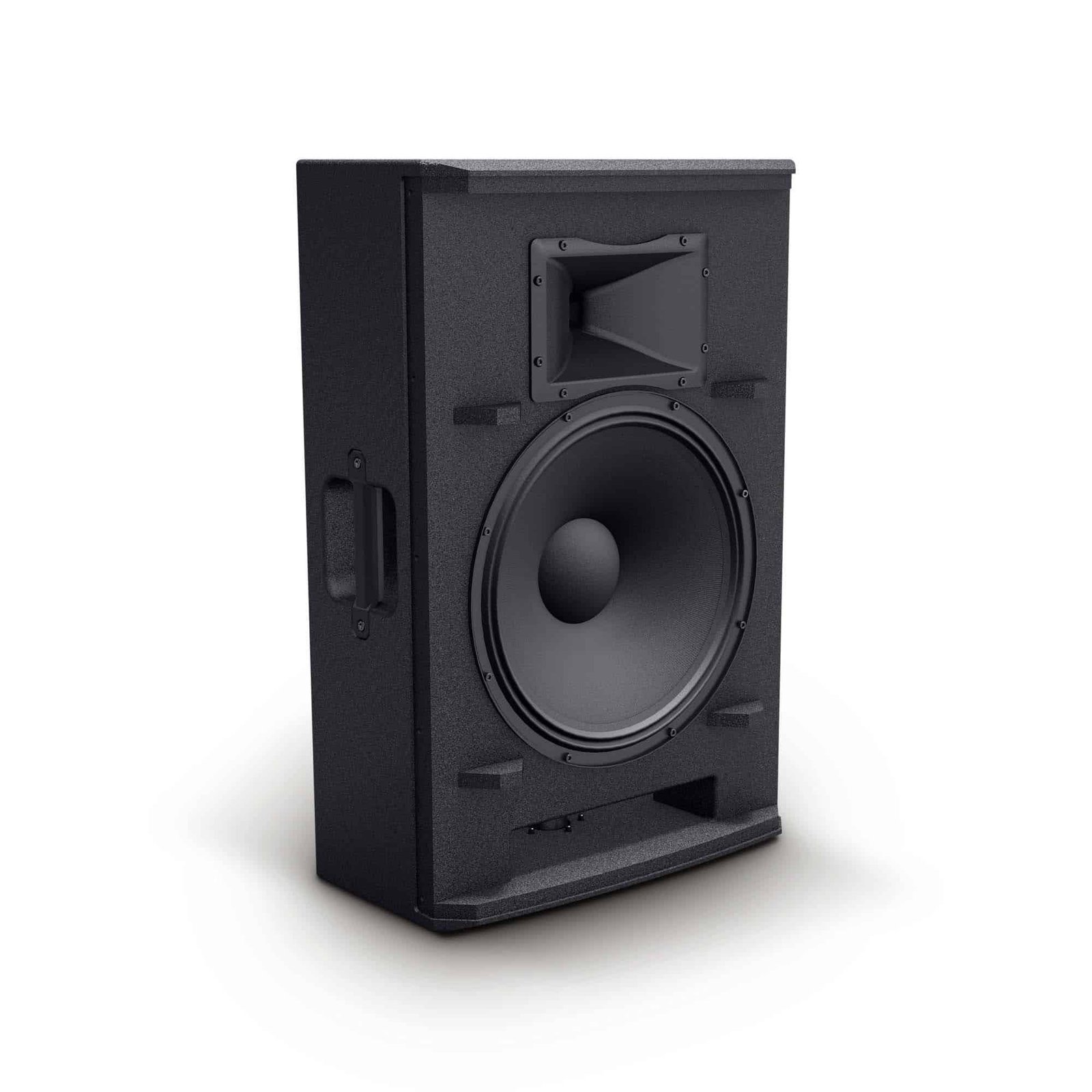

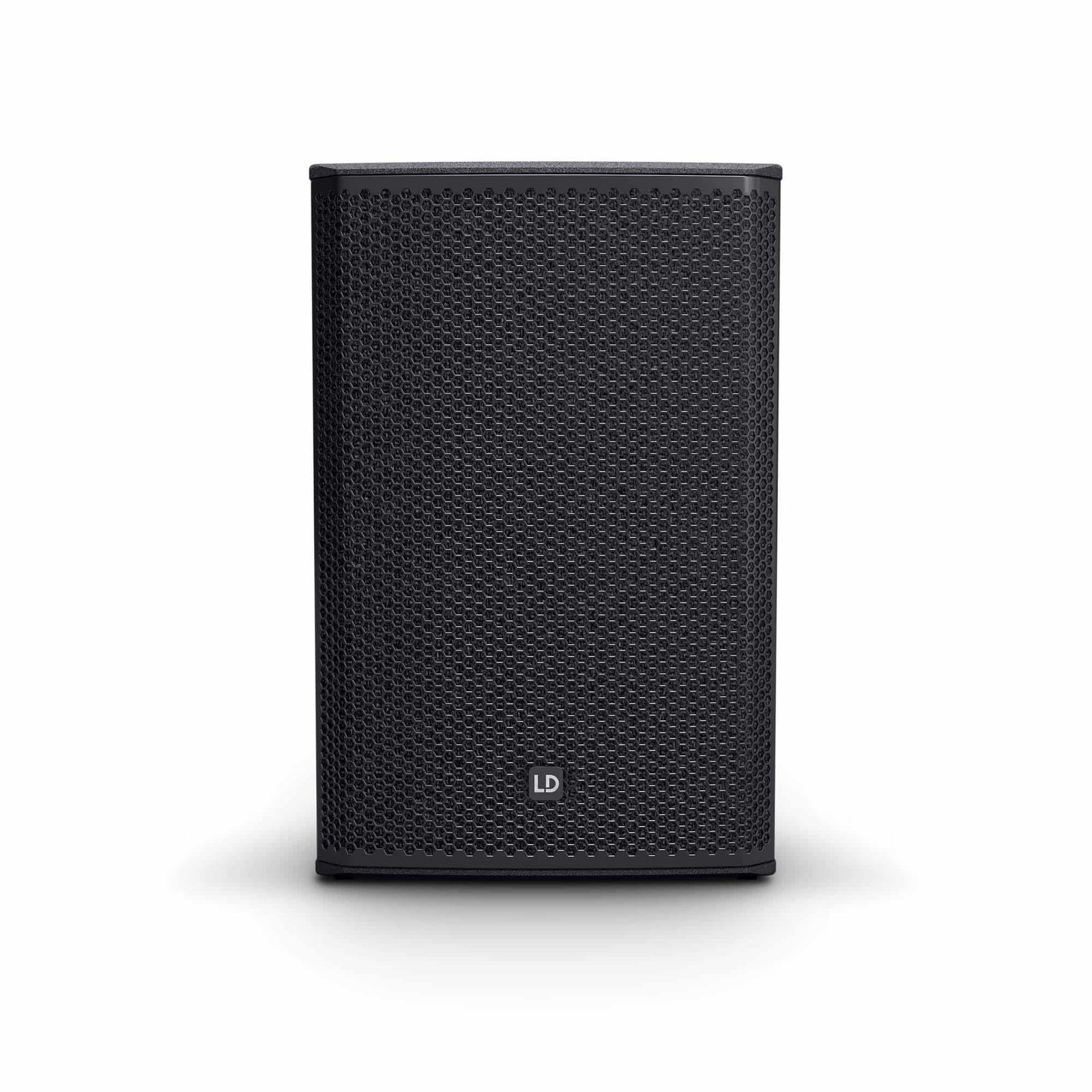

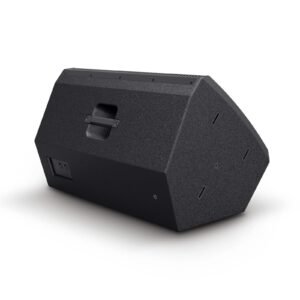

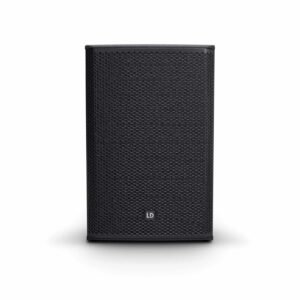

This highly professional 2-way loudspeaker is designed for absolute, long-term reliability. With its multifunctional bass reflex cabinet as a full-range speaker, satellite and ground monitor, it is suited to mobile and fixed PA systems. The STINGER® 15 G3 provides 500 watts of continuous power; the maximum sound pressure level is 127 dB. Its specially developed 15″ woofer and the BMS HF driver achieve a powerful bass reproduction and fresh natural highs. The wave guide of the tweeter has been developed using the Boundary Element Method (BEM), a numerical simulation of the sound radiation and dispersion. It reduces reflections from the floor and ceiling and prevents sidelobe levels and thus achieves a controlled and homogeneous dispersion.
| Product Type: | PA loudspeaker |
|---|---|
| Type: | Passive |
| Low/mid Woofer dimensions | 15 " |
| Woofer dimensions (mm) | 381 mm |
| Woofer magnet | Ferrite |
| Woofer brand | Custom-made |
| Woofer voice coil (inch) | 3 " |
| Woofer voice coil (mm) | 76.2 mm |
| Horn | CD Horn |
| HF driver dimensions | 1 " |
| HF driver dimention (mm) | 25.4 mm |
| HF driver magnet | Ferrite |
| HF driver brand | BMS |
| HF driver voice coil | 1 " |
| HF driver voice coil (mm) | 25.4 mm |
| Dispersion (H x V) | 90 x 50 ° |
| Load rating (RMS) | 500 W |
| Peak power | 1000 W |
| Frequency response | 50 – 20000 |
| SPL (1W/1m) | 100 dB |
| Max. SPL | 127 dB |
| Impedance | 8 Ohm(s) |
| Protection circuits | HF Driver |
| Loudspeaker inputs | 1 |

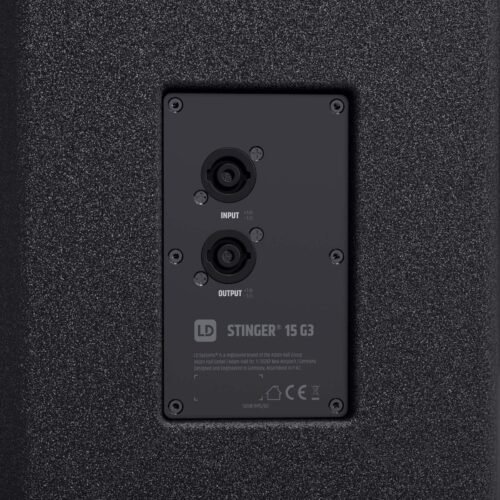

| Speaker input connections | Speakon compatible |
| Loudspeaker outputs | 1 |
| Speaker output connections | Speakon compatible |
| Speakers per amplifier channel (DSP44/45K) | 3 |
| Cabinet material | 15 mm Plywood |
| Cabinet surface | Polyurea |
| Width | 480 mm |
| Height | 737 mm |
| Depth | 455 mm |
| Weight | 25,7 kg |
