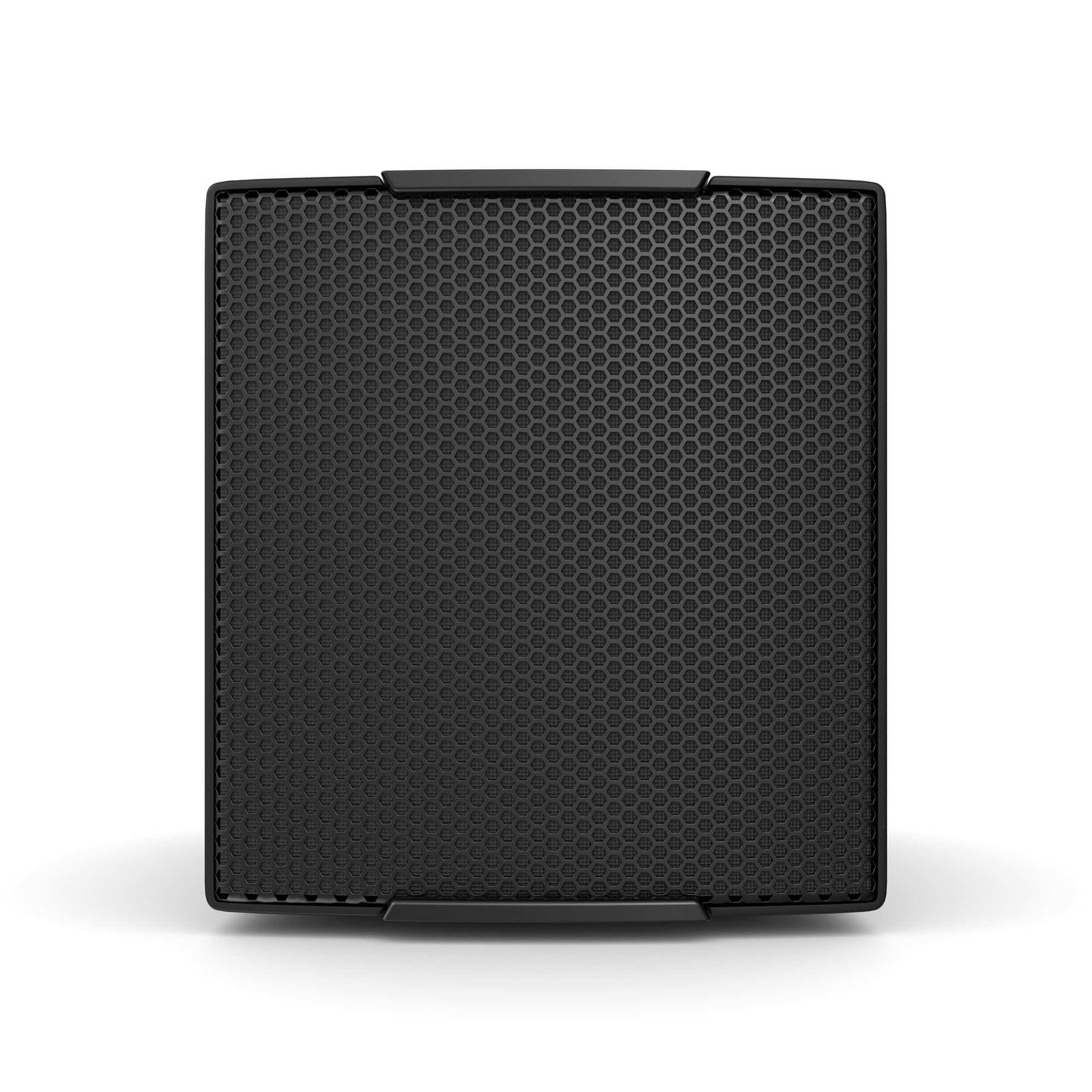

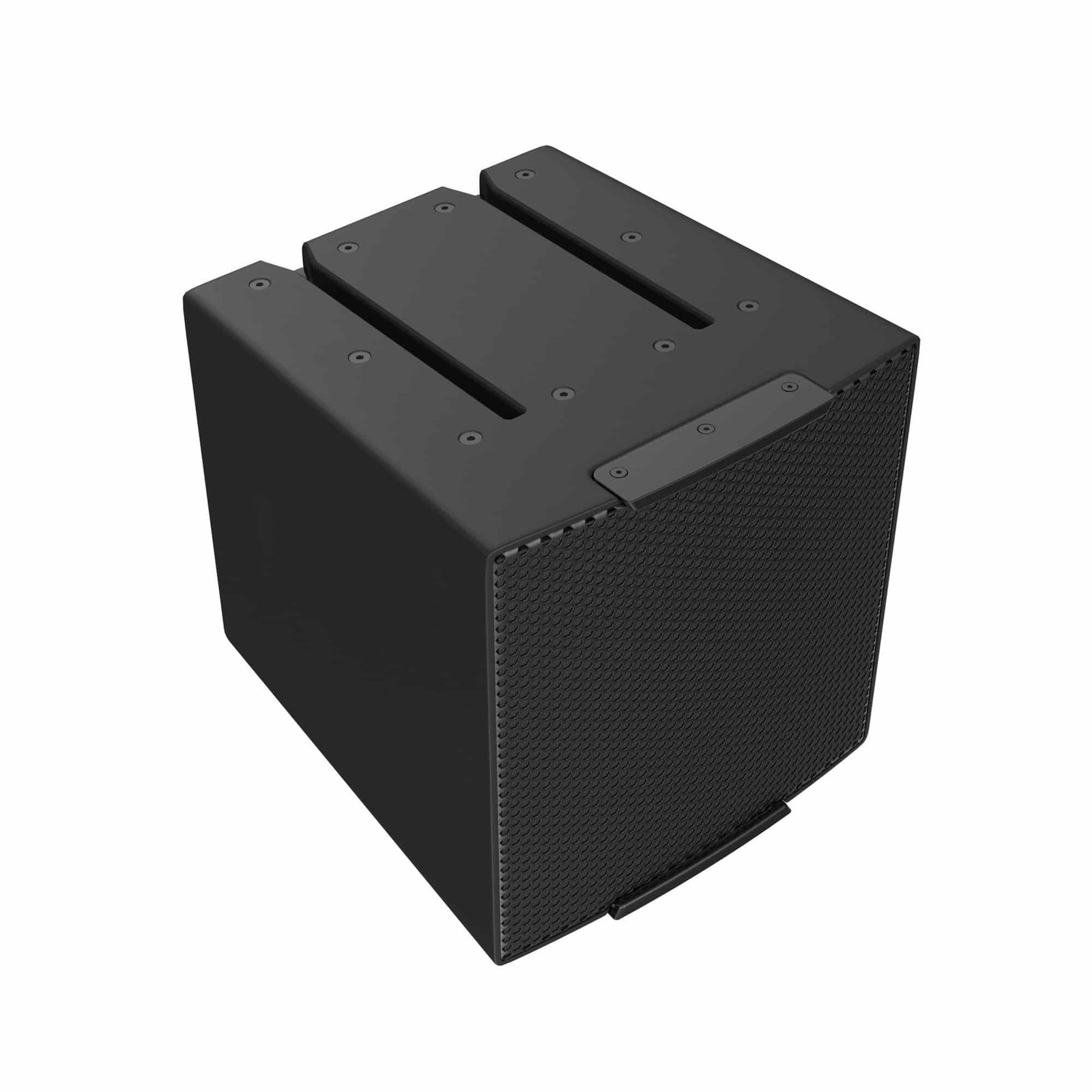

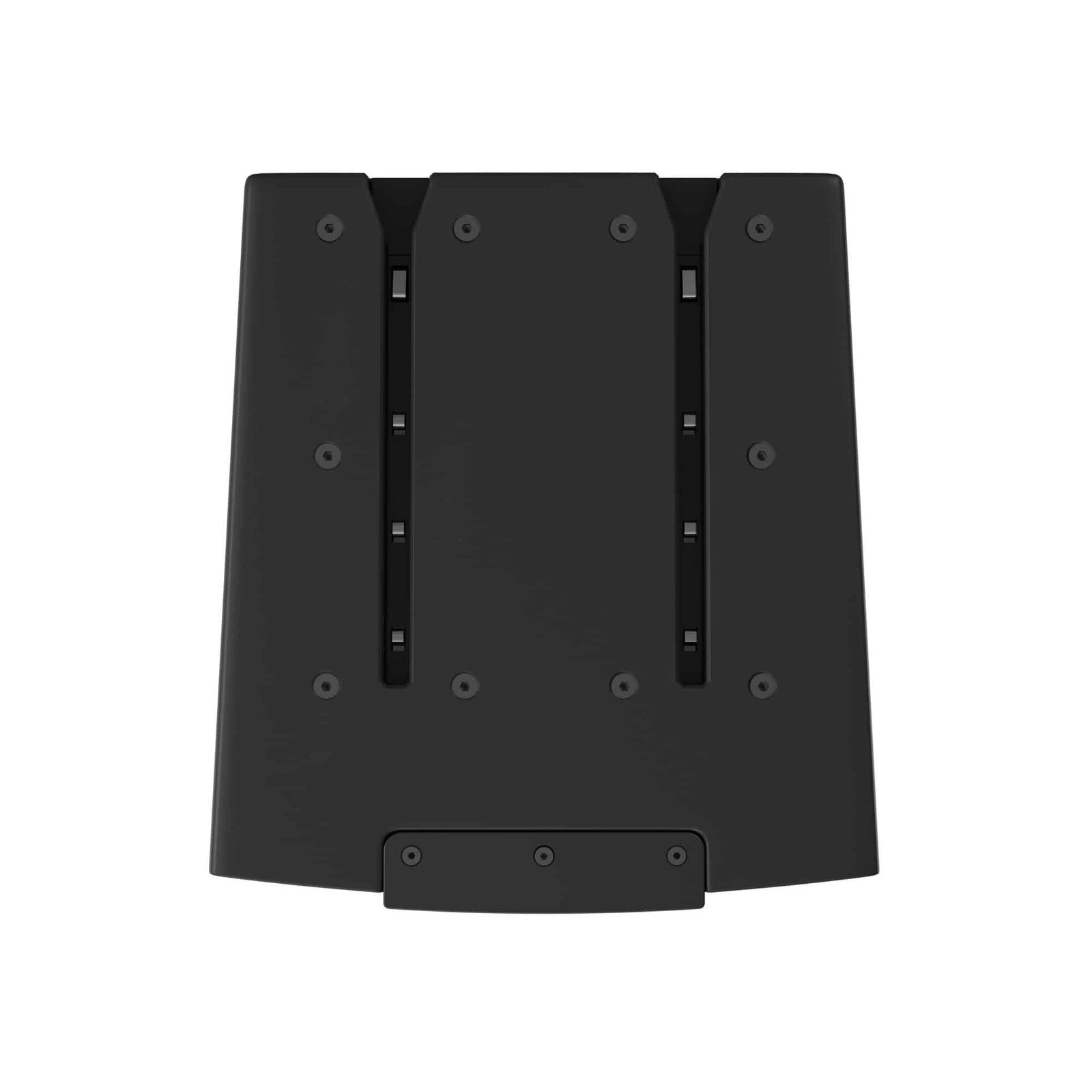

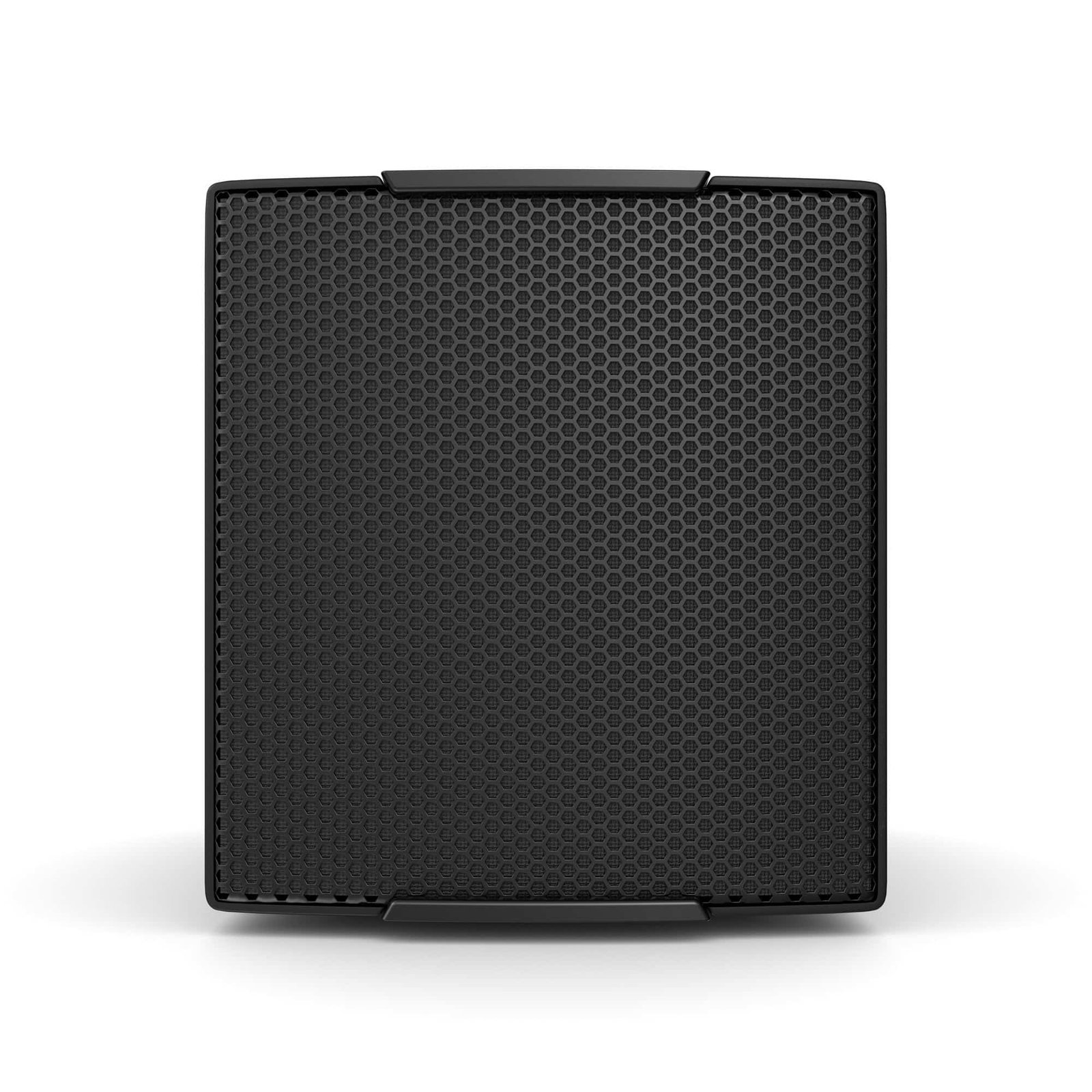

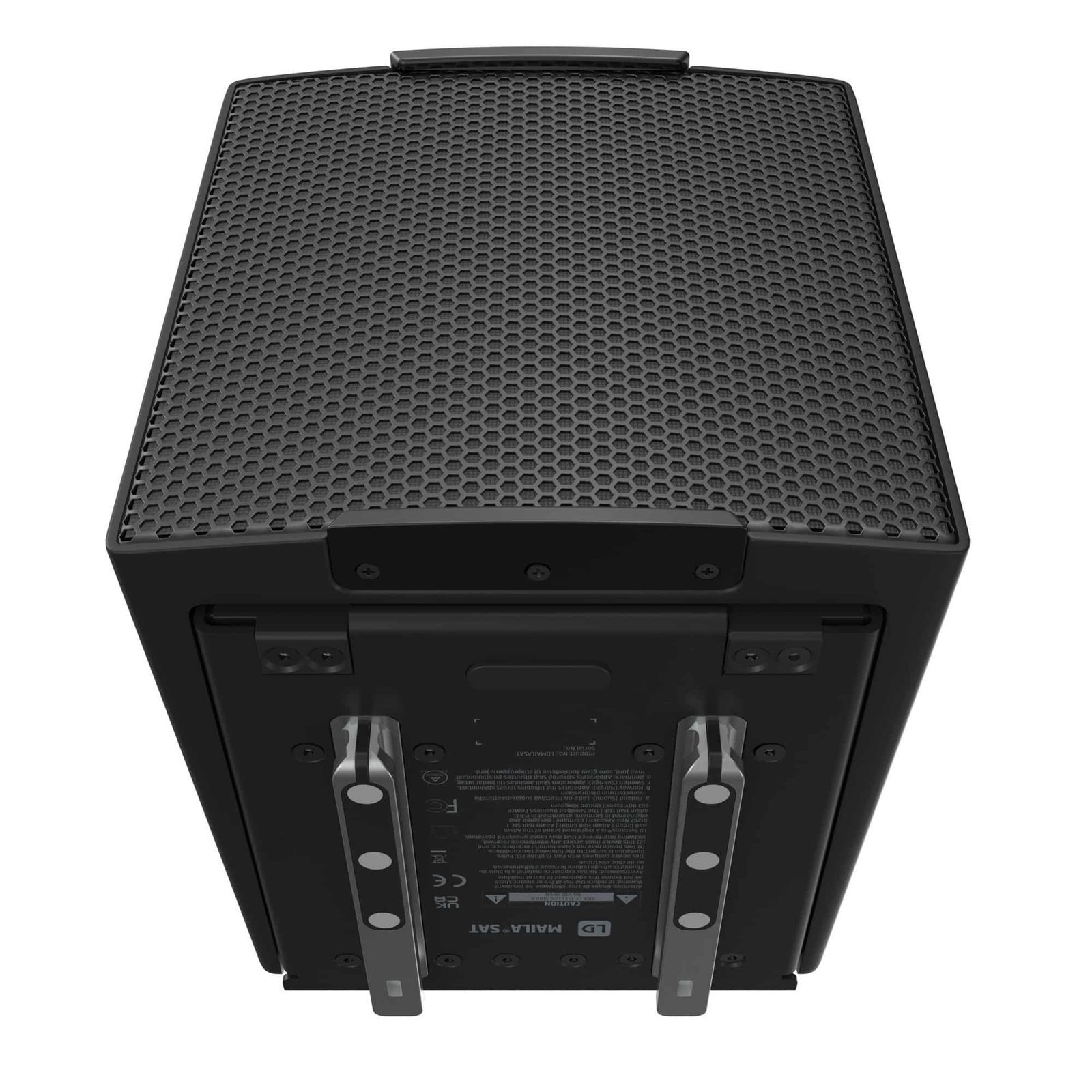

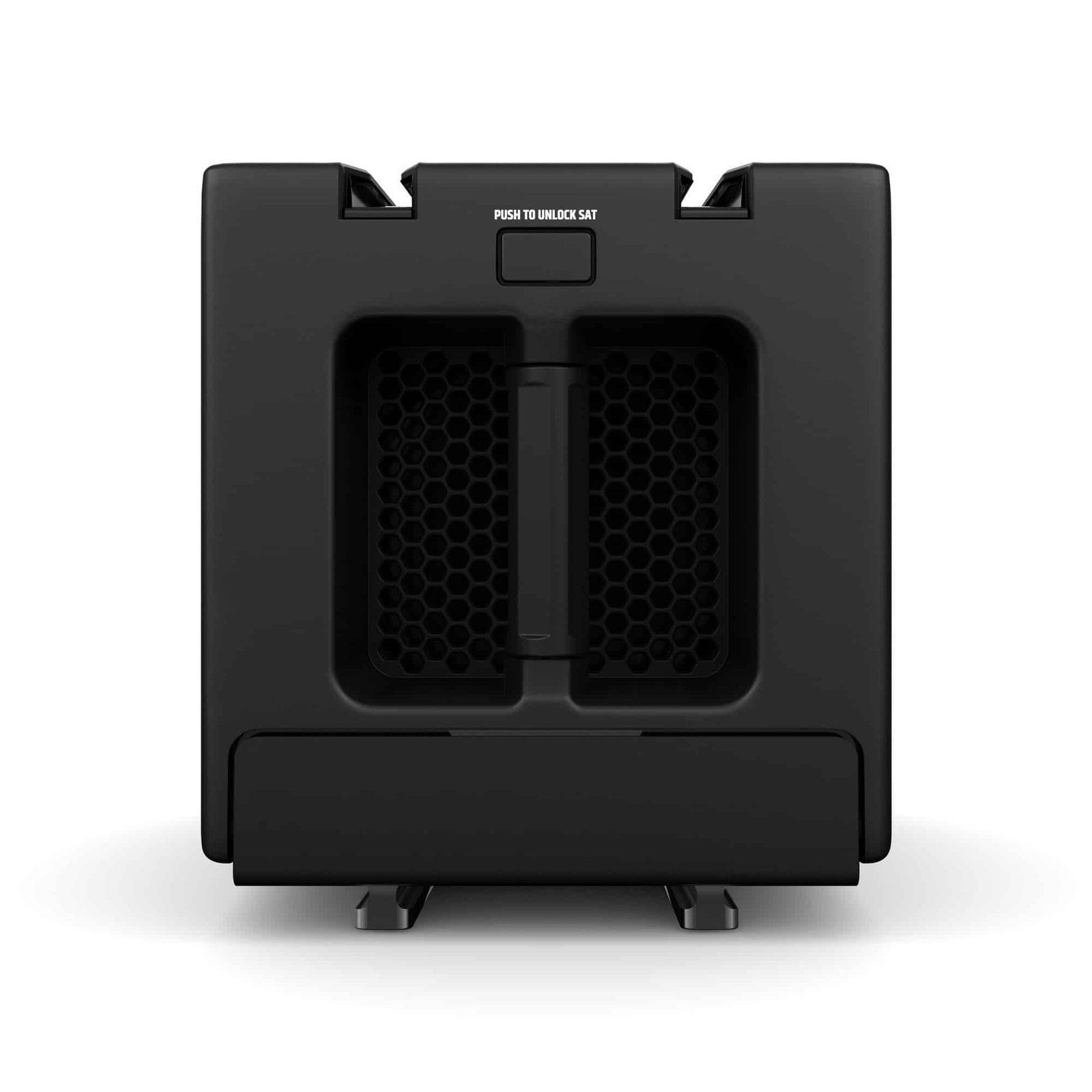

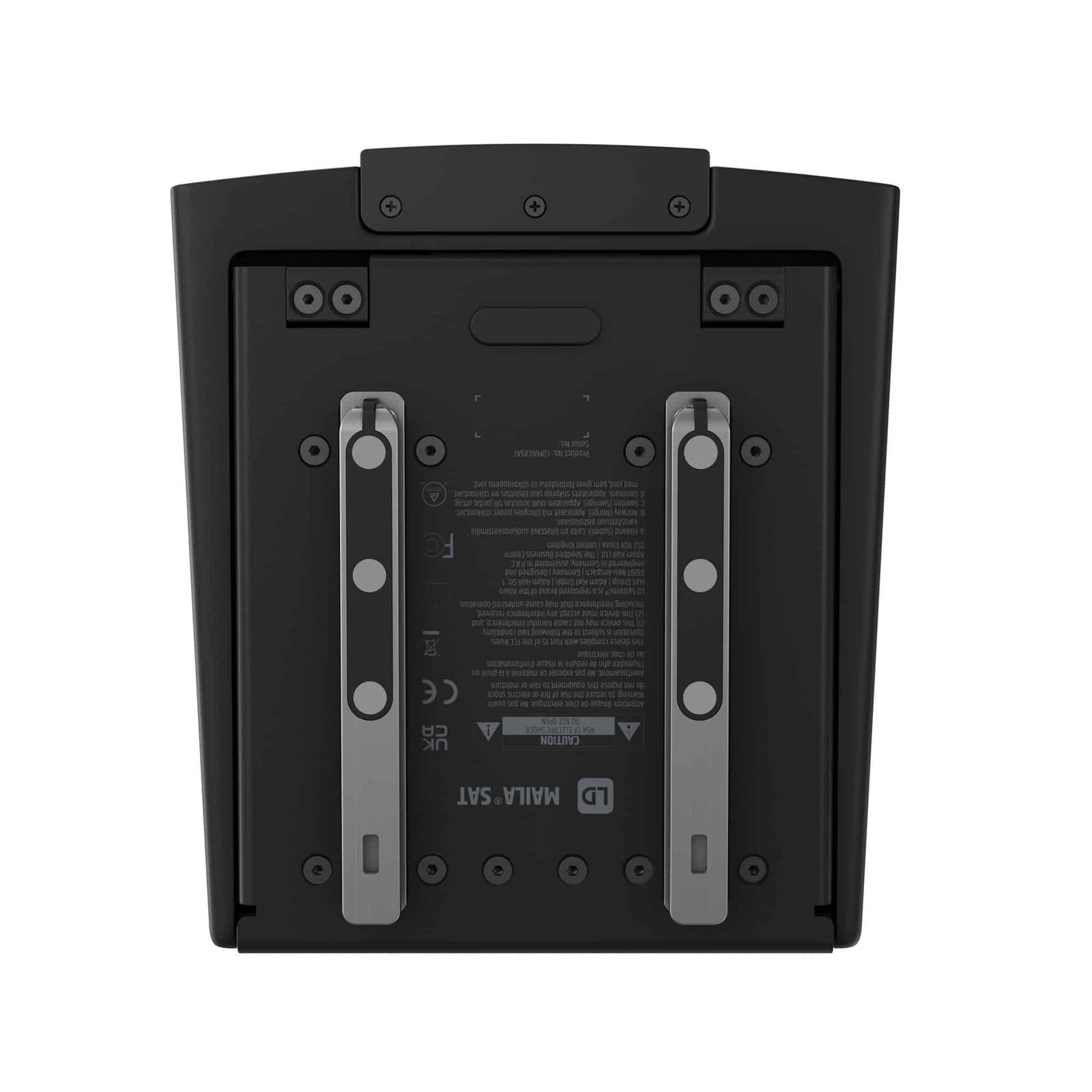

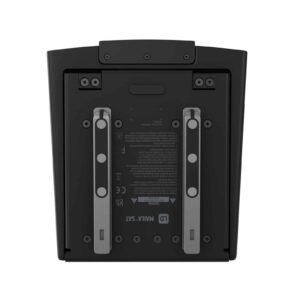

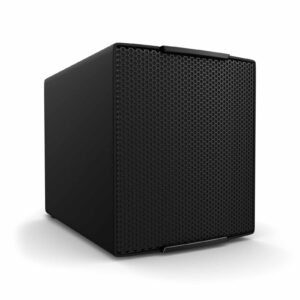

LD System MAILA SAT Passive Array Satellite Speaker

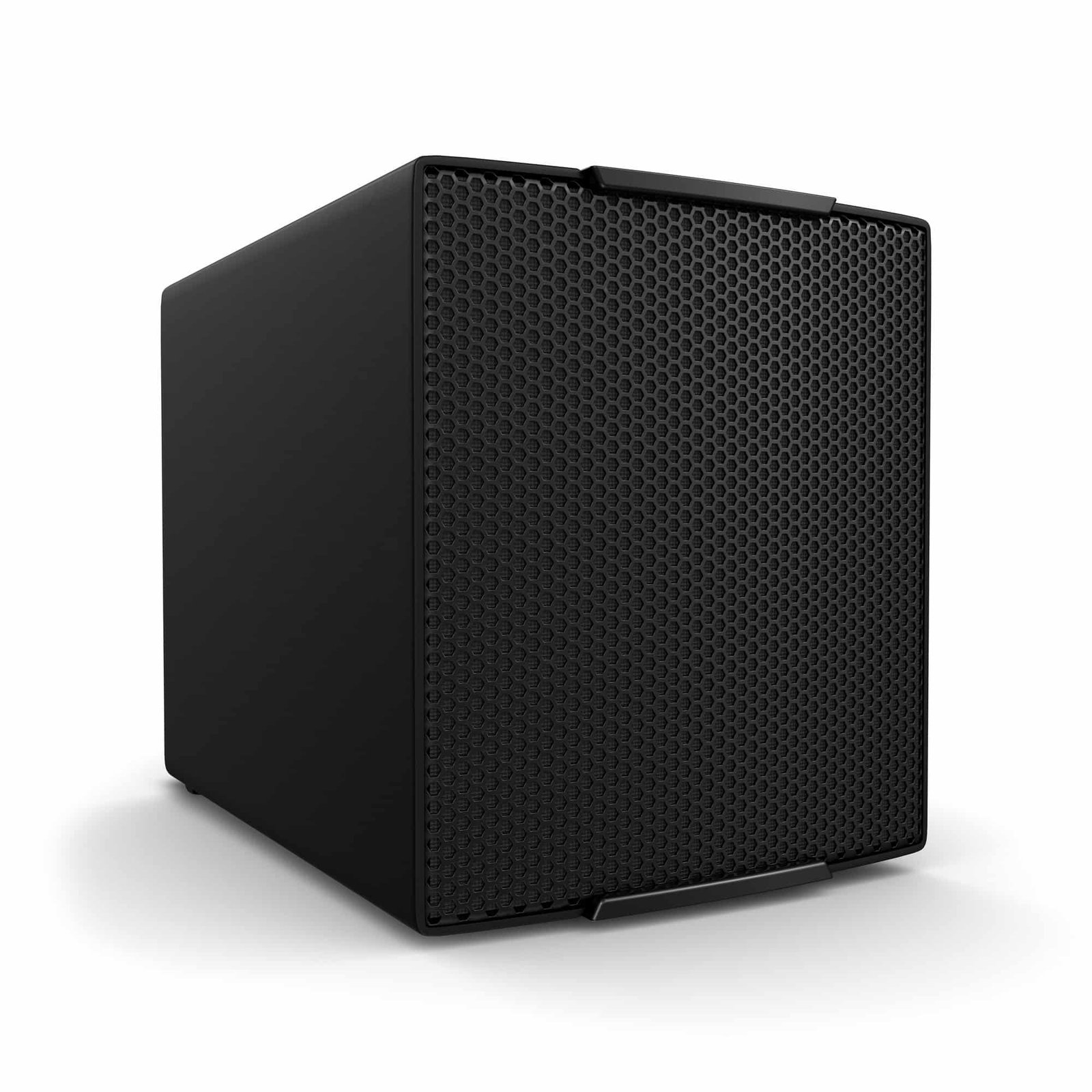

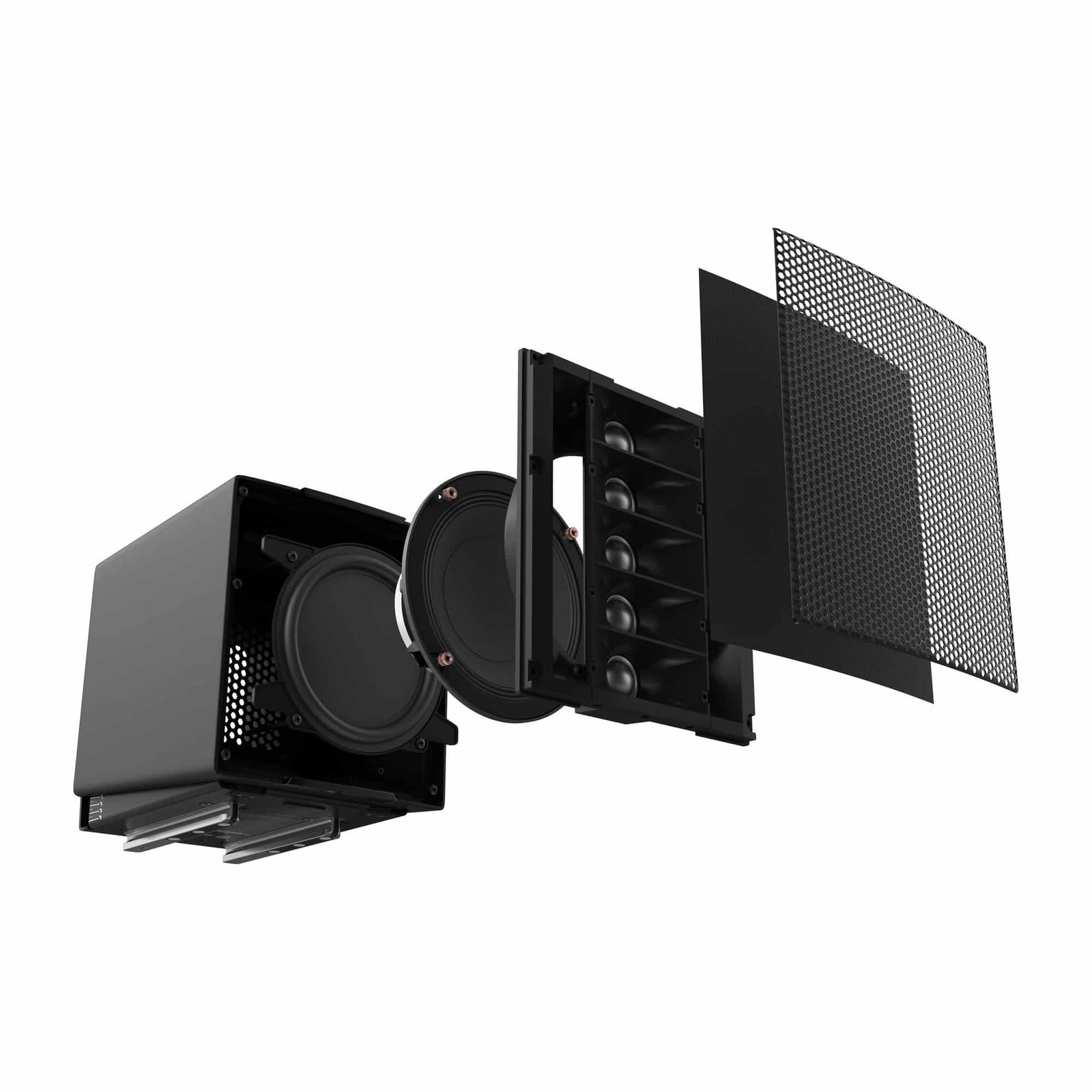

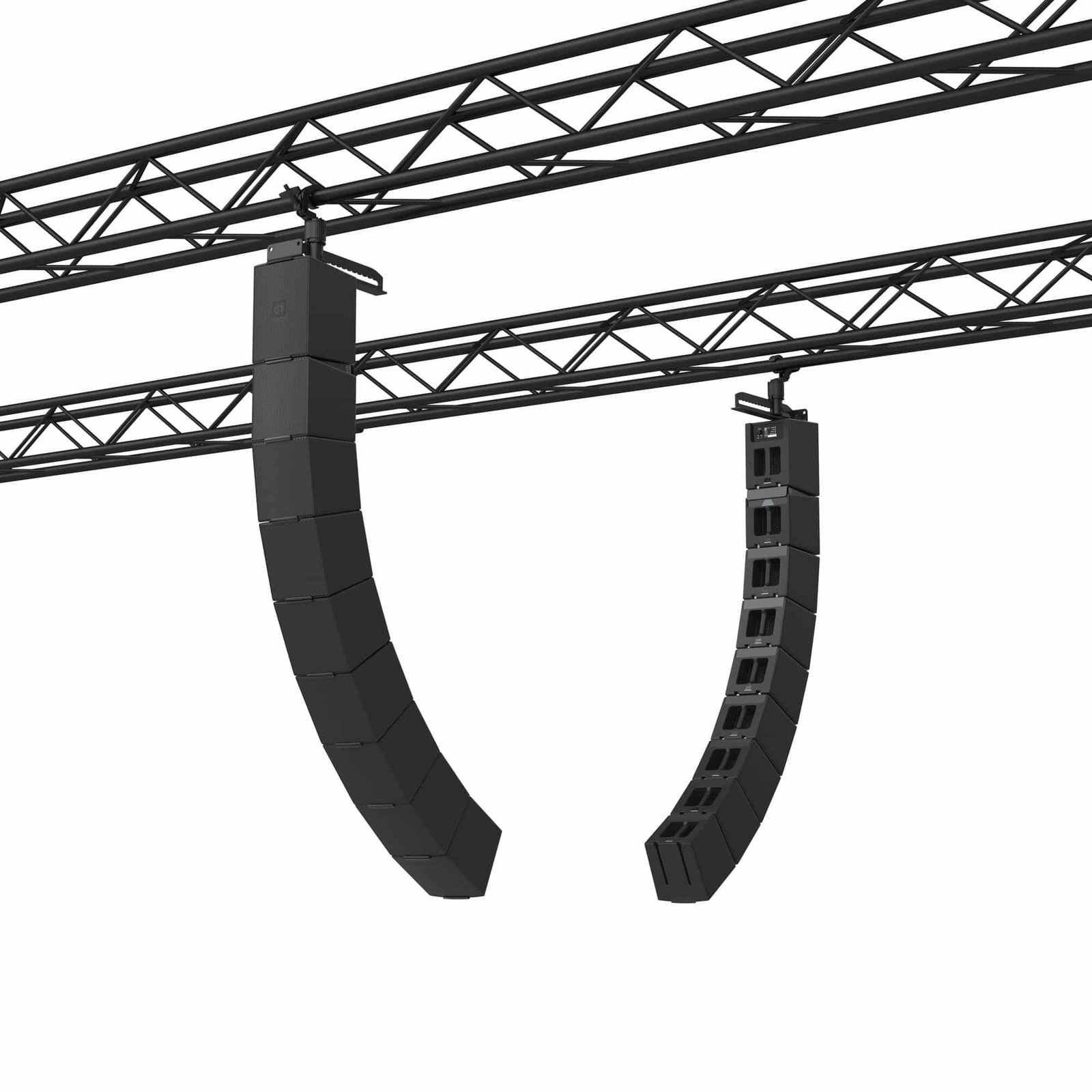

The MAILA SAT satellite speaker is a true line array element and is full of surprises The elegant and robust unibody aluminium enclosure houses five 1” tweeters in front of a 6.5” midrange driver, arranged in a coaxial design based on Advanced WaveAhead® technology and coupled almost interference-free via the SonicGuide® (two combined waveguides). The result is a classic line array radiation pattern with impressive throw and energy density. The horn-loaded 6.5” midrange driver with 1.8” voice coil and neodymium driver features a split-path waveguide as well as a phase plug and enables a particularly high sensitivity in the midrange.

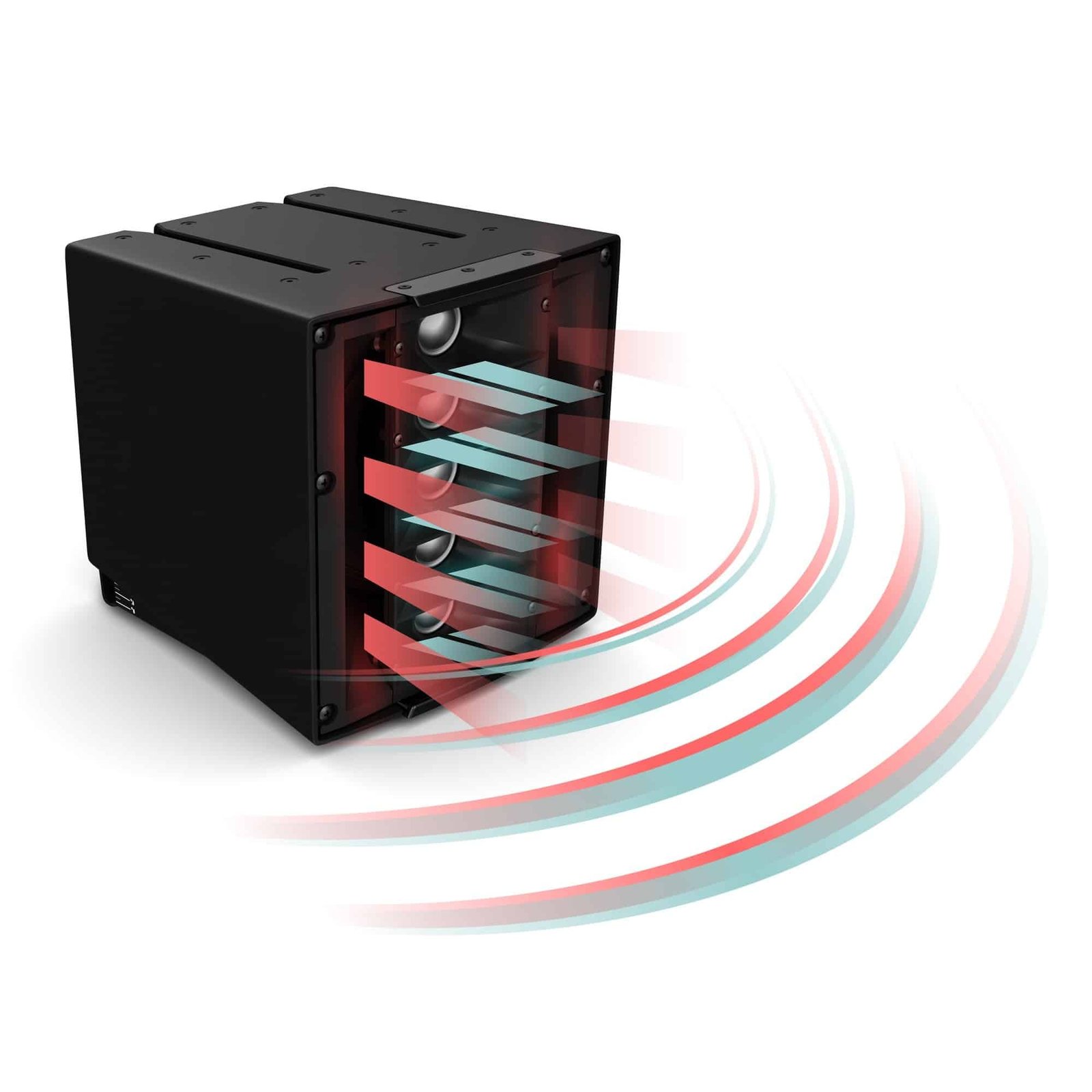

The tweeter section is formed by five vertically arranged 1” dome tweeters that do not require a compression chamber and thus offer an even and natural dispersion pattern (100° horizontal x 8° vertical). At the same time, the midrange driver’s phase plug reduces the heat generated by the tweeter voice coils, contributing to the satellite’s increased efficiency. Furthermore, the passive membrane placed behind the woofers provides extended punch down to 100 Hz despite the compact dimensions of the satellite housing.
