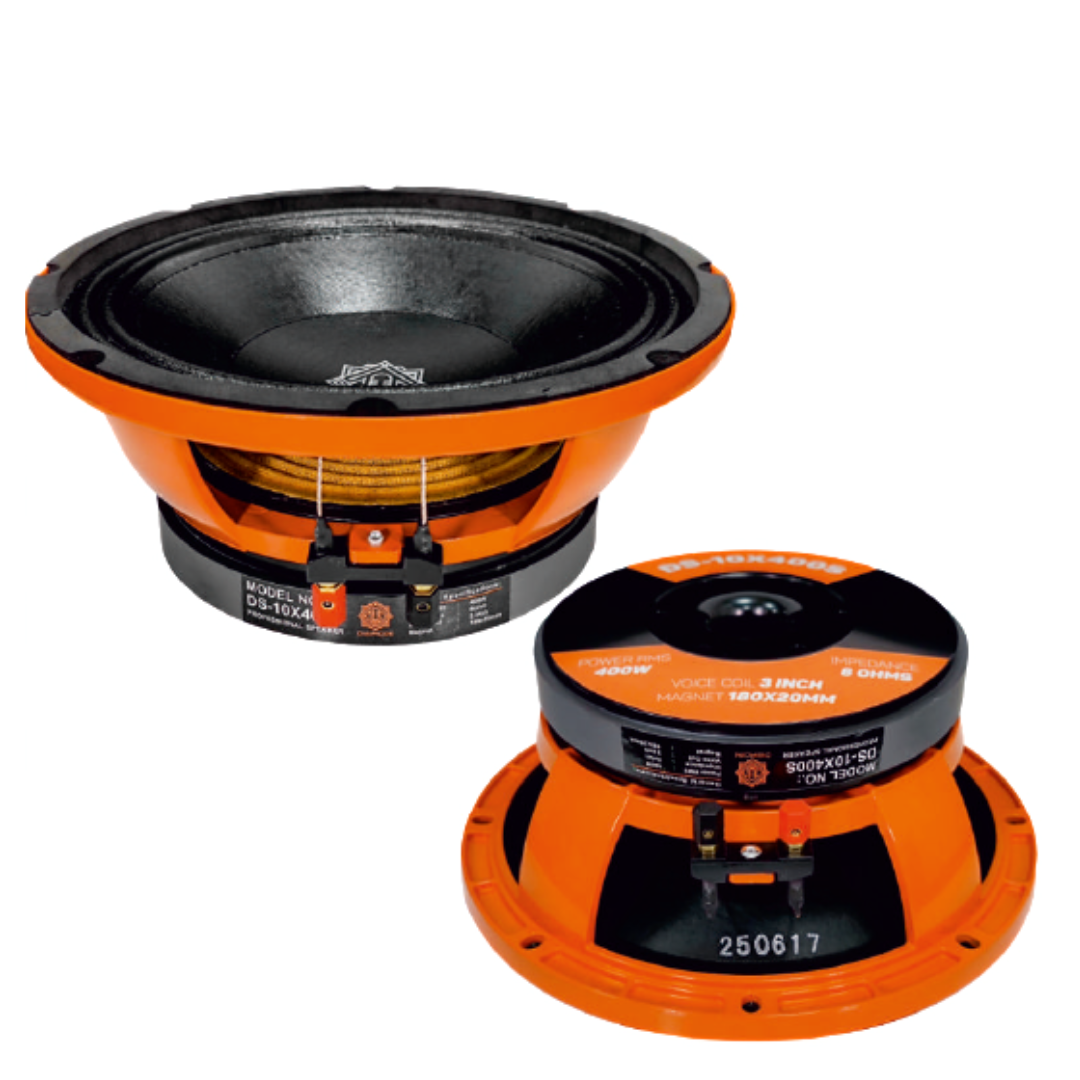

Solid, punchy mid-range for professional PA cabinets. The Digimore DS 10X400S is a 10-inch mid-range driver for PA and DJ speaker boxes. It is a raw driver for cabinet makers, sound service providers and anyone replacing a worn-out speaker.
Why customers choose it
Who it is for
DJ and sound service providers, PA cabinet makers, speaker repair shops, churches, halls and event companies building or upgrading speaker boxes.
Specifications
| Type | 10-inch Mid-range driver |
|---|---|
| Nominal Diameter | 260 mm (10-inch) |
| Impedance | 8 Ω |
| RMS Power | 400W |
| Maximum Power | 800W |
| Sensitivity | 97 dB (1W/1m) |
| Frequency Response | 83 Hz – 4.9 kHz |
| Voice Coil | 75 mm (3-inch) in & out |
| Magnet | 180 x 20 mm ferrite ring |
Good to know
- Sold as a raw driver – it needs a properly designed cabinet and an amplifier matched to its power and impedance.
- Use a crossover so that the driver gets only the mid-range range it is made for.
- Wire two 8 Ω drivers in parallel only if your amplifier is rated for 4 Ω.
FAQ
Can I use it in my existing box?
Yes, if the box is designed for a 10-inch driver – check the cut-out and depth of your cabinet first.
What amplifier power should I use?
Choose an amplifier close to the 400W RMS rating at 8 Ω, and avoid clipping.
