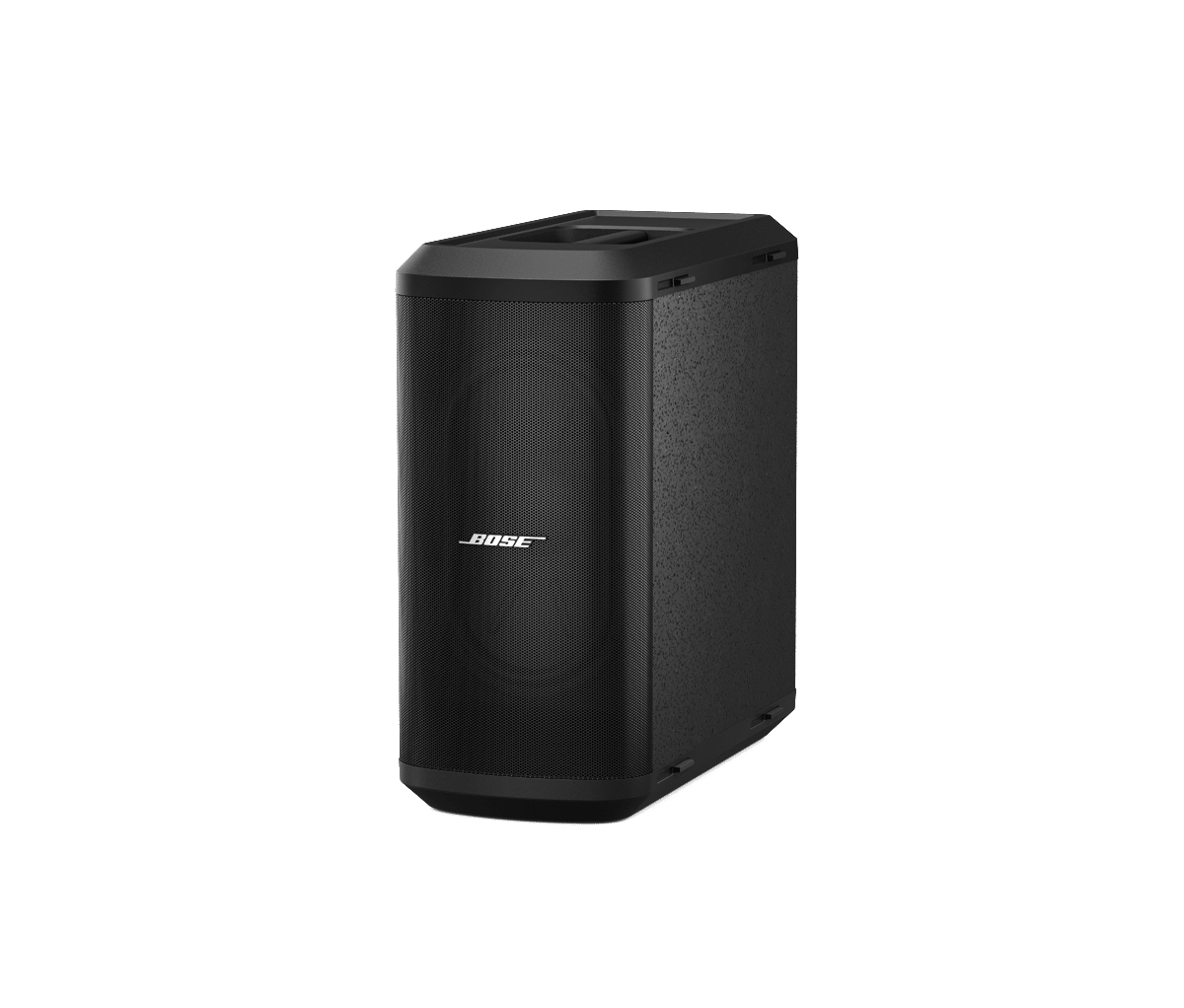

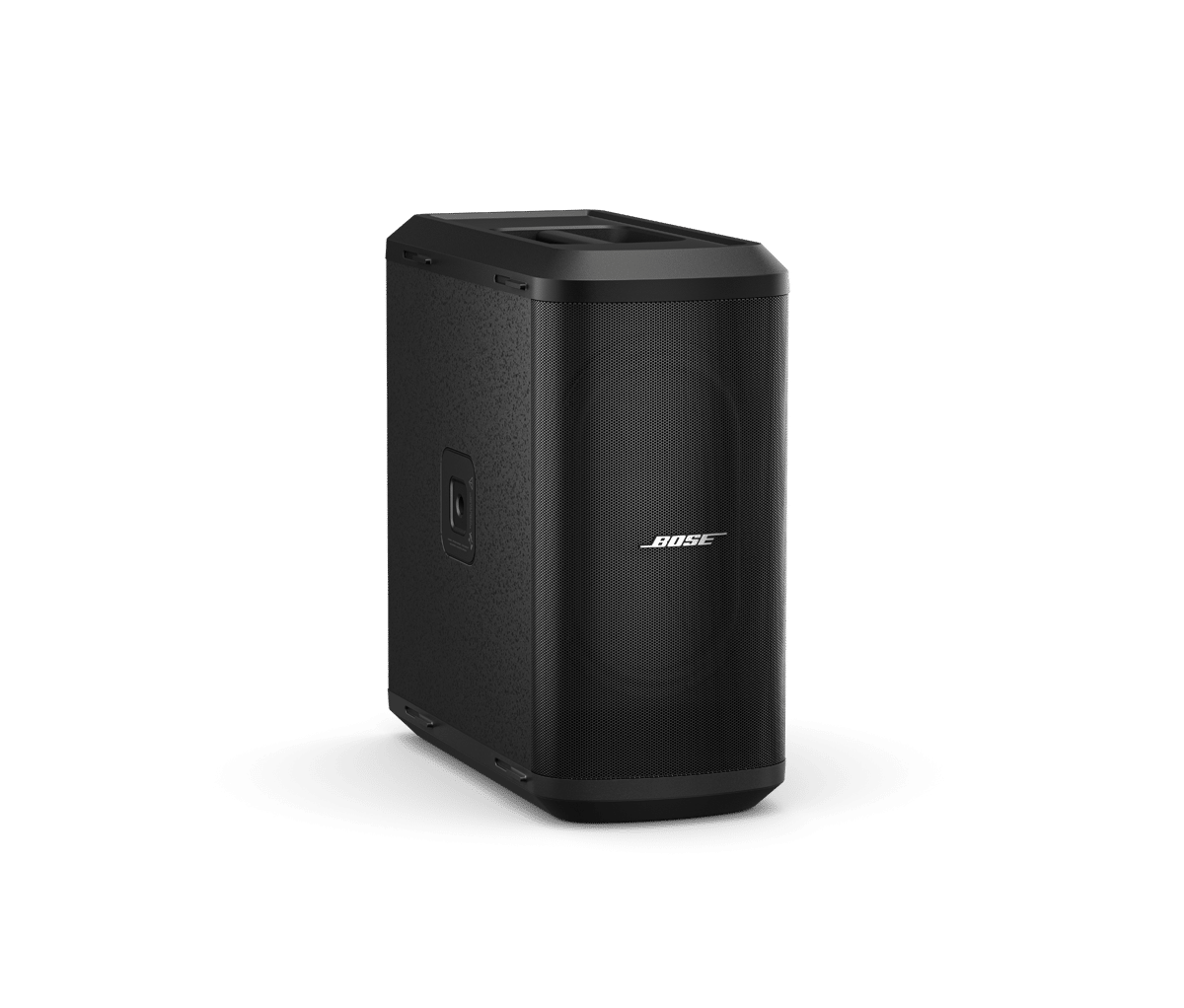

BOSE SUB 1 Powered Portable Bass Module

Original price was: ₹111,045.Current price is: ₹99,940.

Product Highlights

Out of stock

Get GST invoice and save upto 18%

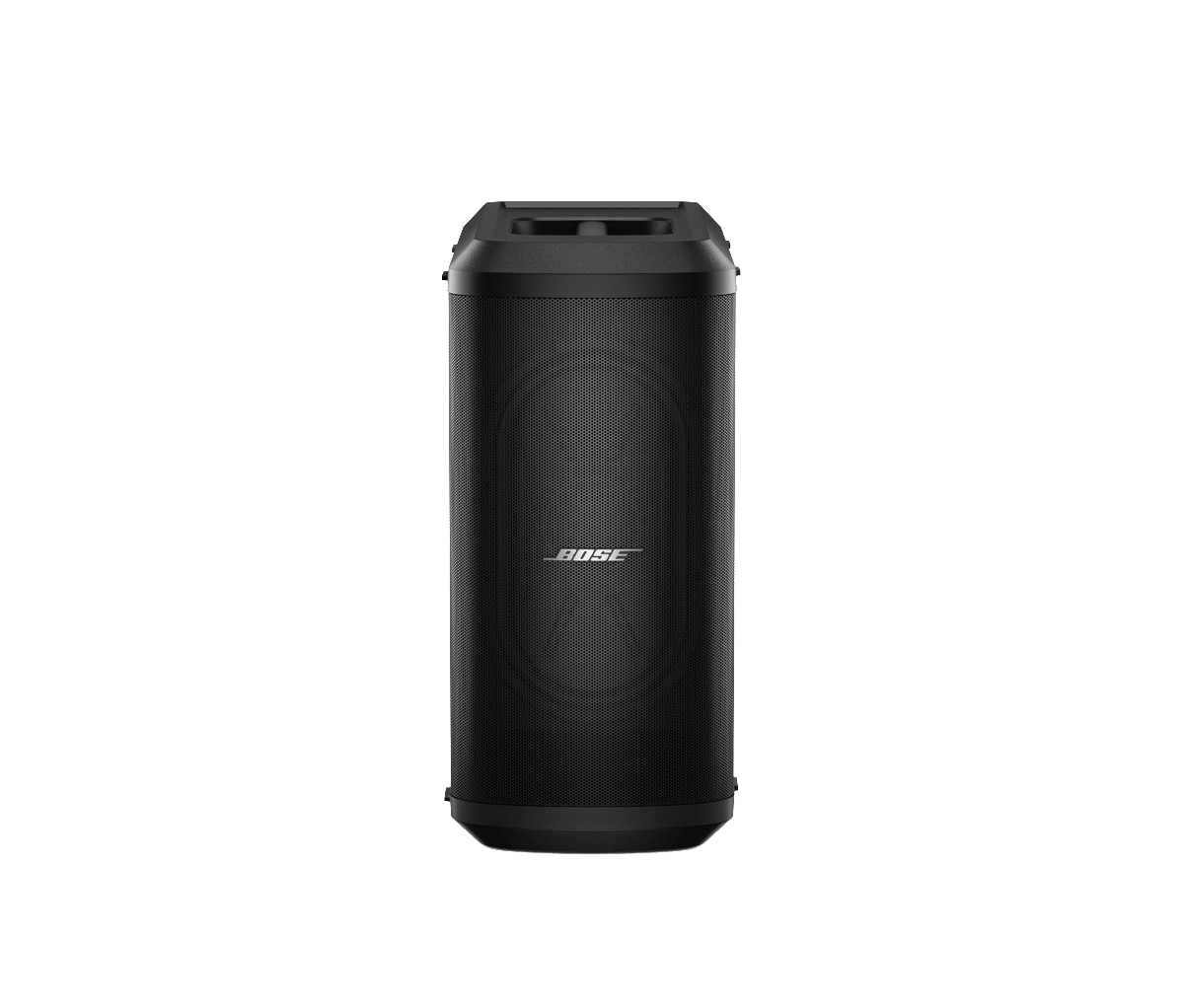

A powered, portable bass module, the Sub1 subwoofer combines with virtually any portable PA and delivers low-end performance down to 40 Hz. Its unique 7 × 13-inch high-excursion RaceTrack driver allows for an ultra-slim enclosure, delivering performance that rivals traditional round drivers without the cumbersome size, freeing up room in your vehicle and on the stage. Compared to the Sub2 subwoofer, Sub1 is the more compact subwoofer option for the Bose L1 Pro32 system, combining seamlessly via single-cable SubMatch connectivity. You can stack multiple Sub1 subwoofers for even more low end — or to unleash Cardioid Mode for directional bass. With a Sub1, you get a subwoofer that goes virtually anywhere and effortlessly fills out your sound.

004-security

2 Year
Warranty

003-genuine

Genuine
Products

008-help-desk

Free Tech
Support

001-free-delivery

Secure
Shipping

006-money-back-guarantee

Absolute
Satisfaction

007-van

3 Days
Dispatch

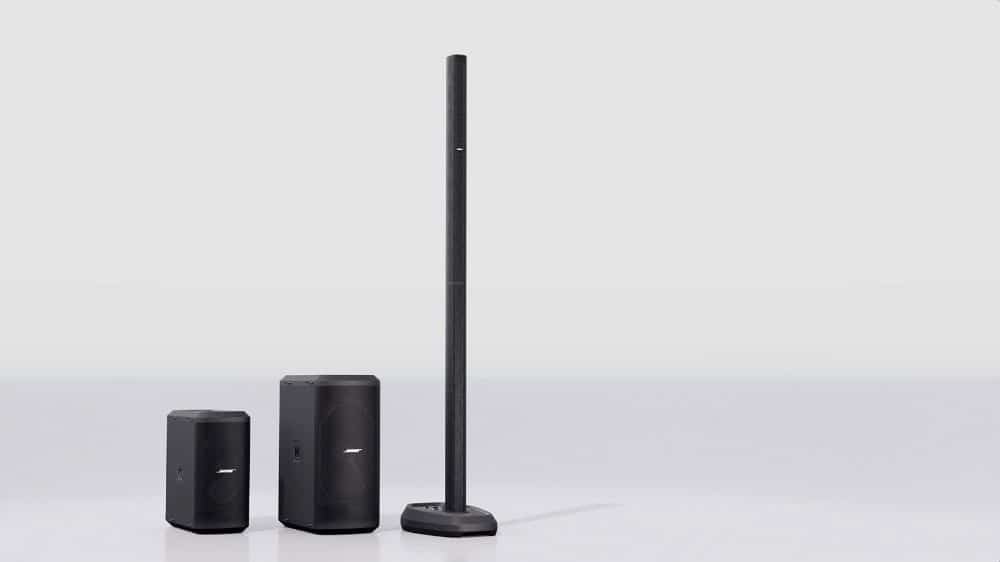

Bose-Sub1-Powered-Bass-Module_11

Give your songs full impact

Sub1 Powered Bass Module combines with virtually any portable PA to deliver low end down to 40 Hz. When paired with the Bose L1 Pro32, Sub1 creates a more compact system and gives you bold bass from slim design that goes virtually anywhere.

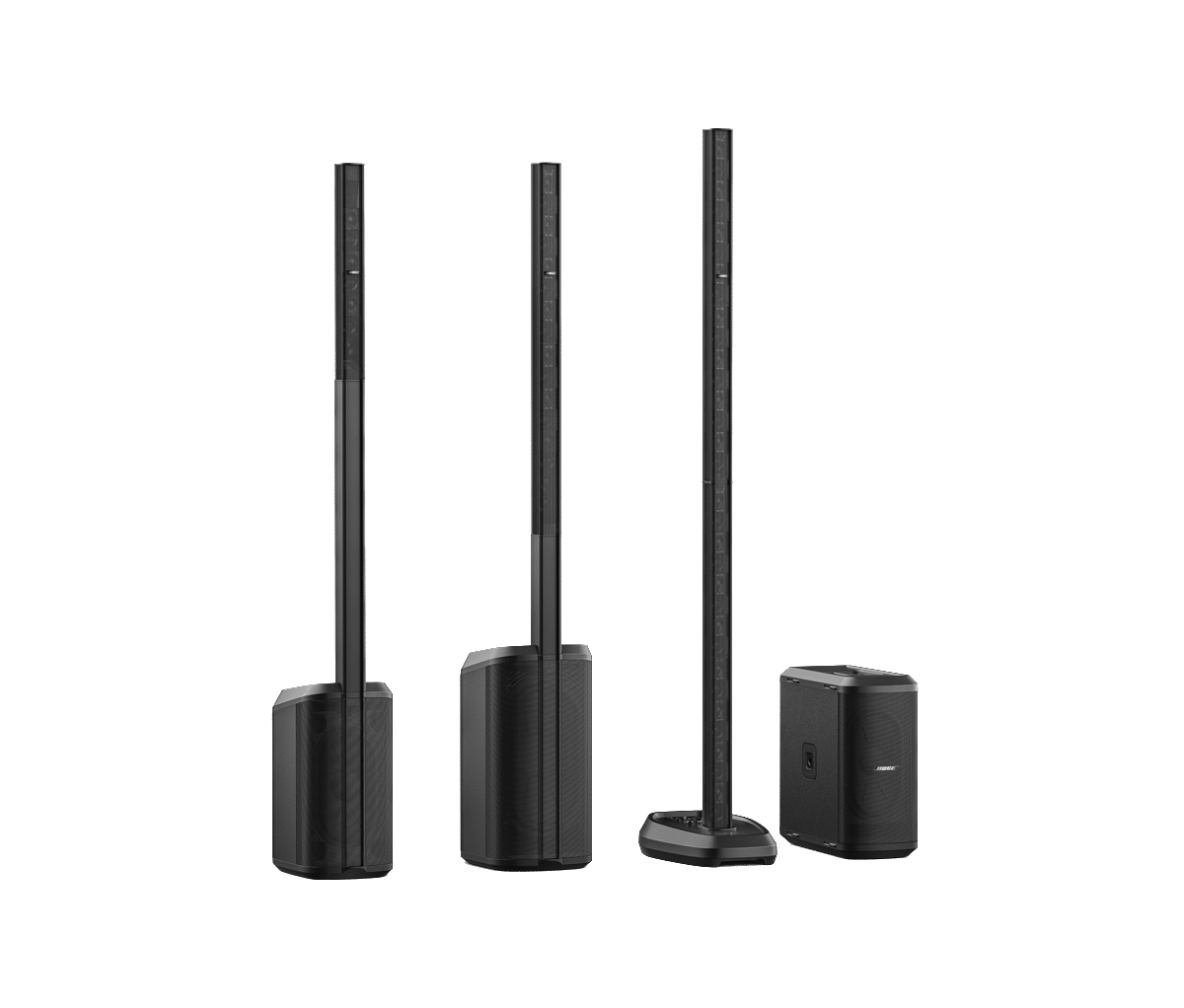

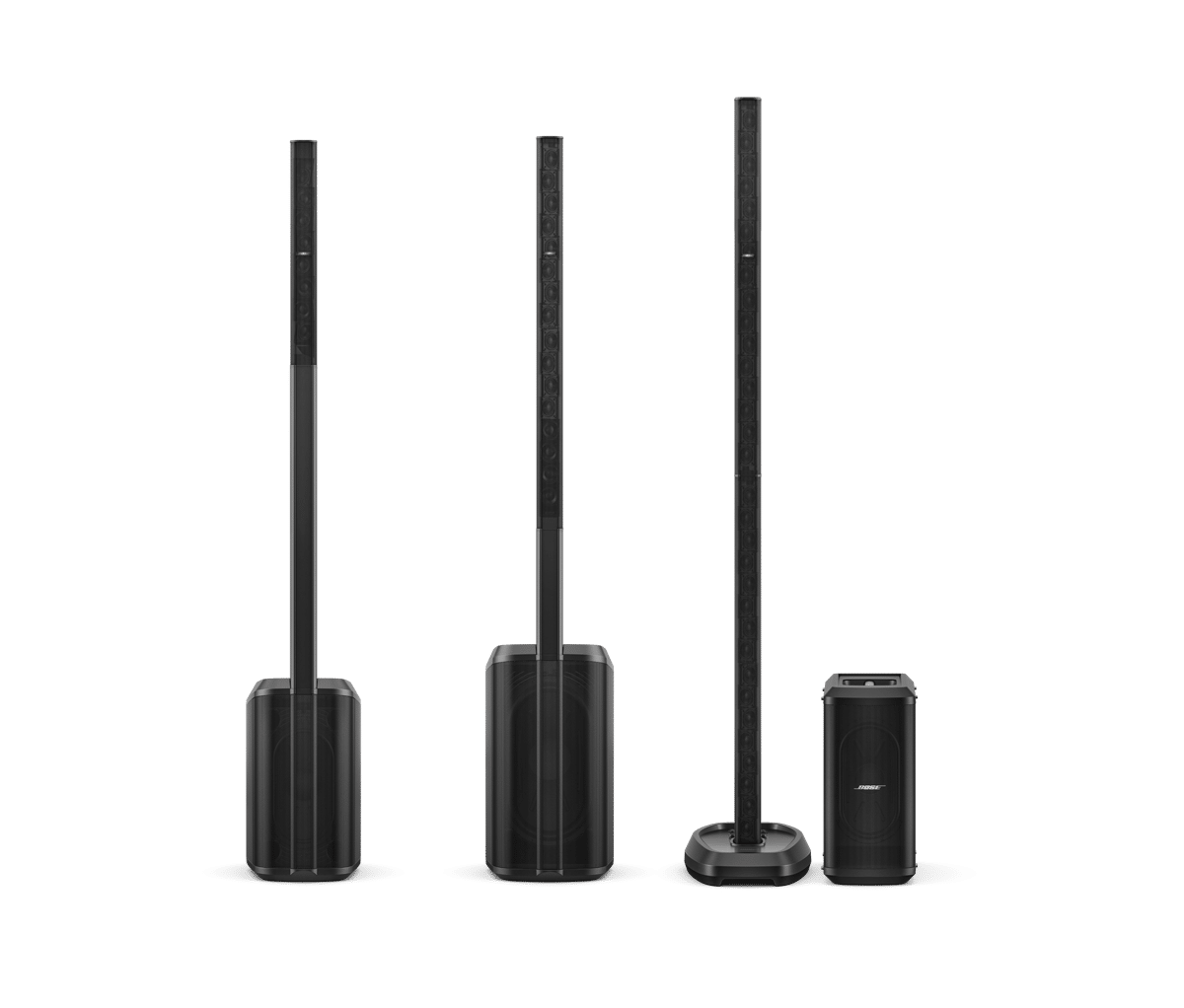

Part of a full system

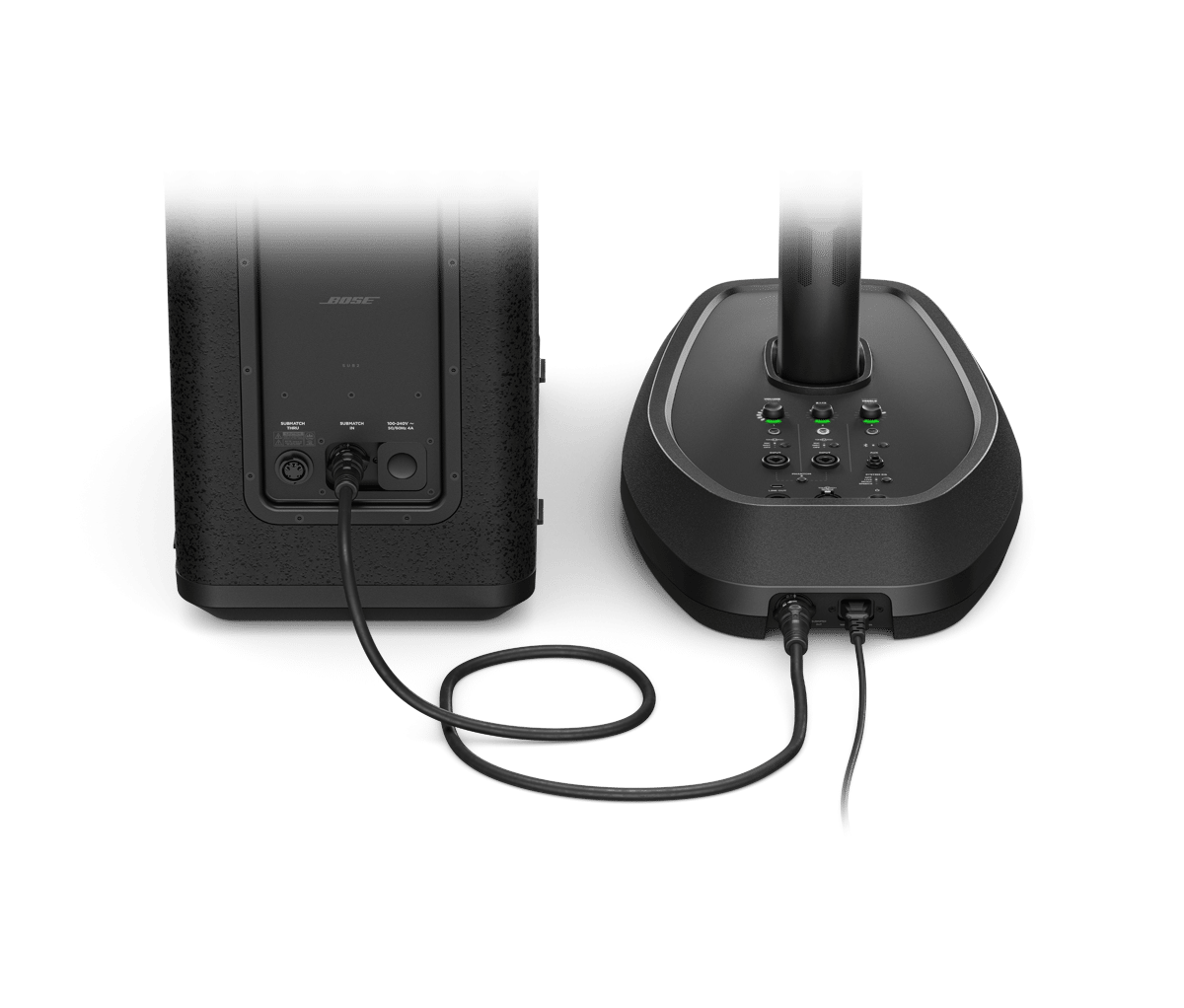

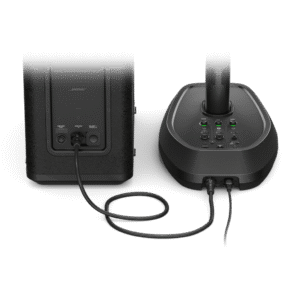

Sub1 pairs seamlessly with the L1 Pro32 via proprietary SubMatch connectivity to form a modular line array system that’s easy to pack, carry, and set up. This single-cable connection makes setup so much easier. It allows the system’s crossover and EQ to automatically calibrate for optimal sound, and — because power and digital audio are passed through the SubMatch cable — you only need a single power outlet. Just plug in your L1 Pro32 and you’re ready to go.

imgi_48_cq5dam.web.1000.1000
Bose-Sub1-Powered-Bass-Module_12

More bass. Less bulk.

With a unique RaceTrack driver design, Sub1 offers powerful bass and an optimized center of gravity. The driver’s shape allows the physical enclosure of Sub1 to be slimmer without compromising sound. This frees up room in your vehicle and on the stage, and makes every carry in between — home to car, vehicle to venue — much easier.

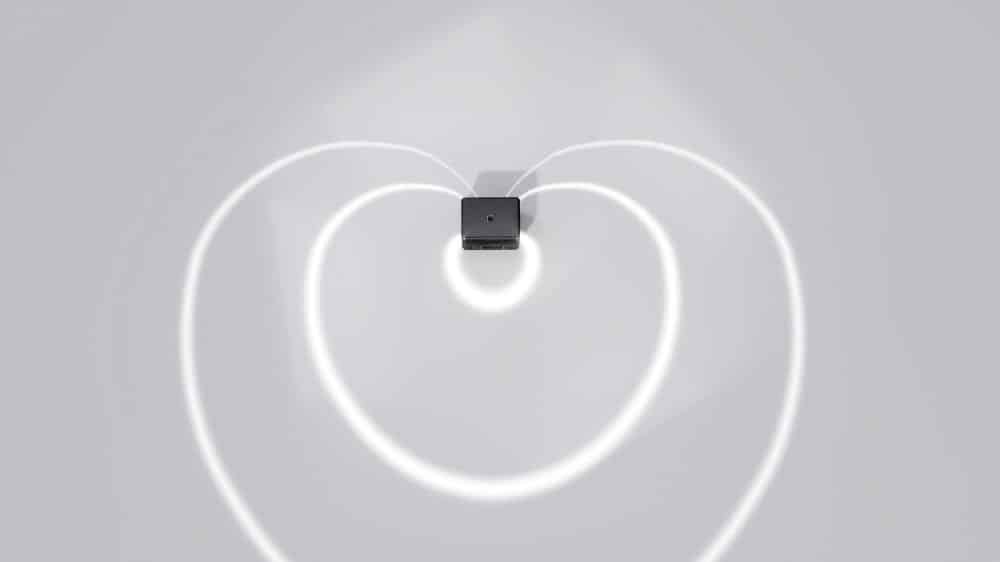

Focus the bass where you want it

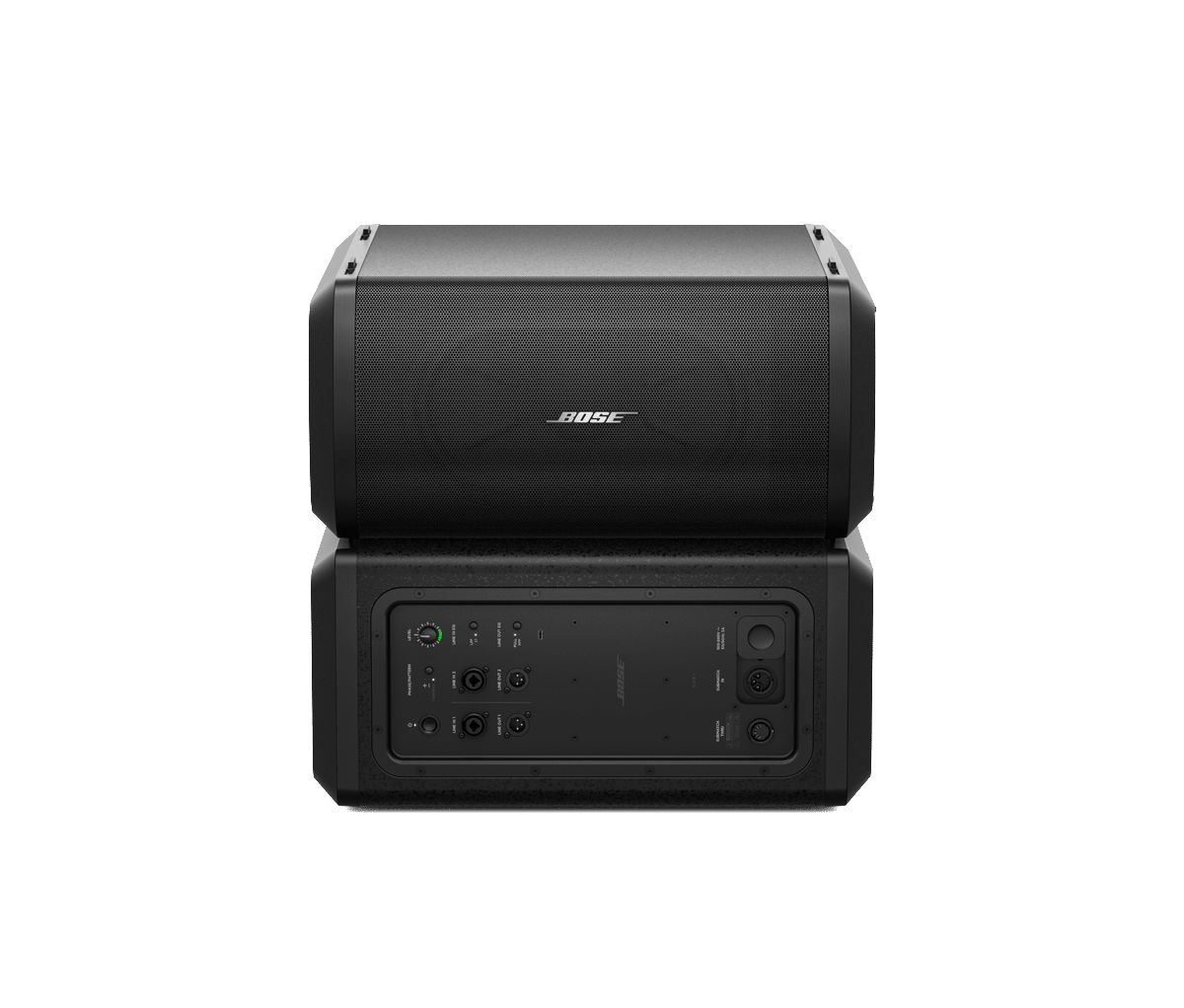

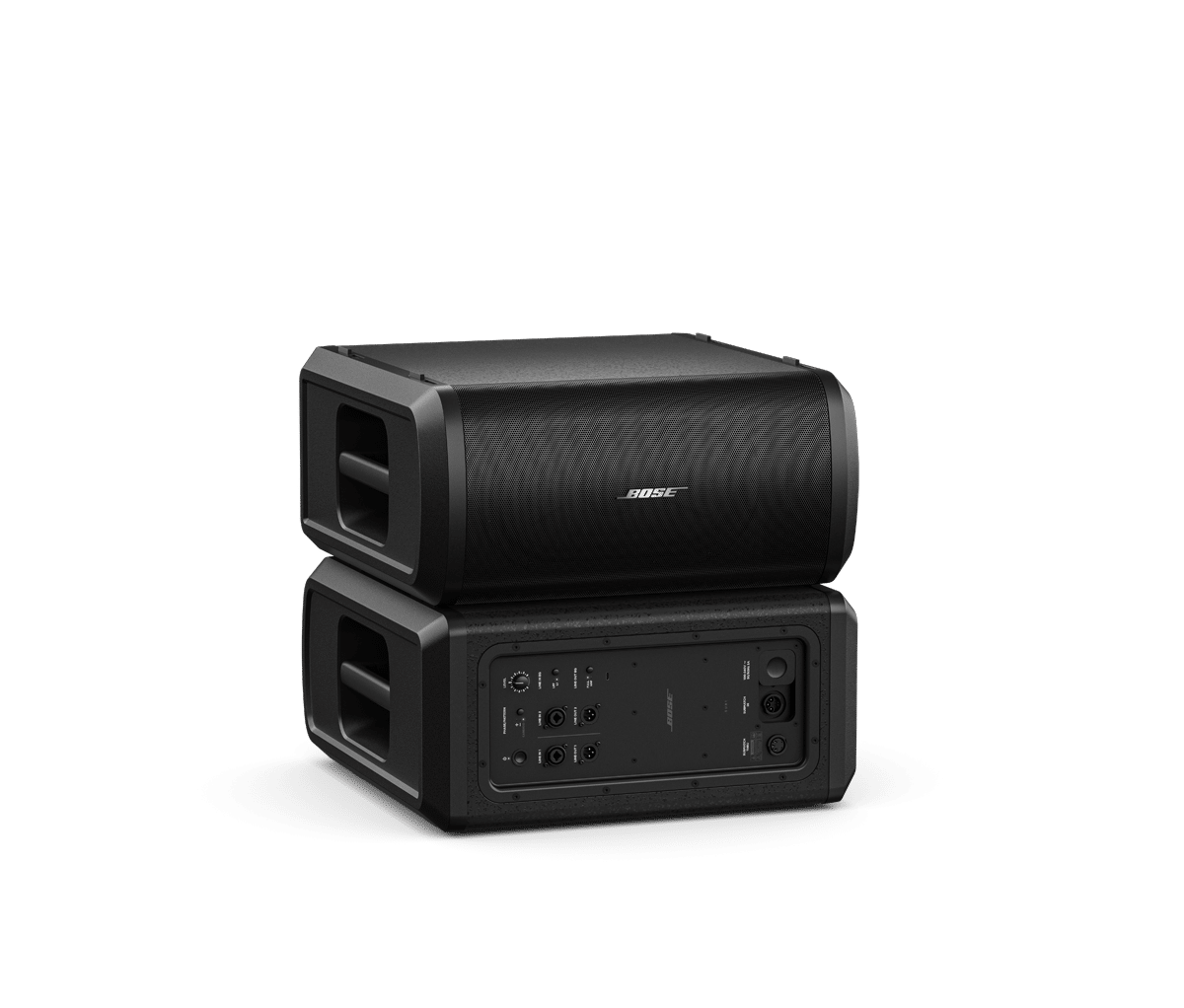

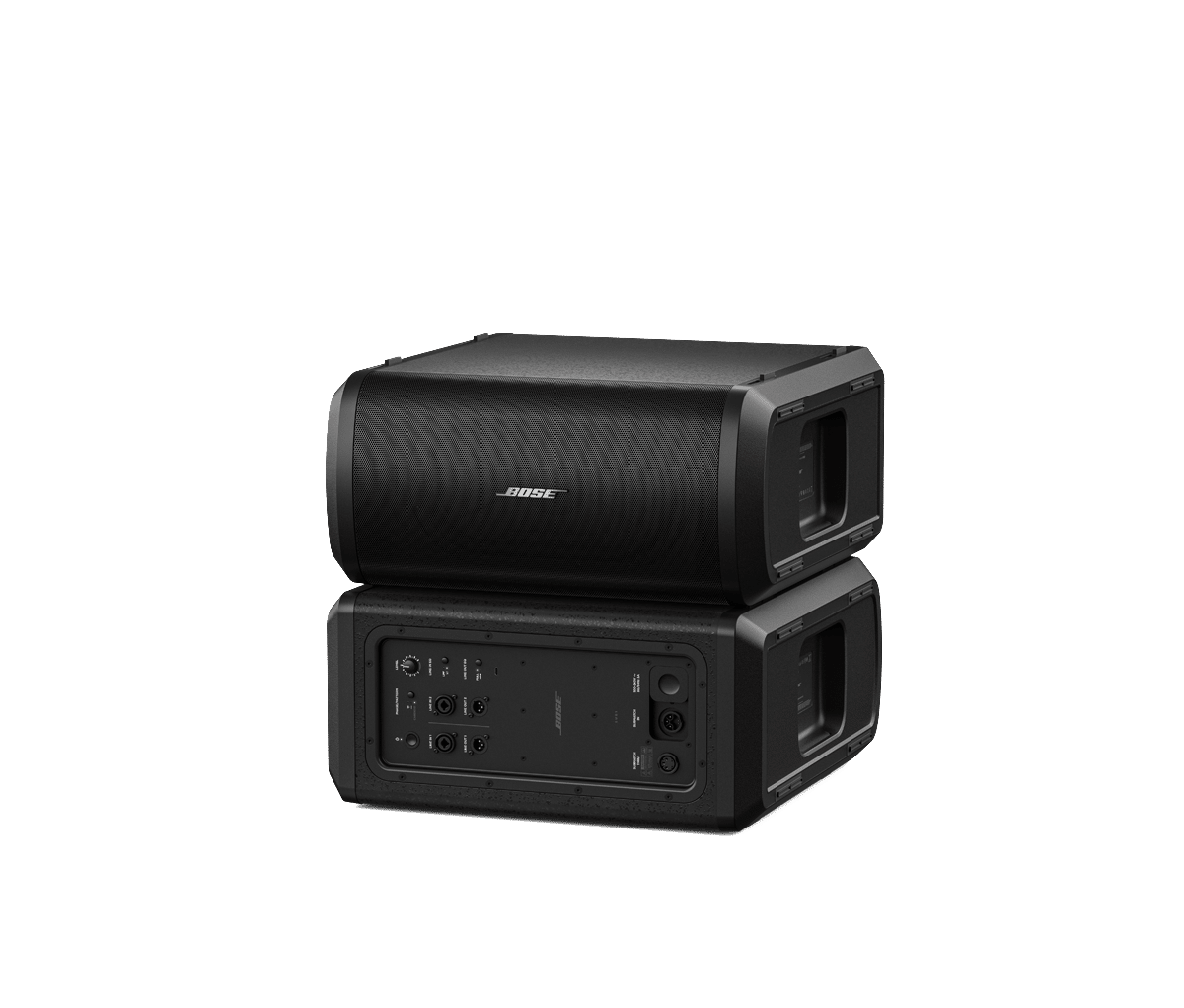

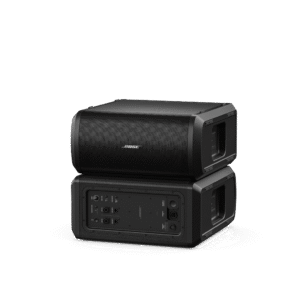

Stack two Sub1 subwoofers for even more bass or to unleash Cardioid Mode for focused, directional performance that negates rear-firing bass energy, steers the bass out front, and reduces feedback.

Bose-Sub1-Powered-Bass-Module_13

All for that Moment

Premium sound on stage. Practical portability everywhere else. With an SUB1 POWERED BASS MODULE, you can get from parking to performing in one trip and from setup to setlist in minutes. The SUB1 POWERED BASS MODULE gives singer-songwriters and DJs both setup simplicity and supreme clarity – the power to sound your best and simply perform.

Features

  • Go from vehicle to venue easily with a slim design featuring a unique 7 × 13-inch high-excursion RaceTrack driver; performance that rivals traditional round drivers with a smaller footprint

  • Stack multiple Sub1 subwoofers for even more bass or unleash Cardioid Mode for focused, directional performance that steers the bass out front and decreases feedback

  • Combine seamlessly with Bose L1 Pro32 portable line array via proprietary SubMatch connectivity, which delivers both power and audio over a single cable

  • Pair with other powered loudspeakers via line input and output with selectable crossover modes, plus integrated threaded pole mount for use with Bose S1 Pro PA and more

Applications

Designed for a wide range of applications, including:

  • Houses of worship
  • Schools and universities
  • Resorts and hospitality venues
  • Live music performances
  • Business presentations
  • Mobile DJs

Specifications

AMPLIFICATION

  • Number of Channels

  • 1

  • Power Class

  • Class D

AUDIO INPUTS, ANALOG

  • Input Channels

  • 2

  • Connectors

  • (1) XLR-1/4-in TRS combo, (1) SubMatch (proprietary multi-pin cable)

  • Sensitivity Options

  • +10 dB to +45 dB, input to driver

  • Phantom Power

  • No

COMPLIANCE

  • Safety

  • UL/IEC/EN62368-1 Audio/Video, Information and Communication Technology Equipment

ELECTRICAL

  • AC Power Connector

  • IEC, SubMatch

  • AC Power Input

  • 100–240 VAC (±20%, 50/60 Hz)

  • Current Draw, Inrush

  • 14.9 A at 120 VAC, 60 Hz / 29.3 A at 230 VAC, 50 Hz

GENERAL

  • Software Applications

  • Bose Music (Android, iOS)

  • Computer Interface Connection

  • USB Type-C

INDICATORS AND CONTROLS

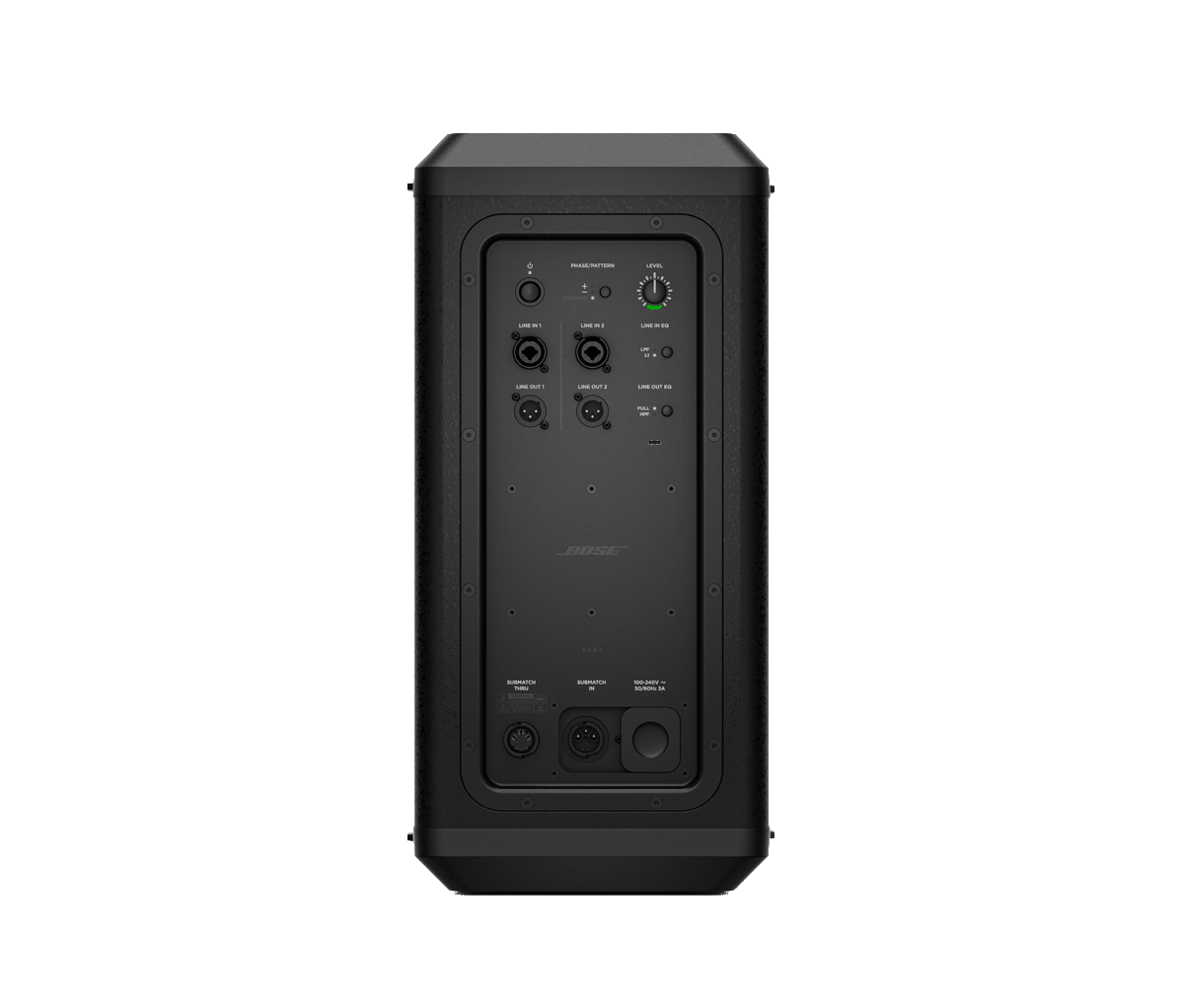

  • Controls, Rear Panel

  • Power, EQ, and Volume Control

  • LED Status Indicators

  • (1) standby LED, (1) signal/clip LED, (2) input EQ LEDs, (2) output EQ LEDs, (3) phase/pattern LEDs

INTEGRATED DSP

  • DSP-Enabled

  • Yes

  • Processing Functions

  • Input EQ, output EQ, phase/pattern polarity inversion

PHYSICAL

  • Colors

  • Black

  • Enclosure Material

  • High-impact polypropylene, birch plywood

  • Grille

  • Perforated steel, powder-coated finish

  • Cooling System

  • Convection cooling

  • Product Dimensions (H×W×D)

  • 21.0 in × 10.2 in × 20.8 in (533 mm × 260 mm × 529 mm)

  • Net Weight

  • 34.1 lb (15.5 kg)

  • Shipping Dimensions (H×W×D)

  • 24.4 in × 24.4 in × 13.0 in (620 mm × 620 mm × 330 mm)

  • Shipping Weight

  • 39.6 lb (18.0 kg)

PERFORMANCE

  • Frequency Range (-10 dB)

  • 32 Hz – 250 Hz

  • Coverage, Horizontal

  • Calculated Maximum SPL @ 1 m

  • 124.6 dB

  • Power Handling, Peak

  • 480 W

  • Coverage, Vertical

  • Omnidirectional (with -10 dB rear rejection in cardioid mode)

TRANSDUCERS

  • Crossover

  • 200 Hz

  • Low-Frequency

  • 1 × RaceTrack low-frequency 7 × 13 in (178 × 330 mm) driver
