Description

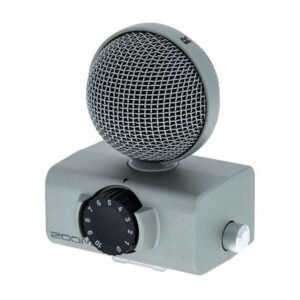

Thanks to their interchangeable microphone capsule system, Zoom’s compatible handheld recorders are particularly versatile. They can be quickly adapted to all kinds of different situations and always achieve the best result. Zoom offers an excellent selection of polarity combinations – one of them being the MSH-6. This particular model is equipped with a mid/side combination which allows precise control of the stereo width, both at the time of recording and later in post-production.
The MSH-6 consists of two superimposed microphone capsules. The first is unidirectional (cardioid) and is designed to pick up sound coming from the front. The second is bi-directional (figure of 8), oriented at 90° to the first and is designed to pick up the sound from the sides. The mid microphone picks up central signals, while the side mic records signals from the left and right. The stereo signal is thus obtained by mixing the central signal from microphone 1 with the side signal picked up by microphone 2. Increasing or decreasing the gain of microphone 2 respectively widens or narrows the stereo image.
100% mono compatible
The MSH-6 capsule can be used with all devices which are equipped with the appropriate fixture. The stereo image of the MSH-6 is achieved by applying the principle of intensity stereo – i.e. using the volume difference between the middle and the side microphones. Switching from mono to stereo is therefore very straightforward, and unlike regular stereo setups, there is no risk of phase coloration when mixing down to mono. If you already possess a compatible Zoom device, you will find that the MSH-6 is an excellent multipurpose tool which will systematically achieve good results – and for a very affordable price.
Accessories Capsule
- For Zoom Rekorder H5 and H6
- Allows M/S recording
- 2 Microphone elements: Unidirectional mid mic for the center and bidirectional side mic for the sides
- Ideal for use in movies, video and television
