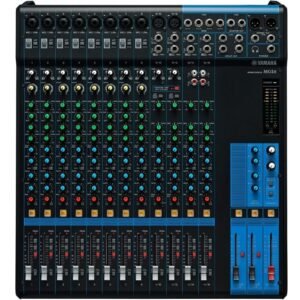

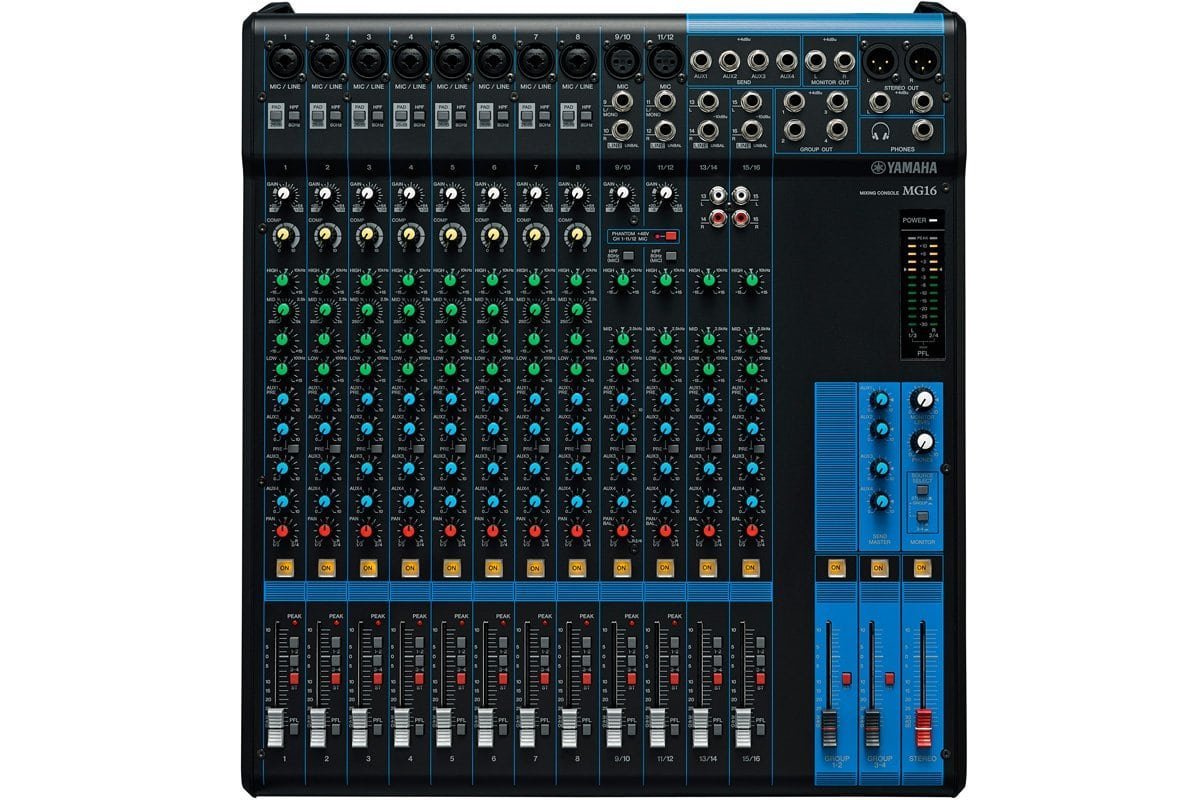

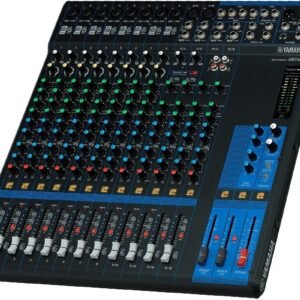

A full 16-channel fader console with four monitor sends – simple, clean and built for regular live use. The Yamaha MG16 handles up to 10 mics with D-PRE preamps, 4 group buses, 4 aux sends and 1-knob compressors, and comes with a rack-mount kit.
Why customers choose it
Who it is for
Live bands, churches and temples, school auditoriums, event and wedding sound providers who want many mic inputs and separate monitor mixes.
What’s in the box
- Yamaha MG16 mixer
- Rack-mount kit
- AC power cord
- Owner’s manual and technical specifications
Specifications
| Inputs | 8 mono mic/line + 2 mono/stereo mic/line + 2 stereo line |
|---|---|
| Outputs | Stereo out (2), monitor out, aux send x 4, group out x 4, phones |
| Buses | Stereo 1, group 4, aux 4 |
| Effects | None |
| EQ | 3-band, ±15 dB, mono mid 250 Hz – 5 kHz |
| Phantom power | +48V |
| Frequency response | +0.5 / –1.5 dB, 20 Hz – 48 kHz |
| Equivalent input noise | –128 dBu |
| Power | AC 100–240 V internal, 30W |
| Dimensions (W x H x D) | 444 x 130 x 500 mm |
| Weight | 6.6 kg |
| Type | Analog mixer |
| Channels | 16 |
Good to know
- No built-in effects – the MG16X/MG16XU add SPX effects.
- No USB audio.

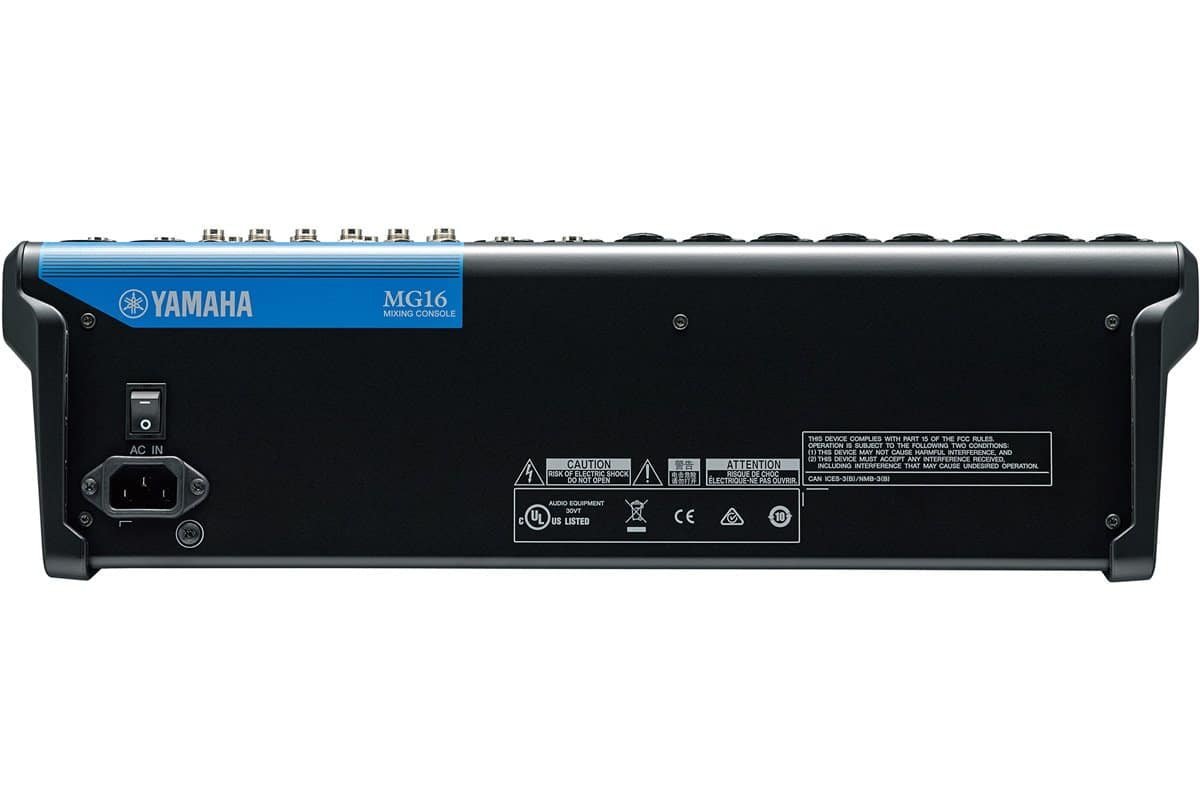

- Uses a normal power cord – no external adaptor.
FAQ
How many mics can I connect?
Up to 10 microphones.
Can it be rack-mounted?
Yes, Yamaha includes a rack-mount kit.
