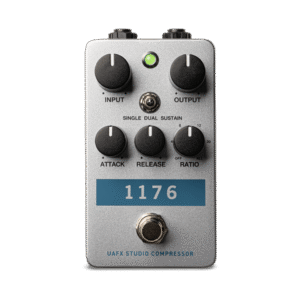

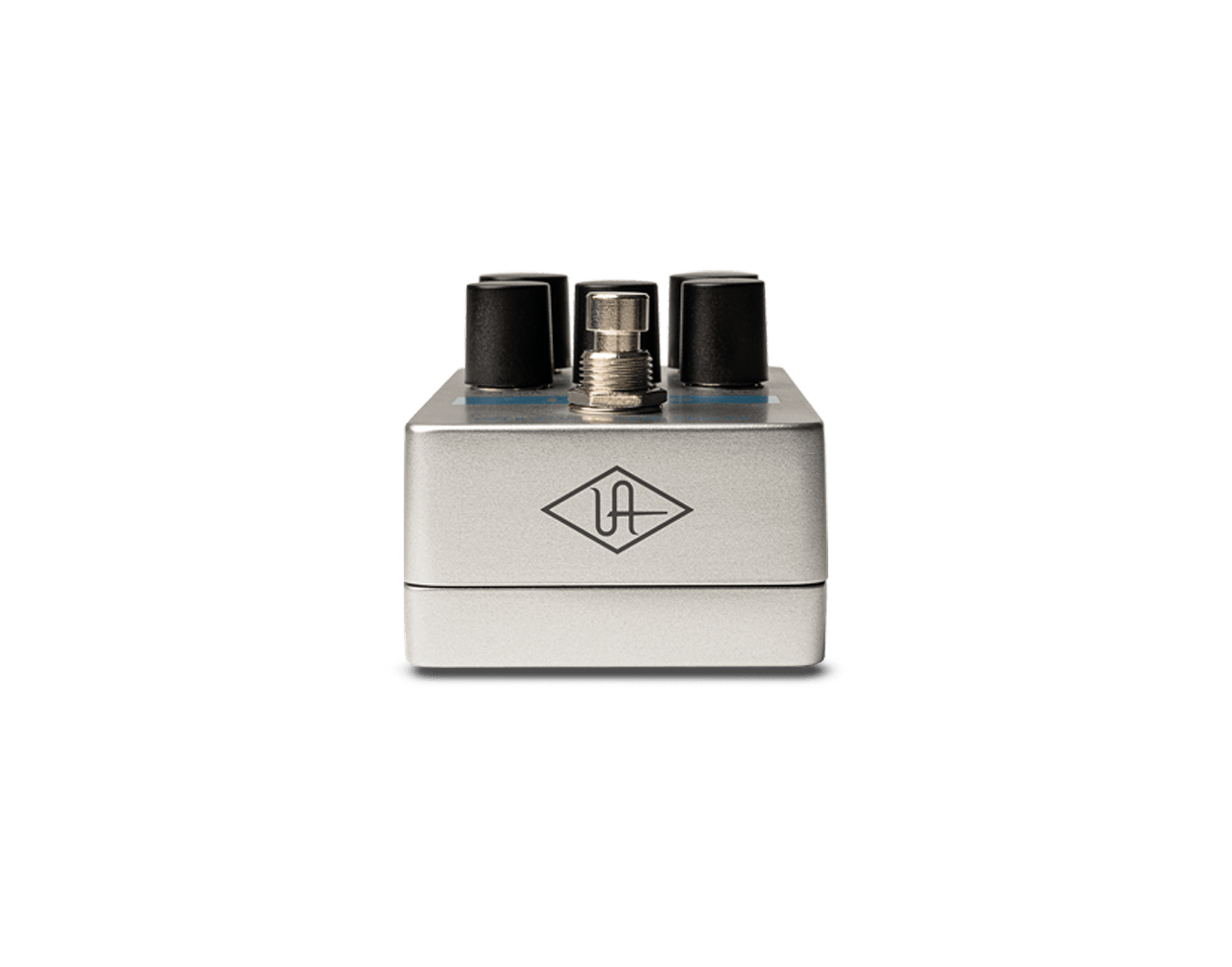

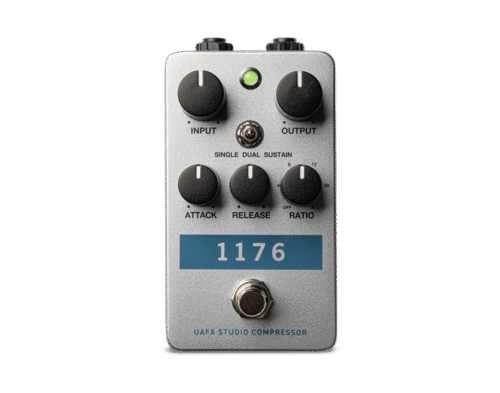

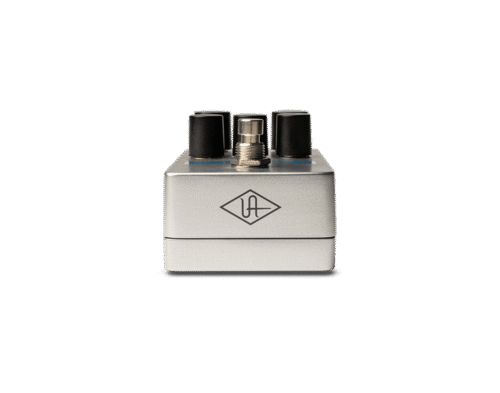

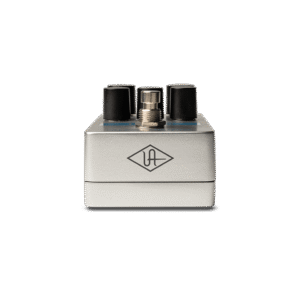

The 1176 studio compressor, on your pedalboard. The Universal Audio UAFX 1176 Studio Compressor is an authentic emulation of the 1176LN Limiting Amplifier in a compact pedal. Its Input, Output, Attack and Release settings stay true to the original hardware, so you find your sound fast.
Why customers choose it
Who it is for
Guitarists and bassists who want a studio-grade classic effect on a compact pedalboard, plus players who record at home and want the same sound live.
Specifications
| Brand | Universal Audio (UAFX) |
|---|---|
| Type | Compressor pedal |
| Emulation | 1176LN Limiting Amplifier |
| Modes | Single, Dual, Sustain; parallel compression |
| Controls | Input, Output, Attack, Release, Ratio |

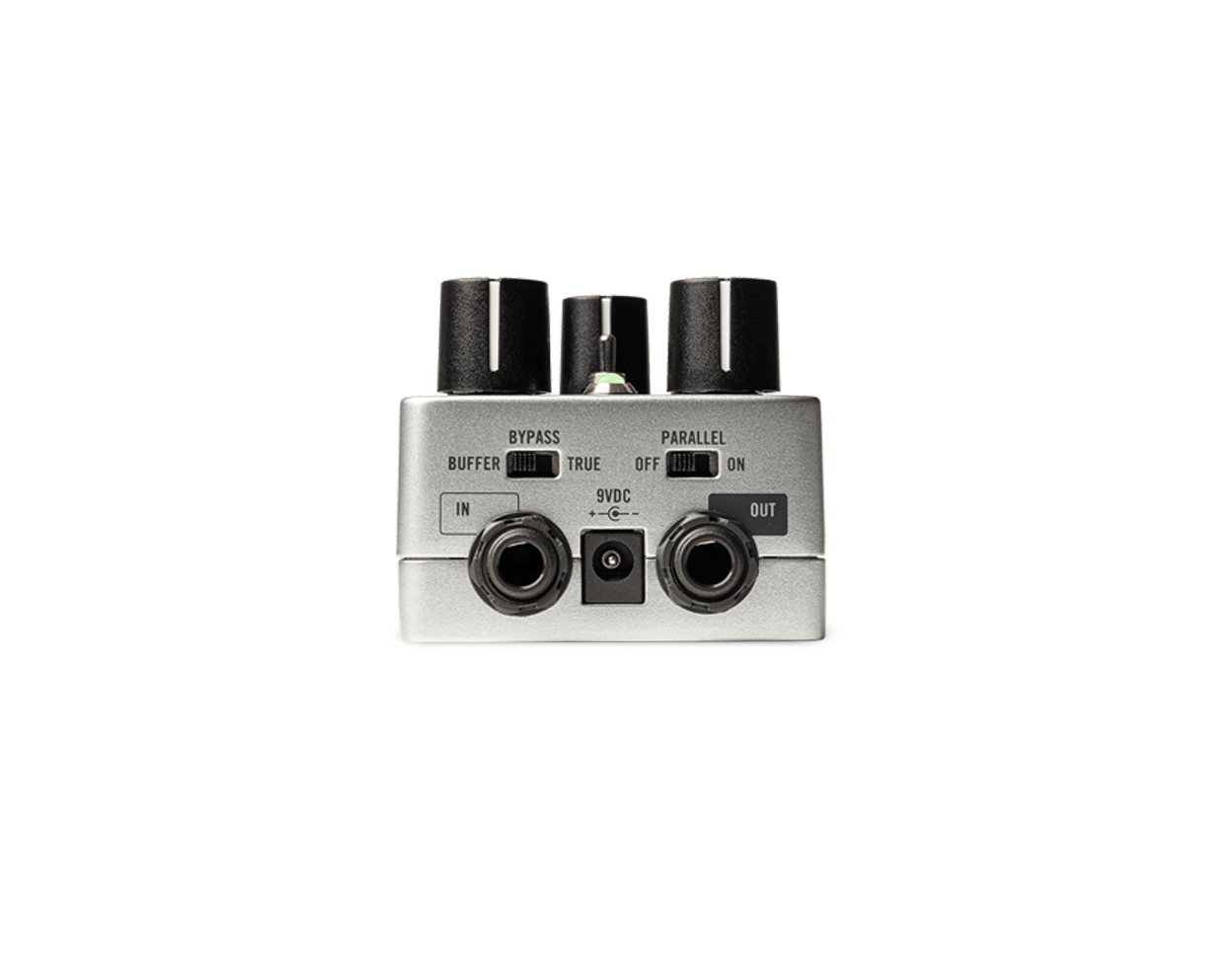

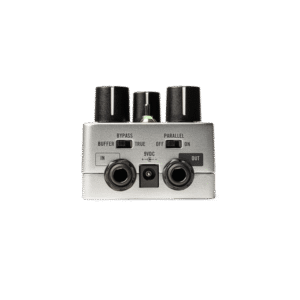

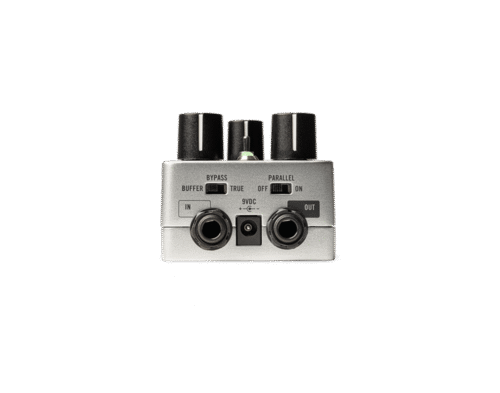

| Bypass | True/buffered |
| Power | 9 V DC isolated, centre negative, 2.1 x 5.5 mm, 250 mA (compact UAFX) |
| Effect | FET compressor |
Good to know
- UAFX pedals need an isolated 9 V DC, centre-negative supply with a 2.1 x 5.5 mm barrel plug; Universal Audio lists 250 mA for its compact single-footswitch UAFX pedals. A power supply is not listed as included.
- Firmware updates and registration use the UA Connect app on a computer over a USB-C cable.
FAQ
Does it come with a power supply?
Universal Audio does not list a power supply as included. Use an isolated 9 V DC, centre-negative supply with enough current for this pedal.
What does “all buttons in” do?
It is a Ratio knob setting for squashed, gritty compression textures.
Talk to Suhavi
Reviews
There are no reviews yet.
