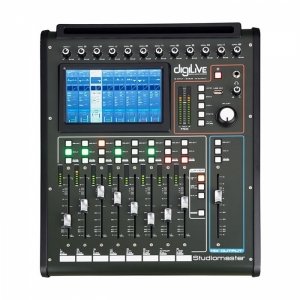

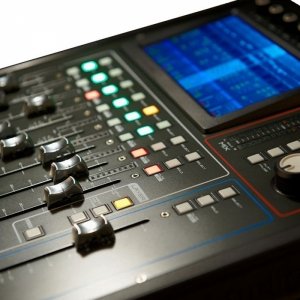

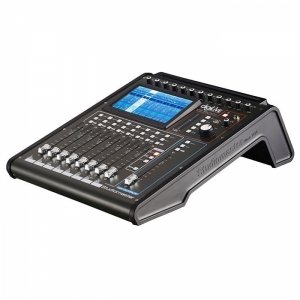

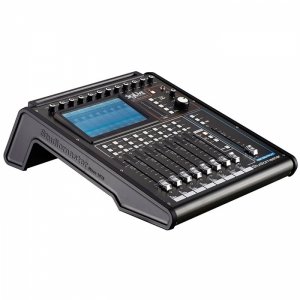

Mix your whole show from a touch screen – or walk the room with an iPad. The Studiomaster Digilive 16 is an ultra-compact digital mixer from Studiomaster UK with 16 inputs (12 mic channels and 2 stereo), 16 internal busses, a 7″ touch screen and 9 motorised 100 mm faders.
Why customers choose it
Who it is for
Live bands and touring musicians, churches, schools and auditoriums, event and rental companies – anyone moving from analog to digital mixing with scene recall.
Specifications

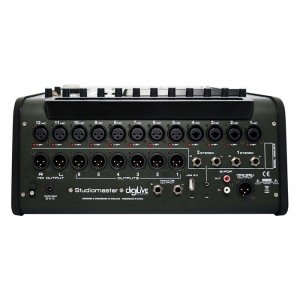

| Mic inputs | 12 channels (8 × XLR, 4 × combo XLR/jack) |
|---|---|
| Line inputs | 2 stereo channels (two 6.5 mm stereo jacks; one 3.5 mm stereo jack in parallel with one stereo channel) |
| Master output | 2 × balanced XLR (L/R) |
| Smart outputs | 6 assignable balanced XLR |
| Internal busses | 16 |
| Monitor / headphones | 1 TRS jack stereo monitor, 1 TRS headphone |
| Screen | 7″ high-definition touch screen |
| Faders | 8 × motorised 100 mm + 1 × motorised 100 mm (L/R) |
| Sample frequency | 48 kHz |
| AD/DA | 192 kHz, 24-bit |
| DSP | 40-bit floating point, SHARC processor |
| Effects | Up to 8 assignable effect modules (reverb, modulation, delay, 31-band GEQ with RTA) |
| Digital I/O | AES/EBU output (XLR), S/PDIF in/out (RCA) |
| USB | 2 – playback/recording, scene storage, system updates |
| Remote | iPad via Wi-Fi (external Wi-Fi module) |
| Power | 90–240V ~ 50/60 Hz power supply, 24V DC output |
| Dimensions (W × H × D) | 357 × 145 × 480 mm |
| Net weight | 5 kg |
| Type | Digital mixer |
| Channels | 16 inputs (12 mic + 2 stereo) |
| EQ | 4-band parametric per channel |
| Dynamics | Gate + compressor per channel |
| AD/DA | 24-bit, 192 kHz |
| USB | 2 ports, record/playback |
Good to know
- Wi-Fi remote works through an external Wi-Fi module.
- USB ports also store scenes and install system updates.
- Prefer a rack unit? The Digilive 16RS has the same engine in rack form.
FAQ
Can I control it from an iPad?
Yes, over Wi-Fi using the external Wi-Fi module.
Can I record my gig?
Yes. The built-in recorder records over USB from any smart output.
