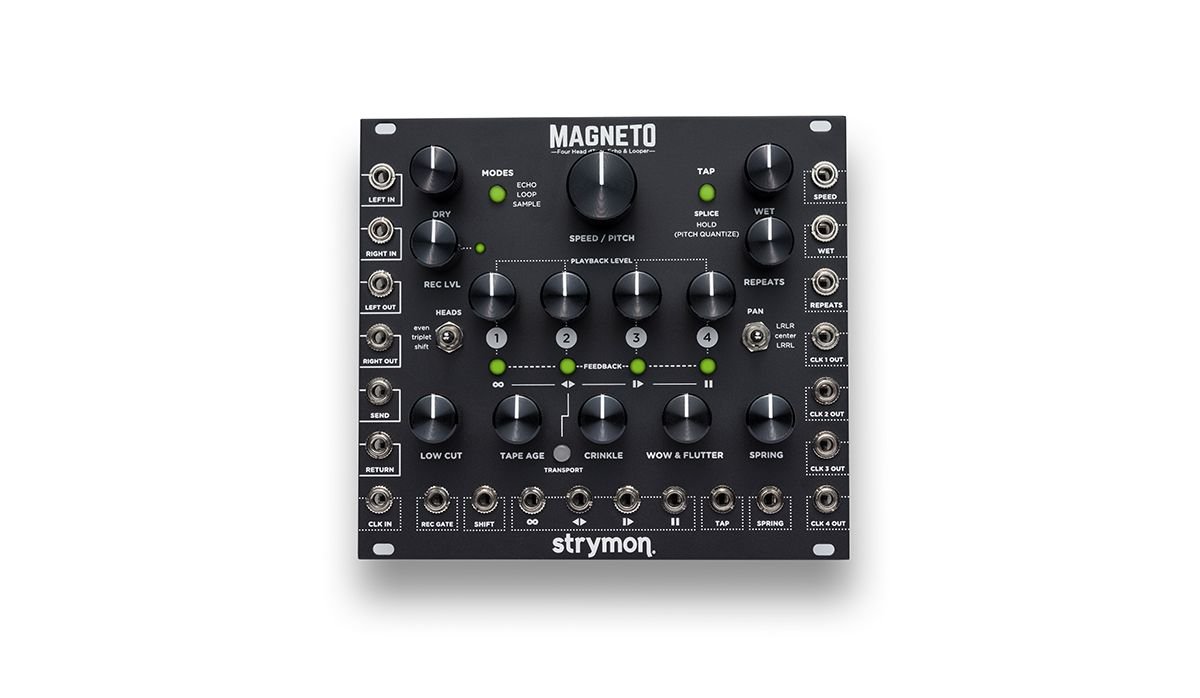

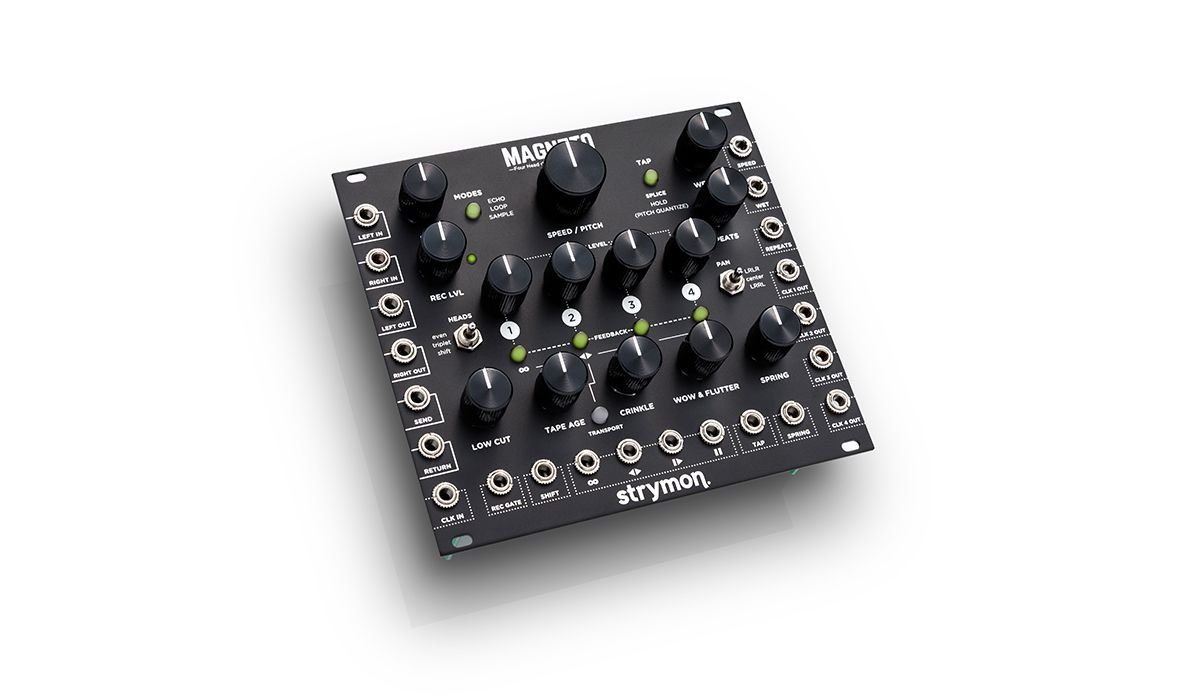

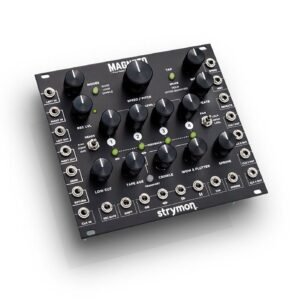

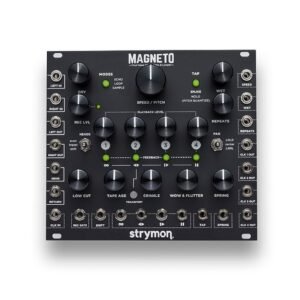

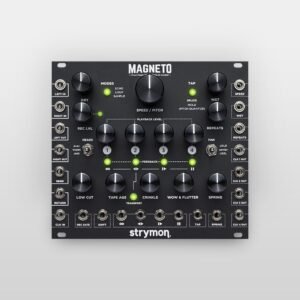

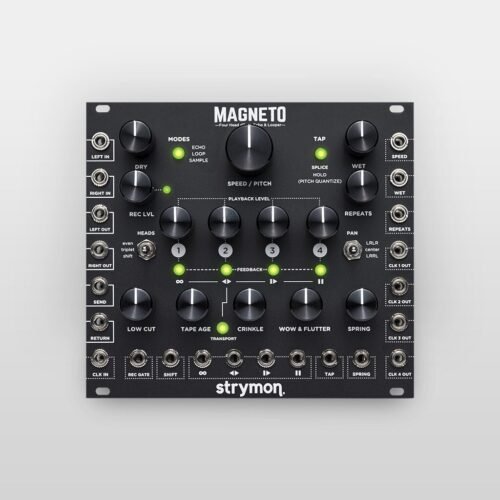

Strymon Magneto Four Head dTape Echo & Looper

Packed with powerful features while maintaining intuitive playability, Magneto is a stereo multi-head tape delay that also functions as a looper, phrase sampler, vintage spring reverb unit, phase-aligned clock multiplier, chaotic oscillator, zero latency sub-oscillator and more, with extensive CV I/O.

Transform Your Modular.

Turn simple monophonic signals into complex orchestrations. Create new oscillator tones using self-oscillation. Add rich stereo dimension to your sound, and enjoy the inherent warmth and sweet, subtle distortion characteristics of magnetic tape. Magneto transforms even the smallest rack into a fully expressive, immersive instrument.

Vintage Vibe.

To capture the full experience and complexity of a vintage tape echo machine, every last tape system attribute was relentlessly studied and faithfully recreated. From the sought-after natural saturation and soft clipping of magnetic tape when driven hard, to hands-on real-time controls for tape age, tape crinkle, and mechanical wow and flutter, Magneto delivers a rich multi-head delay experience that adds life and vibe to your sound.

Play It Like An Instrument.

Every function, control, gain stage, and signal path component in Magneto works together to respond musically and smoothly, even during the wildest live modular improvisations. All this is combined with a luxurious spring reverb to take the sound of your modular setup to a new level, and your sonic explorations into far-out territories.

Features:

Tape Saturation

Not only does Magneto deliver the warm, luscious delay signals that tape delays are known for, it is also capable of a high degree of saturation. Turn up the Record Level knob to send a hot signal to the record head for any amount of tape saturation you desire. Turn up the Tape Age control for warmer repeats. Add some truly beautiful Spring Reverb. Magneto adds organic heart and soul to the sound of your modular.

Self-Oscillator

Tap in a fast delay time, crank up the REPEATS knob, and Magneto launches into beautifully singing self-oscillation. Magneto will find evolving tonalities determined by the SPEED/PITCH setting (knob or 1V/octave CV), and the LOW CUT and TAPE AGE knobs. Press the INFINITE transport button to capture a particular tonality. Switch to Pitch Quantize mode and as you turn the SPEED knob, Magneto will play within any of 15 selectable scales.

Pitch Shifted Delays

In SHIFT mode, Magneto creates rhythmically pitched delays by changing the playback speed of each of the playback heads. Head 1 plays back up one octave and a fifth at 3x speed, Head 2 plays up one octave at 2x speed, Head 3 plays down one octave at half speed (creating deep bass sounds), and Head 4 plays quarter note repeats with no pitch shift. Use SHIFT mode to make things bigger and deeper, and to add melodic and rhythmic content. In SHIFT mode, Magneto is also easily configured as a powerful zero-latency sub oscillator: Just run your gate signal to the Restart CV input and blend in only Head 3 with the DRY signal.

Spring Reverb

Some of the classic tape echo machines included small integrated spring reverb tanks tuned to limited bandwidth. For Magneto, we captured this vintage vibe while creating a flexible, beautiful spring reverb that stands on its own, in addition to enhancing delayed signals. The reverb circuit’s gain structure is designed so that when pushed hard, it will trash up nicely to hold its own with the funkiest lo-fi units, but when the input level is backed off, the reverb has a gorgeous, gentle character that enhances even subtle passages in a sophisticated and spacious way.

Looper

Just like one of our favorite moving head tape echo machines, Magneto gives you a Sound on Sound mode (LOOP Mode).

When you enter LOOP Mode, the machine is already recording, just like a traditional tape echo machine. Tape head 4 is the looper playback head while tape heads 1-3 provide delay repeats for the incoming signal. To set the length of your tape, press Tap once to set your splice “in” point, and press Tap again to set your splice “out” point. All of the tone shaping knobs are active and affect your loop as it plays back and re-records. Press Tap a third time to completely erase the tape. The REPEATS knob controls regeneration strength. Set lower REPEATS level for loops that evolve over time. The maximum loop length is 15 seconds at max SPEED, or two minutes at minimum SPEED.

Phrase Sampler

Magneto includes a Phrase Sampler for recording a loop that is the length between two taps of the TAP button. Just press the TAP button once to start sample recording, again to stop recording, and a third time to clear the sample memory. You can trigger sample playback with the RESTART transport button or via the RESTART CV input. The Speed knob or Speed CV determines the pitch and speed of the sample playback.

Infinte Echo

Want to just let Magneto continue to generate a soundscape while you play with some other modules? In ECHO mode or LOOP mode, just press the INFINITE transport button at any time to disable the Record head and allow Magneto to continuously play the most recent delay cycle or loop length audio. You can also engage INFINITE and use Magneto as an oscillator.

Reverse

In ECHO mode, the entire tape contents (not just the current delay time) are played backwards when you press Reverse. This allows for some very trippy effects when playing back sections that included SPEED manipulations or PAUSE events. In LOOP or SAMPLE modes, the loop or sample length will play in reverse. You can continue recording new audio to layer with the reversed audio from the tape.

Clock Multiplier/Divider

Each of Magneto’s four tape heads has its own Clock CV output, phase aligned with incoming Clock or Tap CV signals. In ECHO mode with EVEN head spacing, Head 1 outputs 4/1 (16th notes), Head 2 outputs 2/1 (8th notes), Head 3 outputs 3/4 (dotted 8th notes), while Head 4 is 1/1. Different values are available in TRIPLET and SHIFT head spacings.

Tape Stop/Start

The PAUSE transport control is part of Magneto’s faithful recreation of a varispeed tape delay, with mechanical slowdown when pausing and mechanical speedup when coming out of pause. The speed of this mechanical slowdown/startup effect is user-definable.

Audio Scrubber

When the transport has come to rest after Pause is engaged, the Speed knob acts as an audio scrub tool. The length of audio in the scrub buffer is determined by the position of the Speed knob when Pause is engaged, from 750ms at maximum speed, to 6 seconds at minimum speed.

Stereo Operation

Double your dimension. Even if everything else in your rack is mono, plug into Magneto’s left input and enjoy instant stereo gratification. Each of Magneto’s four playheads can have their outputs panned hard left or right (or center). There are three pan modes: LRLR, LRRL, and (customizable) Center. With all heads centered, a psycho-acoustic stereo image is produced. Adding Wow and Flutter or the built-in Spring Reverb enhances the stereo field even further.

Completely Analog Dry Path

In a typical digital effect the dry signal gets converted to digital, causing conversion noise and latency. Signals are often attenuated before combining digital dry and wet, with makeup gain amplifying the conversion noise. To avoid this terrifying scenario, we’ve equipped Magneto with a completely analog dry path. Why go to all this trouble? Because the improvements in dynamic range and reduction in noise are so dramatic.

Insaley Powerful DSP

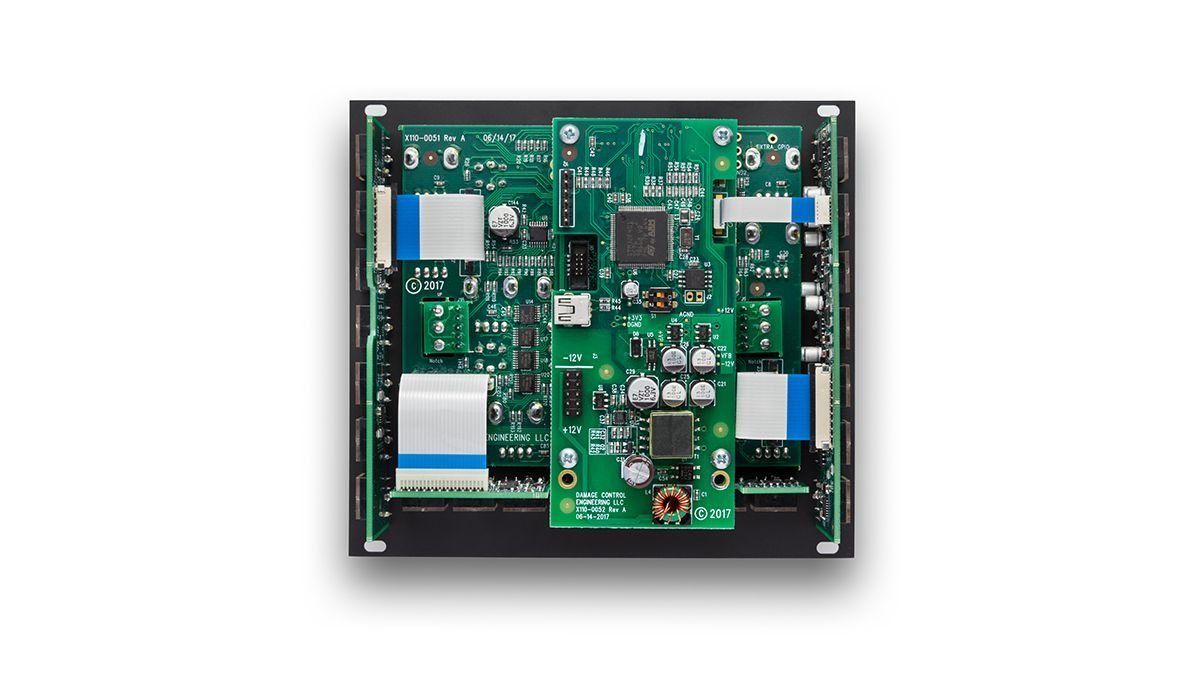

We’ve outfitted Magneto with the incredibly powerful Analog Devices SHARC ADSP-21369 processor, which provides a 366 MHz core instruction rate, and an incredible 2.4 Gigaflops of peak performance. Thanks to this high-powered technology platform within Magneto, we had the freedom to craft our processor-intense tape echo algorithms without compromise.

Specifications:

Sound Desgin

• Tape-voiced delay machine with four playback heads and one record head
• Processor-intense dTape algorithm delivers meticulously nuanced recreations of vintage tape echo systems
• Three operational modes: Echo, Sound On Sound Looper, Phrase Sampler
• Varispeed algorithm with dynamic machine mechanics, 8:1 speed range
• Input record level for clean reproduction to warm, fat saturation
• Self-oscillating for tone generation
• Independent Spring Reverb

Control

• Dedicated control over tape mechanics, machine health, and tone: Low Cut, Tape Age, Crinkle, Wow & Flutter
• Transport controls (buttons and CV inputs) for real-time performance options
• Individual Playback Head Level controls
• Individual head Feedback assignment independent of playback level
• Three stereo head panning options, including user-defined custom panning
• Phase aligned clock out (CLK OUT) CVs synched with clock in (CLK IN) CV

Ranges

• Maximum Delay/Loop Time: 15 seconds at maximum Speed, two minutes at minimum Speed
• Minimum Delay Time: 200µS at maximum speed
• Clock In CV Range: 50ms – 15s
• TAP Button Range: 50ms – 15s
• TAP CV Range: 10ms – 15s

Audio Quality

• Analog dry path for a zero latency dry signal that is never converted to digital
• Super high performance SHARC DSP
• 114db typical signal to noise
• Sampling Rate: 96kHz
• Audio Input Impedance: 22 kOhm
• Maximum Audio Input Level: 20 Vpp
• Audio Output Impedance: 1 kOhm
• Maximum Audio Output Level: 20 Vpp

Power

• +12V rail: 210mA
• -12V rail: 210mA
• +5V rail: 0mA
• Eurorack power cable included

Dimensions

• Rack Width: 28hp
• Rack Depth: 41mm, 1.61”

For musicians and sound designers seeking to capture the warm, rich tones of classic tape echo while embracing modern versatility, the Strymon Magneto Four Head Tape Echo & Looper offers an unparalleled solution. This pedal is designed to deliver authentic analog tape delay sounds with the flexibility and precision that today’s creative professionals demand. Whether you’re crafting atmospheric soundscapes, rhythmic delays, or looping intricate layers, the Magneto provides a sonic palette that transforms your performances and recordings into something truly special.

Many delay pedals attempt to mimic tape echo but fall short of delivering the depth and character that analog tape imparts. The Magneto addresses this by faithfully recreating the behavior of vintage tape machines, including the subtle modulation, saturation, and wow/flutter effects that give tape its distinctive warmth. This means you don’t just get a delay effect—you get a dynamic, organic sound that evolves with your playing style and adds a tactile, musical dimension to your tone. It’s a tool that inspires creativity rather than limiting it.

At its core, the Magneto features four independently controllable tape heads, allowing you to shape complex delay patterns and textures with remarkable precision. Each head can be adjusted for delay time and mix level, enabling you to craft everything from tight slapback echoes to sprawling, multi-layered ambient washes. The pedal also includes a built-in looper with up to 30 seconds of recording time, perfect for building loops on stage or in the studio without needing additional equipment. This combination of tape echo and looper functionality means you have a powerful, all-in-one tool that streamlines your workflow and expands your sonic possibilities.

The pedal’s intuitive interface ensures that these advanced features remain accessible. Controls for tape age, modulation depth and speed, tape speed, and feedback allow you to dial in exactly the tone and character you want. The tape age control, for example, lets you simulate the sound of fresh or worn tape, affecting the clarity and warmth of the repeats. Modulation parameters inject subtle pitch variations that add movement and life to the delays, preventing them from sounding static or artificial. This level of detail means you can tailor your sound to fit any genre or playing context, from vintage rock to experimental electronic music.

Measuring a compact footprint suitable for pedalboards of all sizes, the Magneto is built with high-quality components to ensure durability and reliability in demanding performance environments. It operates on standard 9V DC power and features stereo inputs and outputs, which facilitate immersive delay effects and seamless integration with other gear. The pedal is priced at ₹59,990, making it a premium investment for serious musicians who prioritize sound quality and creative flexibility. Compared to its regular price of ₹66,600, this sale price offers excellent value for a product of this caliber.

In practical terms, the Strymon Magneto is ideal for guitarists, keyboardists, and producers who want to inject classic tape echo warmth into their music without the hassle of maintaining actual tape machines. Its looper capabilities also make it a versatile tool for solo performers and composers who rely on layering parts in real time. Whether you’re on stage, in the studio, or experimenting at home, the Magneto’s combination of vintage sound and modern control will inspire new ideas and elevate your sonic expression.

In conclusion, the Strymon Magneto Four Head Tape Echo & Looper stands out as a premium pedal that bridges the gap between vintage analog character and modern digital convenience. Its authentic tape echo emulation, flexible four-head design, and integrated looper offer musicians a broad creative range in a robust, easy-to-use package. By choosing the Magneto, you invest in a tool that not only enhances your sound but also fuels your creative journey with inspiring textures and expressive possibilities. Confidently add this pedal to your rig and experience the transformative impact of true tape echo in your music.
