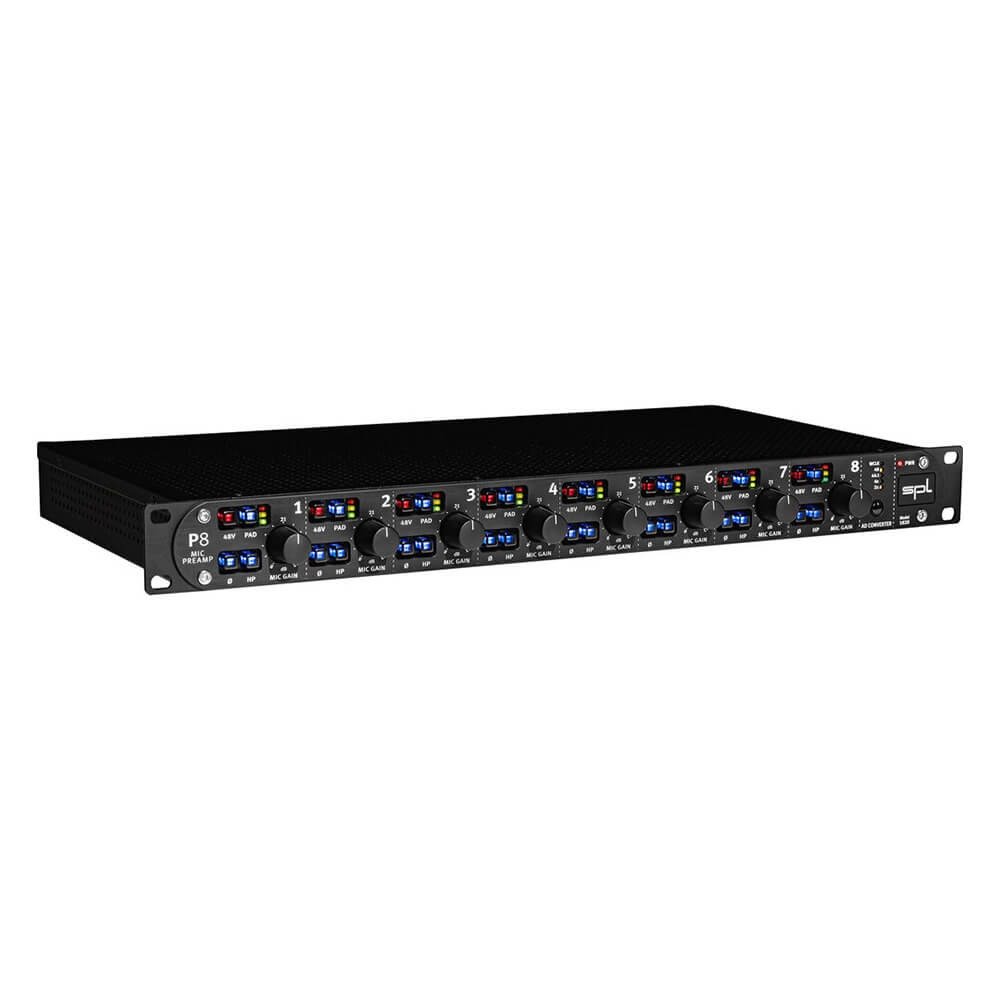

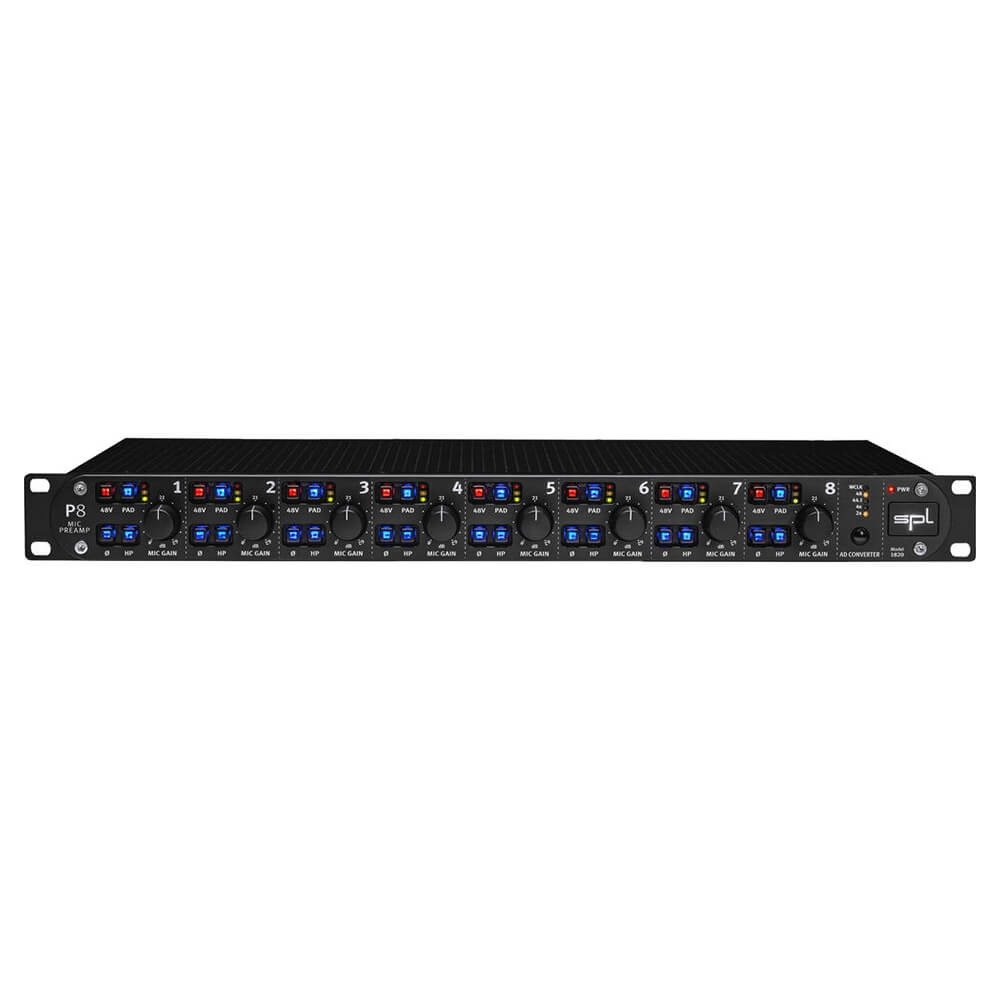

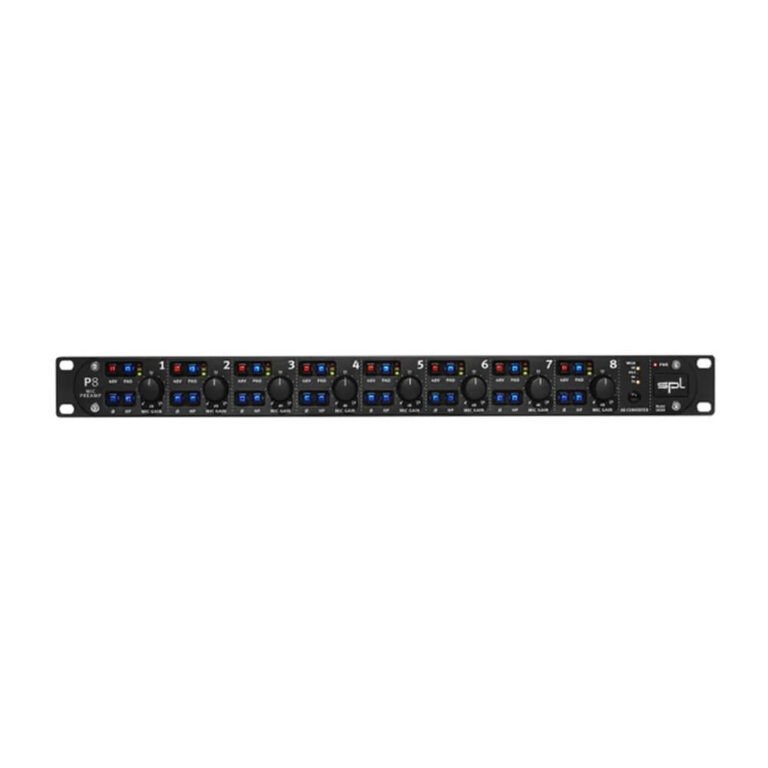

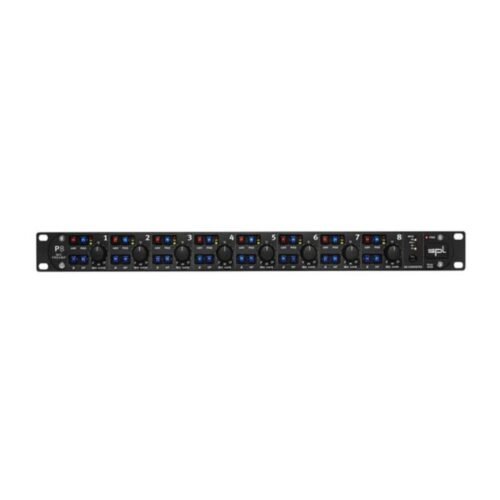

SPL Audio P8 Microphone Preamp

SPL P8 Overview.

SPL’s Crescendo 8 eight-channel preamp was a great hit at. The business has now condensed the musical essence of their high-end multichannel preamp into the P8, a compact 8-channel preamp that provides excellent value for money. You still get SPL’s discrete transistor circuit design—no ICs here! Each of the eight channels contains a full-featured mic preamp, replete with a rotary gain control and switches for enabling phantom power, a 20 dB pad, polarity reversal, and a highpass filter.

The pure-analog P8, which includes SPL’s optional eight-channel A/D converter with ADAT outputs, may be digitally linked to your audio interface. We’ve rarely seen so much capability crammed into a compact 1U 19-inch rackmount chassis. When you use the SPL P8 in your studio or live setup, you will be pleasantly surprised by its performance, adaptability, and value. We surely are.

Eight pristine channels of a microphone preamplifier with professional features.

Microphone Inputs With Gain Control: The P8’s eight microphone inputs include Neutrik XLR sockets with gold-plated contacts. The signal transmission is electronically balanced to a nominal level of 0 dBu. The gain control runs from +8 to +62 dB.

Phantom Power: Each of the eight preamplifiers features a separate 48V phantom power switch for use with condenser mics.

Pad: Each pad switch in the corresponding preamplifier section attenuates the microphone input signal by -20 dB, allowing the P8 to handle even extremely high levels; this is ideal for usage with loud percussion or brass recordings.

Reverse Phase: Every preamp features a phase reversal capability that reverses the signal’s polarity by 180°.

High-pass filter: Each of the eight preamp sections features a 6 dB per octave high-pass filter designed to reduce undesirable frequencies below 80 Hz.

Pure analog, optional digital output.

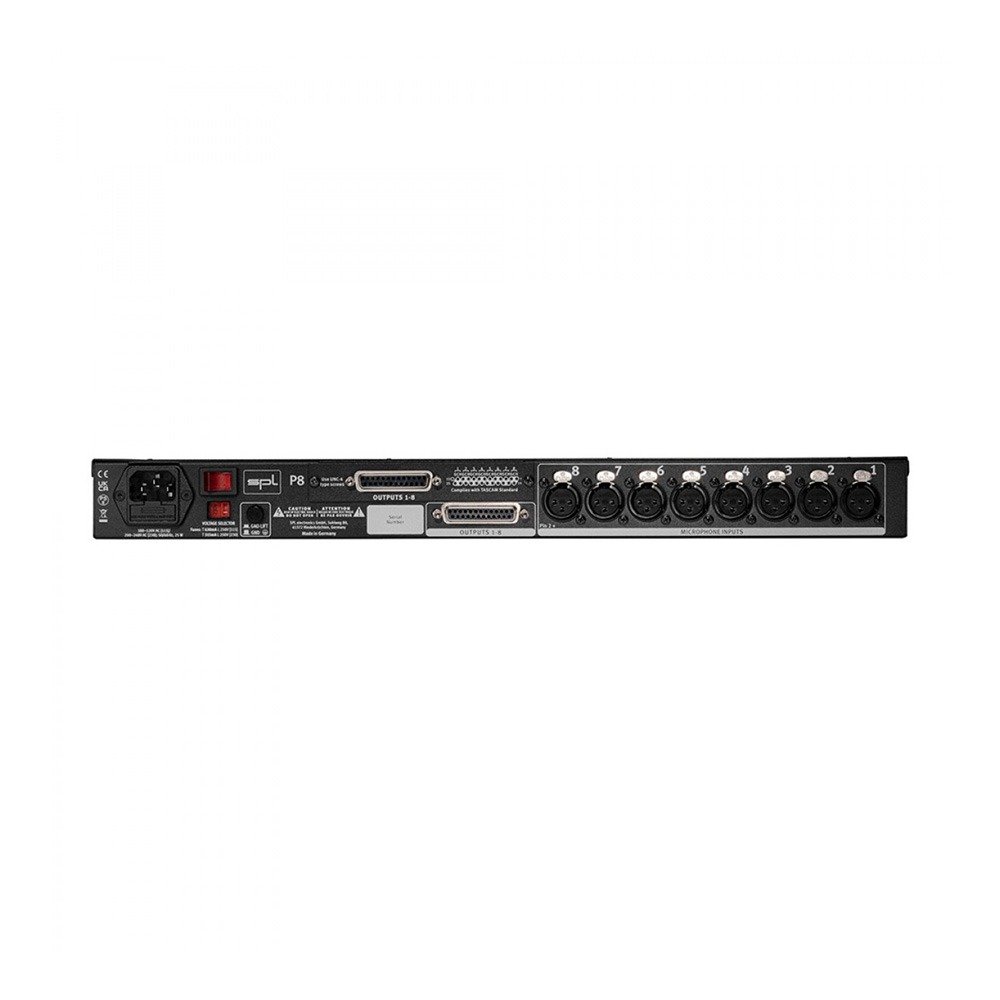

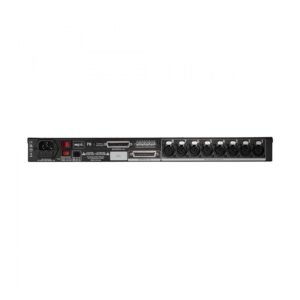

The P8’s eight mic inputs feature rear-panel Neutrik XLR connectors with gold-plated contacts. Signal transmission is electronically balanced at a nominal level of 0 dBu. The P8 provides eight line-level signals via duplicate DB-25 connectors on the back panel, allowing for flexible downstream routing. You can connect one of these to a multichannel A/D converter with DB-25 ports, then run the analog outs in parallel as a backup or through a separate effects chain to another recording device, eliminating the requirement for a signal splitter.

As previously indicated, the P8 may be equipped with an eight-channel A/D converter. With this version, digital outputs replace the duplicate analog eight-channel DB-25 output, allowing the P8 to be connected directly to an audio interface’s ADAT inputs.

High-performance A/D converter options

The P8 with ADAT employs the renowned AKM AK5538 ADC chip, which translates analog audio with sampling rates of up to 192 kHz to provide extremely detailed digital output via ADAT optical (TOSlink), which is compatible with a wide range of audio interfaces. The converter’s ability to work in single, double, or quad-speed modes allows you to choose the number of output channels and sample rates. Whatever speed mode you choose, the P8 will continue to output eight analog channels via the DB-25 connection. The A/D converter has word clock I/O, a switch for terminating the clock input, and a USB service connector for firmware updates.

Made in Germany.

Each P8 is meticulously crafted in SPL’s production plant in Niederkrüchten, Lower Rhine, Germany, to ensure perfect quality control.

Many critical components are mounted on circuit boards utilizing through-hole technology to provide the exceptional audio performance that your sessions require.

SPL P8 Features:

• Eight-channel microphone preamplifier.
• Discrete transistor circuit design.
• Per-channel balanced XLR inputs
• Per-channel 20 dB pad, polarity reverse, 48 V phantom power, 80 Hz, 6 dB/octave HPF.
• 8-channel output using redundant DB-25 ports.
• Optional 8-channel A/D converter with ADAT outputs (replacing one DB-25 connector)
• meticulously handmade in Germany.

In the world of professional audio production, achieving pristine sound quality with complete control over your recordings is a non-negotiable standard. Whether you’re an engineer in a high-end studio, a live sound technician, or an audio enthusiast aiming for uncompromising clarity, the SPL Audio P8 Microphone Preamp is designed to elevate your sound to its fullest potential. This device provides the critical first step in your audio chain, ensuring that every nuance of your source material is captured with precision and fidelity.

One of the paramount challenges in audio recording is maintaining a clean signal without introducing noise or distortion. The P8 addresses this by utilizing solid-state preamp technology, known for its reliability and low noise floor. This means you get transparent amplification of your microphone signals, preserving the natural character of your instruments and vocals without coloration. For the user, this translates into recordings that are true to the original sound, giving you a trustworthy foundation to build your mix upon.

The SPL P8 offers eight microphone inputs through high-quality XLR connectors, allowing simultaneous recording from multiple sources. This is particularly valuable for sessions requiring multi-mic setups, such as drum kits, ensembles, or complex vocal arrangements. Each channel is equipped with phantom power, which supports condenser microphones and other devices needing external power. This versatility ensures compatibility with virtually any microphone type you choose, providing flexibility in your studio or live environment.

Connectivity extends beyond inputs, with two DB-25 analog outputs that facilitate seamless integration into larger audio systems or multi-channel recording setups. The compact 1U rack size makes the P8 an efficient addition to any rack, saving valuable space without compromising on features. With dimensions of 19 inches in width, 9.33 inches in depth, and a height of just 1.75 inches, it fits comfortably into professional audio racks, studios, or mobile rigs, making it practical for a wide range of applications.

Designed for serious professionals, the SPL Audio P8 preamp excels in delivering consistent, high-quality sound with robust construction and user-friendly operation. Its solid-state design offers durability and dependable performance over time, minimizing the need for maintenance or troubleshooting. Whether you are tracking multiple vocalists in a studio or capturing a live band on location, the P8 provides the reliability and sonic integrity required to meet demanding production standards.

In summary, the SPL Audio P8 Microphone Preamp is an indispensable tool for anyone committed to capturing superior audio. Priced at ₹219,400, it represents a sound investment in audio quality, workflow efficiency, and professional-grade craftsmanship. Choose the P8 to ensure that your recordings start with the cleanest, most accurate sound possible, giving you confidence and control throughout your entire production process.
