Original price was: ₹63,846.₹60,654Current price is: ₹60,654.
In stock

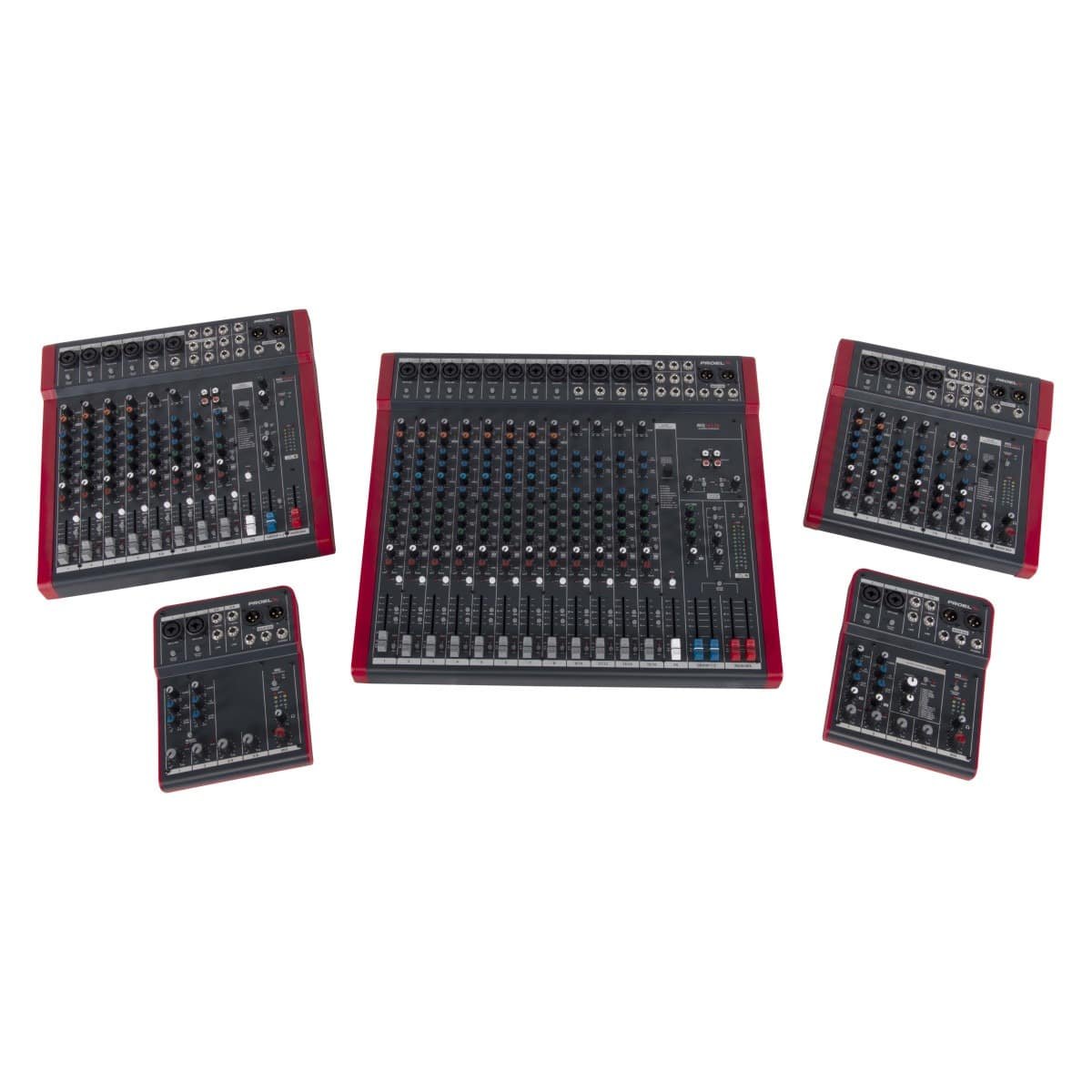

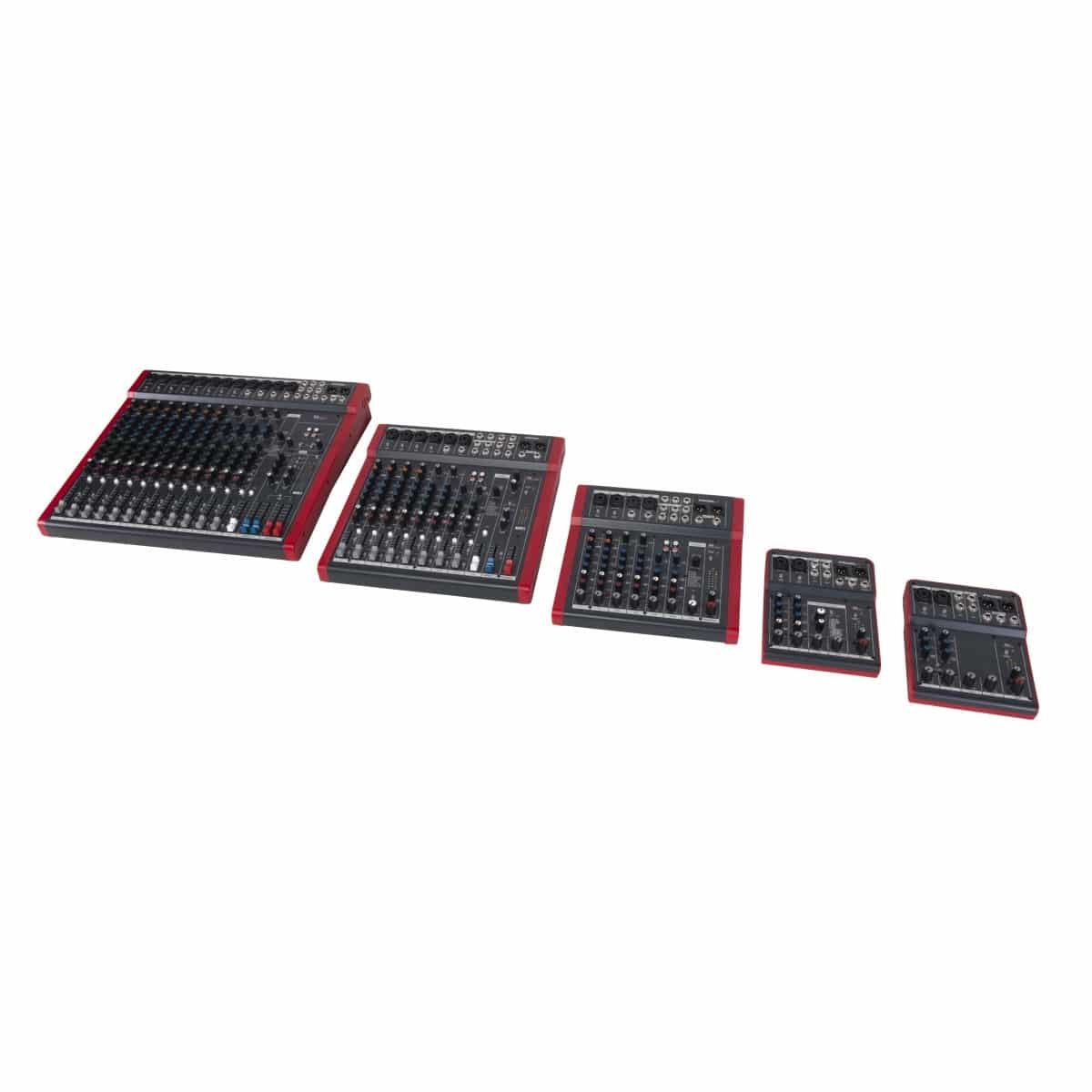

MQ is a series of mixers created by PROEL to offer in a very compact and stylish package a high input density, a full set of features and a superior audio quality, at a very convenient price point. The MQ series includes 5 models with 6, 10, 12 and 16 inputs, able to satisfy most of the sound reinforcement applications. Carefully designed and engineered in Italy by PROEL R&D, MQ mixers are hosted in ultra-rugged cases, providing extended durability for a stage-proof use.
The smallest models of the series, MQ6 and MQ6FX, offer in an ultra-compact format the performance of professional consoles, delivering a clean and accurate sound. The MQ6FX, despite its small size, includes a high-quality 24-bit DSP able to provide musicians and performers with studio-grade effects.
The PROEL MQ series is a range of professional audio mixers designed to offer high performance in a compact and stylish package. Built for musicians, performers, and sound engineers, MQ mixers deliver a superior audio experience at an affordable price. Each model provides a perfect balance of functionality, durability, and convenience, making them ideal for both live sound reinforcement and studio use.
Engineered in Italy by PROEL R&D, the MQ mixers feature ultra-low noise preamps and robust metal chassis for extended reliability. The smallest models, MQ6 and MQ6FX, offer the same clean, accurate sound as large professional consoles in a highly portable format. MQ6FX even includes a high-quality 24-bit DSP to deliver studio-grade effects to performers.

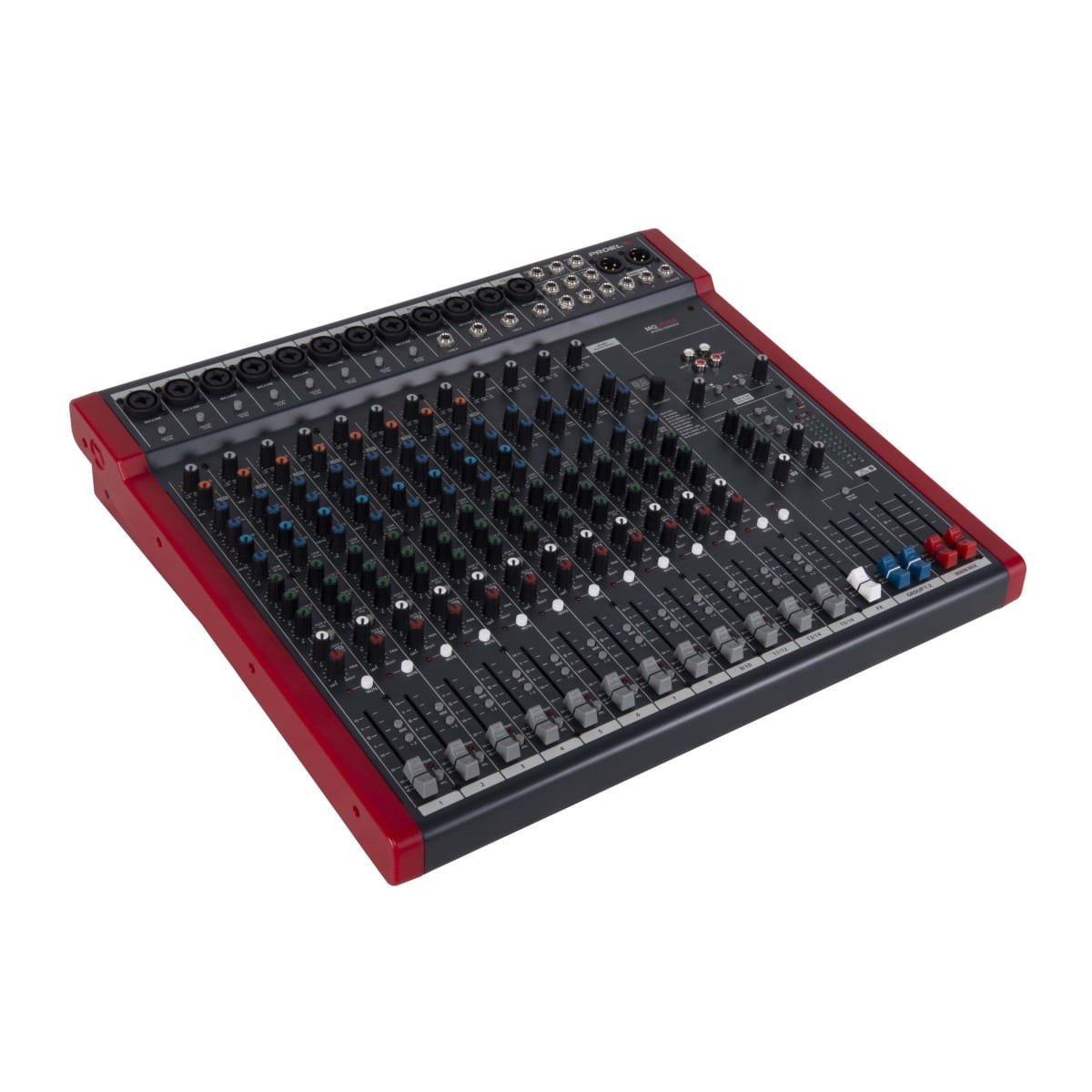

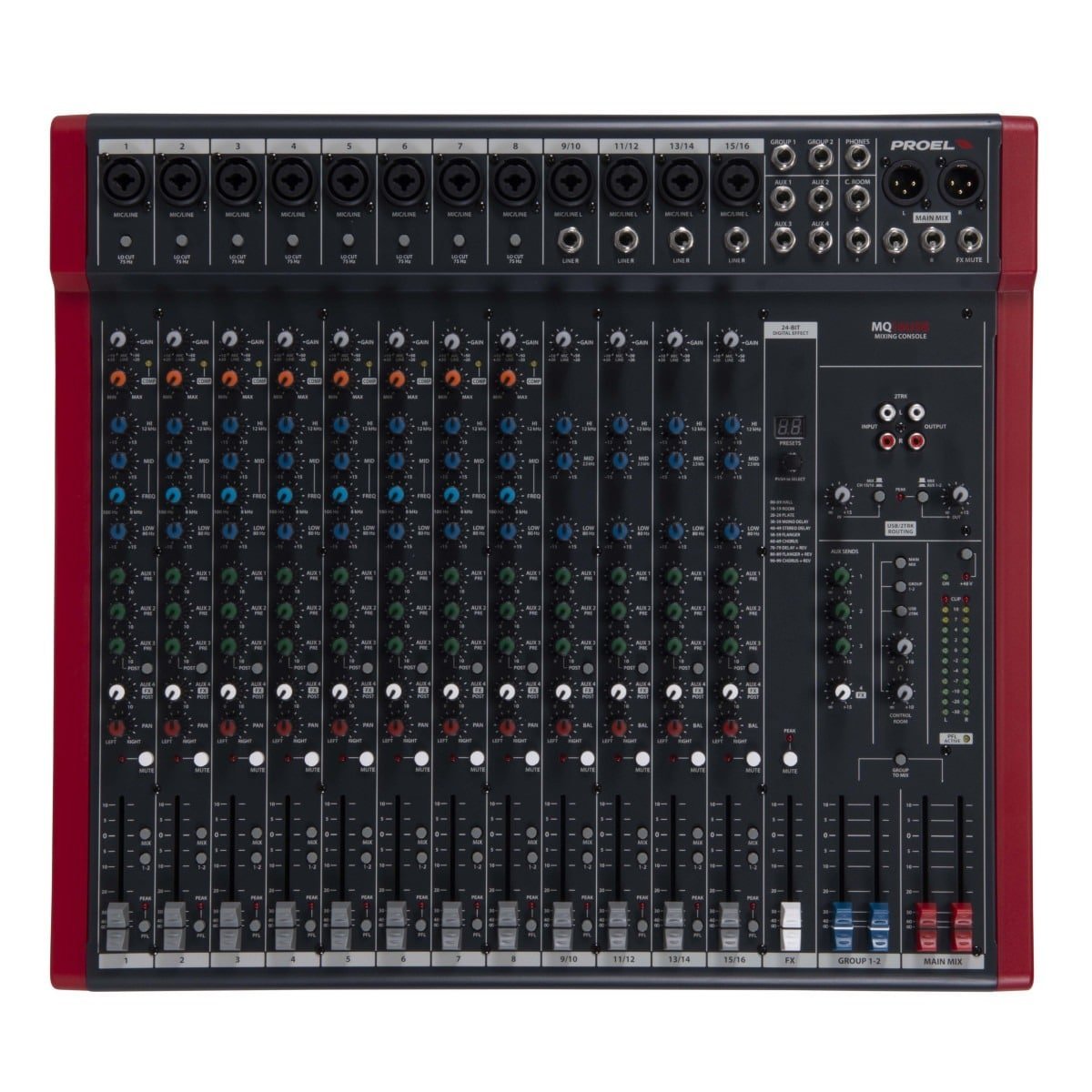

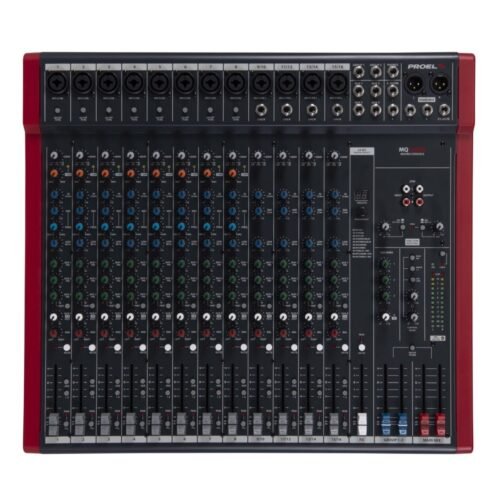

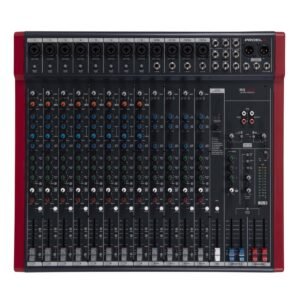

MQ12USB adds an integrated USB audio I/O interface, monitor send, stereo group bus, and 45mm control faders. The flagship MQ16USB model further extends mixing power with 16 inputs, 12 microphone channels, sweep mids, compressors, 4 AUX sends, stereo group bus, and professional 60mm control faders — all built into a compact, stage-proof design.
Designed for demanding live environments, all MQ mixers feature an ultra-rugged metal chassis and stage-proof construction. Optional padded carrying bags and 19” rack-mount brackets are available for select models, ensuring both mobility and safe installation wherever you perform.
| MONO INPUT CHANNEL | |||
| Mic Input | sensitivity | from -10 to -50 dB | Balanced XLR-F |
| impedance | 2 Kohm | ||
| Line Input | sensitivity | from +20 to -20 dB | Balanced JACK |
| impedance | 10 Kohm | ||
| Lo cut | 75Hz, 18dB/oct. | ||
| EQ | HIGH (shelving) | ±15 dB @ 12 KHz | |
| MID (peaking) | ±15 dB from 100 Hz to 8 kHz | ||
| LOW (shelving) | ±15 dB @ 80 Hz | ||
| Compressor | Fet | CH 1-8, 1-knob | |
| STEREO INPUT CHANNEL | |||
| Mic Input | sensitivity | from -10 to -50 dB | Balanced XLR-F |
| impedance | 2 Kohm | ||
| Line Input | sensitivity | from +20 to -20 dB | Balanced JACK |
| impedance | 10 Kohm | ||
| EQ | HIGH (shelving) | ±15 dB @ 12 KHz | |
| MID (peaking) | ±15 dB @ 2.5 KHz | ||
| LOW (shelving) | ±15 dB @ 80 Hz | ||
| MASTER SECTION | |||
| MAIN MIX | nom. out level | +4 dBu | Balanced JACK and XLR-M |
| C. ROOM output | nom. out level | 0 dBu | Unbalanced JACK |
| GROUP output | nom. out level | +4 dBu | Balanced JACK |
| FX/AUX output | nom. out level | 0 dBu | Unbalanced JACK |
| 2TRK | nom. out level | 0 dBu | Unbalanced RCA |
| nom. in level | 0 dBu | Unbalanced RCA | |
| HEADPHONES | min. impedance | 32 ohm | |
| max. out level | (2x) 193 mW | Stereo JACK | |
| USB | Stereo IN/OUT, 16-bit converter, 48 KHz sample rate | Type B | |
| DIGITAL EFFECT PROCESSOR | |||
| Effects | 100 presets | ||
| A/D and D/A converters | 24 bit | ||
| DSP resolution | 24 bit | ||
| Controls | 2-DIGIT display, DIAL, PEAK LED, MUTE switch, MUTE footswitch | ||
| GENERAL SPECIFICATIONS | |||
| Maximum level | all outputs | +22 dBu | |
| Crosstalk | meas. at 1 KHz | > 82 dBu | |
| HUM & Noise | unweighted | < -93 dBu | |
| THD + Noise | at +4dB, 1kHz | < 0,008 % | |
| Brand | Proel |
|---|---|
| Dimensions (WxHxD) | 481 x 432 x 104 mm |
| Weight | 6,50 kg |
| Mains Supply Voltage | 110-240 VAC (±10%) 50 / 60 Hz available with |
| Consumption | 35 W |
