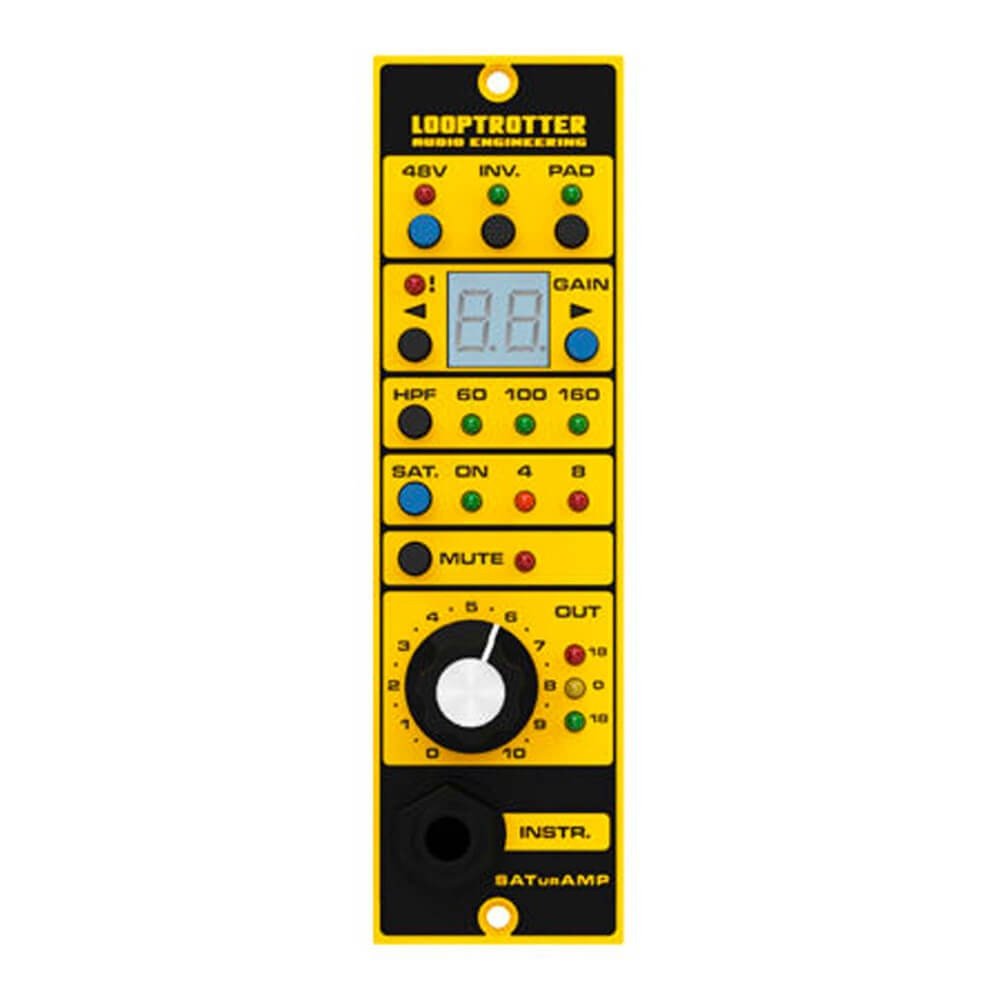

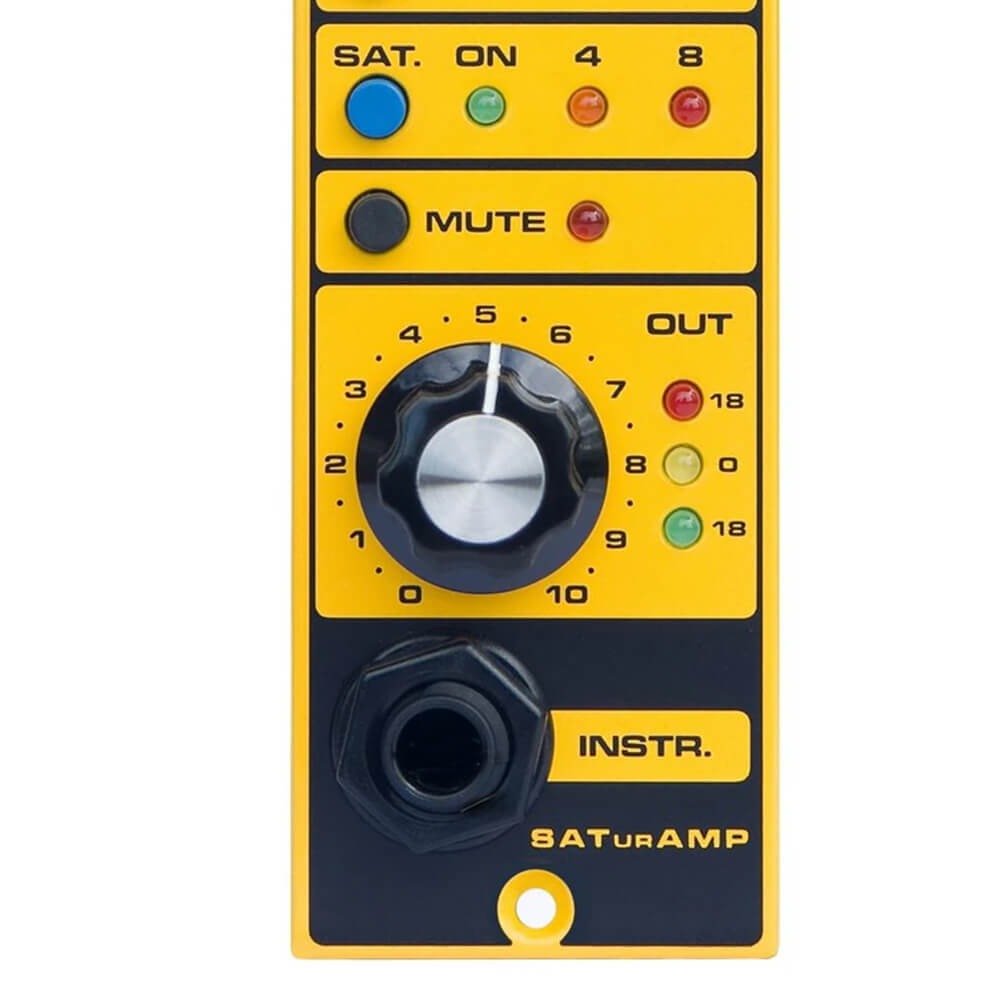

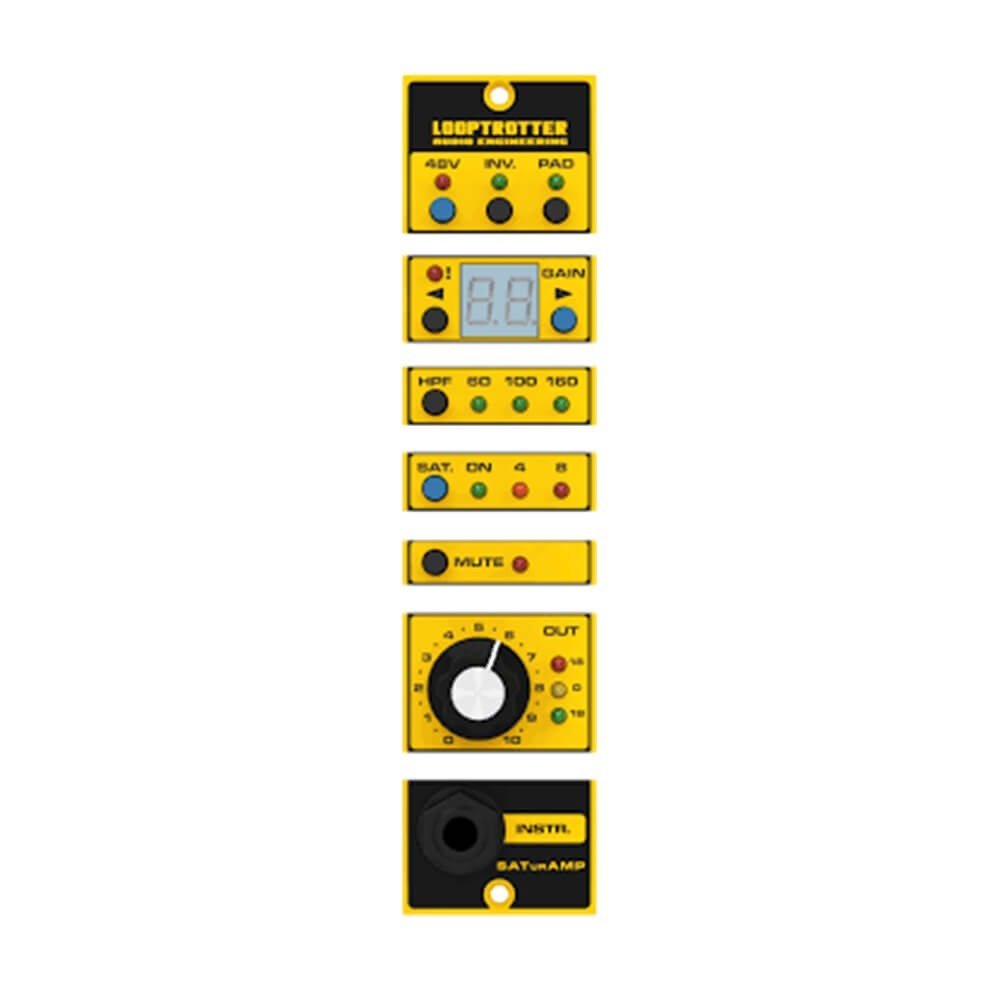

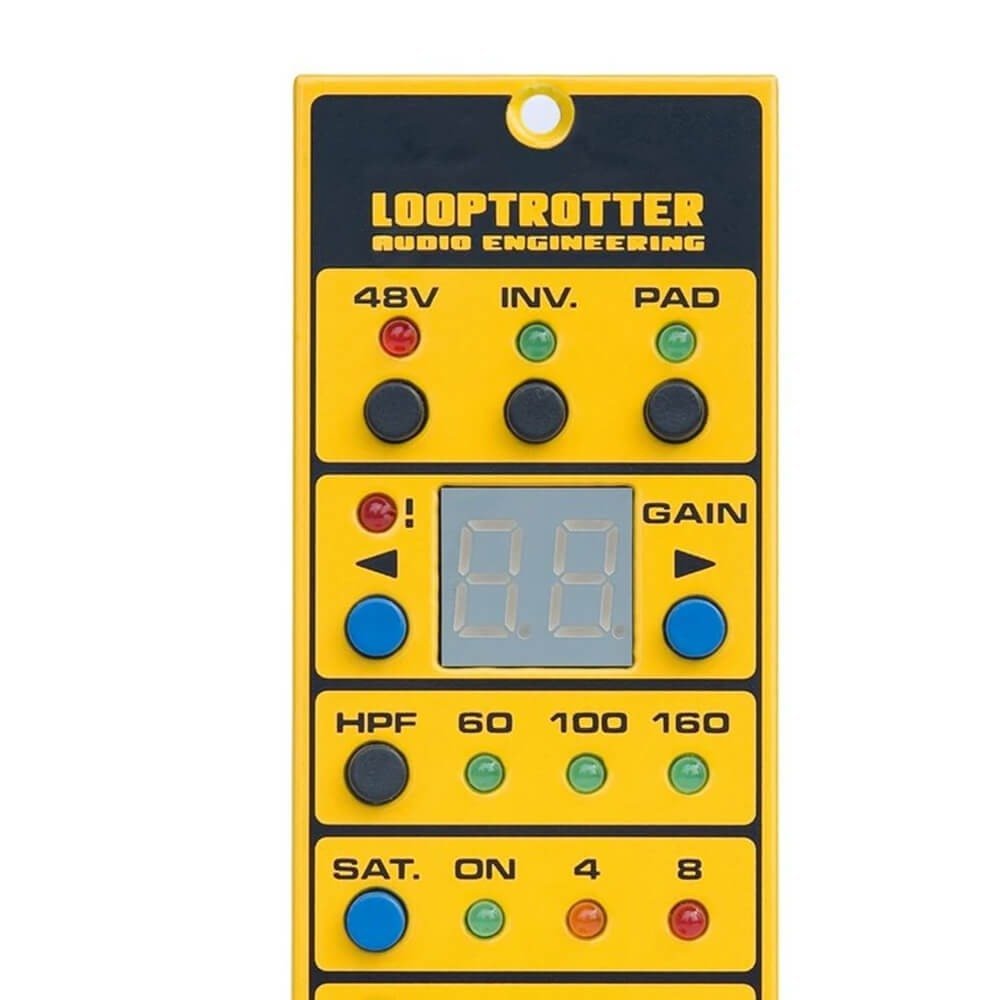

LOOPTROTTER SATurAMP

LOOPTROTTER SATurAMP is one of a kind microphone / instrument preamplifier, equipped with Looptrotter’s world famous solid state saturation circuit wrapped in 500 series format. Thanks to this unique combination SATurAMP is not only a creative and unique, but also universal tool capable of producing powerful sounds, with great detail preservation.

SATurAMP’s Mic/Line input is equipped with SOWTER transformer, based on the AP2620, found in legendary API preamps. The module has 48V switchable Phantom Power, Phase invert and -20dB Pad function which changes the input mode from Mic to Line. The operating amplifier, build entirely of discrete class A elements, refers to early operating amps from the 60s. However gain adjustment by 1dB is digitally controlled via micro buttons. The amplification value, expressed in dB, is shown on digital display.

SATurAMP has three different high-pass filters with a slope of 12dB per octave:

• 60Hz-Chebychev
• 100Hz-Butterworth
• 160Hz-Bassel

Saturation circuit, inspired by old tape recorders and analog consoles, smoothes signal peaks and adds low order harmonics. It also works as a soft limiter, allowing to record sources with higher RMS level, without distortion, sounding neat, detailed and crisp.

MUTE function, very rare on 500 format modules, improves workflow efficiency.

OUTPUT allows precise output signal level adjustment.

Instrumental (Hi-Z) input is based on discrete transistors, operating in class A. The appliance of FET transistor enriches the signal with small amount of even, harmonic frequencies, positively affects the sound of instruments plugged directly into the module. This refers not only to guitars and bass but also to synthesizers, adding warm, analog touch.

LOOPTROTTER SATurAMP SIGNAL CHAIN

SATurAMP in brief:

• Discrete class A preamplifier with SOWTER transformer delivers amplification of 66dB (gain 60dB + output +6dB)
• 48V Phantom Power
• Phase Invert
• Pad -20dB
• Signal peak indicated with LED
• Three different high-pass filters with 12db slope per octave
  •   60Hz – Chebychev,
  • 100Hz – Butterworth,
  • 160Hz – Bessel
• Solid state saturation circuit adding low order harmonic frequencies
• 2 LEDs indicating signal saturation level (4% and 8% THD)
• MUTE button – muting the preamp output
• Instrument input, Hi-Z, (impedance of 1M ohm), build of discrete elements
• 3 LEDSs indicating output level

For audio professionals and enthusiasts seeking a reliable and high-quality audio interface, the Looptrotter SATur AMP presents an ideal solution. Whether you are recording in a home studio or performing live, capturing pristine sound with minimal latency is crucial. The SATur AMP is designed to elevate your audio setup by providing superior sound fidelity and seamless connectivity, ensuring your creative process is uninterrupted and your recordings are of the highest standard.

One of the standout aspects of the SATur AMP is its ability to deliver crystal-clear audio with ultra-low latency. This means when you are recording vocals or instruments, you hear yourself in real time without any distracting delay. This feature is essential for maintaining timing and performance accuracy, which ultimately translates to better takes and a smoother workflow. The interface’s high-quality preamps preserve the natural tone of your instruments and microphones, so you capture every nuance and detail without unwanted distortion.

Equipped with multiple input and output options, the SATur AMP offers great flexibility for various recording scenarios. It supports both XLR and 1/4 inch inputs, accommodating a wide range of microphones and instruments. This versatility allows you to connect everything from professional condenser mics to electric guitars effortlessly. The interface also features balanced outputs for studio monitors, ensuring that what you hear during mixing or playback is an accurate representation of your sound. This precision is vital for making informed mixing decisions and producing polished final tracks.

In terms of practical specifications, the Looptrotter SATur AMP boasts a robust build quality with a compact and portable design. Its solid chassis protects the internal components, making it durable enough to withstand the rigors of both studio and on-the-road use. Weighing just enough to be stable on your desk without being cumbersome to transport, it strikes the perfect balance between portability and reliability. Additionally, the interface is compatible with most major digital audio workstations, streamlining integration into your existing setup without the need for complex configurations.

This audio interface is well-suited for a variety of applications, from professional music production and podcasting to live streaming and voice-over work. Musicians will appreciate the high headroom and clean gain structure that allows for dynamic performances to be captured authentically. Podcasters and streamers benefit from the low-latency monitoring and clear input channels, which help maintain professional sound quality during live broadcasts. Essentially, the SATur AMP adapts to your creative needs, making it a versatile tool for any audio project.

Choosing the Looptrotter SATur AMP means investing in a piece of equipment that prioritizes sound quality, ease of use, and durability. Its competitive price point of ₹76,525 reflects the premium features and build quality it offers, providing excellent value for the serious audio user. Whether you are upgrading from a basic interface or starting your professional journey, this device ensures your audio capture is reliable and sonically superior.

In conclusion, the Looptrotter SATur AMP stands out as a dependable and efficient audio interface that meets the demands of modern audio production. It solves common challenges such as latency, connectivity, and sound fidelity with a thoughtfully designed package. By choosing the SATur AMP, you gain confidence that your recordings will be clear, accurate, and professional-grade, empowering you to focus on what truly matters—your creative expression.
