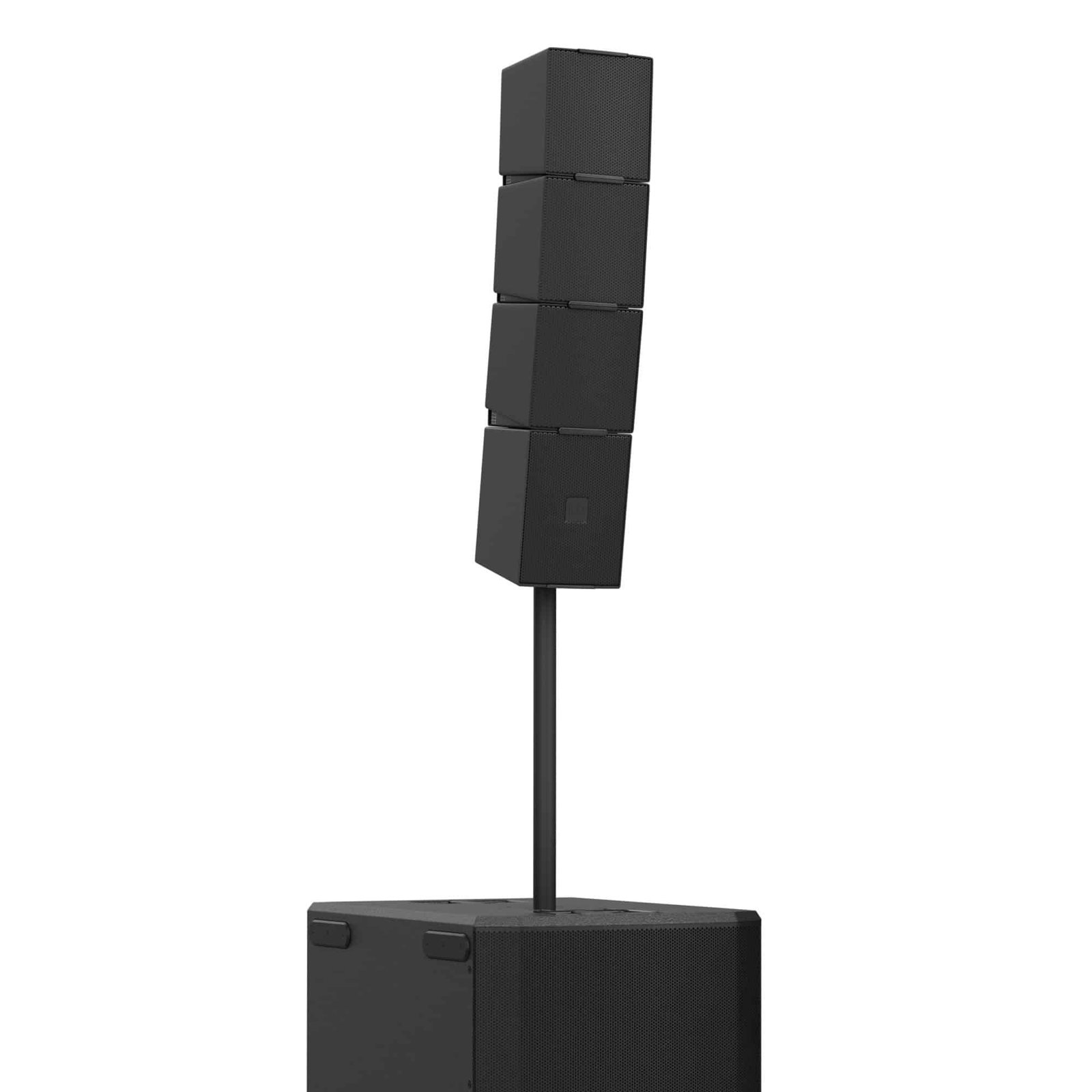

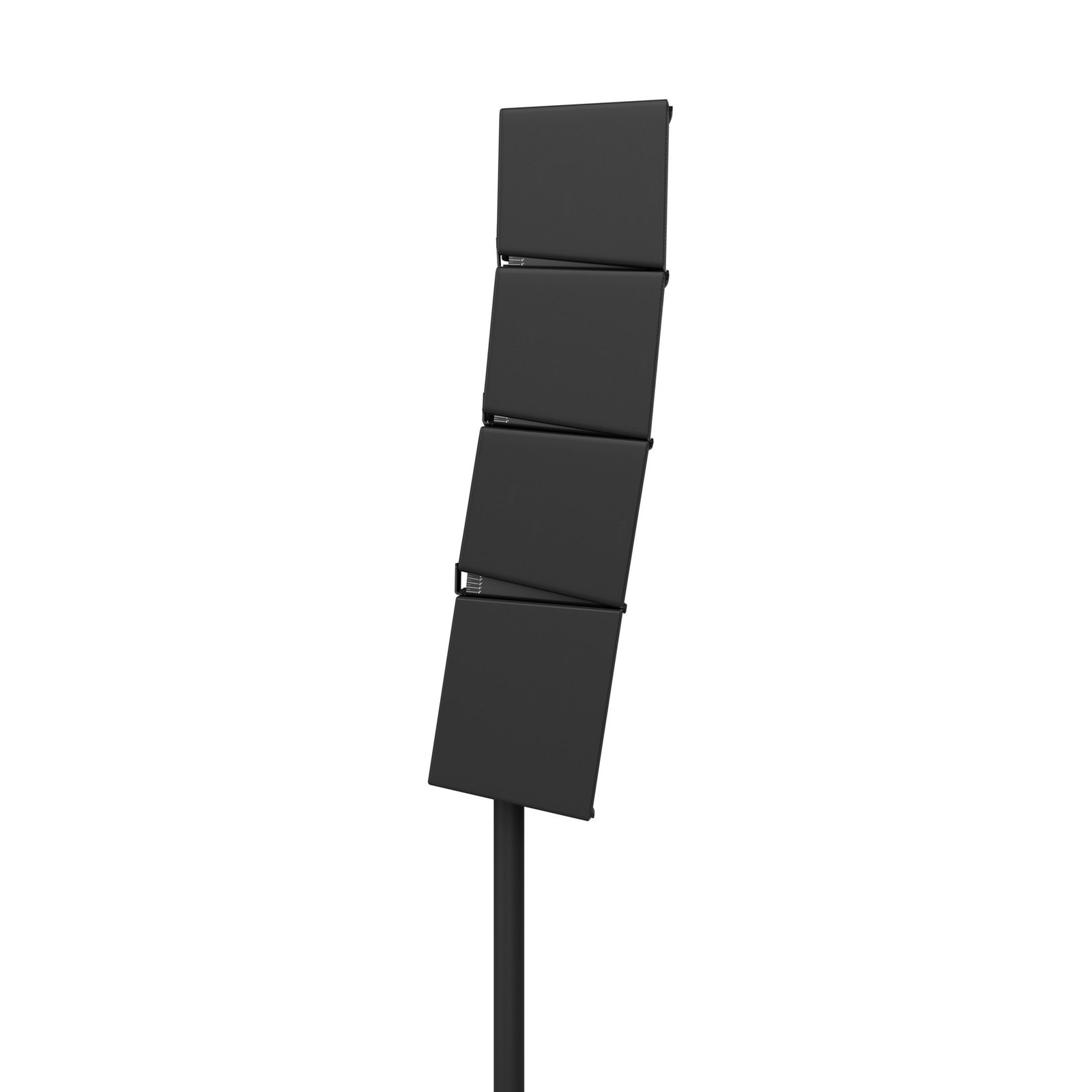

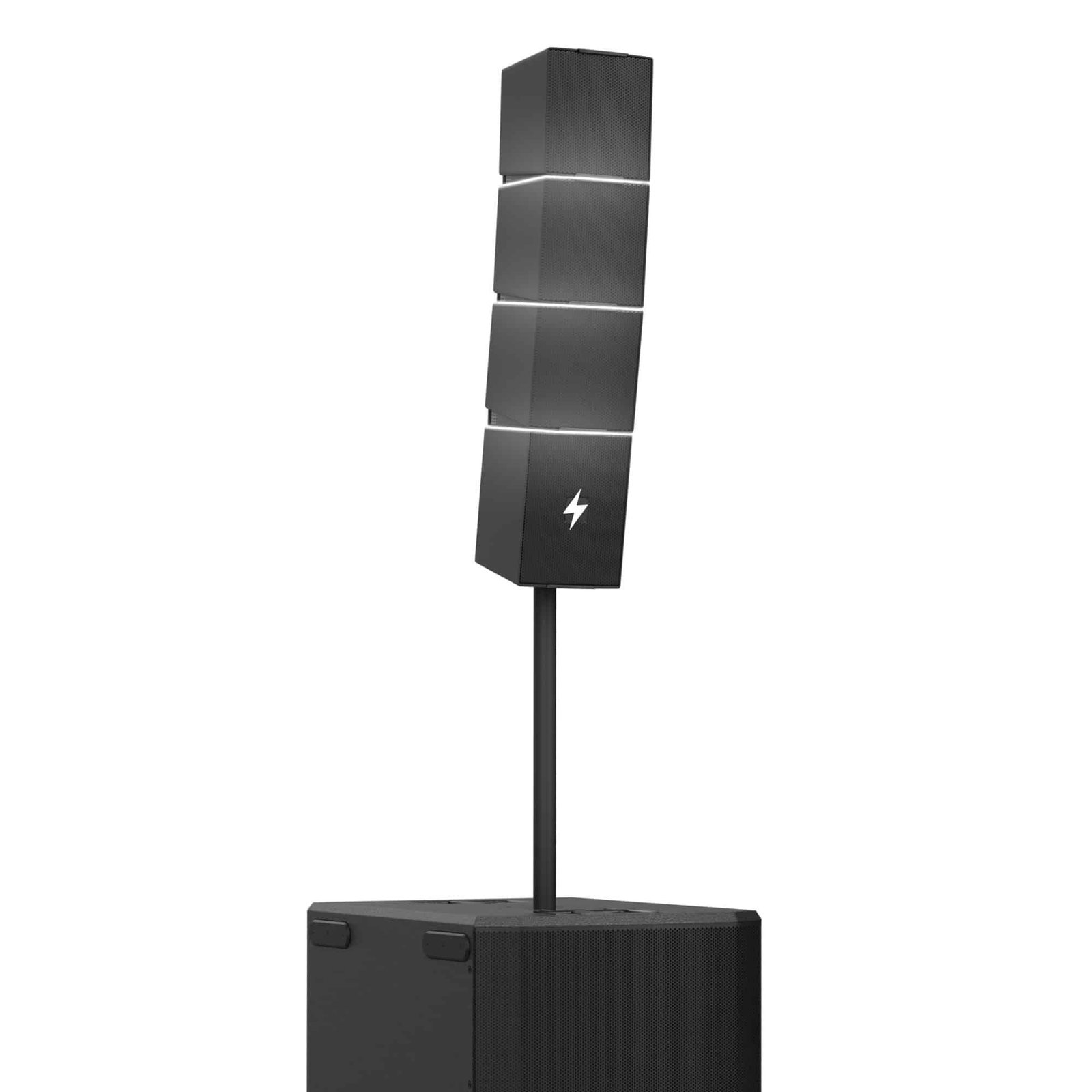

MAILA SPA is the only MAILA module without integrated loudspeakers – and yet an integral part of the MAILA concept. Its versatility can already be guessed at by looking at the range of MAILA sets: The MAILA SPA amplifier module is used in the smallest MAILA-S ground stack set as well as in the large MAILA XL version with flown arrays.

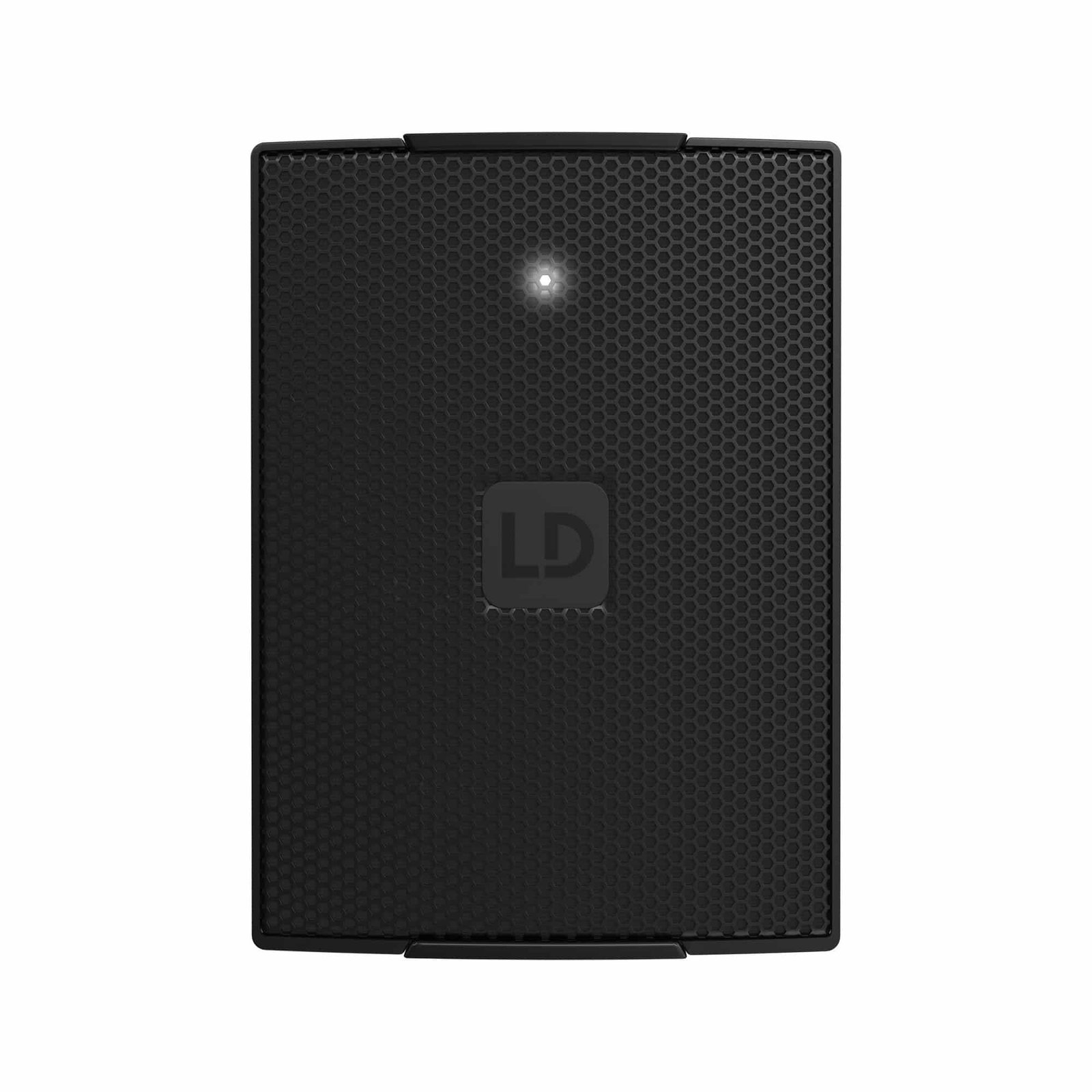

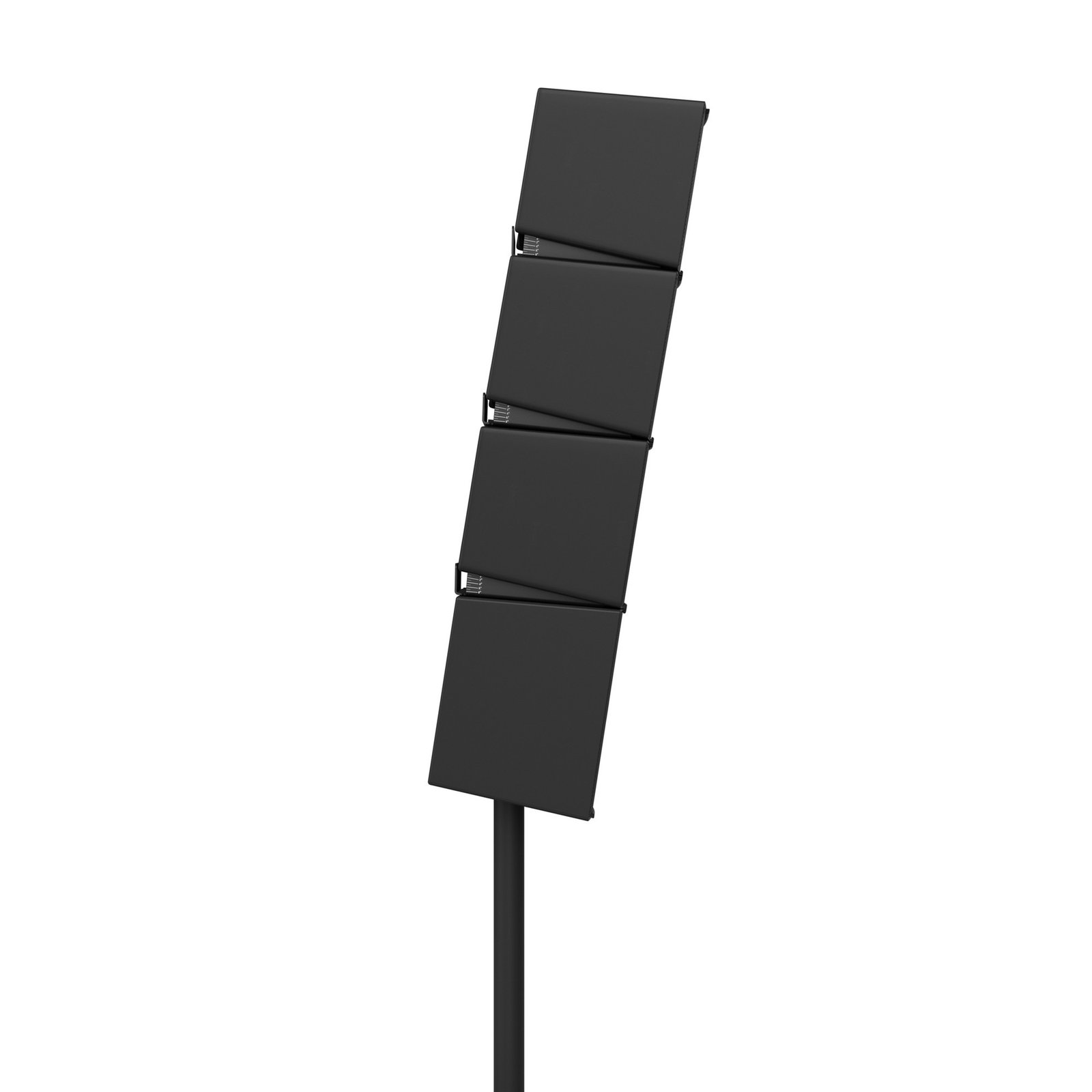

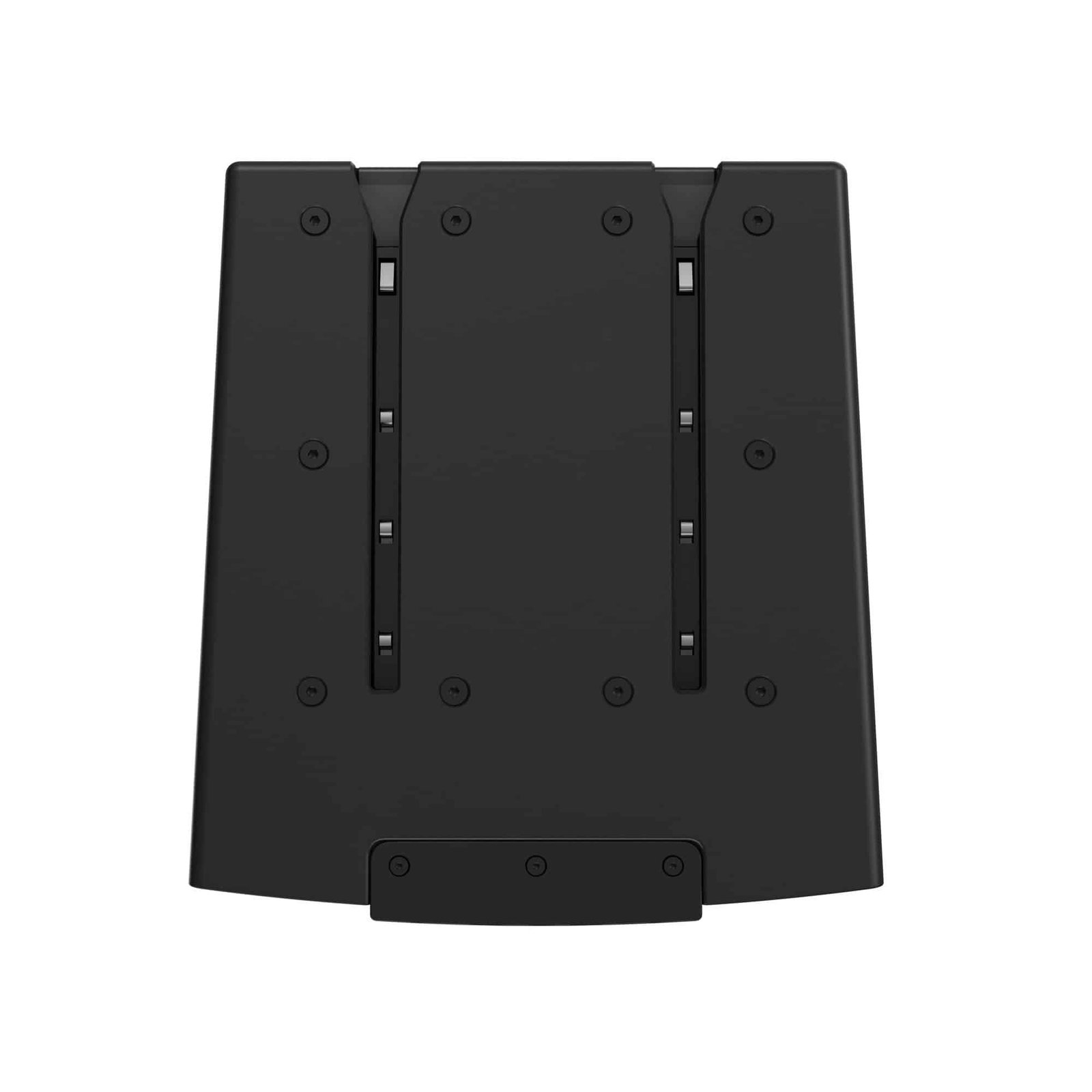

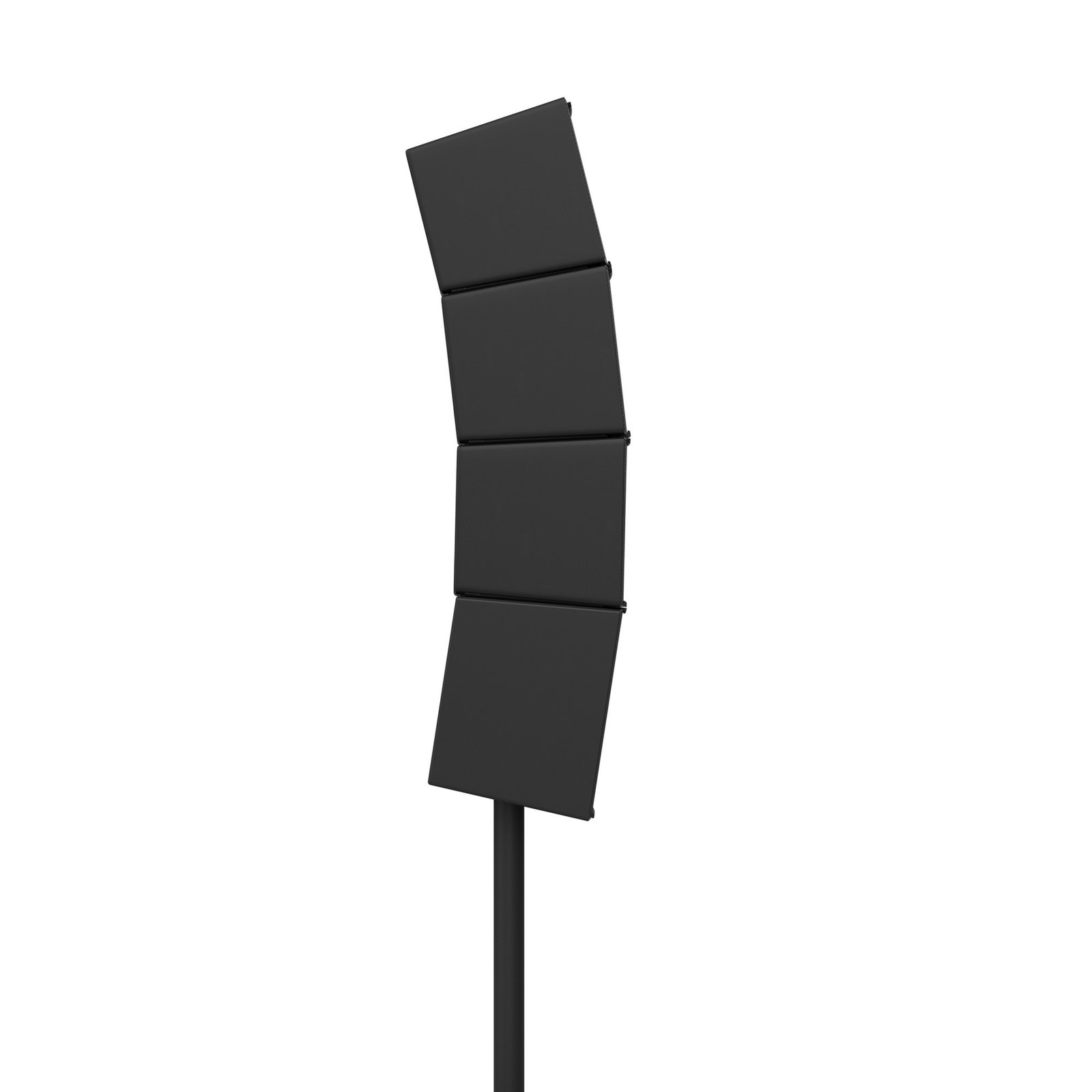

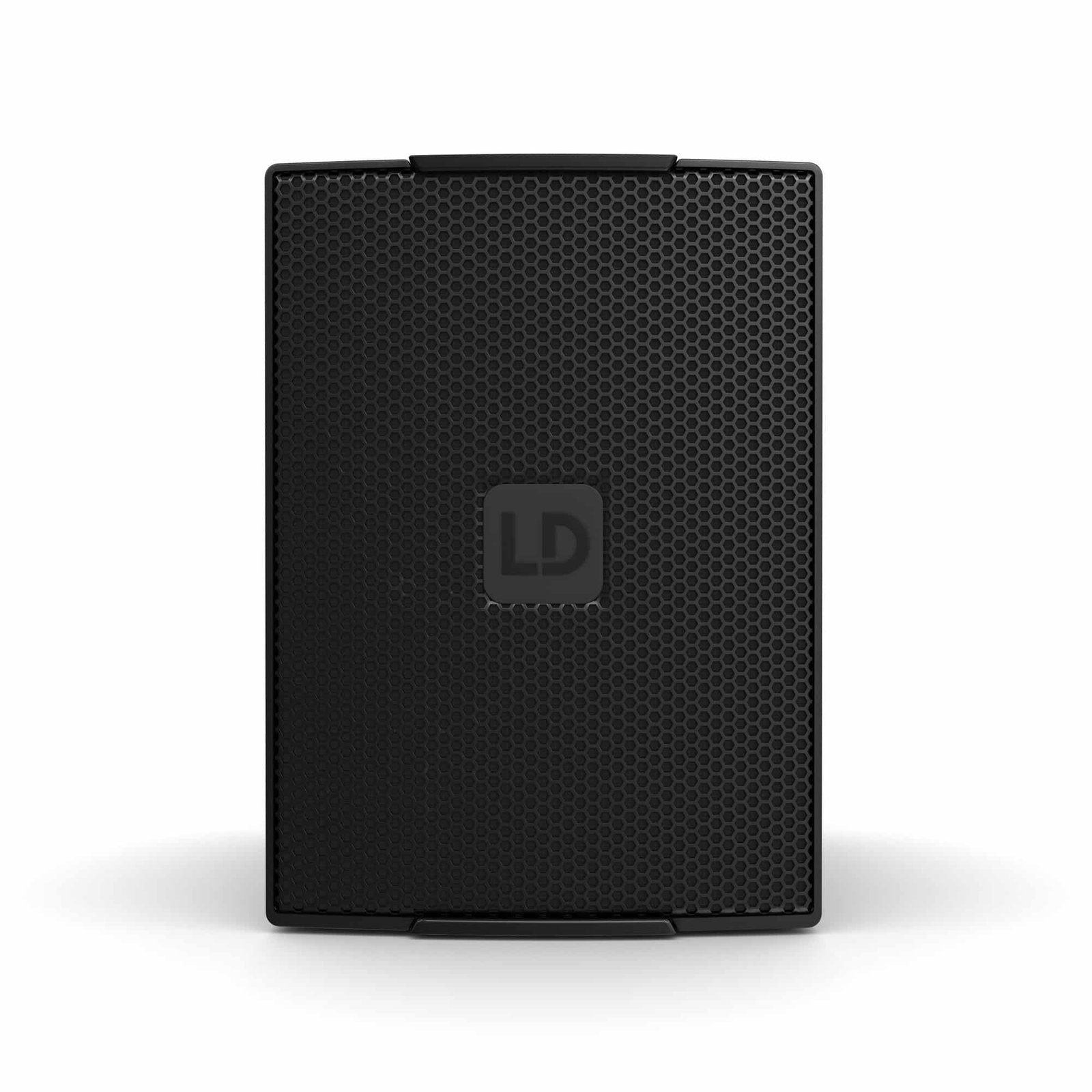

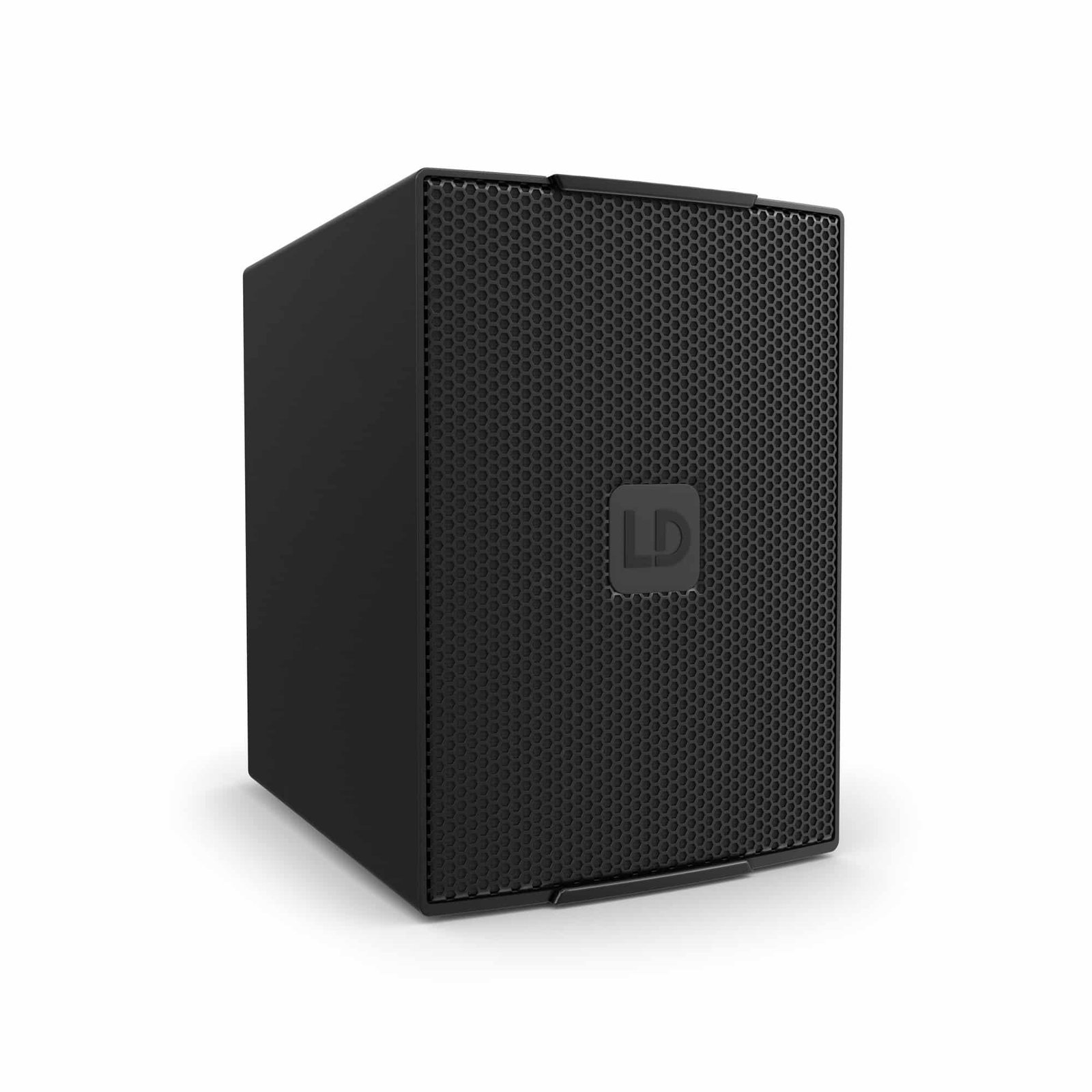

MAILA SPA is an amplifier module in elegant unibody aluminium design with integrated 1.25 kW power amplifier with SysCore® DSP for controlling up to eight MAILA SAT satellites. Via the SmartLink+® system, the satellites can be simply slid onto the SPA and wirelessly supplied with a signal. In addition, SmartLink+® enables automatic detection of the installed satellites for automatic or manual DSP processing.
Chassis material
| Product type | MAILA Satellite Amplifier |
|---|---|
| Type | Powered |
| Amplifier | Class D |
| System Power (RMS) | 1250 W |
| Protection features | limiter, over-current, thermal overload |
| Input impedance | 20000 Ohm(s) |

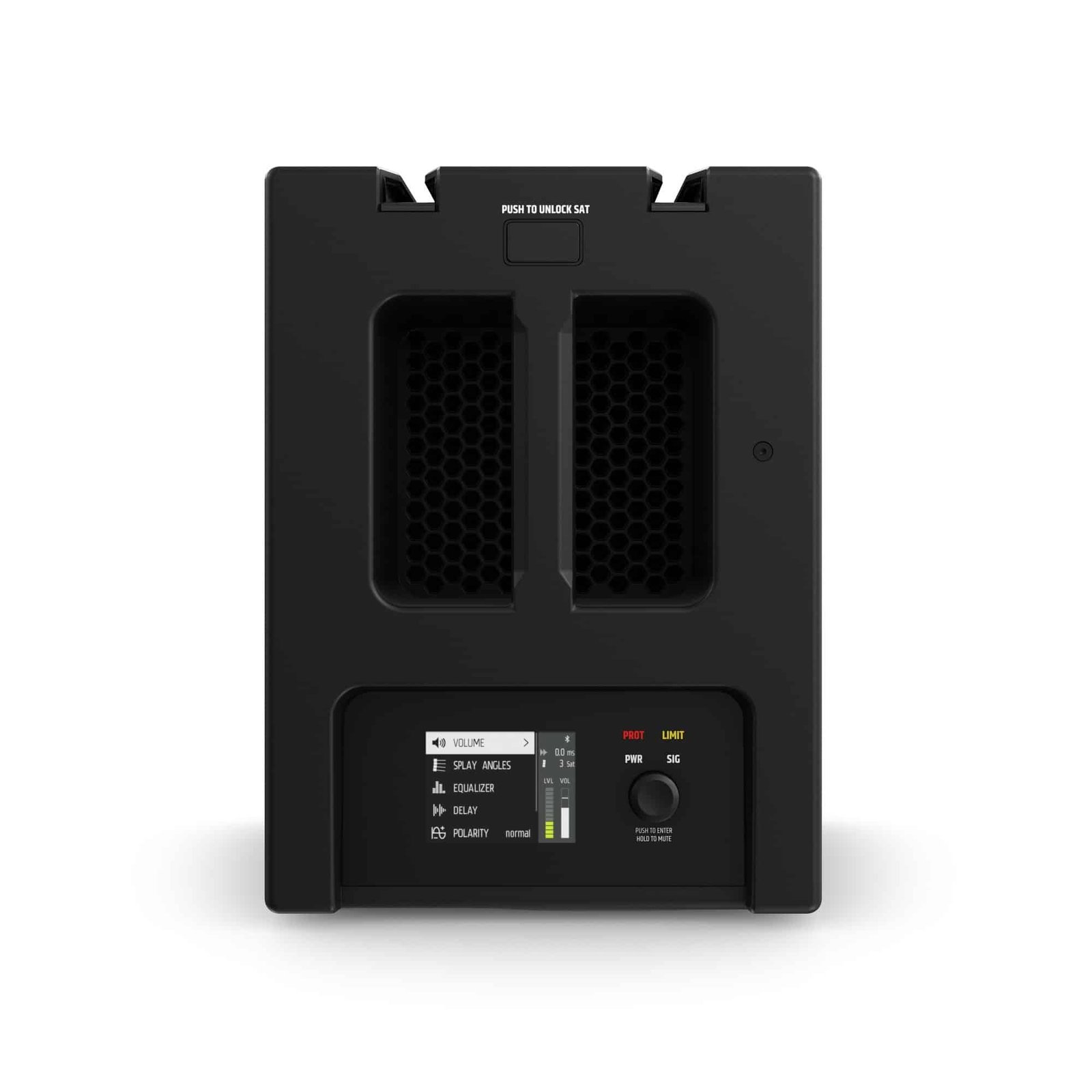

| Controls | Rotary/push encoder |
| Indicators | LC display, LED indicator, Limit, Power, Protect, Signal |

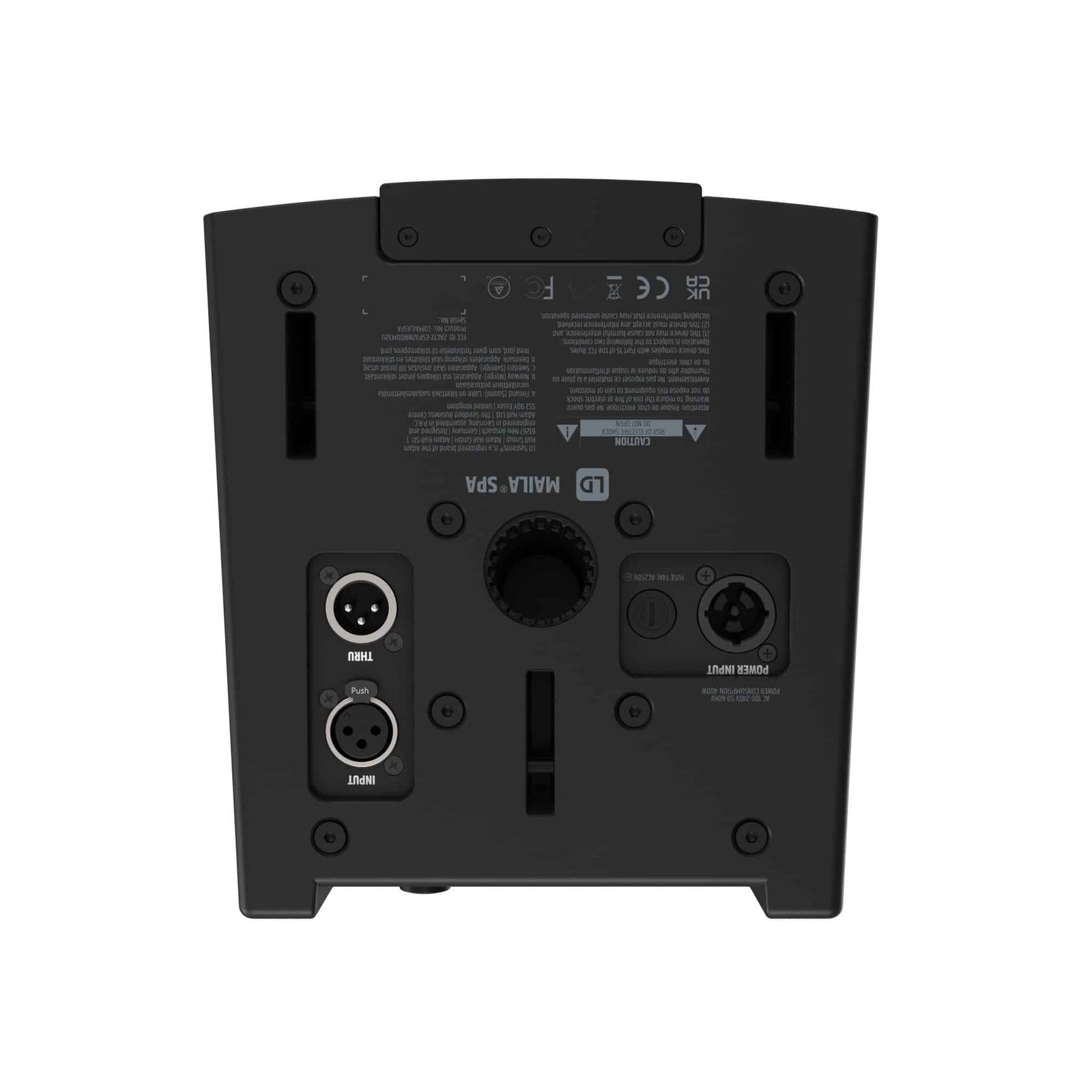

| Line inputs | 1 |

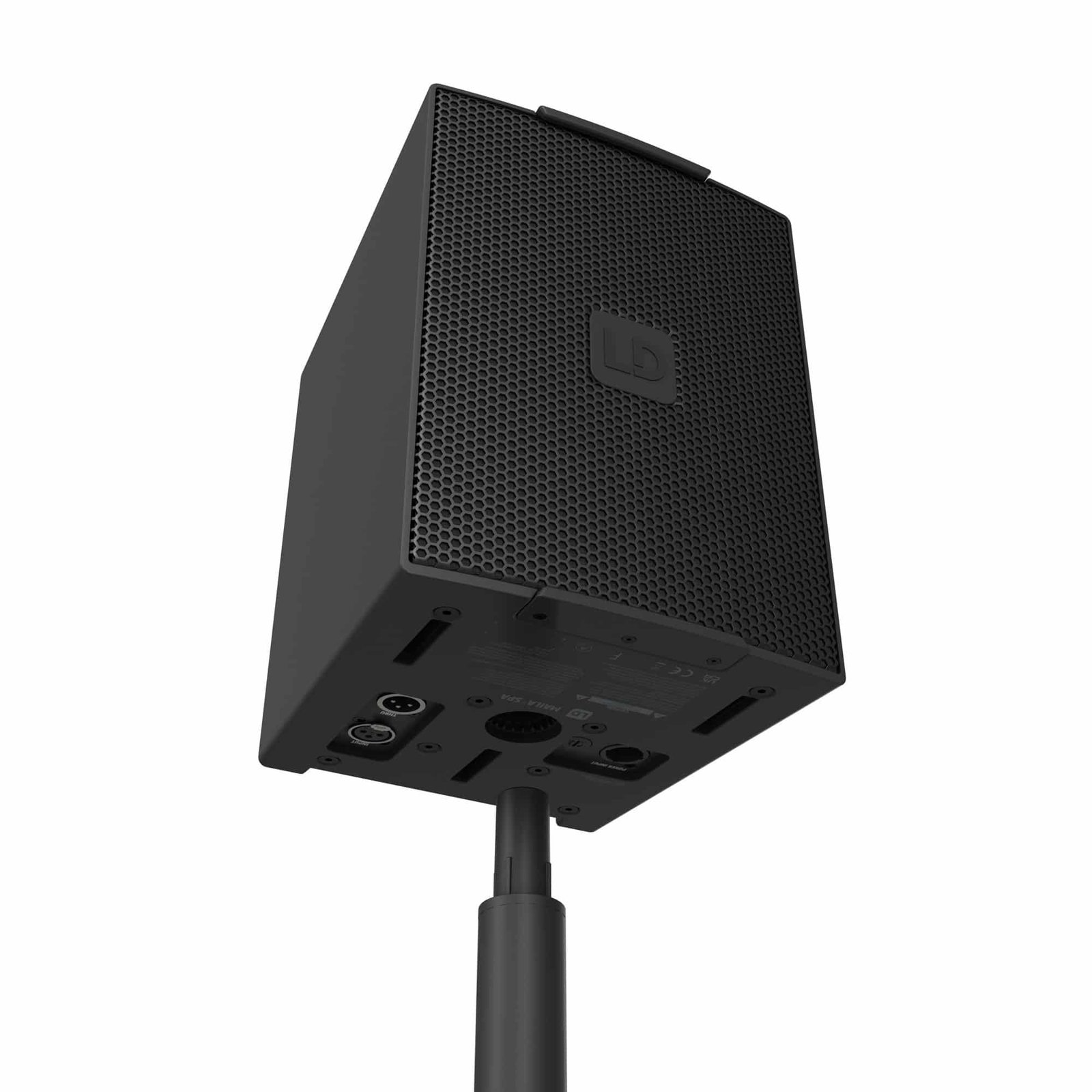

| Line input connectors | XLR |
| Line outputs | 1 |
| Line output connectors | XLR |
| Speaker output connections | SmartLink+® |
| Wireless Connectivity | LogoLink® for App Control |
| Power supply | SMPS |
| Operating voltage | 100 V AC – 240 V AC, 50 – 60 Hz |
| Power consumption (max.) | 400 W |
| Operating Temperature | 0 – 40 °C |
| Relative Humidity | < 80 %, not condensing |

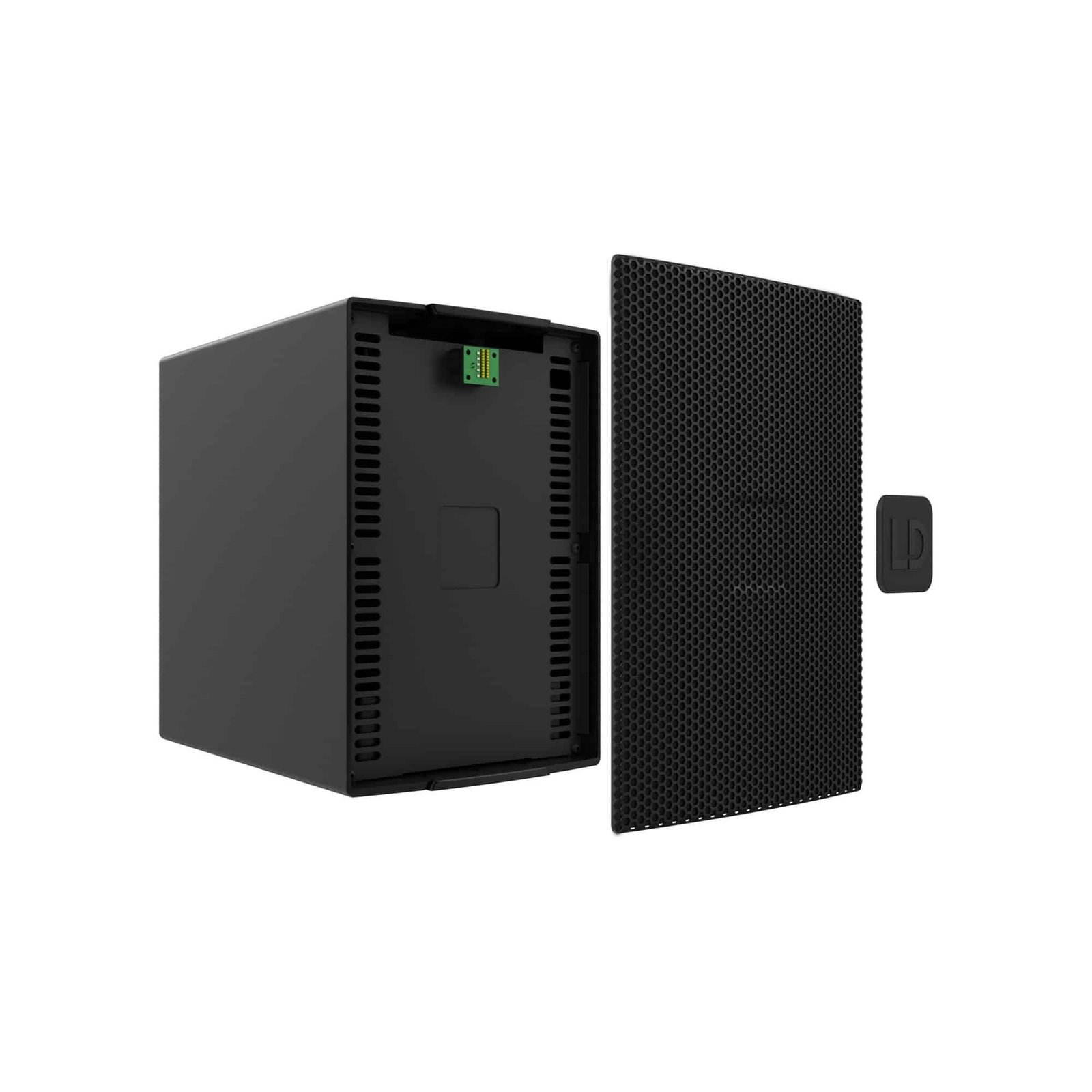

| Housing material | Die-cast aluminium unibody |
| Cabinet surface | Powder-coated |

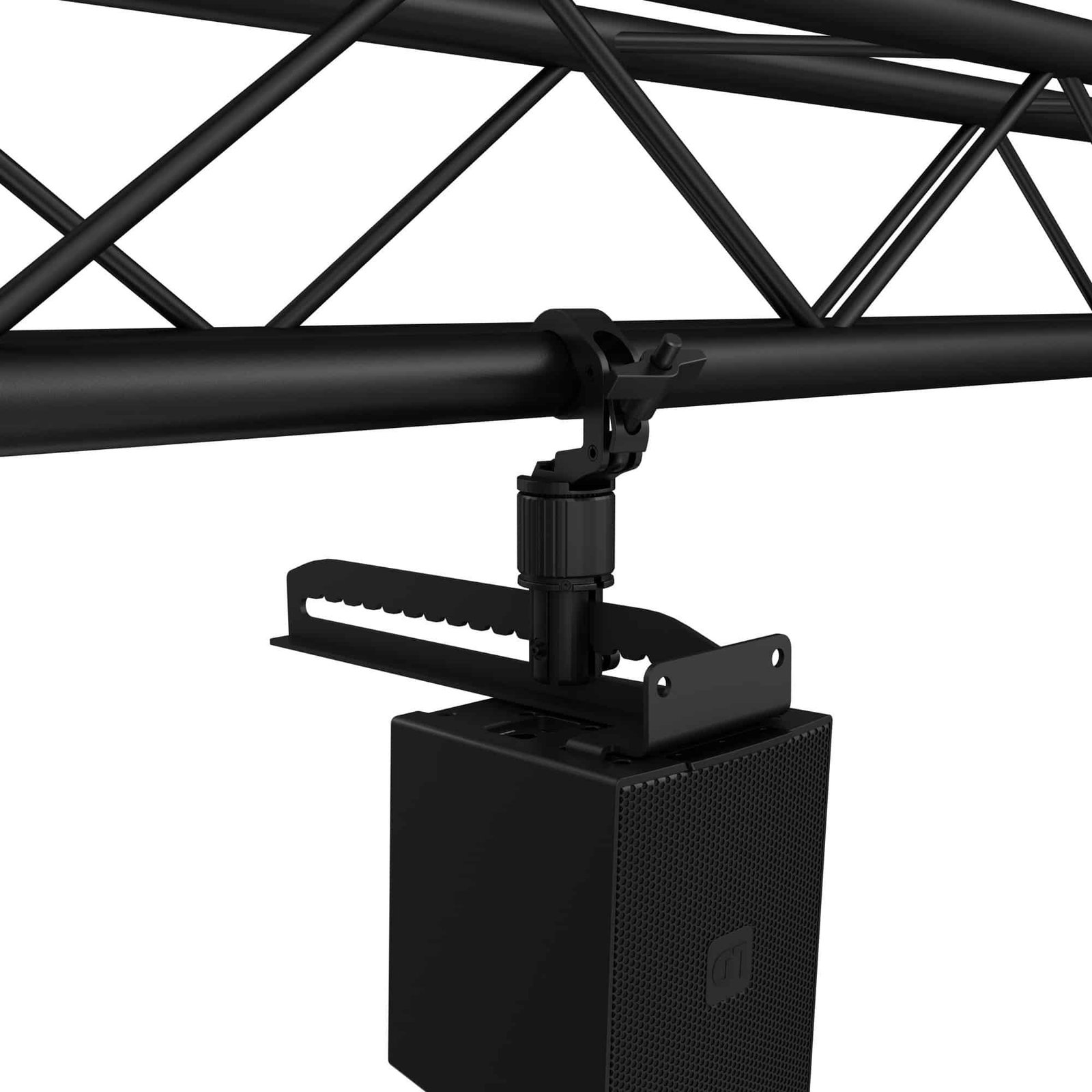

| Mounting | 2 x M10, 25mm MAILA Flange, EasyMount+® |
| Handles | 1 |
| Width | 205 mm |
| Height | 282 mm |
| Depth | 226 mm |
| Weight | 7,45 kg |
