LD System DEEP2 2400 X PA Power Amplifier 2 x 1200 W 2 ohm

Chassis material

For professional sound engineers, venue operators, and live event producers, delivering clear, powerful audio is non-negotiable. The LD System DEEP2 2400 X PA Power Amplifier is designed to meet the rigorous demands of professional live sound reinforcement, offering robust power output and reliability. Whether you are driving large PA systems in clubs, theaters, or outdoor events, this amplifier ensures your audience experiences crisp, distortion-free sound at every volume level.

One of the standout benefits of the DEEP2 2400 X is its impressive power capacity. Rated at 2 x 1200 watts at 2 ohms, this amplifier provides substantial headroom, meaning you can push your speakers harder without risking damage or sound degradation. At 4 ohms, it delivers 2 x 950 watts, and when bridged, it outputs up to 2200 watts, giving you flexibility to configure your system according to your venue’s specific needs. The high power output guarantees your sound system can fill large spaces with consistent volume and clarity, ensuring an immersive audio experience for your audience.

The amplifier’s Class H output circuitry plays a crucial role in energy efficiency and sound fidelity. Class H technology minimizes power consumption and heat generation, enabling the amplifier to run cooler and more efficiently during long performances. This translates into greater reliability and reduced risk of thermal shutdowns, so your event goes uninterrupted. Additionally, the frequency response range of 20 Hz to 20 kHz means the amplifier reproduces the full spectrum of audible sound, preserving the richness of bass and the clarity of highs.

Protection features such as clip limiter, DC protection, short circuit prevention, and thermal overload safeguard both the amplifier and connected speakers. This comprehensive protection ensures that neither your equipment nor your performance is compromised by unexpected electrical issues or misuse. The inclusion of two highpass/lowpass filters with switchable options allows you to tailor the sound output precisely, optimizing speaker performance and minimizing distortion or unwanted frequencies.

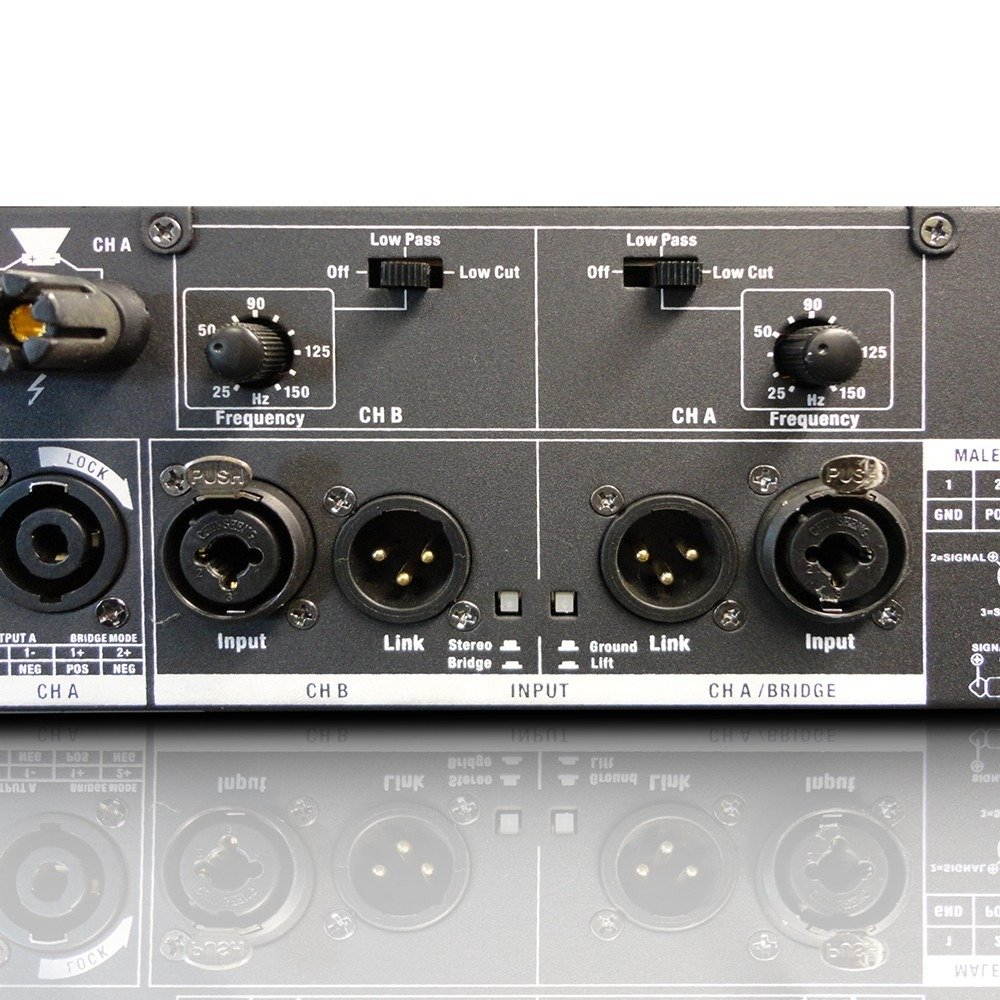

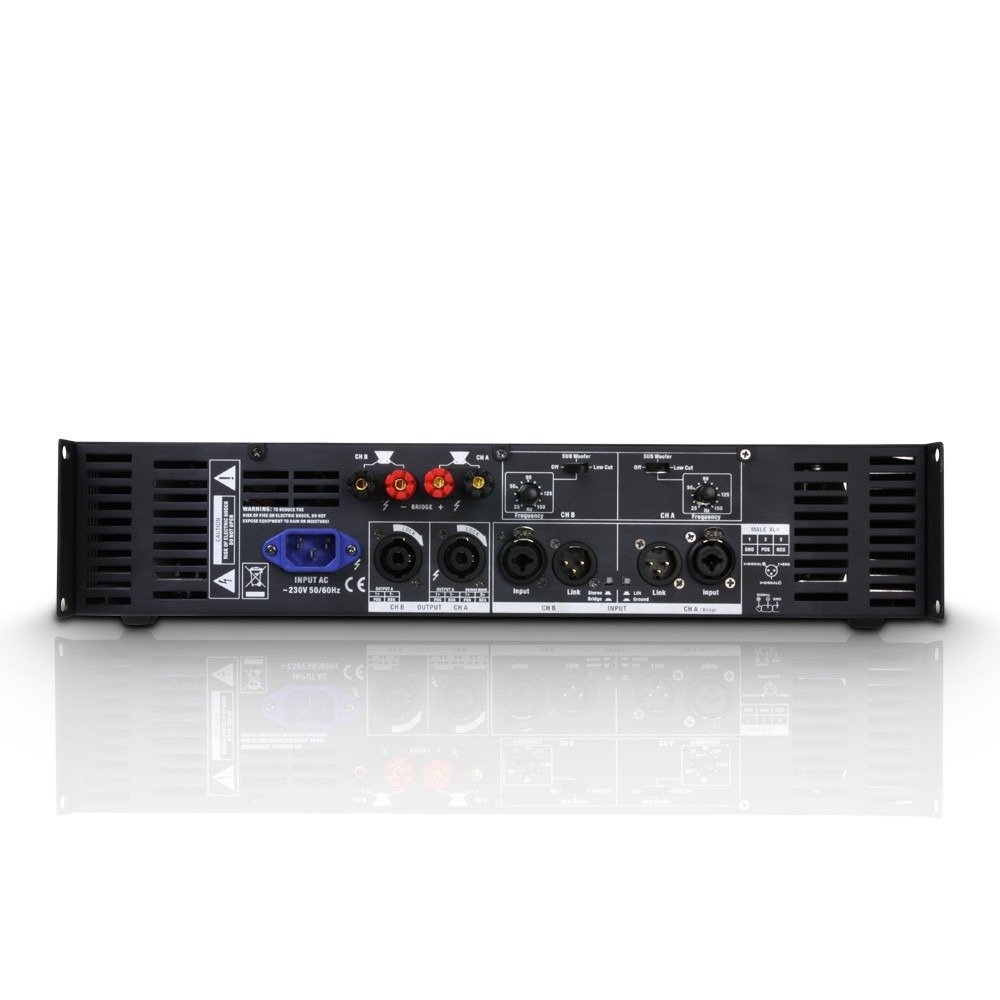

From a practical standpoint, the DEEP2 2400 X offers versatile connectivity options with Speakon-compatible and terminal post speaker outputs, facilitating easy integration into existing sound setups. The amplifier’s controls include independent volume knobs for each channel, a bridge/stereo mode selector, and a ground lift switch to eliminate hum caused by ground loops. Visual indicators for level, limit, power, protect, and signal status provide real-time monitoring, helping you maintain optimal performance throughout your event.

Weighing 17.6 kg and powered by a stable transformer-based power supply running on standard 230 V AC at 50-60 Hz, this amplifier is built for durability and portability. Its highly efficient automatic cooling system adapts to operating conditions, preventing overheating without excessive noise. With a signal-to-noise ratio of 106 dB and a damping factor above 450, you can expect exceptionally clean sound with minimal distortion and tight speaker control, essential for professional-grade audio clarity.

Ideal for live sound reinforcement, DJ setups, touring bands, and fixed installations in venues requiring powerful, reliable amplification, the LD System DEEP2 2400 X is engineered to perform under pressure. Its combination of power, protection, and precision control ensures your audio system delivers a compelling and consistent sound experience, regardless of the venue size or event type.

Investing in the LD System DEEP2 2400 X means choosing a professional amplifier that balances raw power with intelligent design to safeguard your equipment and enhance your sound quality. Backed by LD System’s reputation for durability and innovation, this amplifier gives you confidence that your audio system will perform flawlessly, night after night.
