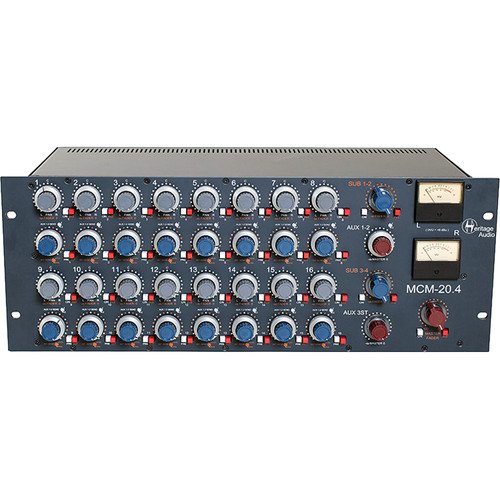

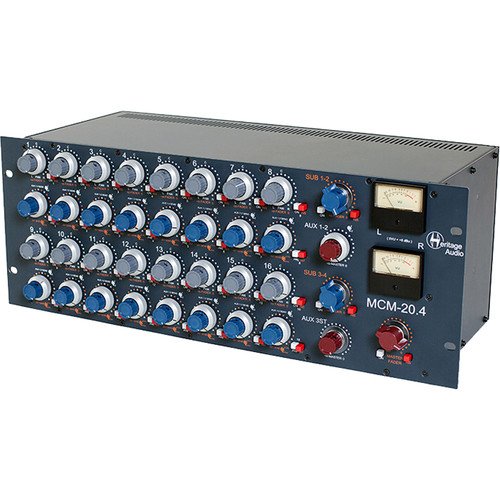

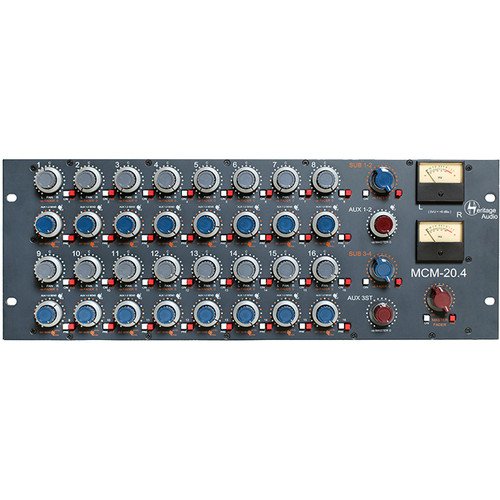

Mix your DAW tracks through a vintage-style analog console path. The Heritage Audio MCM-20.4 is a rack-mount analog summing mixer that brings vintage sound and flexible routing to hybrid studios. Send stems from your interface, sum them in analog, add outboard gear on the inserts and aux sends, and print the mix back.
Why customers choose it
Who it is for
Mixing engineers and producers who work in a DAW but want analog summing, outboard inserts and aux effects in their mix – from serious home studios to commercial rooms.
What’s in the box
- 1 x Heritage Audio MCM-20.4
- AC power cord (EU & US)
- 1 x Power supply HA-PSU02
Specifications
| Channels | 20 (16 in 2 subgroups + 4 hard-panned in pairs) |
|---|---|
| Aux sends | 4 (2 mono + stereo), pre/post fader |
| Channel input impedance | Greater than 20 kohm |
| Maximum channel input level | Greater than +26 dBu |
| Maximum insert send level | Greater than +27 dBu, drives 600 ohm |
| Maximum output level | Greater than +26 dBu into 600 ohm |
| Frequency response | +/-0.5 dB, 20 Hz – 20 kHz |
| THD + N | Not more than 0.07 % (50 Hz – 10 kHz, +20 dBu out, 600 ohm) |
| Noise | Better than -80 dBu (all faders up, all subgroups in) |
| Connections | DB25 (Tascam); master bus and master insert on gold-plated XLR |
| Type | Analog summing mixer |
| Subgroups | 2 stereo subgroups of 8 |
| THD + N | 0.07 % maximum |
| Connectors | DB25 (Tascam), gold-plated XLR |
| Mounting | Rack mount |
Good to know

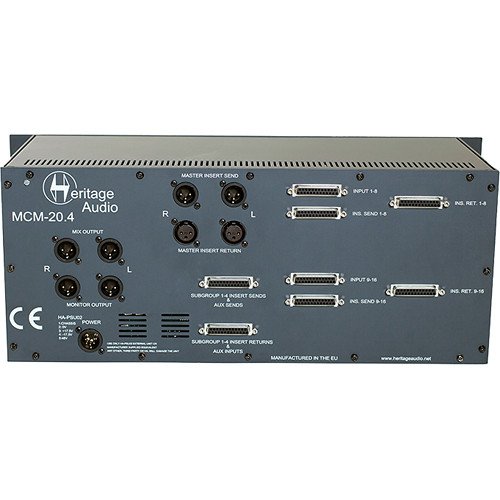

- Rear connections are DB25 (Tascam standard) – plan DB25 snake cables to your interface.
- Each subgroup has its own stereo fader and balanced insert, and the master has its own insert on XLR.
- Need 32 channels? See the Heritage Audio MCM-32.
FAQ
Can I record through it?
Yes. The insert sends always carry signal, so you can use them as direct outputs without a patch bay.
How many interface outputs do I need?
Up to 20 line outputs to use every channel.
