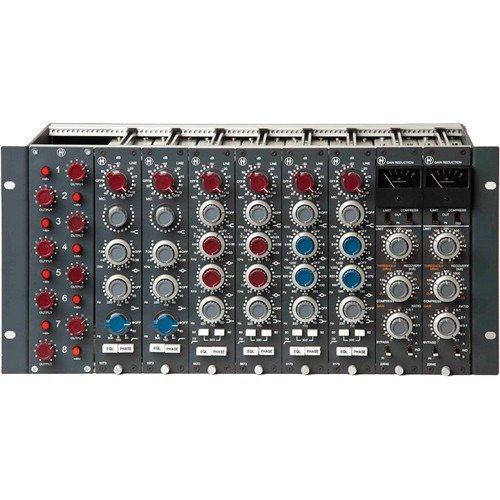

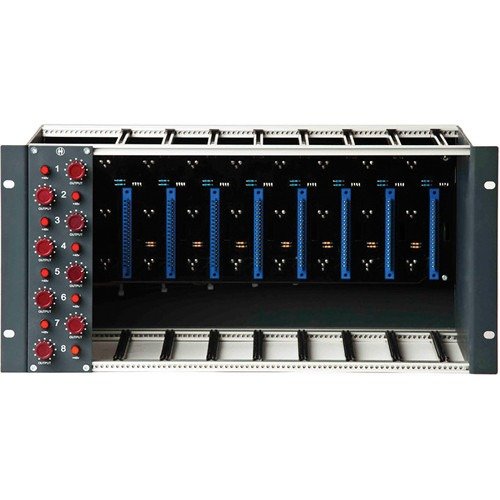

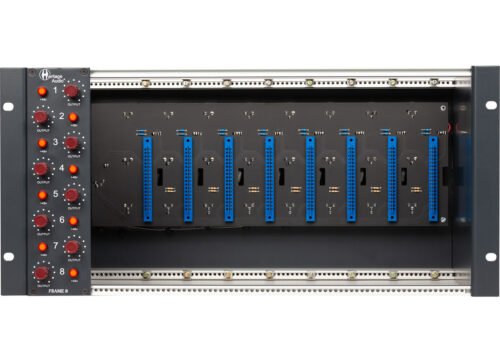

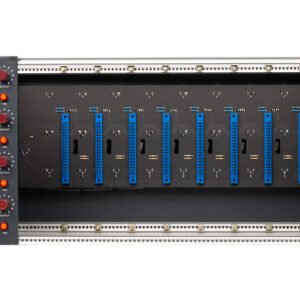

Turn up to eight 80 Series modules into a rack of outboard channels. The Heritage Audio Frame 8 is a 5U rack enclosure for up to eight 80 Series modules. It is handmade in the EU with the same ISEP mechanical components used in Series 80 consoles – aluminium rails, guides and more – so vintage and current modules fit perfectly.
Why customers choose it
Who it is for
Studios with a collection of 80 Series preamp/EQ modules, owners of classic consoles who want modules outside the desk, and engineers working across several rooms or on location.
Specifications
| Format | 5U rack enclosure |
|---|---|
| Slots | 8 (80 Series modules) |

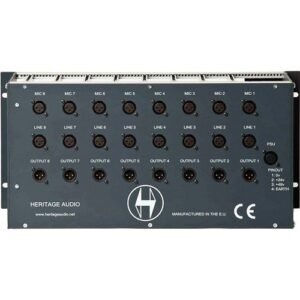

| Connections | Neutrik gold-plated XLR mic and line inputs and outputs |
| Phantom power | Illuminated +48 V button per slot (less than 260 mA at 48 V DC) |
| Per slot | Separate output control |
| Compressor link | Up to eight 2264 compressors, buses A and B |
| Power supply | External, 4-pin XLR, 220-240 V or 110 V (included) |
| Dimensions (W x H x L) | 315 mm x 222 mm (5U) x 482 mm |
| Type | 80 Series module frame |
What’s in the box
- Frame 8 enclosure
- External power supply
Good to know
- 80 Series modules are not included.
- For just two modules, see the Heritage Audio Rack-2.
- Set the power supply to 220-240 V for Indian mains.
FAQ
Does it include modules?
No. The Frame 8 is the empty frame; modules such as the Heritage Audio 8173 and 6673 are sold separately.
Is the power supply included?
Yes. The external PSU is included.
