Product Description
What You Get?
- 1x Fosi Audio DAC-Q4
- 1x USB Charging Cable
- 1x Optical Cable
- 1x PC-USB Cable
- 1x USB Charging Cable
- 1x User Manual
Product Specificatons
PC-USB input sampling rate: 96K/24Bit
High and low sound adjustment range: ±6dB
Optical/coaxial input sampling rate: 192K/24Bit
Frequency response range: 20Hz-20kHz (±3dB)
PC-USB support operating system: WIN XP/WIN7/WIN8/WIN10/WIN11/MAC/LINUX
THD: ≤0.01%; SNR: ≥105dB
Amp output maximum power: 100mW@32Ω load
Headphone matching impedance: 16-200Ω
Working voltage: DC5V; RCA output level: 2.3V
Size (L*W*H): 3.9*2.9*1.3 inch(without knobs and terminals)

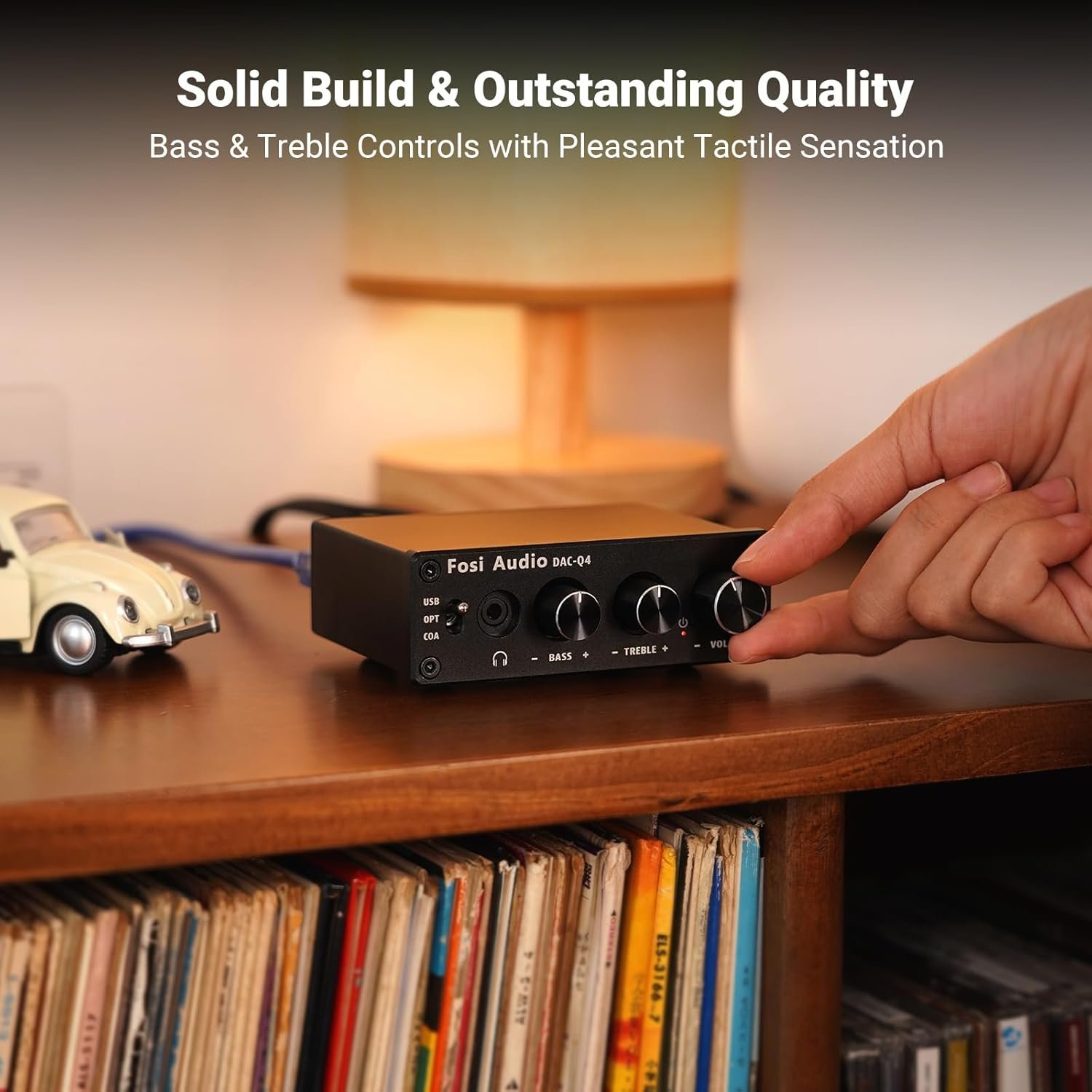

Supports Bass, Treble, and Volume Adjustment
Q4 Adopts High-performance Headphone Amplifier Chip 97220+NE5532 with Multi-Knob Sound Adjustment Achieving Great Anti-Interference Function, Makes the Sound Pure and Clear, Allowing You to Drive Headphone or RCA output to your amplifier/ powered speakers and Adjust the Treble Bass.

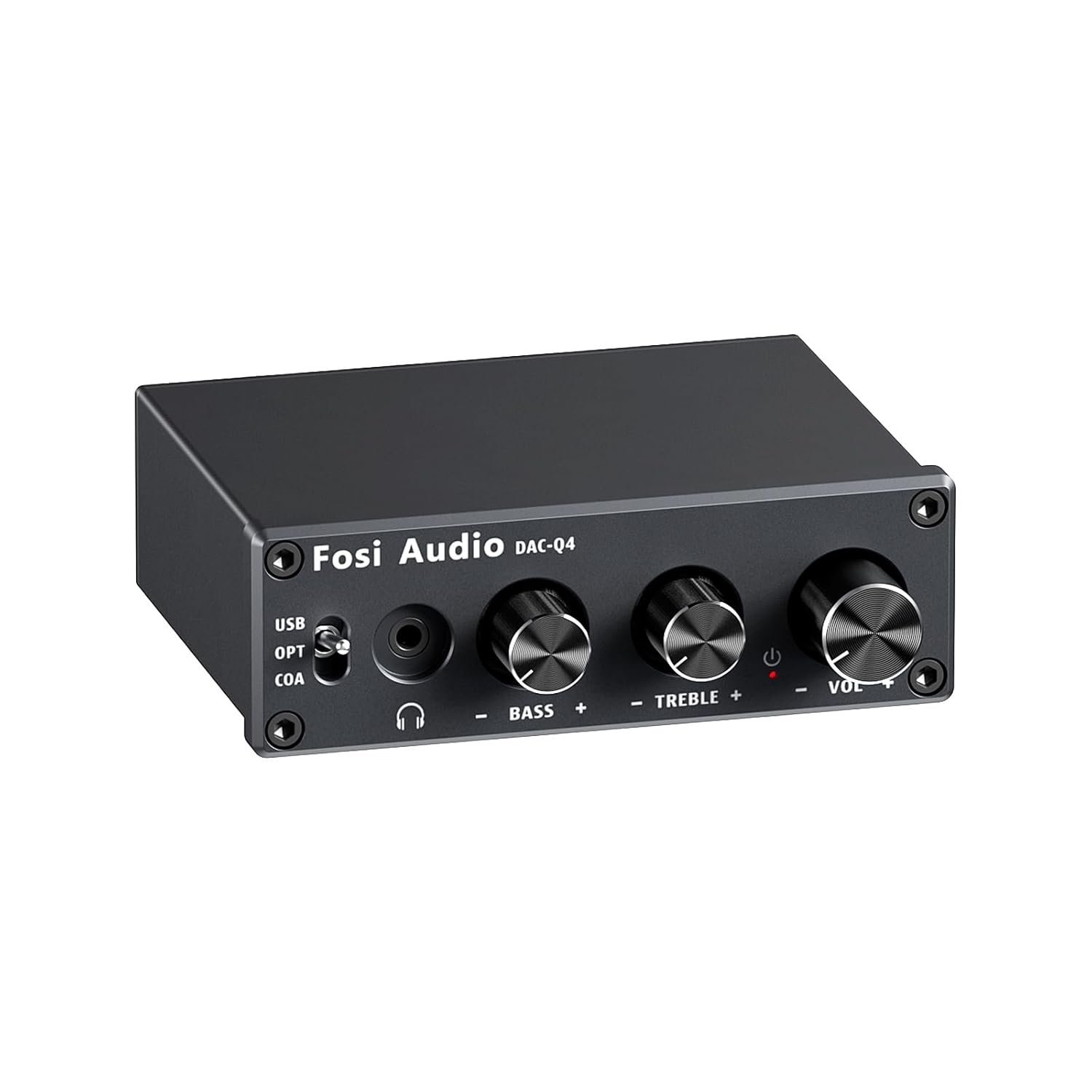

Aluminum Metal Shell
Q4 Comes with an Aluminum Metal Shell Which Makes it Durable, Heat-resistant, and It can Easily Install and Operate.
Mini Compact Stereo DAC
Q4 Supports Converting USB/Coaxial/Optical Digital Audio Signals to Analog L/R Audio via RCA Output or 3.5MM AUX Output, Easily to Setup an Stereo System. Note: Do Not Support Dolby and DTS.
High Compatibility
Q4 Can Work with Most Playback Source with a USB, Optical, or Coaxial Digital Audio Output Such as Digital and HD Televisions, Satellite Receivers, CD/DVD/Blu-Ray Players, and PS4 Xbox Consoles.
