ACCURATE AND TRANSPARENT

Using the Fluid Audio DCT (DSP Configuration Tool) you can push SoundID Reference calibration profiles to the built-in embedded DSP platform onboard the Image 2.
This will compensate for room imperfections that acoustically treated and un-treated rooms sometimes have. Using SoundID Reference (v5.6 and newer) and a measuring microphone, you can measure your room, create calibration curves specifically for your environment and upload them directly onto the Image 2 with the DCT tool. The Image 2 supports up to 4 different profiles. As an example: Flat target, Dolby Atmos Music, Custom Target as well as Translation Check. All of these can be loaded as different profiles and switched between using the DCT tool running on Windows or OSX. (USB has to be connected to both monitors to switch between the profiles).

COMPACT ALL IN ONE

Fluid Audio has ingeniously incorporated precision accuracy, controlled directivity. Impressively, this system maintains an extended bass response down to -3dB @38Hz (in chamber), ensuring a comprehensive audio experience. The Image 2 stands as a testament to uncompromising audio quality, catering to the discerning preferences of recording engineers and audio enthusiasts alike.

In essence, Fluid Audio’s Image 2 offers a complete audio solution, blending pinpoint accuracy, directional control, and a diverse range of input options, all within a space-saving design. Its exceptional bass performance makes it a preferred choice for those seeking exceptional sound quality in a compact format.

DSP AND CONVERTERS

Fluid Audio Image 2 DSP board feature great performance in every aspect. Flagship discrete AD/DA converters. Together with well optimized signal circuitry improves the S/N ratio to 115 dBa.

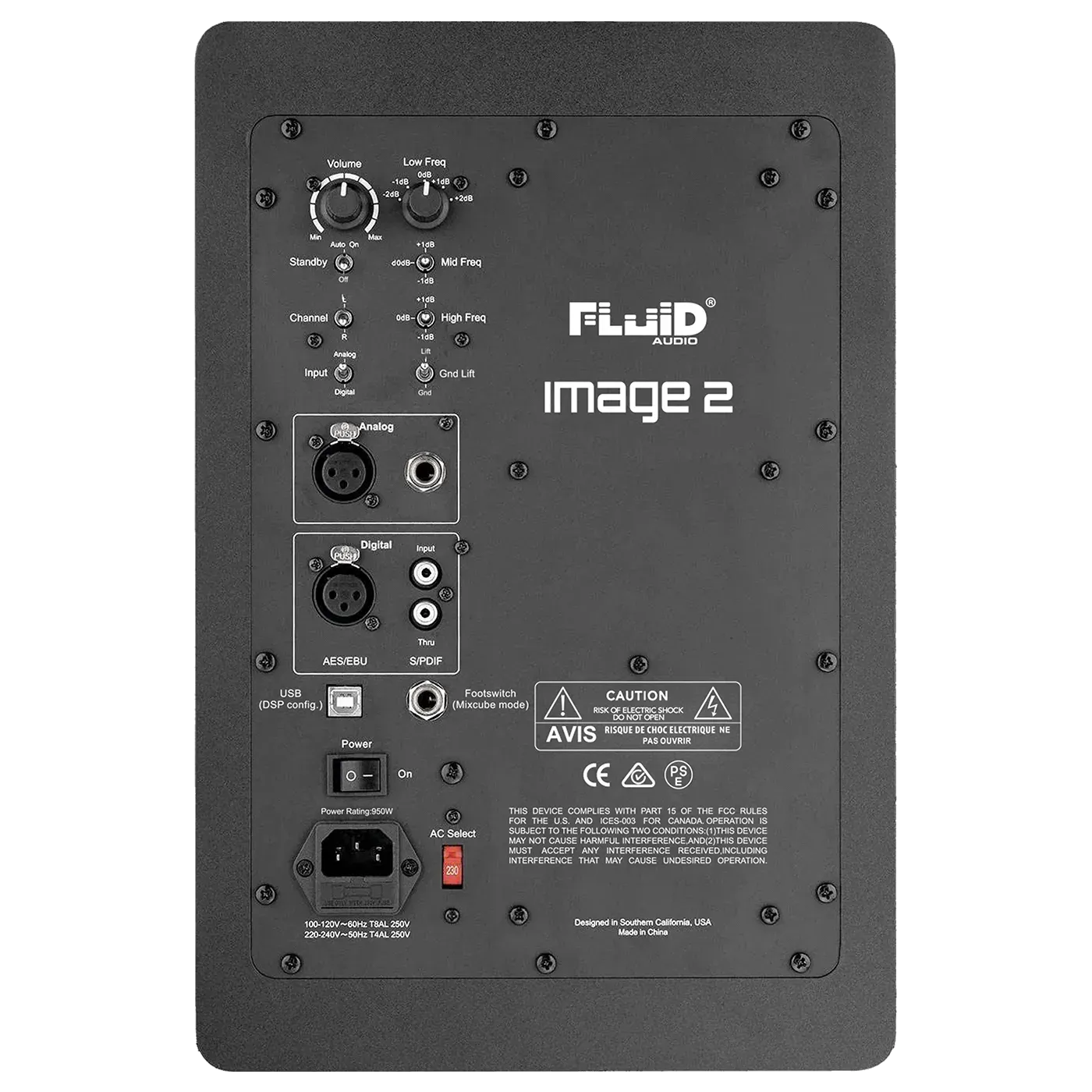

The in-house developed digital signal processing system introduces a range of features that greatly enhance the studio experience. In addition to the analog XLR input, there are an AES digital in and SPDIF IN/out, enabling the possibility of daisy chaining two Image 2 speakers. Moreover, the digital connection bypasses interface conversions, effectively reducing unwanted artifacts.
