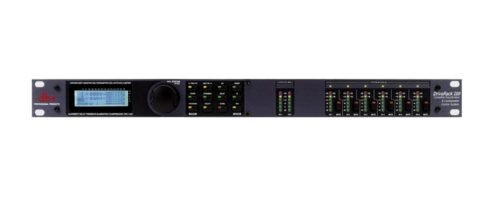

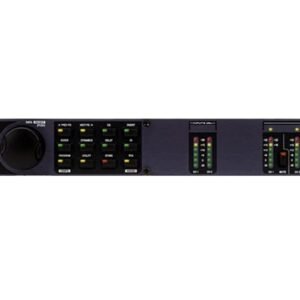

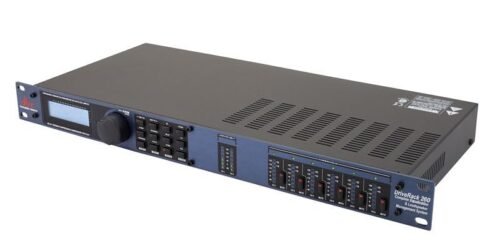

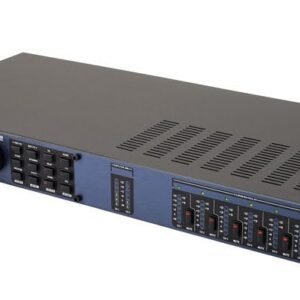

Make every PA system sound its best – and keep your speakers safe. The dbx DriveRack 260 is a loudspeaker management system with two independent input channels and six outputs. It combines crossovers, EQ, classic dbx compression, feedback suppression, subharmonic synthesis, alignment delay and limiting in one rack unit for live sound and installations.
Why customers choose it
Who it is for
Live sound engineers, rental companies, touring PA systems, churches, auditoriums, banquet halls and installers setting up multi-zone systems.
What’s in the box
- 1 x dbx DriveRack 260 processor
- 1 x Power cable
- 1 x Null modem cable
- 1 x Rack mount screw kit
Specifications
| Type | Loudspeaker management system |
|---|---|

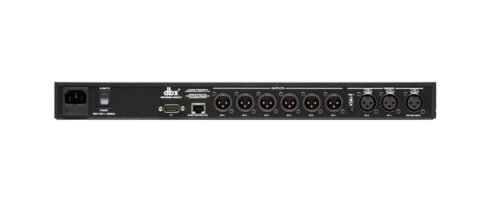

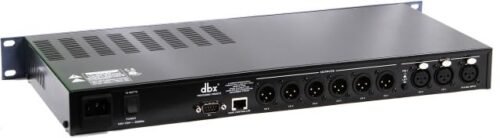

| Inputs | 2 line (female XLR, electronically balanced) + 1 XLR RTA mic input |

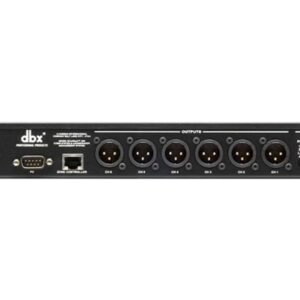

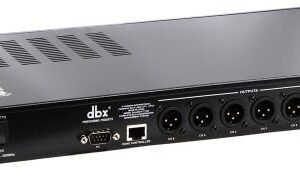

| Outputs | 6 (male XLR, electronically balanced) |
| Input impedance | >40 kohm |
| Max input | +30 dBu (jumpers at +30) |
| Max output | +22 dBu |
| Output impedance | 120 ohm |
| Conversion | dbx Type IV, 48 kHz |
| Dynamic range | >110 dB A-weighted |
| THD+N | 0.003% typical (+4 dBu, 1 kHz) |
| Frequency response | 20 Hz – 20 kHz, ±0.5 dB |
| Crosstalk | >110 dB (120 dB typical) |
| RTA mic phantom | +15 V DC |
| Processing | 28-band GEQ, compressor, AFS, 120A subharmonic synth, PEQ, PeakStopPlus limiters, delay |
| Control | Front panel, DriveWare GUI via RS-232, wall-panel inputs |
| Features | AFS, Auto-EQ, RTA, 28-band GEQ, compressor, limiters, delay |
| Colour | Black |
Good to know
- For the Auto-EQ and Setup Wizard, use a measurement mic such as the dbx RTA-M (sold separately) on the RTA input.
- DriveWare GUI software and speaker tuning files are on the dbx downloads page.
FAQ
Can it be used as a crossover for subwoofers?
Yes. It offers full bandpass, crossover and routing configurations across its 6 outputs.
Does it remove feedback?
Yes. It has dbx Advanced Feedback Suppression (AFS).
