Cranborne Audio 500R8

The Cranborne Audio 500R8 is a powerful and versatile device combining an 8-slot 500 Series chassis with a high-quality USB audio interface. It’s designed to offer both analog processing and digital recording capabilities, making it an excellent choice for modern studios. Here’s an in-depth look at its features, benefits, and applications:

Features:

1. 8-Slot 500 Series Chassis:

• Modular Flexibility: Accommodates up to eight 500 Series modules. This allows you to customize your signal chain with a variety of preamps, EQs, compressors, and other processors.
• High-Quality Power Supply: Provides reliable power to your 500 Series modules, ensuring stable performance and minimizing noise.

2. USB Audio Interface:

• High-Resolution Conversion: Includes high-quality A/D (analog-to-digital) and D/A (digital-to-analog) converters for precise and clean audio capture and playback.
• Multiple I/O Options: Typically features multiple inputs and outputs via USB, allowing for seamless integration with your DAW (Digital Audio Workstation).
• Low-Latency Performance: Designed to offer low-latency monitoring, which is crucial for recording and mixing in real-time.

3. Comprehensive Connectivity:

• ADAT I/O: Some models may include ADAT connectivity, expanding the number of digital inputs and outputs for greater flexibility.
• MIDI I/O: MIDI capabilities can be included for integrating MIDI hardware and controlling software instruments.

4. Built-In Monitoring and Control:

• Monitor Control: Includes features for controlling headphone and speaker monitoring, offering a flexible monitoring setup.
• Software Integration: Typically comes with dedicated software for managing audio routing, monitor mixes, and other settings, providing a user-friendly interface.

Applications:

1. Studio Recording:

• Analog Processing: Use the 500 Series modules to shape and enhance your sound before it’s converted to digital. This is ideal for adding character and warmth to recordings.
• High-Quality Recording: The USB interface allows for high-resolution recording directly into your DAW, making it suitable for professional-quality productions.

2. Mixing and Mastering:

• Versatile Signal Chain: Build custom analog signal chains for mixing and mastering, utilizing your 500 Series modules to achieve the desired sound.
• Efficient Workflow: The integrated USB interface simplifies the workflow by combining analog processing with digital recording, reducing the need for additional outboard gear.

3. Live Sound:

• Flexible Setup: Use the 500R8 to integrate analog processing with a digital audio system in live sound environments. This setup can enhance the sound of live performances with professional-quality processing.
• Portable Solution: Its combination of 500 Series chassis and USB interface in a single unit makes it a convenient option for mobile recording and live sound applications.

Practical Tips:

1. Optimize Signal Flow:

• Cable Quality: Use high-quality cables to maintain signal integrity between your 500 Series modules, the 500R8, and your other audio equipment.
• Proper Setup: Ensure correct routing and connections in both hardware and software to avoid signal degradation or issues.

2. Leverage Software Controls:

• DAW Integration: Familiarize yourself with the software that comes with the 500R8 to efficiently manage audio routing, monitor mixes, and other settings.
• Update Firmware: Keep the device’s firmware updated to benefit from the latest features and performance improvements.

3. Experiment with Modules:

• Custom Signal Chains: Experiment with different combinations of 500 Series modules to discover unique signal processing chains that suit your style and needs.

Summary:

The Cranborne Audio 500R8 USB Audio Interface and 8-slot 500 Series Chassis offers a comprehensive solution for integrating analog processing with digital recording. Its combination of high-quality conversion, modular flexibility, and advanced connectivity makes it a powerful tool for both recording and live sound. By leveraging its features effectively, you can achieve a high level of audio quality and flexibility in your productions.

Cranborne Audio 500R8 500 Series Chassis and USB Audio Interface Features:

• 28-in/30-out USB interface, summing mixer, artist mixer, and monitor controller
• C.A.S.T. ports per channel for routing analog I/O using passive or active C.A.S.T. breakout boxes via standard Cat 5 cable
• 24-volt, 5A external locking power supply for improved analog audio performance and heat dissipation
• Each 500R8 is extensively tested by a team of dedicated engineers to ensure reliability and consistency
• Low-latency USB 2.0 interface:
• Compatible with macOS and Windows computers
• ADAT I/O (16×16 channels @ 44.1/48kHz, 8×8 channels @ 88.2/96kHz)
• S/PDIF I/O; 5-pin MIDI I/O
• High-performance A/D conversion:
• Dynamic range: 121dB A-weighted dynamic range, 20Hz–20kHz
• Frequency response: 2.2Hz to >80kHz (-1dB)
• THD+N: <0.00032% (-110dB) @ -4dBFS, 20Hz–40kHz (1kHz, A-weighted)
• Max input level: +24dBu
• High-performance D/A conversion:
• Dynamic range: 121dB A-weighted, 20Hz–20kHz
• Frequency response: <1Hz to >61kHz (-1dB)
• THD+N: <0.0003% (-110.5dB) @ -4dBFS, 20Hz–40kHz (1kHz, A-weighted)
• Max Output Level: +24dBu
• Reference-quality internal master clock:
• Sample rates: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, and 192kHz; <0.5ps jitter
• Dedicated word clock I/O via BNC
• External sync options using word clock BNC, S/PDIF, or ADAT
• Monitor controller with talkback:
• Speaker A/B switching, mono check, dim, mute, and 28-segment peak meter
• Dedicated talkback input with phantom power, push-to-talk activation, and automatic routing to all headphone and C.A.S.T. facilities
• Illuminated front-panel controls for all monitor controller functions
• Analog summing mixer:
• 8×2 analog summing mixer with +26.5dBu of headroom and dedicated ADC
• Balanced 1/4-inch jack outputs
• C.A.S.T. link port for increasing summing mixer to 16×2 using Cranborne Audio’s 500ADAT
• Zero-latency artist mixer:
• Analog artist mixer with per-channel physical level/pan controls and DAW return blend controls
• 2 high-power headphone outputs with independent blend and level controls
• Reference-grade headphone amplifier:
• THD+N: <0.0006% (-104.4dB) @ 20dBu, 1kHz A-weighted, 300-ohm load
• Output wattage (1kHz): 250mW x 2 @ 600 ohms, 650mW x 2 @ 220 ohms, 1.21W x 2 @ 100 ohms, 500mW x 2 @ 32 ohms
• Frequency Response: <1Hz to >70kHz (1dB)
• High-current 8-slot 500 Series rack:
• Per-slot current: 250mA , 2A total for all slots
• XLR inputs, XLR line outputs, and TRS inserts (pre-ADC) per 500 Series slot
• Module source switching options to send analog, USB or external C.A.S.T. signals through 500 Series modules
• Per-slot module bypass switches allowing 500R8 to be used without 500 Series modules installed

For professional audio engineers, producers, and recording studios looking to combine high-quality analog processing with seamless digital integration, the Cranborne Audio 500 R8 8-slot 500 Series Chassis and USB Audio Interface offers an unmatched solution. This versatile chassis not only provides ample space for eight 500 Series modules, but also acts as a comprehensive audio interface, delivering pristine sound quality and flexible connectivity options to meet the demands of modern production workflows. Whether you are tracking, mixing, or mastering, the 500 R8 empowers you to harness the sonic character of your favorite analog gear while maintaining tight digital control.

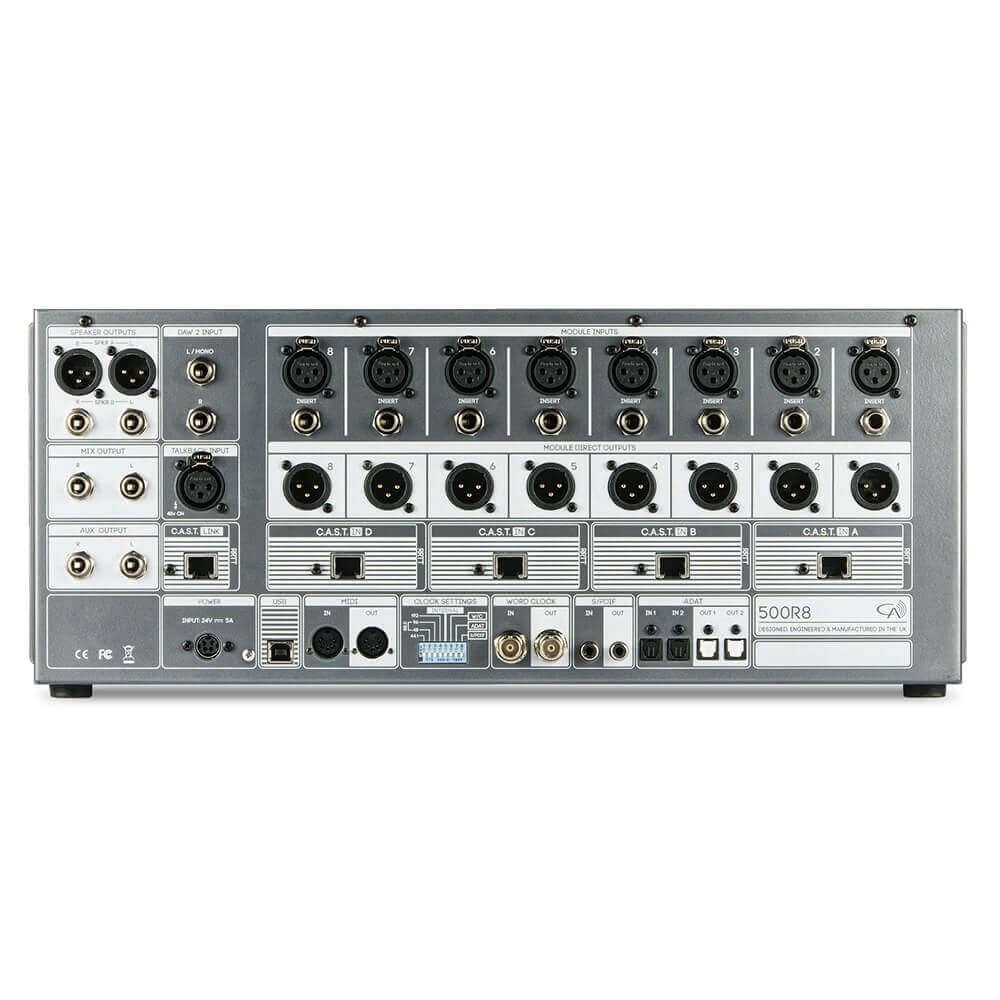

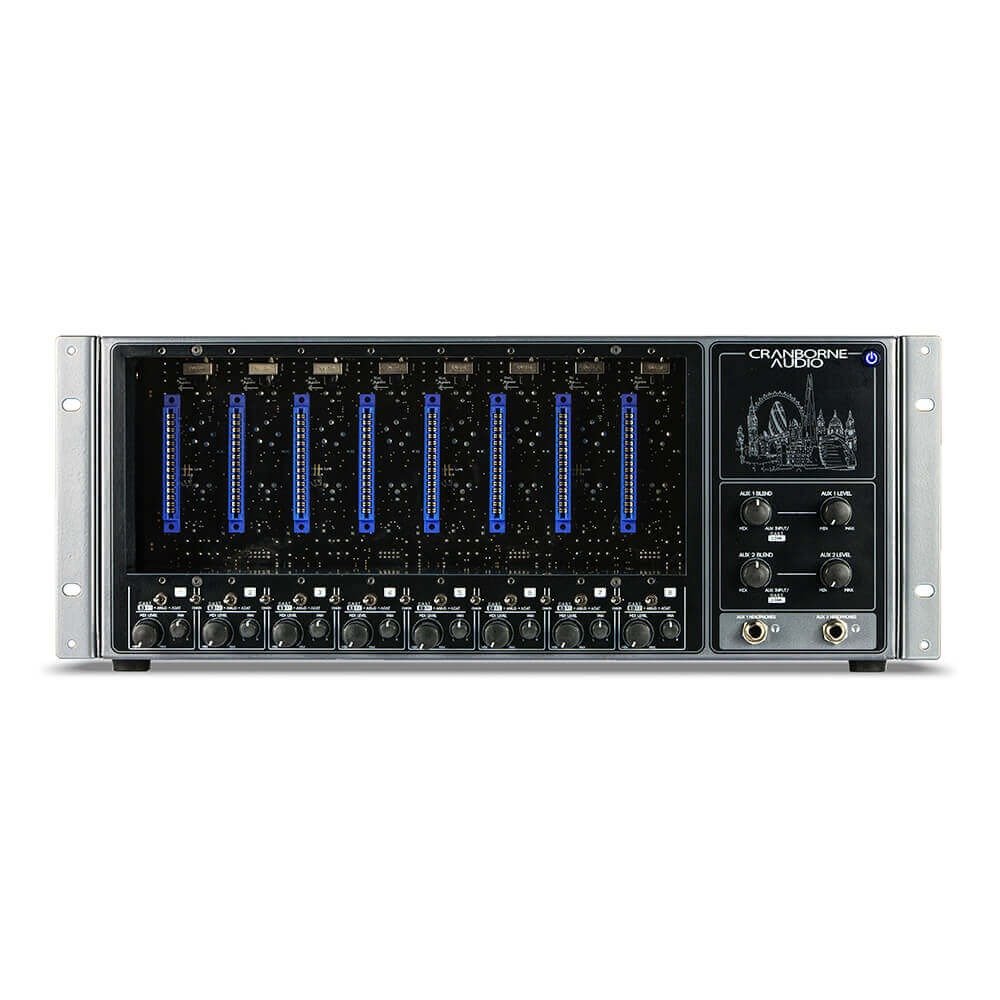

At the core of the 500 R8’s value is its ability to house up to eight 500 Series modules, allowing you to customize your signal chain with preamps, EQs, compressors, or other outboard processors. This means you can craft your ideal analog setup in a compact, rack-friendly unit without compromising on audio quality. The chassis also provides eight XLR inputs and outputs, ensuring balanced, professional-grade connections for microphones and outboard equipment. Two additional 1/4-inch inputs dedicated to DAW playback enable you to route digital tracks through your analog modules effortlessly, giving you hands-on tonal shaping in real time.

Connectivity is another standout feature of the 500 R8. Equipped with four CAT5 ports, the chassis supports high-speed, low-latency digital audio transfer, which is essential for complex studio environments with multiple devices. The inclusion of two coaxial S/PDIF inputs and outputs alongside four optical ADAT ports means you can easily expand your system or integrate with existing digital gear without hassle. Moreover, the unit features comprehensive insert points on all channels via 1/4-inch TRS jacks, allowing you to insert external processors within each channel’s signal path for maximum flexibility.

The interface’s monitoring capabilities are just as robust. Two XLR and two 1/4-inch speaker outputs provide versatile routing options for studio monitors, while two separate 1/4-inch headphone outputs with independent controls enable multiple users to monitor simultaneously without interference. The talkback functionality, activated through an XLR input, facilitates clear communication between control room and performers — a critical feature during recording sessions. Additionally, MIDI In, Out, and USB ports offer seamless integration with controllers and MIDI-enabled instruments, enhancing your creative workflow.

Physically, the Cranborne Audio 500 R8 is designed to fit standard 19-inch racks with a height of 7 inches (4U) and a depth of 8.6 inches, making it suitable for both stationary studio setups and mobile rigs. The included 24V power supply ensures stable operation of your modules and connected devices. Its sturdy build quality guarantees long-term reliability even under demanding professional use, while the intuitive design keeps all inputs and outputs clearly accessible for quick setup and adjustments.

This unit is ideal for professionals who require the warmth and character of analog processing combined with the convenience and precision of a modern digital interface. Whether you are recording vocals, tracking instruments, or mixing complex sessions, the 500 R8’s extensive I/O options and expandable architecture provide the flexibility to adapt to diverse recording scenarios. The ability to route audio through multiple analog modules while maintaining pristine digital connectivity means you can achieve studio-grade sound quality without compromise.

In summary, the Cranborne Audio 500 R8 8-slot 500 Series Chassis and USB Audio Interface offers a powerful, all-in-one solution that bridges analog warmth with digital versatility. Its generous slot capacity, comprehensive input/output options, and robust build make it a cornerstone for any professional audio environment. Investing in the 500 R8 means equipping your studio with a future-proof system that elevates your sound and workflow. With this unit, you gain the confidence and control needed to bring your creative visions to life at the highest standard.
