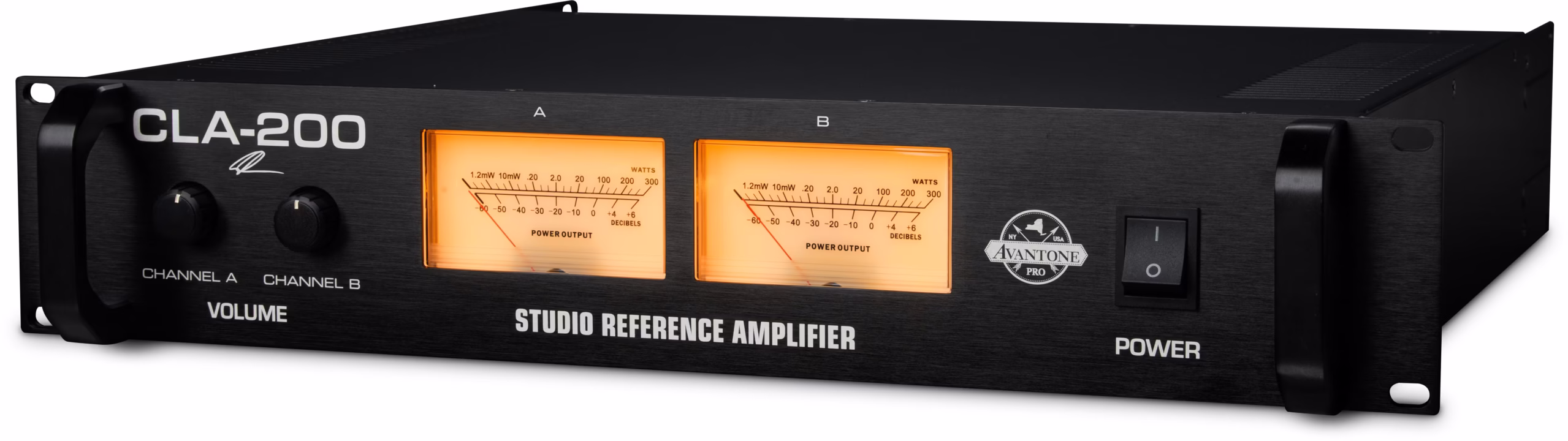

Over 200 watts per channel of fan-free, old-school Class AB power for your monitors. The Avantone Pro CLA-200 Studio Reference Amplifier is a 2U Class AB power amp designed to pair with Avantone CLA-10 monitors, and strong enough for most demanding passive speakers. It has VU-style meters, Japanese components and a toroidal linear power supply.
Why customers choose it
- Serious power: 200 W per channel into 8 ohms, 300 W into 4 ohms, 500 W bridged into 8 ohms.
- Silent: convection cooled – no fan noise, so it can sit in the same room as the monitors.
- Clean and open sound: THD and intermodulation distortion under 0.1%, damping factor 250, S/N over 103 dB (A-weighted).
- Studio-style front panel: generous meters for checking levels.
- Flexible: three modes (Stereo, Parallel (one input to both outputs) and Bridged Mono), balanced inputs and a link output; protection circuits disconnect the speakers on overheating, short circuit or DC at the output.
Who it is for
Studios with CLA-10 Passive, original white-cone or other passive monitors, mixing and mastering rooms, and engineers who want headroom without fan noise.
Specifications
| Amplifier | Class AB, 2 channels, convection cooled |
|---|---|
| Power (8 ohms, stereo) | 200 W per channel |
| Power (4 ohms, stereo) | 300 W per channel |
| Power (bridged, 8 ohms) | 500 W |
| Frequency response | 20 Hz – 20 kHz (+/- 0.5 dB) |
| THD (1 kHz) | Under 0.1% |
| S/N ratio | Over 103 dB (A-weighted) |
| Damping factor | 250 (100 Hz, 8 ohms) |
| Slew rate | 28 V/us |
| Input sensitivity | 0.775 V (0 dBu) |
| Input impedance | 20 kohm balanced / 10 kohm unbalanced |
| Crosstalk | -70 dB |
| Modes | Stereo, Parallel (one input to both outputs) and Bridged Mono |
| Rack size | 2U, 19-inch |
Good to know

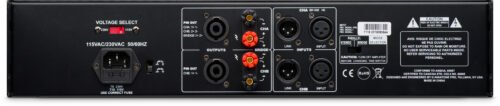

- Check the voltage select switch on the rear panel before first power-on (set it for 230 V in India). Standard IEC power inlet with fuse tray.

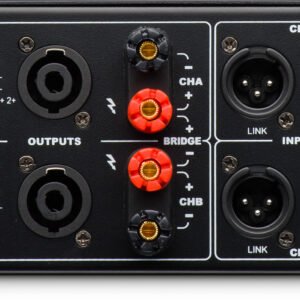

- Speaker outputs are binding posts – use good speaker cable. Do not change the mode switch with the power on.
- Rack-mountable in a standard 19-inch rack (four front mounting holes). Leave space around the sides and top for cooling air.
