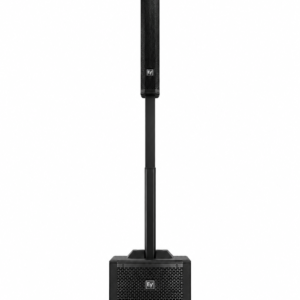

Big column-system sound from one 15-inch powered sub that drives the whole rig. The Electro-Voice EVOLVE 70 is the 15-inch powered subwoofer at the base of the EVOLVE 70 column system. It holds the 2,000 W amplifier and every input for the system, so you connect everything in one place. Electro-Voice sums it up as three pieces, two clicks, one system.
Why customers choose it
- Deep, solid low end: 15-inch woofer with a 3-inch voice coil; frequency response 40 Hz to 18 kHz.
- One amplifier for the whole system: the onboard 2,000 W (peak) amplifier feeds both the subwoofer and the column.
- Connect almost anything: XLR/TRS combo mic/line inputs with 48V phantom power, stereo RCA, AES/EBU digital and Bluetooth true wireless stereo.
- Wide, even coverage: 120° x 25° coverage with a 160 Hz crossover to the column.
- Control from your phone: QuickSmart App control, and it links with other EVOLVE speakers.
- Expandable: XLR Mix out, XLR Sub out and AES/EBU thru pass the signal to the next speaker.
Who it is for
Mobile DJs, live bands, wedding and event companies, churches, banquet halls and clubs that want a quick-setup column system with real bass and many inputs on the speaker itself.
Specifications
| Type | Powered 15-inch subwoofer for the EVOLVE 70 column system |
|---|---|
| Woofer | 15-inch, 3-inch voice coil |
| Amplifier | 2,000 W peak (feeds sub and column) |
| Frequency response | 40 Hz – 18 kHz |
| Coverage | 120° x 25° |
| Crossover to column | 160 Hz |
| Inputs / outputs | Dual XLR/TRS combo mic/line inputs with switchable 48V phantom power, stereo XLR/TRS combo line input, stereo RCA line input, XLR AES/EBU input and thru, XLR Mix out, XLR Sub out, RJ45 QuickSmart Link, Bluetooth stereo input with TWS |
| Power input | powerCON |
| Enclosure | Plywood with polyurea coating (sub); composite (column); aluminium (pole) |
| Grille | Steel with powder coat |
| Net weight | 35.5 kg |
| Colours | Black or white |
Good to know
- The subwoofer is the heart of the system: amplifier, inputs, outputs and Bluetooth are all on the sub.
- Phantom power (48V) on the two combo inputs is switchable, so condenser mics can be used.
- Use the XLR Sub out to add another subwoofer, or Mix out to feed another speaker or recorder.
FAQ
Can I stream music from my phone?
Yes. It has a Bluetooth stereo input with true wireless stereo (TWS).
Can I connect a digital mixer digitally?
Yes, through the XLR AES/EBU input, with an AES/EBU thru to pass it on.
Reviews
There are no reviews yet.
