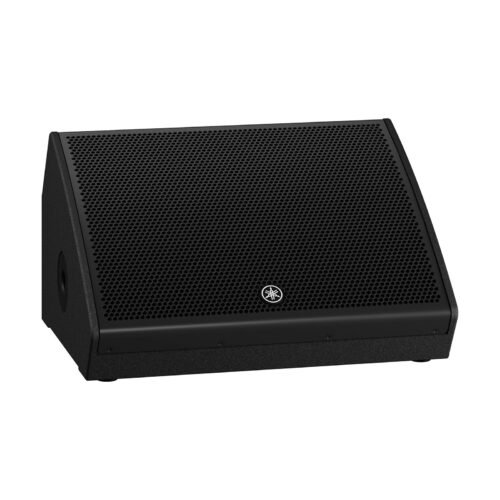

Hear yourself clearly on stage – with a monitor built like a pro main speaker. The Yamaha DHR15M is a 2-way bi-amp powered loudspeaker with a 15-inch woofer and a 1.75-inch HF driver in a space-saving coaxial design with a custom constant-directivity horn – made for use as a floor monitor.
Why customers choose it
Who it is for
Bands, worship teams, singers and stage engineers who need strong, clear stage monitoring.
What’s in the box
- 1 x Yamaha DHR15M powered loudspeaker
- 1 x AC power cord
- 1 x Owner’s manual
Specifications
| Type | 2-way bi-amp powered floor monitor, bass reflex |
|---|---|
| LF | 15″ cone, 3″ voice coil |
| HF | 1.75″ diaphragm, 1″ throat coaxial compression driver |
| Frequency range | 50 Hz – 20 kHz (-10 dB) |
| Coverage | 65° × 75° |
| Max. SPL | 131 dB (peak, 1 m) |
| Amplifier | Class-D, 1000 W dynamic (800 + 200), 465 W continuous |
| Inputs | 2 × combo (XLR/TRS), 2 × RCA |
| Output | XLR (through or mix) |
| Monitor angle | 57° |
| Cabinet | Plywood, black polyurea |
| Pole socket | 35 mm (side) |
| Dimensions (W × H × D) | 642 × 369 × 505 mm |
| Weight | 23.0 kg |
| Woofer Size | 15 inch |
Good to know
- Set D-CONTOUR to MONITOR for stage-wedge use.
- Pairs with the DHR15 main speaker.
