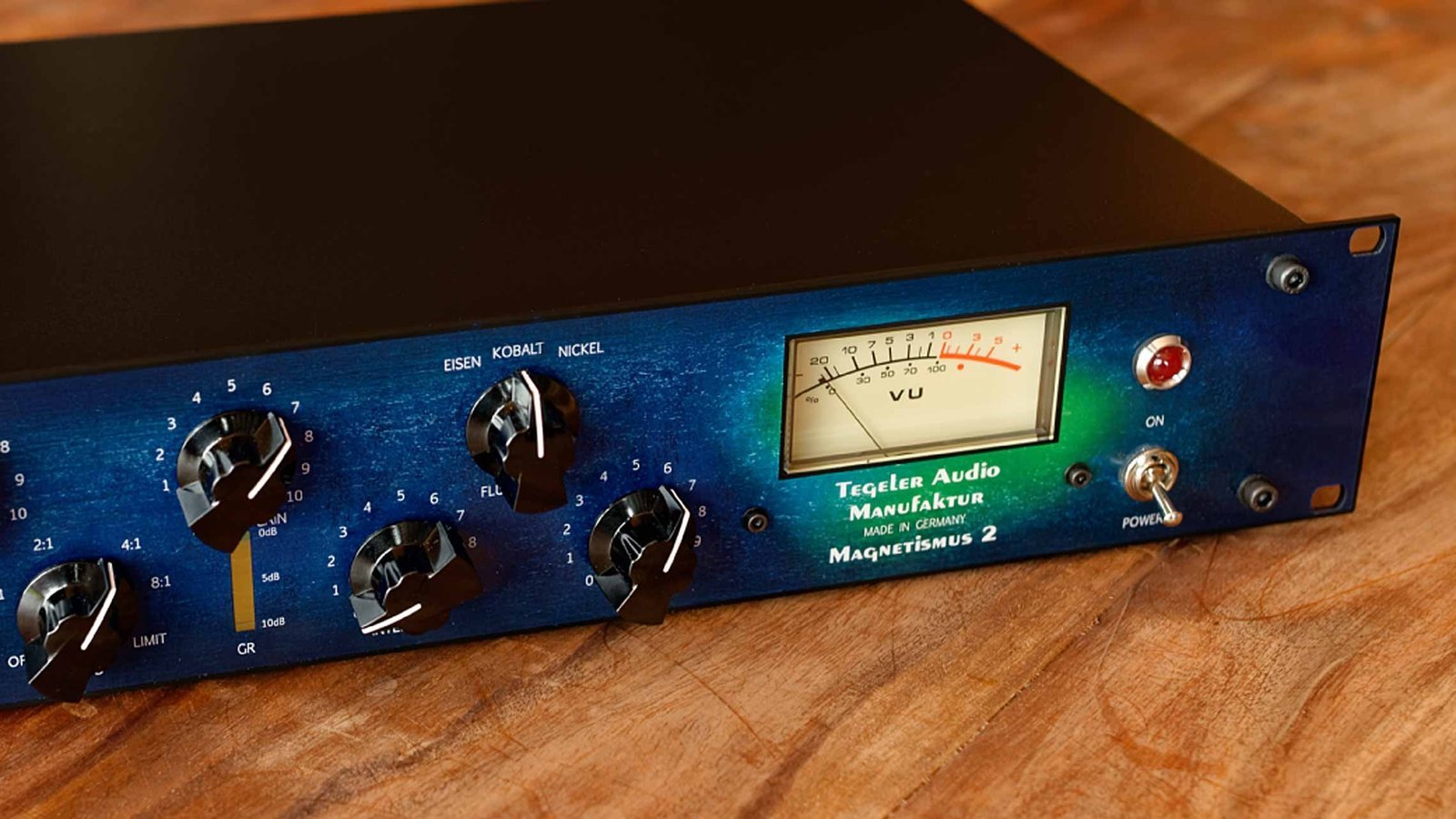

Magnetismus 2 Transient Shaper & VCA Compressor

The Magnetimus 2 is a good candidate to be Tegeler’s most versatile device: it was first conceived, among other things, for processing transient-rich signals, such as drums, synthesizers, and acoustic guitars. It combines a modern, flexible VCA compressor with a downstream transient shaper. The result is a thick, rich sound, that helps integrate tracks better into the mix, similar to a tape recording.

• Transient shaper

The transient shaper does not simply change the level of the transients, but, much like a tape machine, it rounds out the transients. The three different Flux Modes (Eisen, Kobalt, and Nickel) will run your signal through different transformers that emulate analogically the saturation of tapes made respectively of iron, cobalt, and nickel.

• VCA compressor

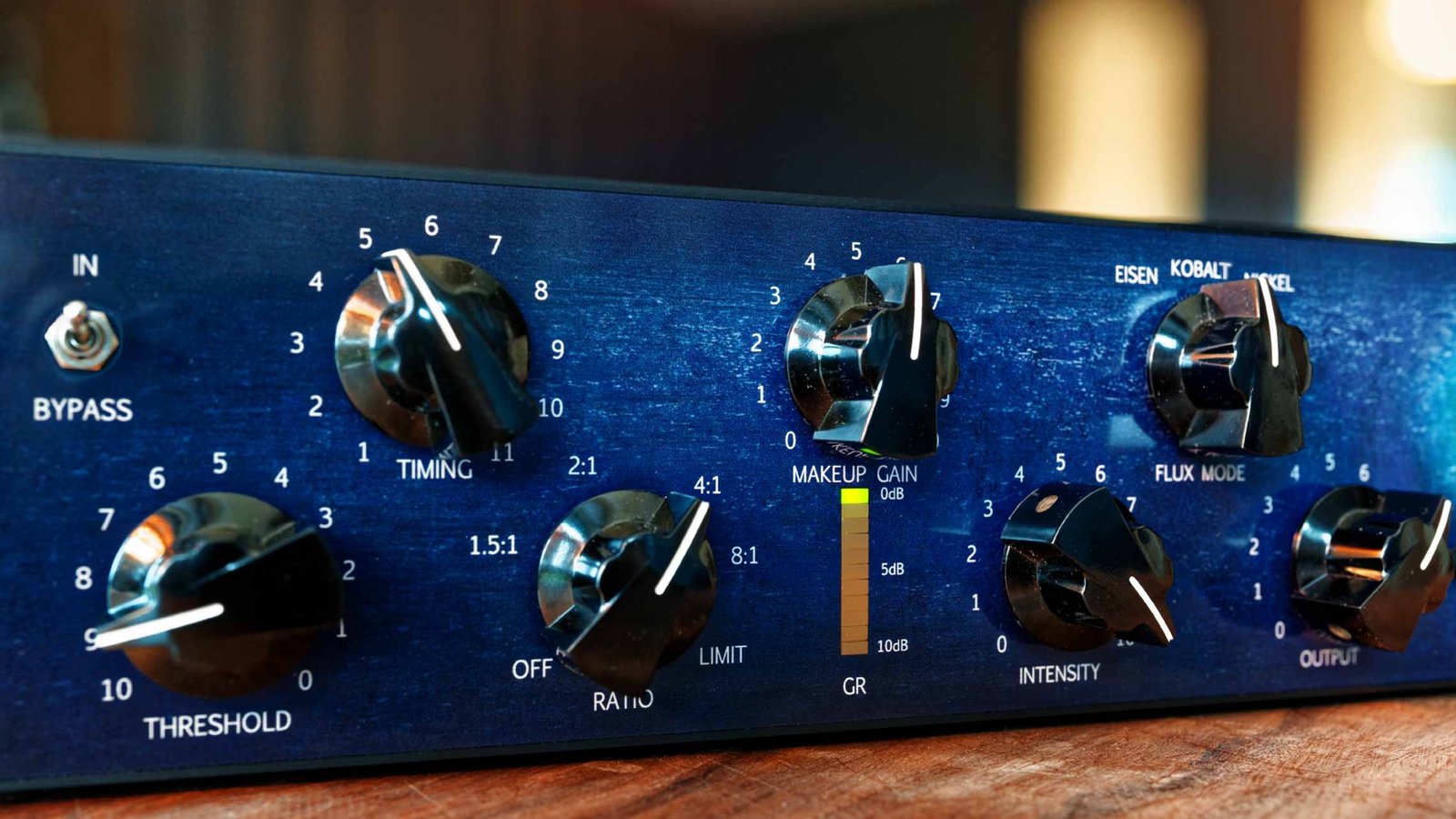

In its first stage, you will find a powerful VCA compressor, with Threshold, Timing, Ratio, and Make-Up Gain controls. As its brother Creme does, the Magnetismus 2 can compress any stereo signal to ensure that the peaks are attenuated without compromising the dynamic range of your mix. More than anything, it can – and should – be used to “glue” mixes together.

• Modi

The way the Flux Mode does that is by changing the time window for the processed transients slightly, causing the transient to be rounded more or less depending on the width of the transients. With the Intensity knob, you can control how much the transient shaping will change the original signal, enabling you to sculpt your envelope as finely as possible.

• Transformer stage

The additional transformer at the output adds another bit of density, which will bring your modified up as much as you want, allowing that final touch of punch that a mix sometimes needs.

Using more extreme settings, the Magnetismus 2 can also be very helpful in creative sound design, by crushing or destructing audio signals; it can be used as a very straightforward drum smasher, for example.

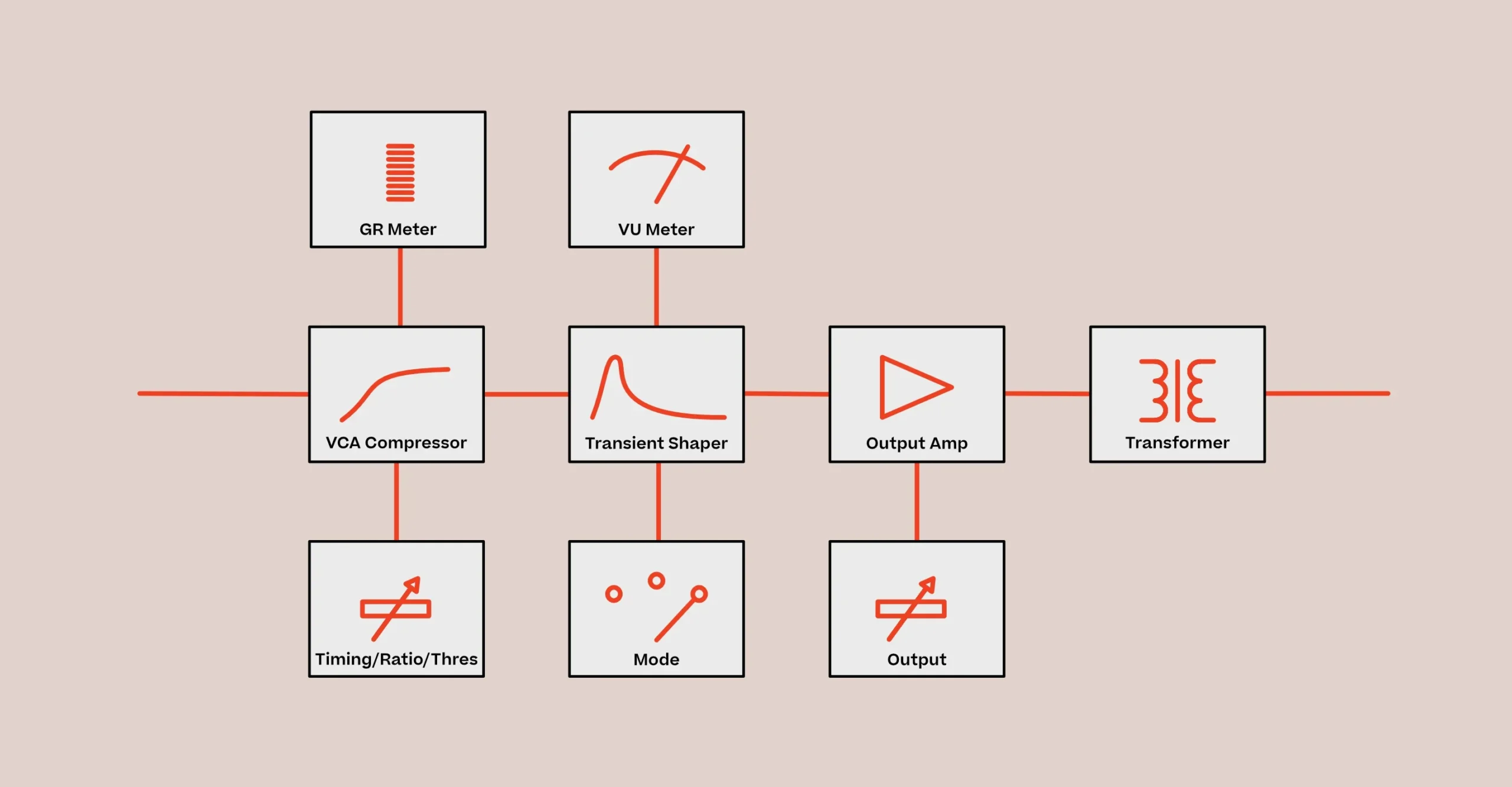

• Signal flow

Since the VCA compressor can also be used separately, the Magnetimus 2 is also suitable for processing sum signals, as a bus compressor, or even as a mastering compressor. Whatever sonic painting you want to create, the Magnetismus 2 is your perfect canvas.

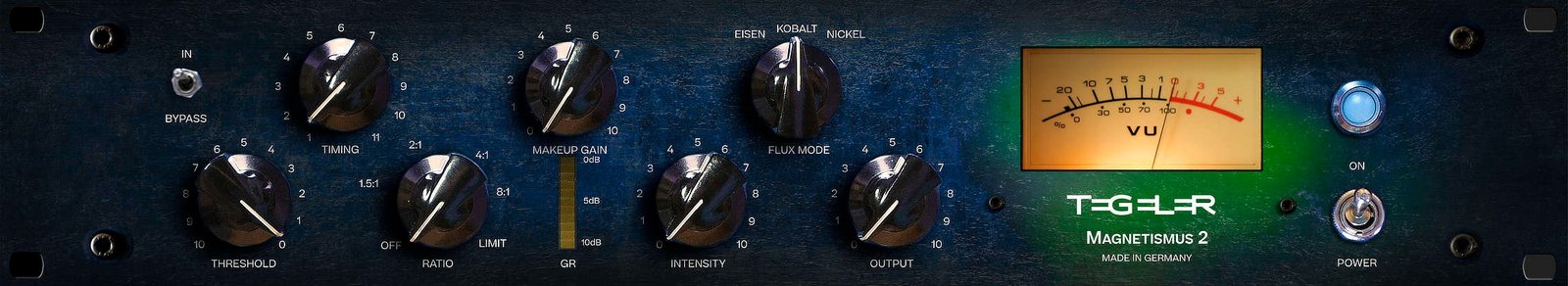

Key Features

Stereo Unit

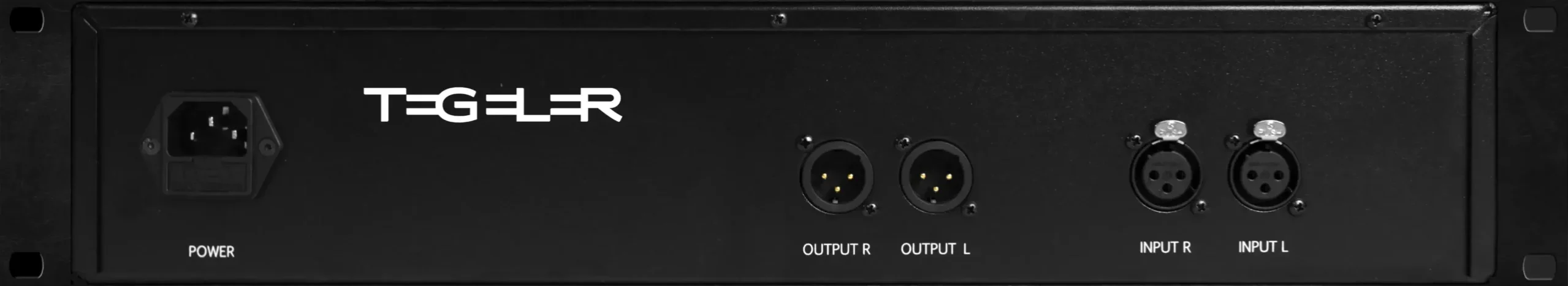

Input: Balanced XLR
Output: Transformer Balanced XLR
VCA Compressor
Adjustable threshold and ratio
Wide range of adjustable timing
LED gain reduction meter

Adjustable level and intensity of transient processing

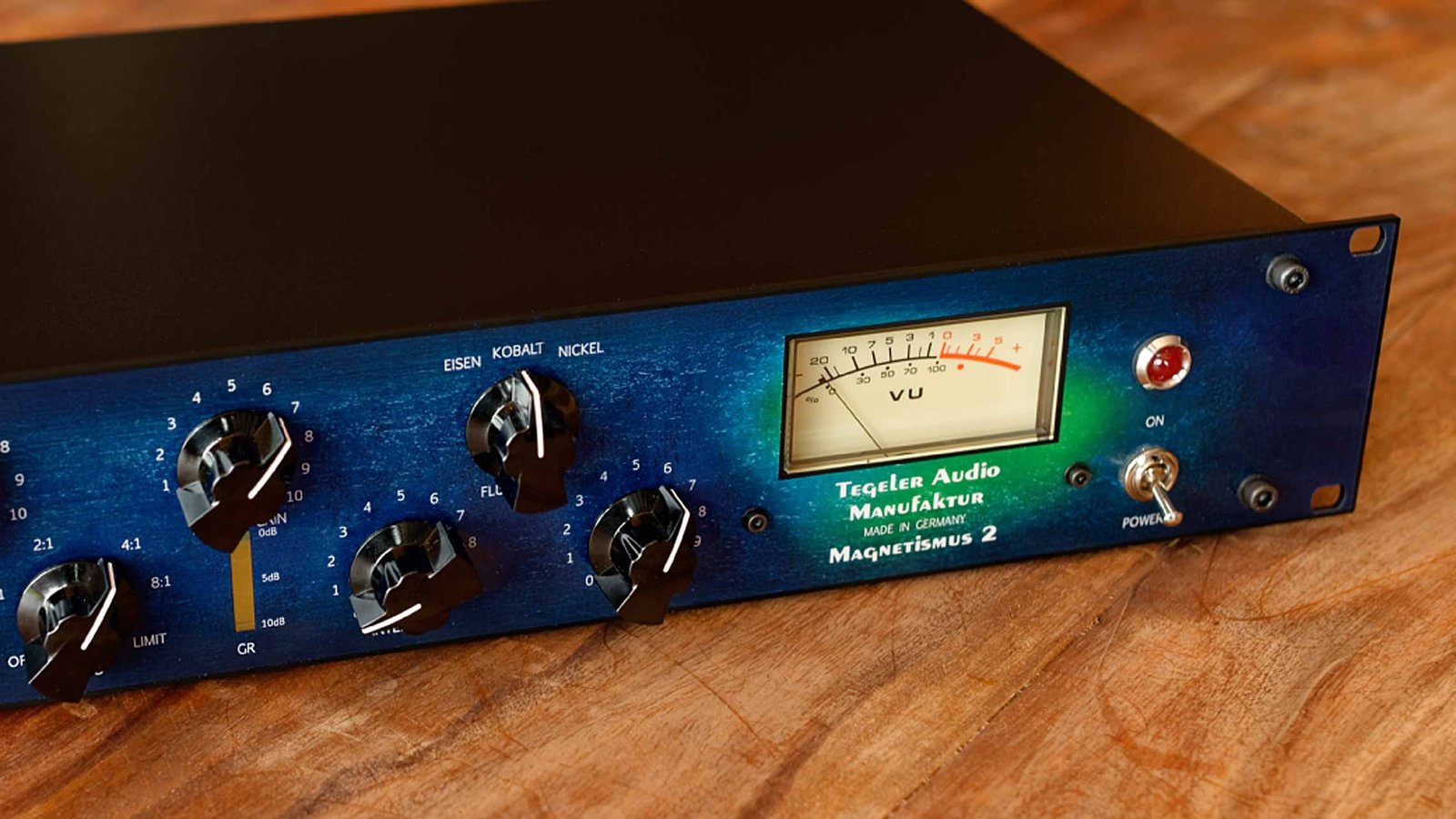

Illuminated VU meter for working point control
Adjustable output level
Stepped Potentiometers
Bypass Switch
Internal power supply
Height: 88,1mm (2HE), width: 483mm, depth: 250mm

For audio professionals and enthusiasts who demand impeccable sound quality and precise control in their amplification chain, the Tegeler Audio Magnetismus 2 stands out as a premium solution. In a world where clarity, dynamic range, and signal integrity are paramount, this amplifier offers the performance and reliability needed to elevate your audio production, ensuring your mixes translate perfectly across all listening environments.

One of the primary challenges in audio amplification is maintaining a transparent and accurate representation of the original signal without coloration or distortion. The Magnetismus 2 addresses this with an impressive frequency response spanning from 20 Hz to 22 kHz, covering the entire audible spectrum. This wide range means you capture every nuance, from deep bass frequencies to crisp high-end detail, allowing for a faithful reproduction of your source material. The dynamic range of 95 dB or greater ensures that even the most subtle quiet passages and explosive peaks are handled with clarity, preserving the emotional impact of your recordings.

Input and output impedance play a crucial role in how an amplifier interacts with other equipment in your signal chain. With an input impedance of 2.4 kΩ or higher, the Magnetismus 2 is designed to accept a wide variety of sources without signal loss or degradation. The output impedance of less than 600 Ω ensures a strong, clean signal is delivered to downstream devices, minimizing noise and interference. This careful impedance matching translates into a more robust and consistent audio path, which is essential for professional studios aiming for maximum fidelity.

Practicality and reliability are evident in the Magnetismus 2’s design. It operates on a universal voltage range of 110-240 V at 50-60 Hz, making it suitable for use worldwide without the need for additional power converters. Its power consumption remains below 25 watts, reflecting energy efficiency without compromising performance. The inclusion of a 500 mA slow-blow fuse protects the unit from power surges, enhancing durability and providing peace of mind during extended studio sessions.

Physically, the Magnetismus 2 is thoughtfully engineered to fit seamlessly into standard professional racks, measuring 2U in height with dimensions of 88.1 mm high, 483 mm wide, and 250 mm deep. This compact form factor allows for efficient use of studio space while contributing to an organized and professional setup. Its sturdy build ensures it can withstand the demands of daily use in busy production environments.

Whether you’re mixing, mastering, or performing live sound reinforcement, the Tegeler Audio Magnetismus 2 delivers consistent, high-quality amplification that supports your creative decisions. By preserving the integrity of your audio signal and providing reliable performance, it enables you to trust your ears and work with greater confidence, knowing that what you hear is exactly what will be delivered to your audience.

In conclusion, the Tegeler Audio Magnetismus 2 is more than just an amplifier; it is an essential tool for professionals who refuse to compromise on sound quality. Its combination of precise specifications, robust build, and practical design makes it a smart investment for studios seeking to enhance their audio chain. With the Magnetismus 2, you are equipped to achieve clearer mixes, better dynamic control, and ultimately, superior sonic results that stand out in any context.
