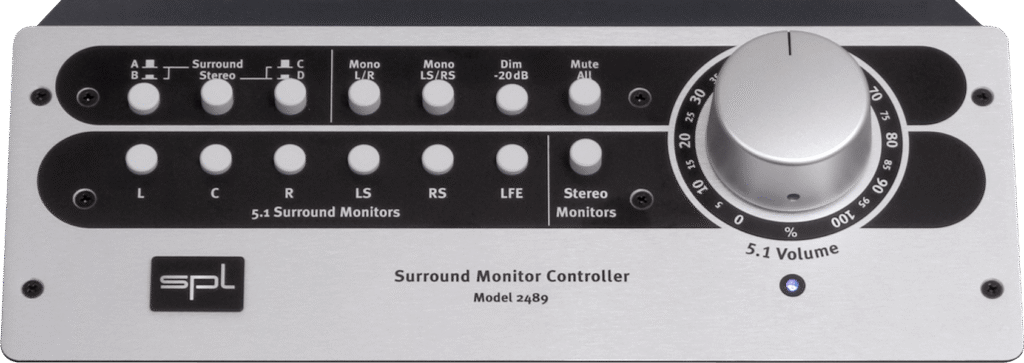

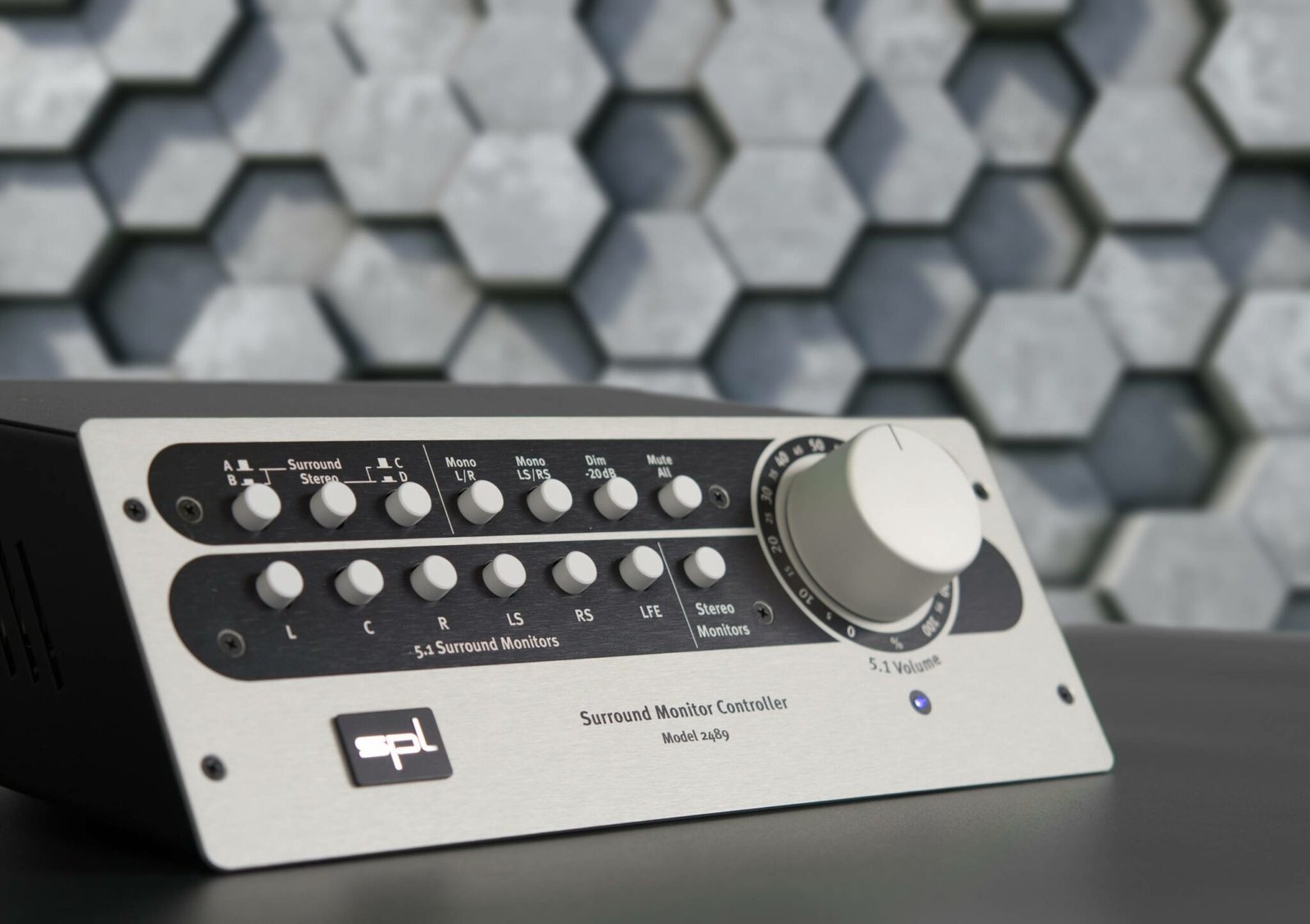

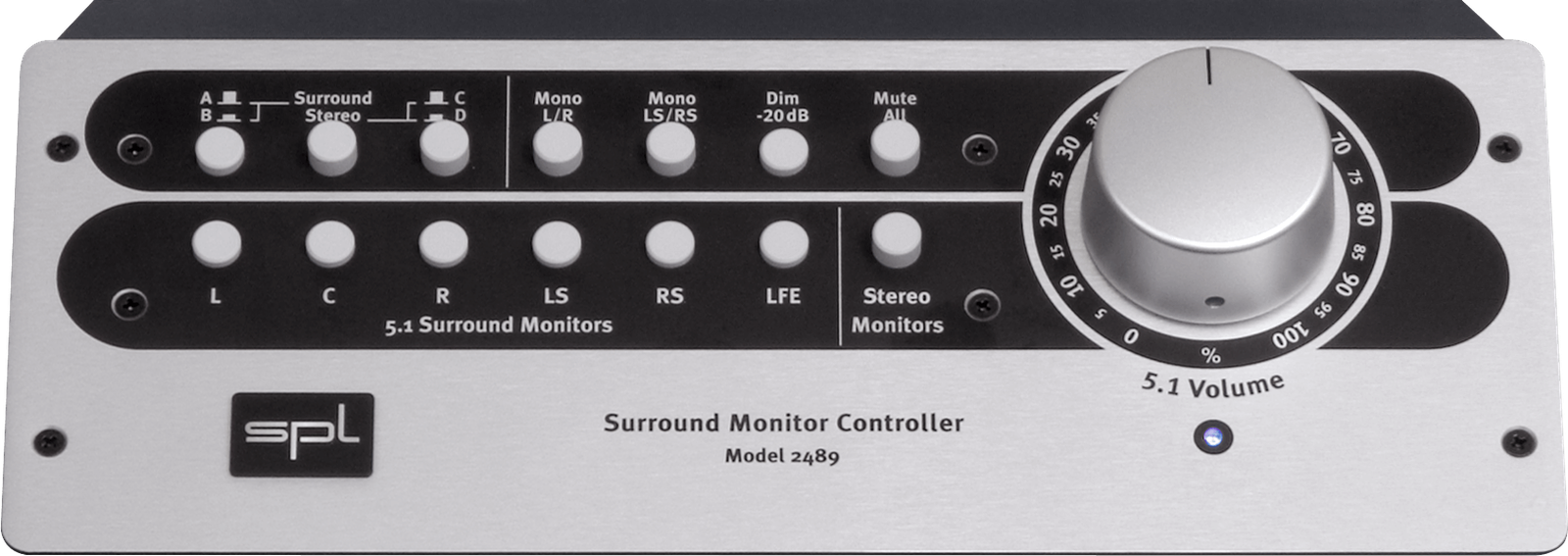

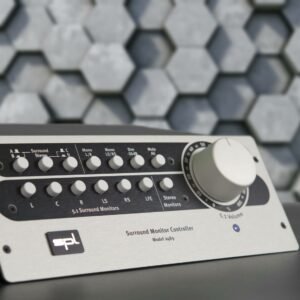

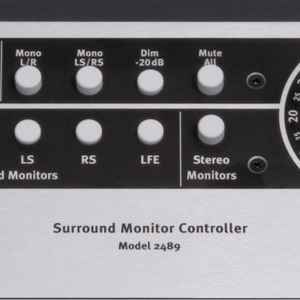

The simple way to monitor 5.1 surround and stereo from one analog volume knob. The SPL SMC 5.1 Surround Monitor Controller combines analog 6-channel volume control with speaker management for 5.1 surround and stereo sources. SPL calls the SMC the industry standard for 5.1 monitoring.
Why customers choose it
Who it is for
Post-production, film, broadcast and music studios mixing in 5.1 surround as well as stereo.
Specifications
| Type | 5.1 surround monitor controller |
|---|---|
| Inputs | 2 x 5.1 + 2 x stereo |

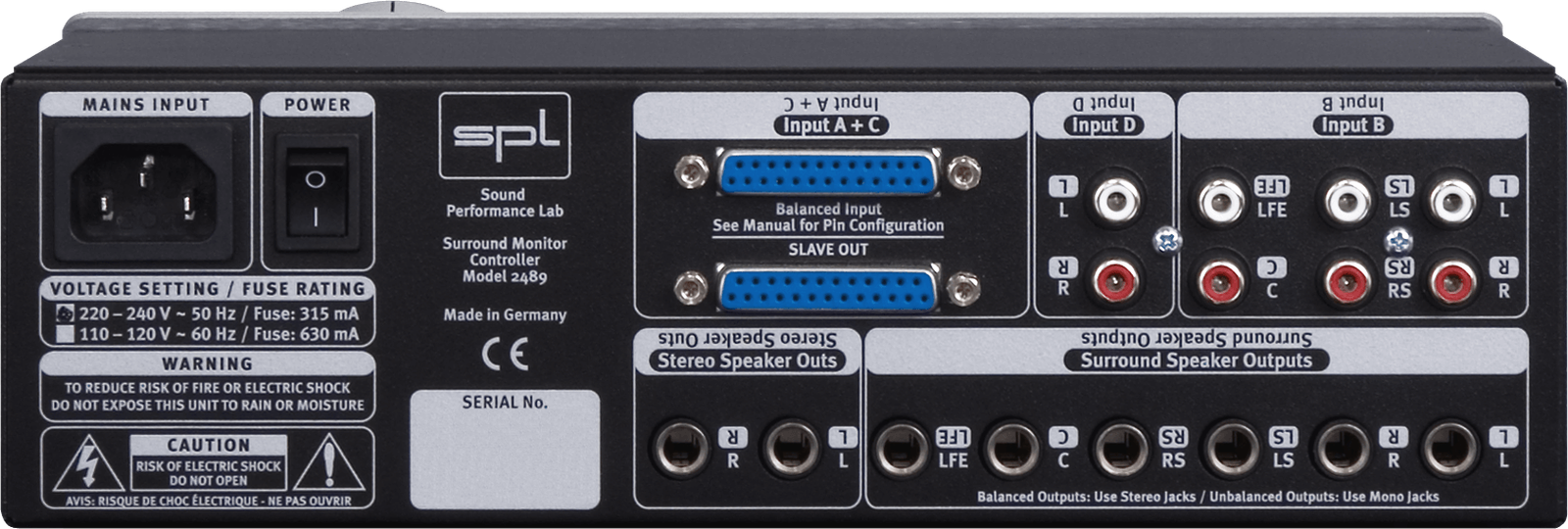

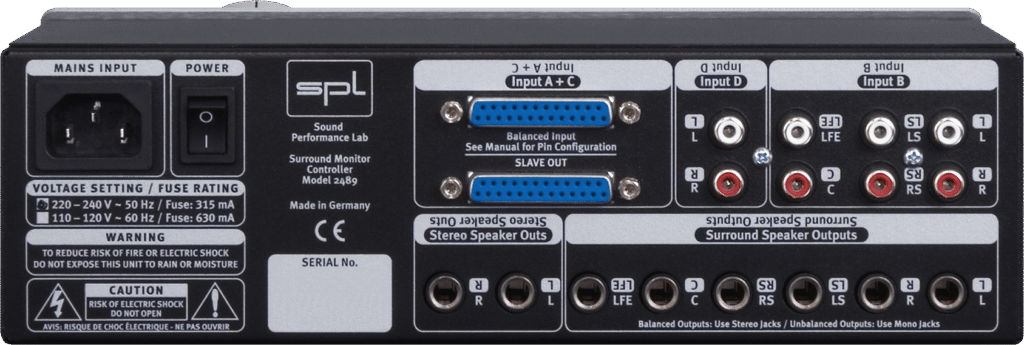

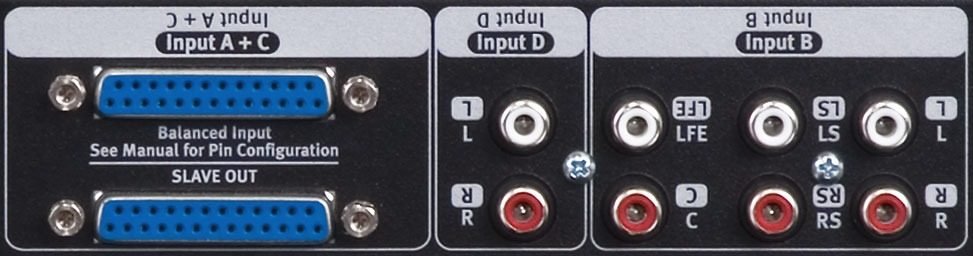

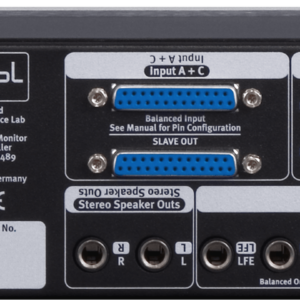

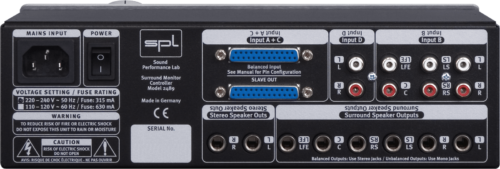

| Connectors | DB25 and TRS jack (balanced), RCA |
| Max input level | 21 dBu |
| Input impedance | 50 kOhm (DB25 and jack), 10 kOhm (RCA) |
| Frequency range (-3 dB) | 10 Hz – 100 kHz |
| THD+N (18 dBu) | 0.002 % |
| Noise (A-weighted) | -98 dBu |
| Dynamic range | 119 dB |
| Mains | 230 V AC 50 Hz or 115 V AC 60 Hz, max. 10 W |
| Size (W x H x D) | 272 x 91 x 220 mm |
| Weight | 2.3 kg |
| Channels | 6 (5.1) |
| Power Supply | Internal linear |
Good to know
- Speaker outputs are balanced TRS jacks; mono (TS) plugs make the signal unbalanced automatically.

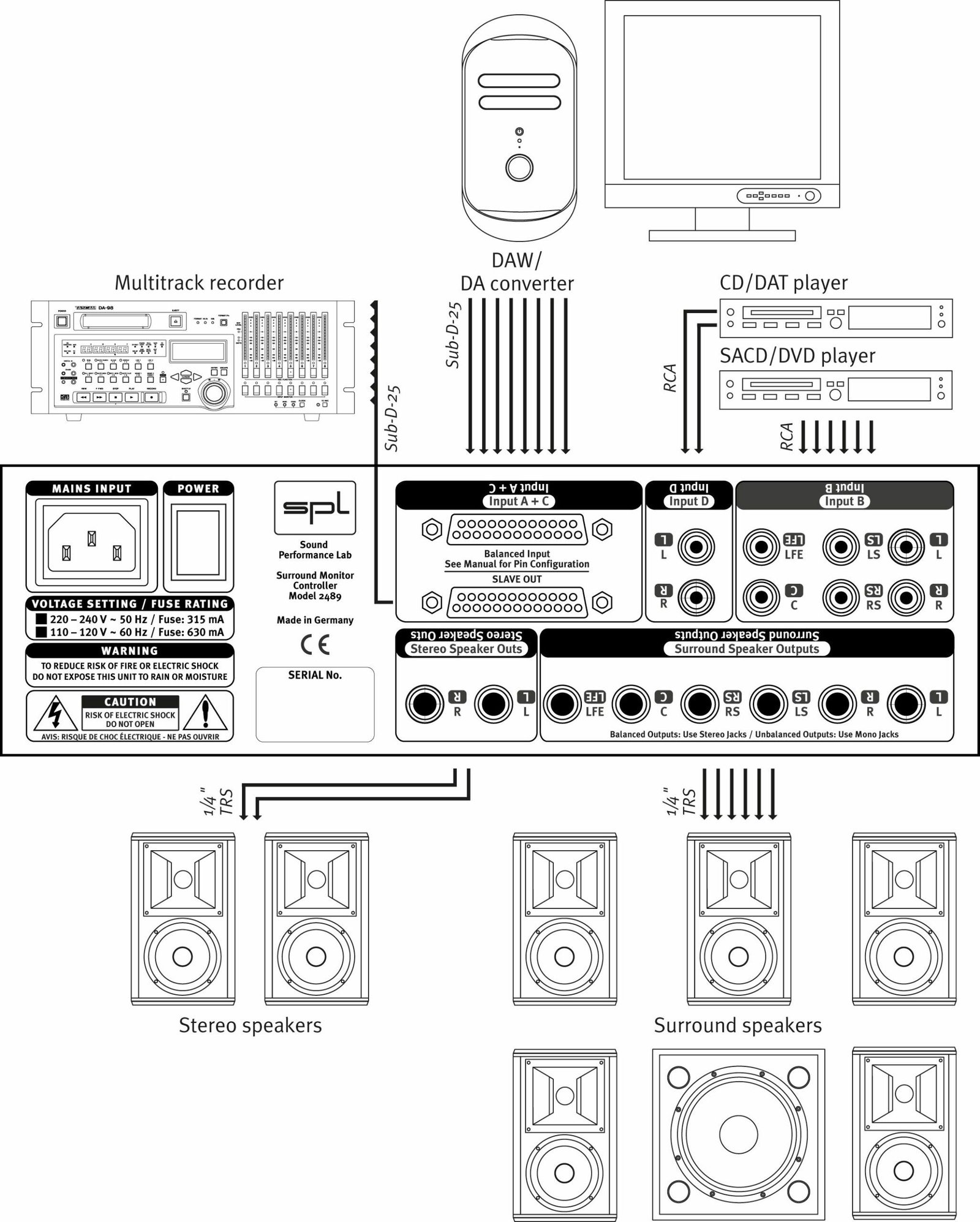

- You will need a DB25 cable from your interface for the main multichannel input.
- Mains voltage is factory set (230 V or 115 V) – check it matches Indian 230 V mains.
- Internal linear power supply with toroidal transformer.
FAQ
Can I connect a Blu-ray player?
Yes. Consumer -10 dBV sources are level-matched so they compare fairly with studio-level sources.
Does it handle stereo too?
Yes. It has two stereo inputs alongside the two 5.1 inputs.
