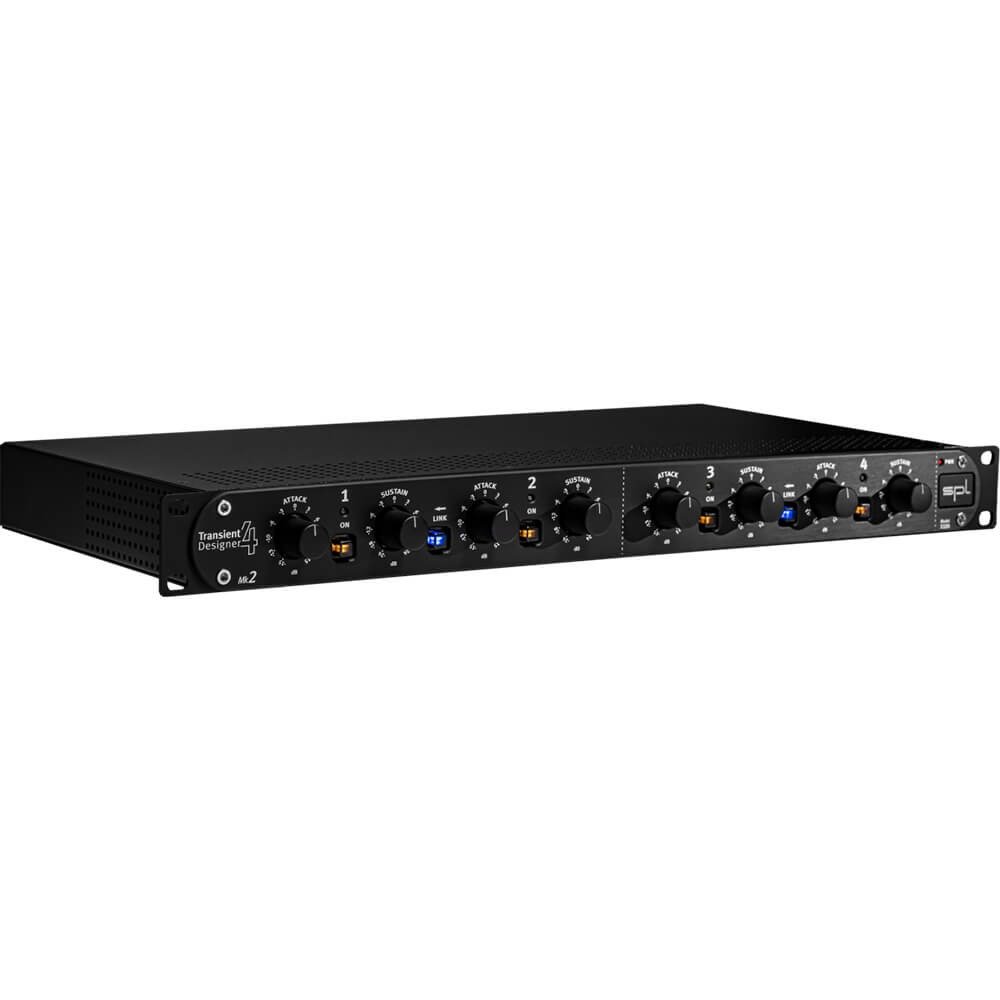

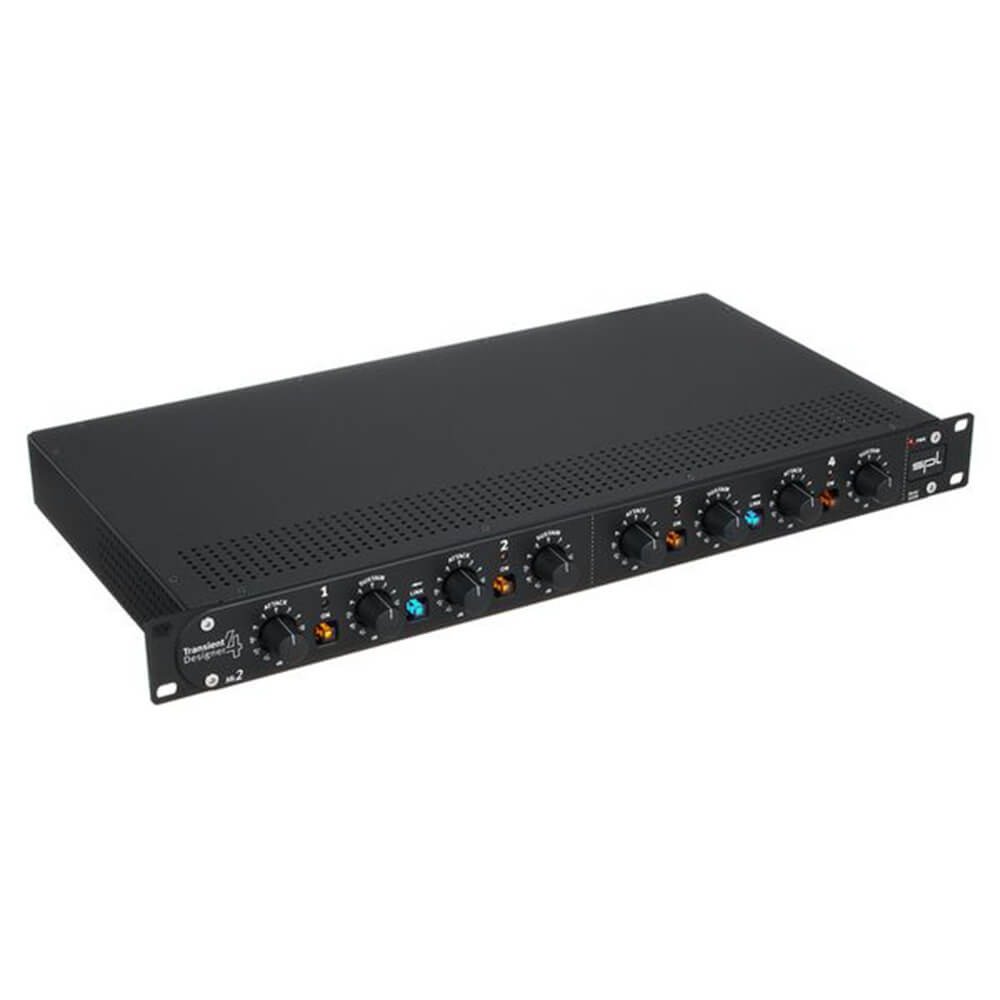

SPL Audio Transient Designer 4 MK2

Shape Transients Like Never Before

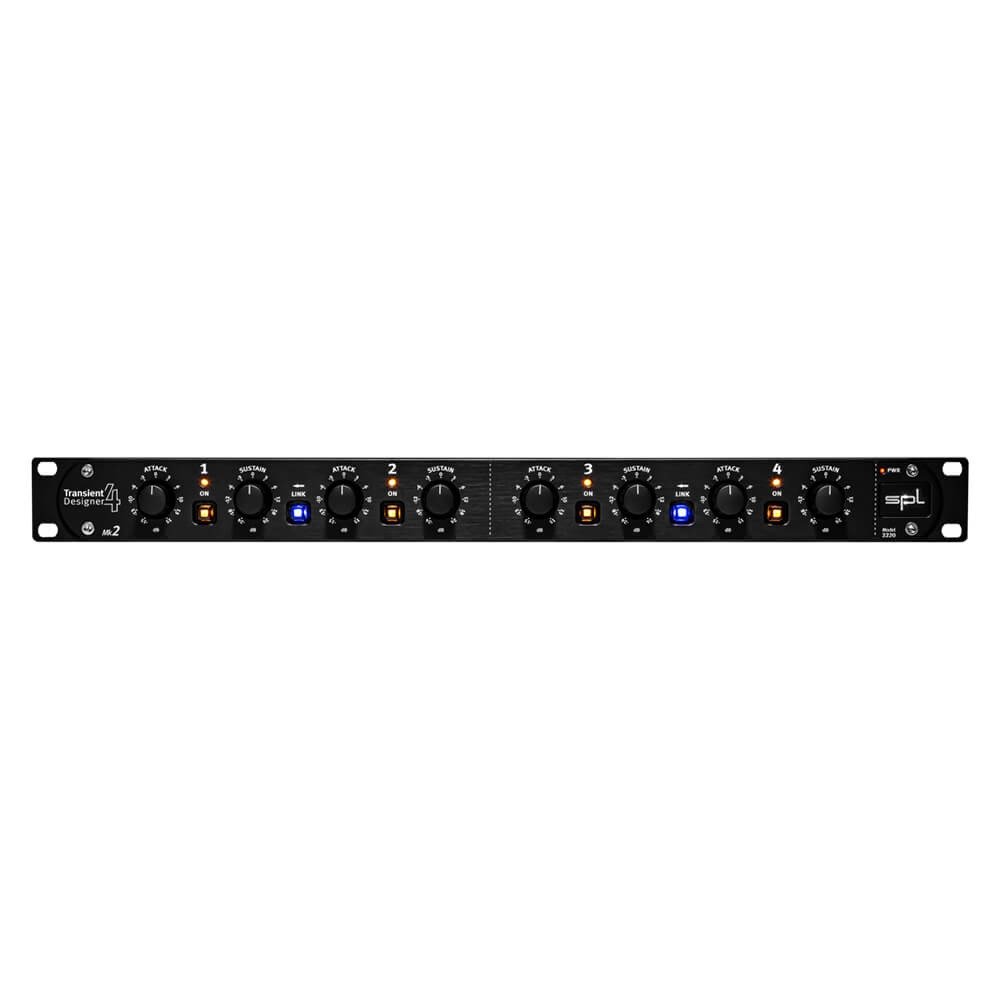

The first SPL Transient Designer made a sensation when it was released in 1998, but SPL has now raised the ante. The Transient Designer MK2 retains the same Differential Envelope Technology (DET) and 4-channel level-independent processing capabilities as its predecessor while adding a new design and an even more elegant look and feel. The 4mm thick black anodized faceplate, sturdy aluminum-milled knobs, and black powder-coated high-quality steel housing look great on any rack. Neutrik XLR connections with gold-plated contacts on all four channels are installed under the hood, as is electronically balanced signal transmission at a minimal +6dB level. And, as always, only two controls are required to get fantastic outcomes with this excellent instrument.

On the Attack

studio engineers have consistently praised the SPL Transient Designer 4 MK2’s simplicity of use. Attack, one of just two settings required, allowing you to boost or reduce the transient responsiveness of a signal by +/- 15dB. Positive numbers imply increases, whilst negative values suggest reductions. You can bet the snare drums will shatter like you’ve never heard before!

Sculpt the Sustain

The Sustain control extends or shortens a signal’s sustain phase by +/- 24dB. Similarly, positive values lengthen the sustain, while negative ones shorten it. This parameter allows you to specify the amount of rings you want your signal to have.

Process stereo signals

The SPL Transient Designer 4 MK2 also has several handy features. With its Link feature, you may also process stereo signals by joining channels 1+2 or 3+4, with the left channel serving as the master. Other useful controls include an On switch for easy bypassing when comparing processed and unprocessed signals, as well as a Sig (signal) LED that indicates if an input signal is higher than -20dB.

SPL Transient Designer 4 MK2’s Features:

•  Differential Envelope Technology (DET) processes attack and sustain levels independently, resulting in remarkable transient shaping. • Only two settings are needed: attack and sustain.
•  The attack alters the transient phase of a signal by +/- 15dB.
•  Shapes the sustain phase of a signal by +/- 24dB.
•  On switch enables rapid comparison of treated and raw data.
•  Link can handle stereo signals from Channels 1+2 or 3+4.
•  The Signal (Sig) LED indicates an input signal with a level over -20dB.
•  High-quality steel housing with a black powder coating.
•  A 4mm thick black anodized aluminum faceplate.
•  Knobs are made from solid aluminum.

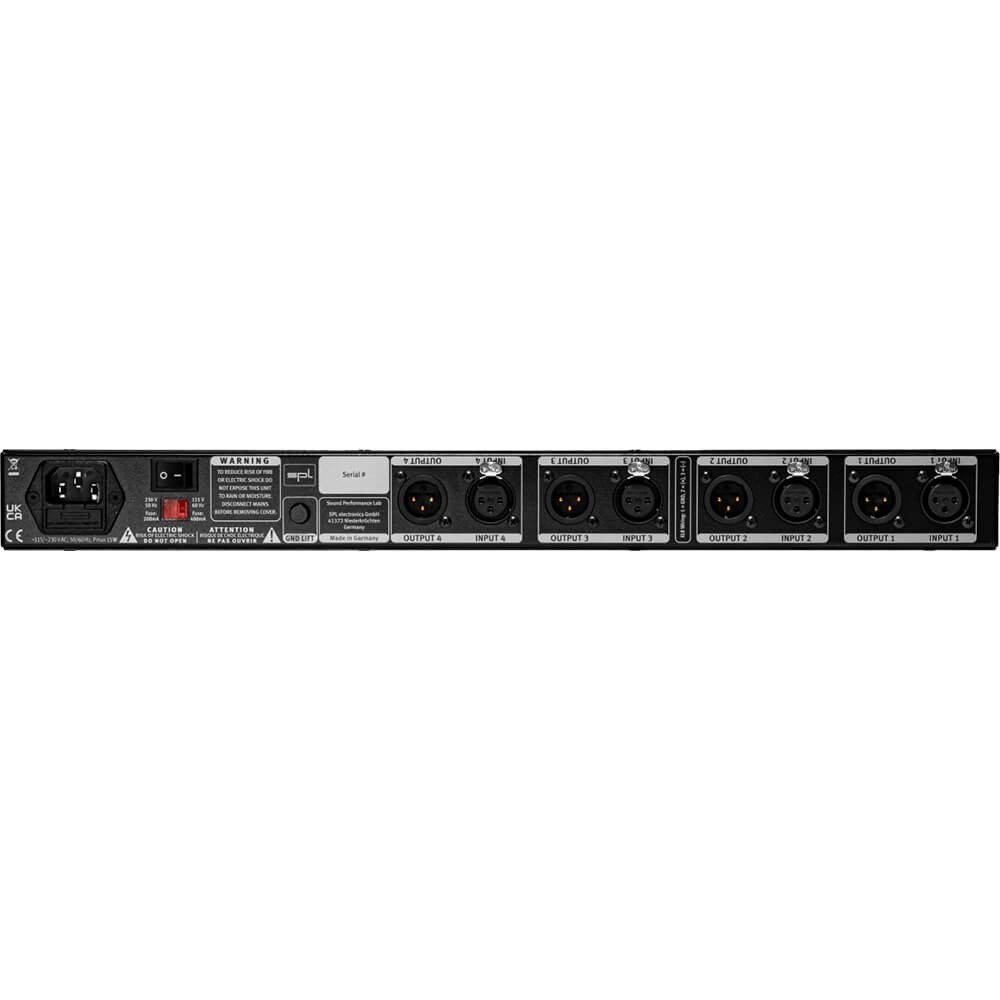

•  All four channels use Neutrik XLR sockets with gold-plated contacts and balanced signal transmission at +6dB nominal level.
•  Two channels can be joined to form a stereo pair.
•  The supply voltage raised to 18V compared to the previous generation.
•  Significantly increased signal integrity.

In the world of professional audio production, achieving pristine control over the dynamics of your sound is essential for creating polished and captivating mixes. The SPL Audio Transient Designer 4 MK2 addresses the challenge of sculpting audio with precision and nuance, offering an intuitive yet powerful tool to enhance or tame transients and sustain elements in your tracks. Whether you are a music producer, mixing engineer, or sound designer, this device empowers you to refine the attack and sustain characteristics of individual audio signals, resulting in clearer, more impactful soundscapes that stand out in any listening environment.

At the heart of the Transient Designer 4 MK2 lies its dynamic exciter technology, which manipulates the attack and sustain phases of your audio signals through dedicated signal processing controls. Unlike traditional compressors or expanders, this unit allows you to separately adjust the initial transient attack and the sustaining portion of the sound envelope. This means you can add punch to a drum hit without increasing the overall volume, or soften unwanted harshness in vocals and instruments without dulling the entire track. The result is a transparent, musical enhancement that preserves the integrity of your original recording while providing creative flexibility.

Equipped with four independent channels, the Transient Designer 4 MK2 is designed for multi-track processing in a single 1U rack space. Each channel features XLR inputs and outputs, ensuring compatibility with professional studio gear and balanced signal flow for noise-free operation. The ability to process four signals simultaneously makes this unit ideal for drum kits, multi-mic instrument setups, or parallel processing chains where precise transient shaping is required across multiple sources. This multi-channel approach streamlines your workflow by consolidating essential dynamic control into one compact, reliable device.

Weighing just over 7 pounds, the Transient Designer 4 MK2 is robust enough for both studio and live environments, powered by a standard IEC AC cable for stable and consistent operation. Its rackmount design facilitates easy integration into existing audio racks, saving valuable space while maintaining accessibility. The straightforward front panel controls allow quick adjustments during sessions, enabling real-time shaping without interrupting your creative flow. At a price of ₹132,025, this unit represents a worthwhile investment in professional-grade sound refinement tools that deliver tangible improvements to your mixes.

In practical terms, the Transient Designer 4 MK2 excels in a variety of applications. Drummers can enhance the snap and clarity of snare hits, guitarists can bring out pick attack without harshness, and vocal producers can smooth out consonants while retaining presence. Sound designers benefit from the ability to craft unique dynamic textures, enhancing impact or creating subtle shifts that breathe life into a soundtrack. Its transparent processing ensures that the character of the original performance shines through, making it an indispensable tool for engineers seeking both control and authenticity.

Choosing the SPL Audio Transient Designer 4 MK2 means investing in a proven solution for dynamic shaping that combines precision engineering with user-friendly operation. Its specialized dynamic filter and envelope controls offer a level of control that traditional compressors cannot match, giving you the power to define the sonic character of your recordings with surgical accuracy. Backed by SPL’s reputation for quality and reliability, this unit ensures consistent performance session after session, making it a trusted centerpiece of any professional audio setup.

In summary, the SPL Audio Transient Designer 4 MK2 is a versatile, high-performance dynamic exciter that addresses the needs of professionals seeking refined transient and sustain control across multiple channels. Its combination of four independent channels, balanced connectivity, and intuitive interface makes it an essential asset for enhancing clarity, punch, and presence in your audio productions. For those committed to elevating their sound with precise, transparent dynamic shaping, this unit delivers both the power and finesse required to excel in today’s demanding audio environments.
