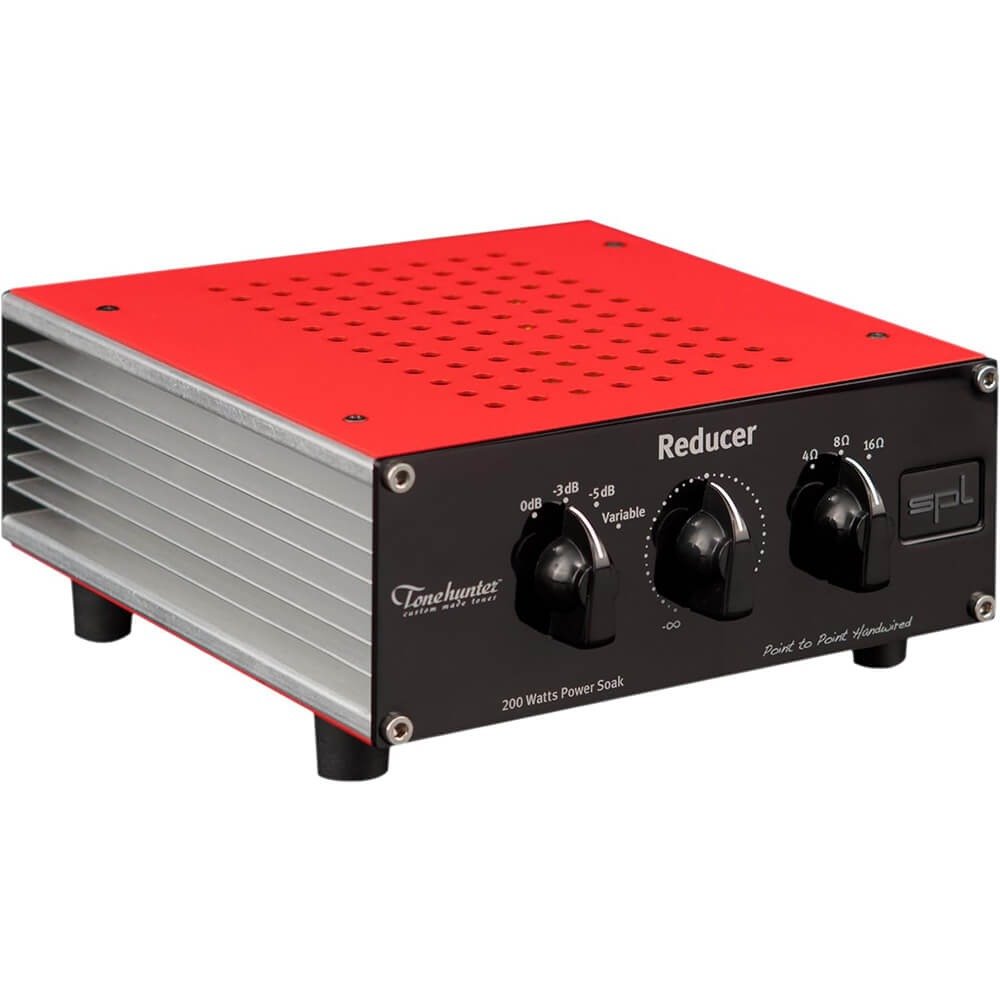

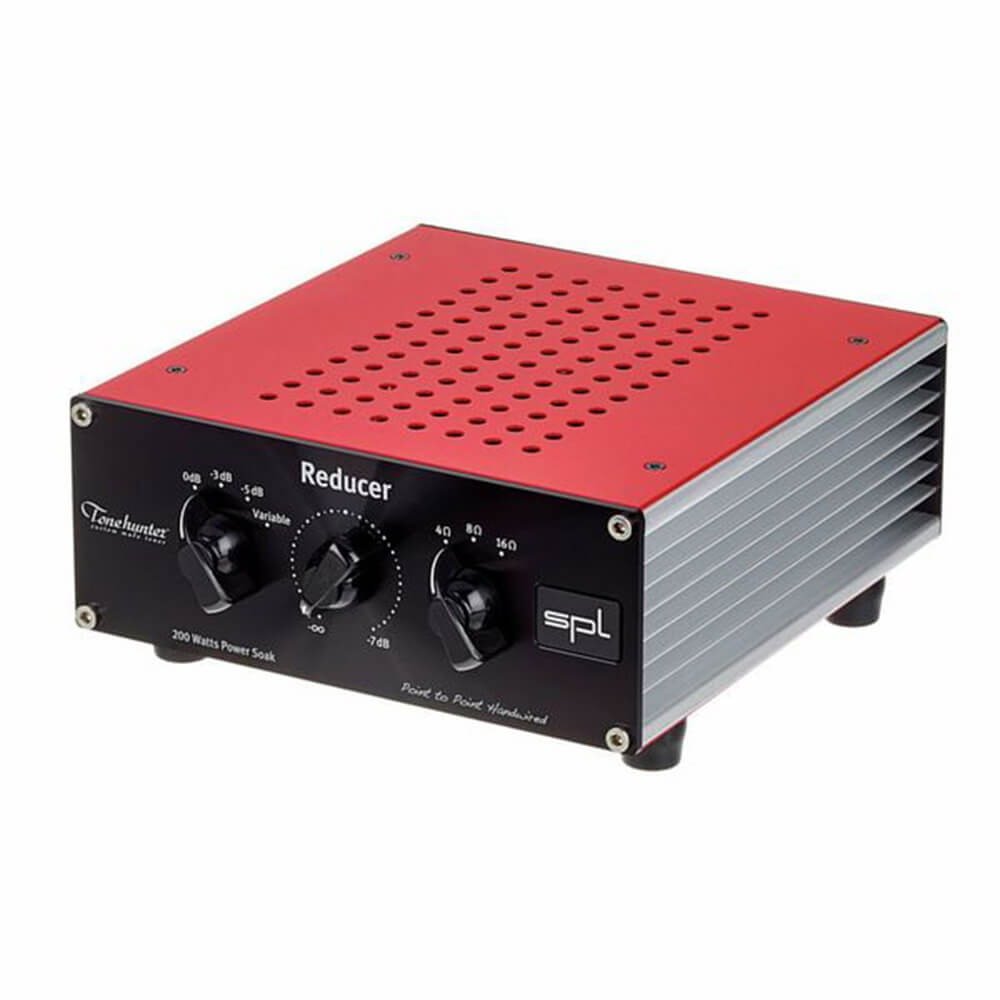

SPL Audio Reducer

Less volume, all tone

The SPL Reducer does exactly what its name implies: it reduces the power output of your guitar or bass amp while retaining the amazing tone you so carefully constructed. This means you may overdrive any type of amp, particularly a tube amp, without bothering the neighbors, bludgeoning your bandmates, or overloading the monitors onstage. The Reducer, like the other SPL power soakers, Transducers, and Cabulator, was created in collaboration with Tonehunter amp experts in Cologne, Germany. If you like your tone but are too loud,recommends using the SPL Reducer.

How Reducer Works

Place the SPL Reducer between your amp head and the speaker cabinet. It transforms the amp’s electrical power into heat, which it dissipates. Reducer is passive, meaning it uses resistors to reduce volume, therefore it does not require an external power supply. Passive power reduction ensures correct sound reproduction without changing the frequency response curve, preserving your tone flawlessly – but at a lesser volume. It allows you to alter the amp output impedance to 4, 8, or 16 Ohms. The early stages of decrease are stepped, however it may then be changed constantly after that.

SPL Reducer

An SPL reducer is typically designed to lower the output volume of an amplifier without altering its tone. This can be particularly useful for achieving cranked-up tube amp sounds at lower volumes, allowing for recording or practicing without excessive noise.

Passive Power Soak

A passive power soak functions similarly, absorbing excess power from the amplifier and allowing it to be driven harder while reducing the output to the speakers. This enables the user to achieve desirable distortion and tonal qualities at lower volume levels.

Key Features

• Impedance Matching: Ensures the soak matches the amp’s output for safe operation.
• Construction: Often built with high-quality components to handle power without degrading tone.
• Simplicity: Many passive designs don’t require power, making them easy to use.

SPL Reducer Power Soak Features at A Glance:

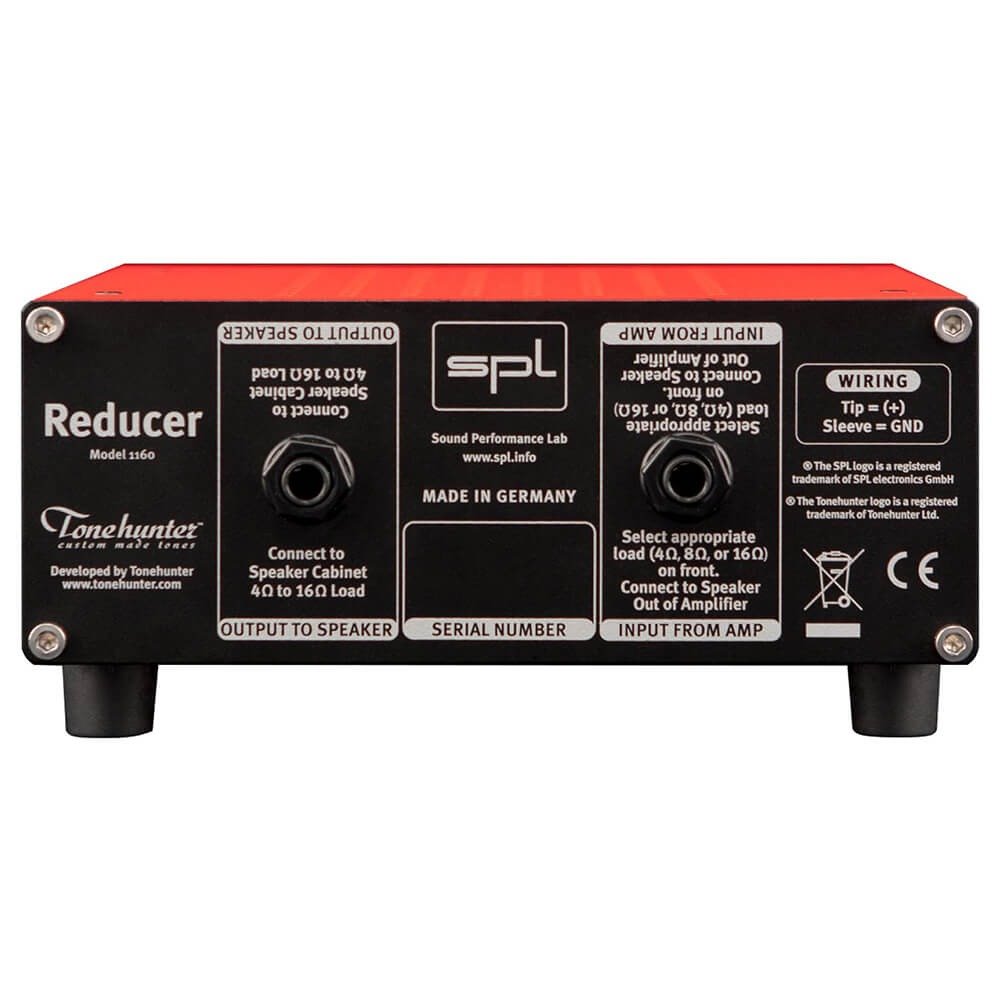

•  The input socket is 1/4″ TS (mono jack).
•  Switchable impedance options include 4, 8, and 16 Ohms.
•  Max input load.
•  At 4 Ohms, 90W RMS/120W Peak.
•  At 8 Ohms, 200W RMS/260W Peak.
•  At 16 Ohms, 160W RMS/180W Peak.
•  The output socket is 1/4″ TS (Mono Jack).
•  Dimensions:
•  Height: 68mm (85mm with feet)
•  Depth: 190mm or 208mm with controls and connections.
•  Width: 179 mm.
•  Weight: 3.97 lbs.
•  Handwired from one location to another.
•  Developed and handmade in Germany.

For audio professionals and enthusiasts who demand precise control over their sound systems without compromising signal integrity, the SPL Audio Reducer provides an essential solution. Whether you are managing high-powered speakers in a studio, live performance, or rehearsal setting, this attenuator allows you to adjust volume levels safely and accurately, ensuring optimal performance and longevity of your equipment. It addresses the common problem of overpowering speakers or amplifiers where volume reduction is necessary without losing tonal quality or introducing noise.

The SPL Audio Reducer is a passive attenuator designed to handle substantial power loads—up to 160 watts RMS at 16 ohms, 200 watts RMS at 8 ohms, and 90 watts RMS at 4 ohms. This means it can comfortably manage powerful amplifier outputs without risk of damage or distortion, providing reliable attenuation for a wide range of professional audio setups. Unlike active devices that require power, its passive nature ensures zero coloration of the audio signal and eliminates any dependency on external power sources, which translates to pure, unaltered sound.

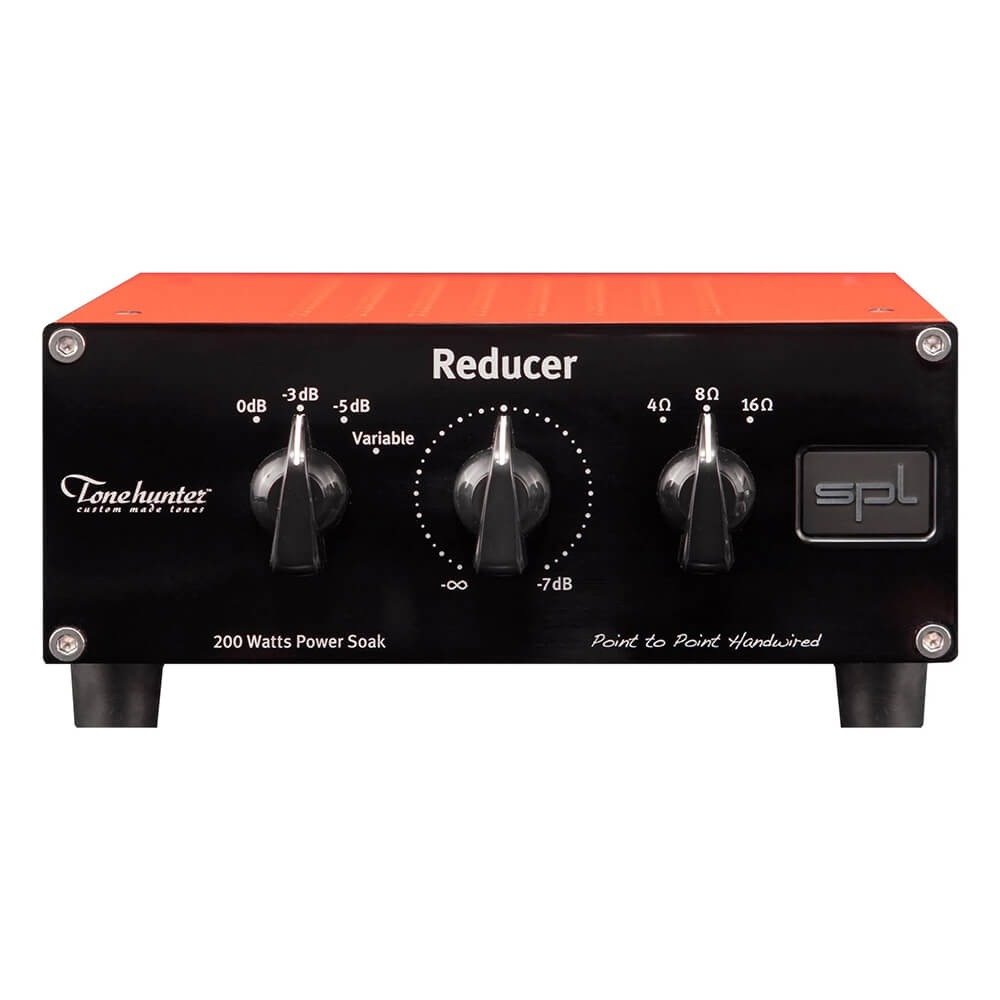

One of the standout features is its variable attenuation capability, ranging from 0 decibels (no reduction) down to infinity (complete mute), with preset attenuation points at -3 dB and -5 dB. This precise control lets you fine-tune the output level, making it ideal for situations where volume must be adjusted delicately to fit the acoustics of a room or to protect sensitive equipment. For the user, this means preserving the integrity of the audio signal while preventing volume spikes that could cause damage or listener fatigue.

The SPL Audio Reducer is equipped with a single 1/4-inch TS input and a corresponding 1/4-inch TS output, making it compatible with standard professional audio gear. Its impedance options of 4, 8, and 16 ohms accommodate a variety of speaker configurations, offering versatility across different setups. Weighing just under 4 pounds, the unit is both sturdy and portable, allowing easy integration into studio racks or gig bags without adding unnecessary bulk.

In practical terms, this device is perfect for live sound engineers who need to reduce stage volume without sacrificing sound quality, home studio owners who want to protect their monitors from excessive power, and recording professionals who require precise level control during tracking and mixing. The passive design ensures zero noise or distortion, crucial in critical listening environments. Its robust power handling guarantees durability even under demanding conditions, making it a long-term investment for anyone serious about sound management.

Priced at ₹48,850, the SPL Audio Reducer offers exceptional value given its build quality, power capacity, and sonic transparency. If you require a reliable, high-performance attenuator that delivers clean, precise volume control across a variety of audio systems, this product will meet and exceed your expectations. With the SPL Audio Reducer, you gain confidence in your sound setup’s safety and fidelity, empowering you to focus on what matters most—delivering outstanding audio experiences.
