What distinguishes the SPL Elector?
SPL ‘s Elector is a high-end preamplifier for analog purists. The Elector is based on the Director Mk2 and is designed purely for processing analog sources, of which it can record up to 6.
The analog purist
The Elector is the perfect preamplifier for the lover of pure analog technology. With motorized, remote volume control, tape monitor path, retro-look-VU-meter and the all superior VOLTAiR technology the Elector brings analog sources to new life.
Milled from solid

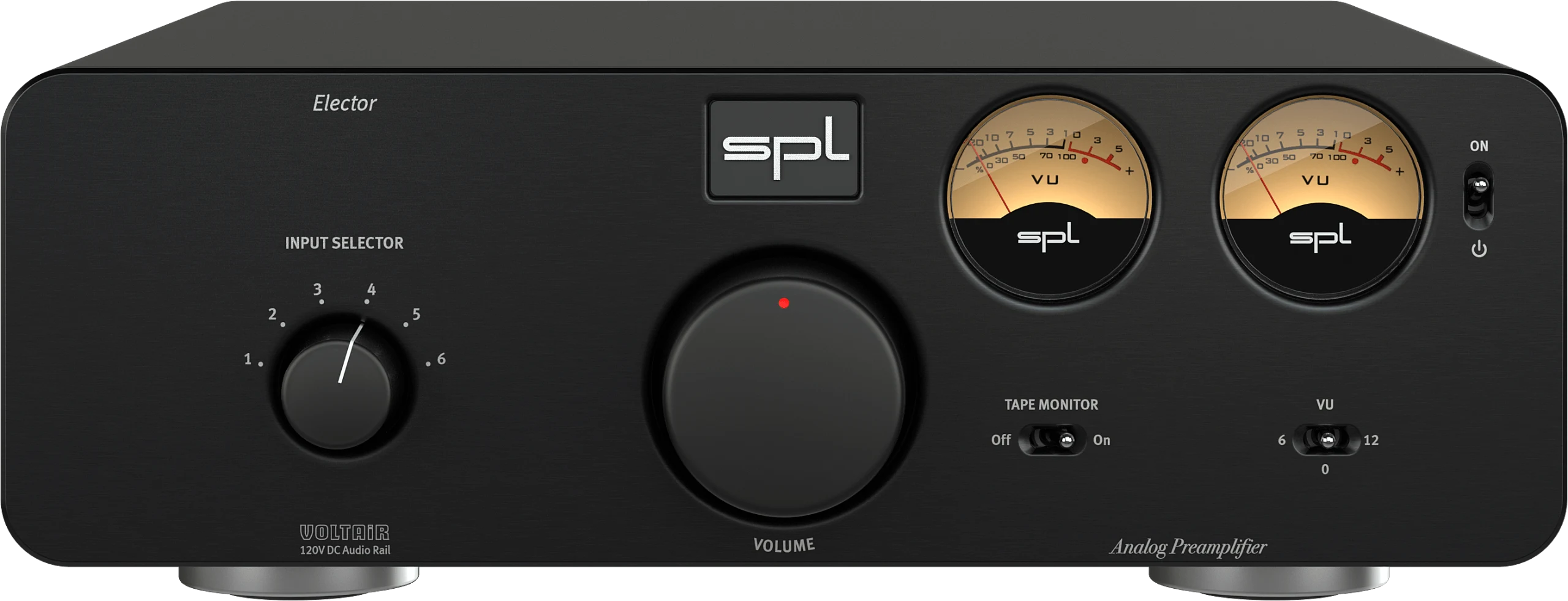

The massive 45mm volume control knob milled from aluminum is a haptic highlight. Its mass together with the motorized Alps RK27 “Big Blue” potentiometer enhances the “spoon in the honey” feeling even further.
The red marker LED ensures good visibility of the volume parameter even in darkened environments.
Remote control
The volume control can be remotely controlled with any infrared remote control.
The Elector learns to communicate with it with the simple push of a button.
Source of joy

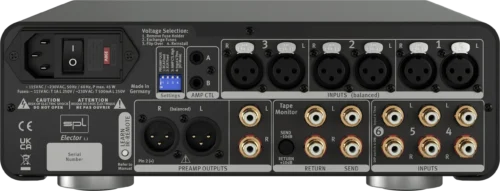

Up to six (6 !) analog stereo sources can be connected to the Elector.

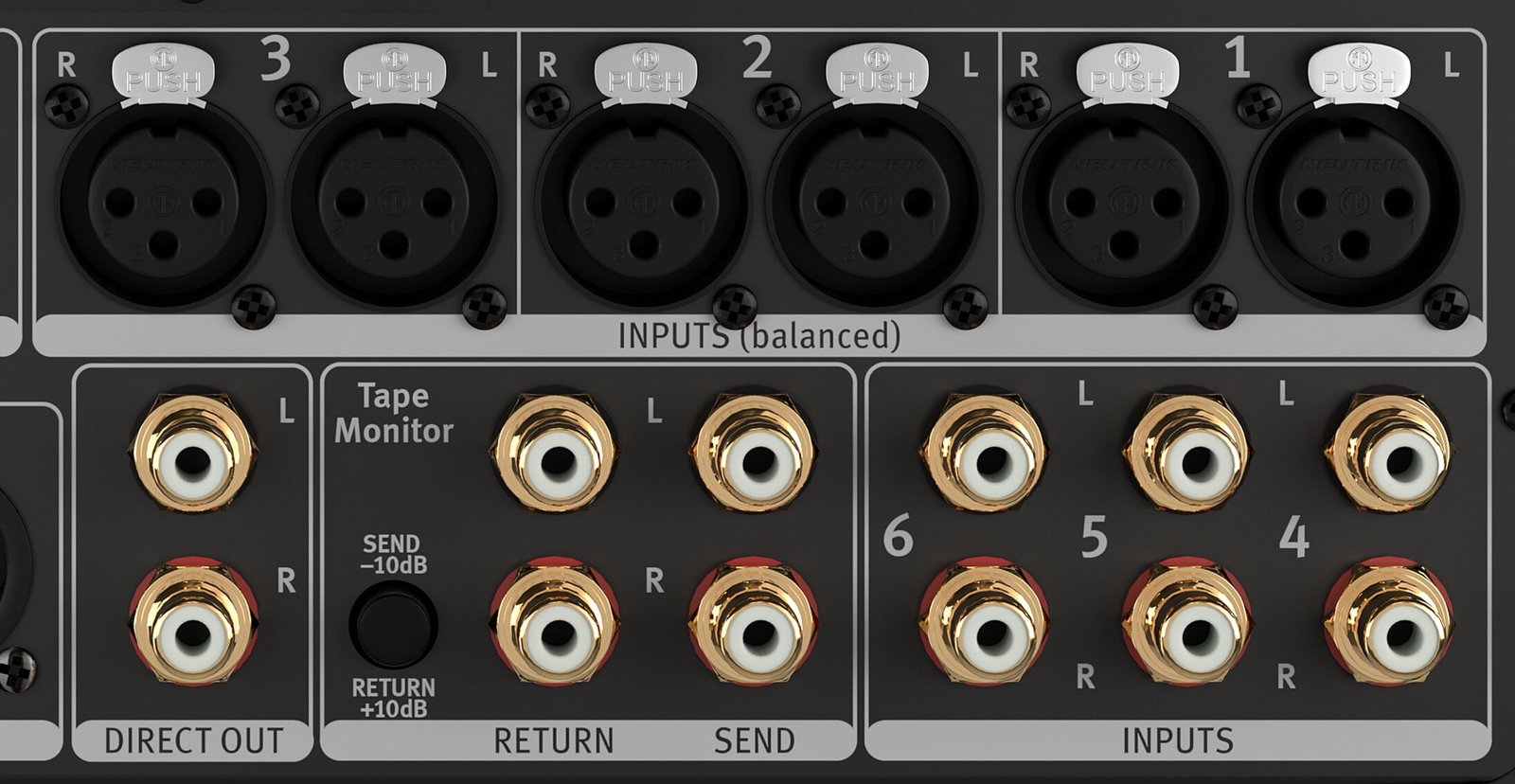

The Elector offers three pairs of balanced inputs with XLR jacks and three standard inputs with gold-plated RCA jacks.

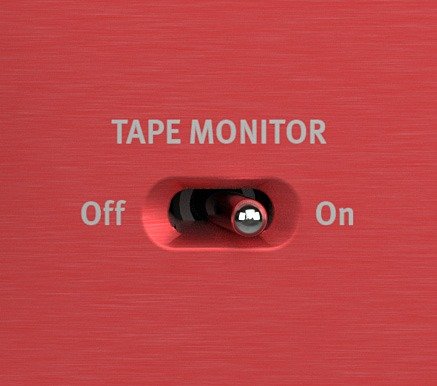

Tape Monitor
A tape monitor circuitry is quite retro.
Who still owns a cassette recorder or a tape machine?
Who else loops in an equalizer?
To put it another way:
Who would like to do it and cannot do it because no manufacturer offers a tape monitor circuit anymore?
Well, those who want can again.
All variable – or Slave Thru?

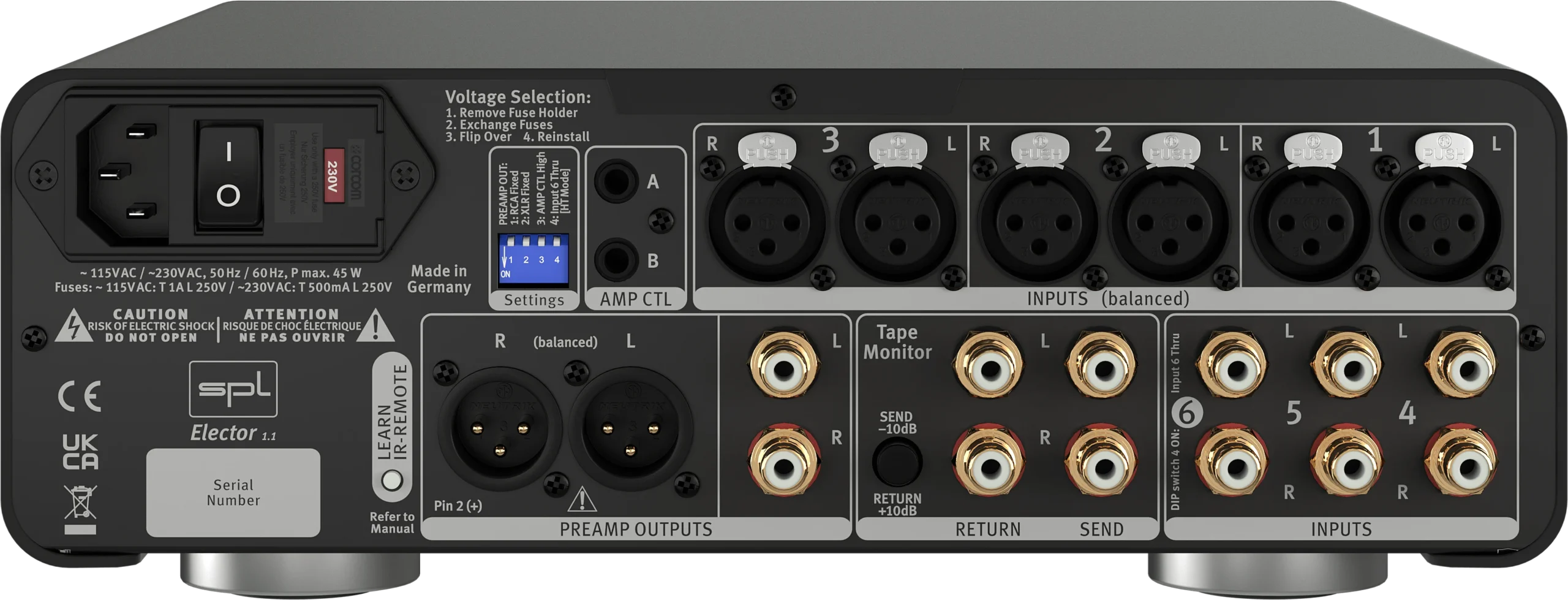

The Elector provides two stereo output pairs for connecting power amplifiers or active loudspeakers.

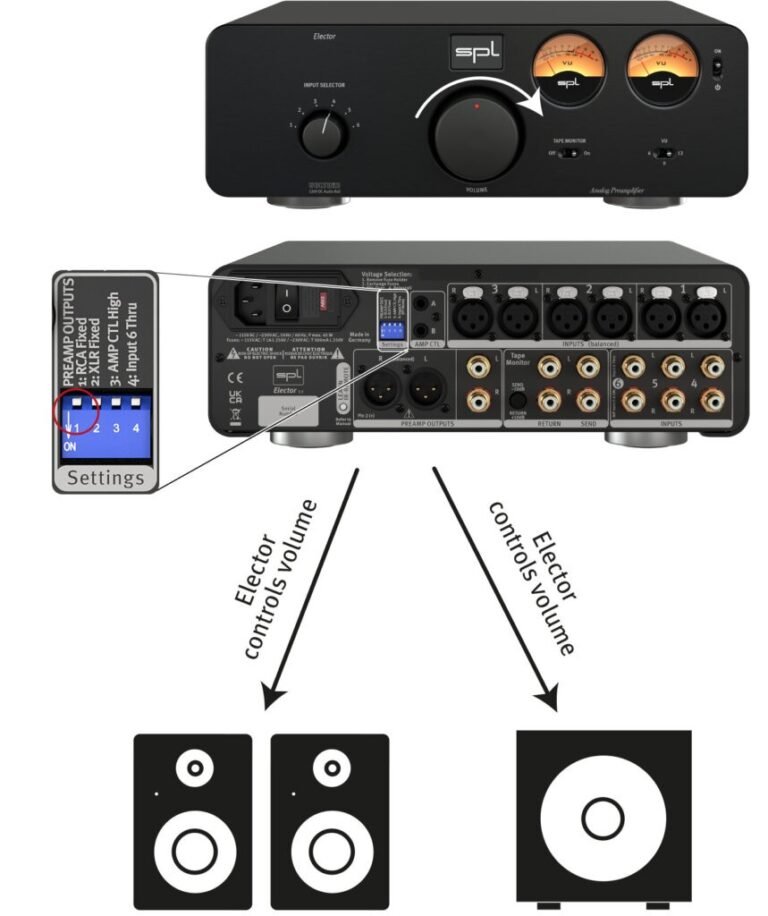

One pair of outputs with XLR, the other with RCA outputs. Both have the same output signal, which is controlled by the big volume control. Thus, a pair of speakers can be fed via one stereo output and a subwoofer via the second stereo output. The playback volume for both stereo outputs is adjusted together via the volume control on the Elector.

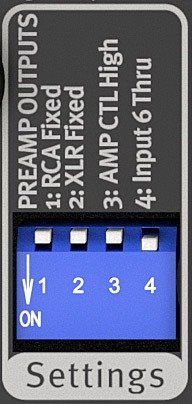

With a DIP switch on the back of the device, the volume control for the RCA and XLR outputs can separately be switched out of the signal path – this makes the respective output a “Slave Thru” output to e.g. connect a headphone amplifier with its own volume control. The volume control of the Elector no longer affects the playback volume of the connected headphone amplifier when a stereo output’s Slave Thru mode is active.
Home Theater Bypass
Since the hardware revision 1.1, the Elector features a Home Theater Bypass function. This allows the Elector to be used in combination with a multi-channel home theater system. The L and R channels of the home theater system can be simply connected to Input 6 of Elector. When the Home Theater Bypass is active (DIP 4), Input 6 is no longer affected by the volume control of the Elector.
Everything under control – AMP CTL

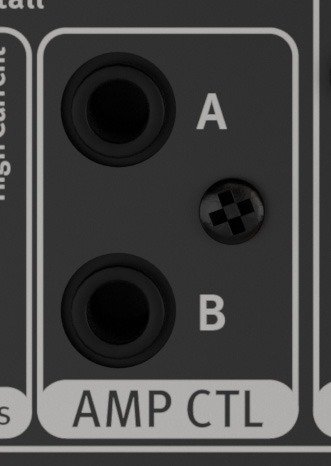

The standby mode of devices with 12V trigger input, can be switched on and off via AMP CTL, together with the Elector. This allows, for example, the SPL Performer s800, Performer m1000 or Performer s1200 power amplifiers to be ideally integrated into the set-up.
Sounds good
With all devices of the Professional Fidelity series we develop not only according to plan, but also by ear. Many important components are installed on the circuit boards using Through-hole technology. This way we can ensure that we can use the best sounding components.
The VOLTAiR Technology
The 120V technology is our reference technology. The 120V technology is unique in the world. It operates at a DC voltage of 120 volts. This is four times that of IC-based semiconductor op-amps. In our Professional Fidelity series, we refer to this unsurpassed technology as VOLTAiR technology.
The highest possible audio quality requires the highest possible audio operating voltage.
The 120V technology works with +/-60 V. To be able to handle such a high voltage, we have developed special proprietary operational amplifiers that can operate with a DC voltage of +/-60 V: the SPL 120V SUPRA operational amplifiers. This high voltage would destroy conventional components and operational amplifiers.
The 120V technology achieves exceptional technical specifications and sonic benefits. Technically, in terms of dynamic range, signal-to-noise ratio and headroom. Sonically, in terms of richness of detail and an absolutely relaxed listening experience.
By the way, the “120V” in the name of the technology has nothing to do with the local mains voltage from the mains power socket. This is about the operating voltage inside the device with which the audio signals are processed.
The mains voltage from the mains power socket is transformed to the required secondary voltage in the device’s internal linear power supply with toroidal transformer. Rectifiers convert this AC voltage into DC voltage required in the audio device.
Comparison
Most audio devices work with an internal operating voltage of +/-15 volts and can thus process a maximum input level of +21.5 dBu. If a DAC, for example, has an output level of +22 dBu at 0 dBFS, level peaks of the music material would already cause overloads in the input stage of the device. All components in the audio device often operate at their limits. The result is an unsteady sound that causes stress and faster ear fatigue.
SPL devices with VOLTAiR technology can handle input levels of +32.5 dBu thanks to the higher internal operating voltage of +/- 60 volts – thus offering 12 dB more headroom. All components consequently operate continuously in the optimum operating range. The result is a very pleasant, natural and relaxed sound experience. So you can enjoy your music in every detail.
These diagrams clearly show the superiority of the VOLTAiR technology in comparison to other circuits with lower, common operating voltages.
| Analog inputs & output | Maximum input & output gain : 32.5 dBu |
|---|---|
| Mains Power Supply | Mains voltage (selectable, see fuse chamber) : 230 V AC / 50; 115 V AC / 60 Hz |
| Internal Linear Power Supply with Shielded Toroidal Transformer | Operating voltage for analog audio : +/- 60 V |
| Dimensions & Weight | W x H x D (width x height incl. feet x depth) : 278 x 100 x 300 mm , 11 x 4 x 11.81 inch |
